Top » Piese de schimb » PIESE DEWALT » DCP580 Type 1

RINDEA DEWALT DCP580 Type 1
[DCP580 Type 1]
RINDEA DEWALT DCP580 Type 1
Click pentru a mari
Imagini suplimentare
RINDEA DEWALT DCP580 Type 1
Click pentru a mari
RINDEA DEWALT DCP580 Type 1
Click pentru a mari
RINDEA DEWALT DCP580 Type 1
Click pentru a mari

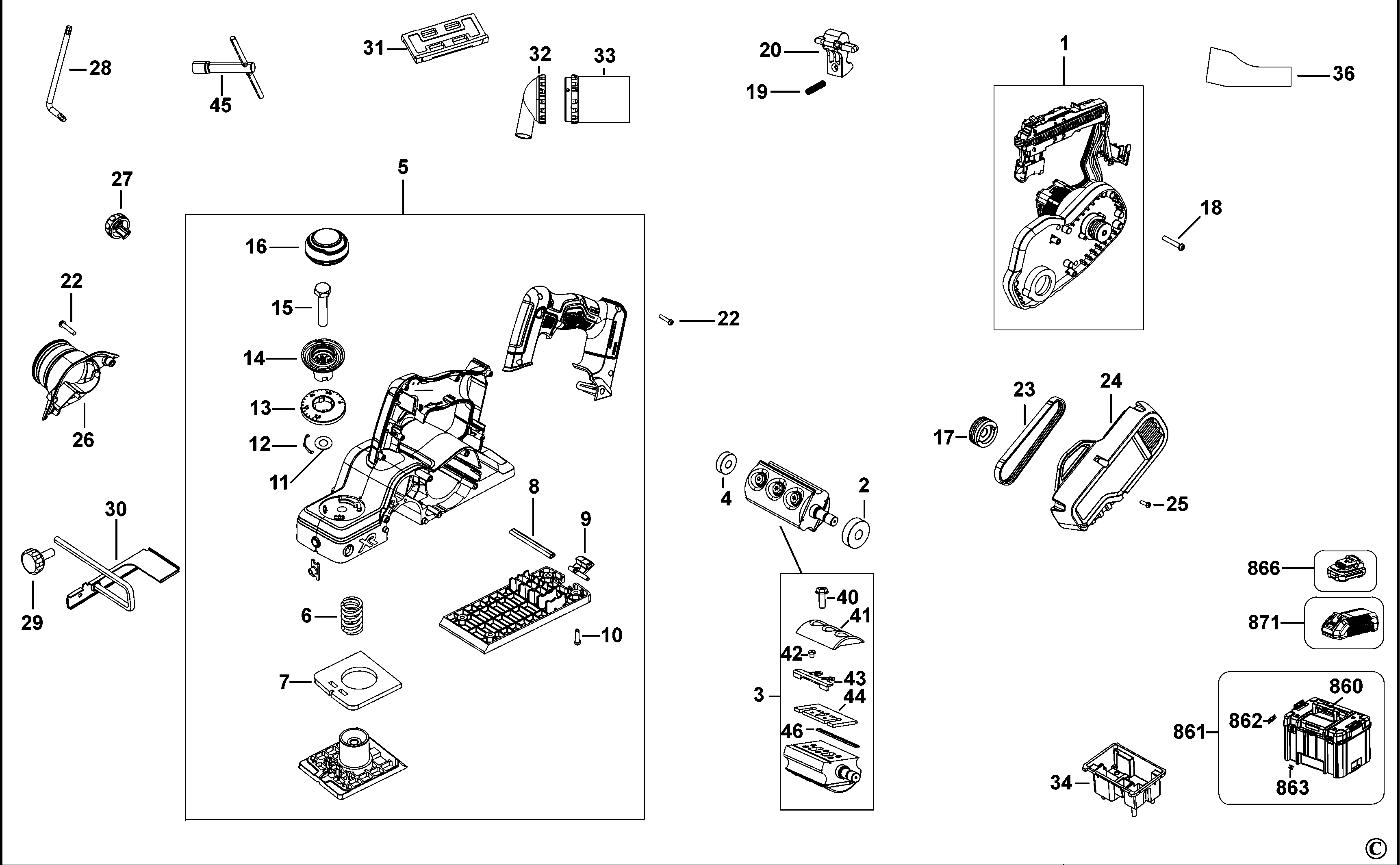

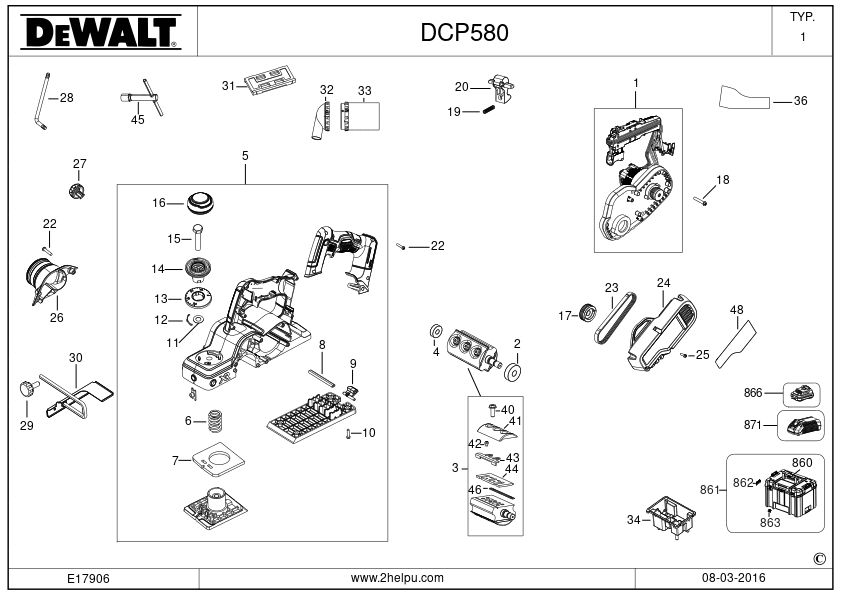

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 N467611 - Indisponibil
1 1 1 MOTOR & SWITCH SA (N774128) 67932 RON
2 1 1 BEARING (N525396) 1933 RON
2 1 1 BEARING (330003-61) 3268 RON
3 1 1 DRUM SA (N467508) 42426 RON
3 1 1 DRUM SA (NA751011) 48037 RON
4 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
5 1 1 FSO SHOE (N467614) 40734 RON
5 1 1 SHOE (NA751072) 42426 RON
6 1 1 SPRING COMPRESSION (663305-00) 114 RON
7 1 1 SEAL (N443822) 588 RON
8 1 2 SLEEVE (N437006) 588 RON
9 1 1 INSERT (N442562) 588 RON
10 1 4 SCREW (N017839) 558 RON
11 1 1 WASHER (663253-00) 588 RON
12 1 1 LEAF SPRING (663254-00) 1933 RON
13 1 1 SCALE (N445570) 2182 RON
14 1 1 HANDLE (N413906) 114 RON
15 1 1 BOLT (N424992) 588 RON
16 1 1 KNOB (N413909) 2182 RON
17 1 1 N442576 - Indisponibil
17 1 1 PULLEY (NA206067) 3954 RON
18 1 5 SCREW (562097-10) 558 RON
19 1 1 SPRING (N446842) 588 RON
20 1 1 BUTTON LOCK-OFF (N416042) 82 RON
22 1 10 SCREW PLASTITE (682211-00) 781 RON
23 1 1 BELT (N421858) 6688 RON
24 1 1 BELT COVER (N413908) 2182 RON
25 1 2 SCREW (N359062) 588 RON
25 1 2 SCREW (N469371) 588 RON
25 1 2 SCREW (330045-01) 558 RON
26 1 1 DUST PORT (N416443) 1630 RON
27 1 1 CAP (N420026) 668 RON
28 1 1 000000-11 - Indisponibil
28 1 1 N444089 - Indisponibil
29 1 1 SCREW (N434189) 82 RON
30 1 1 FENCE (N425643) 4827 RON
31 1 1 GAUGE (663315-00) 1318 RON
32 1 1 DEFLECTOR (N455892) 4355 RON
33 1 1 BAG SA (N455893) 10241 RON
34 1 1 INSERT (N439783) 741 RON
36 1 1 N452942 - Indisponibil
36 1 1 RATING LABEL (NA049830) 668 RON
40 1 6 BOLT-M6x16 (N424801) 588 RON
40 1 6 BOLT (NA564134) 588 RON
41 1 1 BLADE CLAMP (NA622958) 3268 RON
42 1 4 SCREW (N444264) 588 RON
43 1 2 ADJUSTER (N424765) 668 RON
44 1 2 N556874 - Indisponibil
44 1 2 N424768 - Indisponibil
44 1 1 RETAINER (NA622956) 6688 RON
45 1 1 N460300 - Indisponibil
45 1 1 WRENCH SPECIAL (NA722019) 3268 RON
46 1 1 BLADE SA (N455909) 16689 RON
48 1 1 BRAND LABEL (N452957) 588 RON
860 1 1 HANDLE (H1400198008) 2347 RON
860 1 1 HANDLE (H1400196) 2347 RON
860 1 1 H1400196008 - Indisponibil
861 1 1 KITBOX (N445186) 39318 RON
862 1 1 LATCH (N409477) 114 RON
862 1 2 LATCH (H1500082520) 1117 RON
863 1 2 LATCH (P910190) 3466 RON
866 1 1 BATTERY 18V -5.0AH -90WH (N394624) 104961 RON
871 1 1 N450536 - Indisponibil
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
