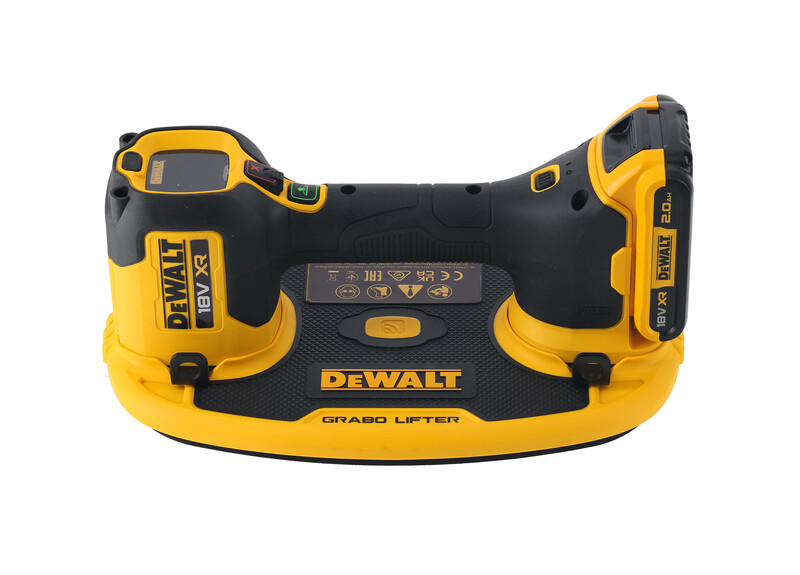

RIDICATOR CU VACUUM DEWALT DCE590D1T Type 1
[DCE590D1T Type 1]

Imagini suplimentare

Click pentru a mari

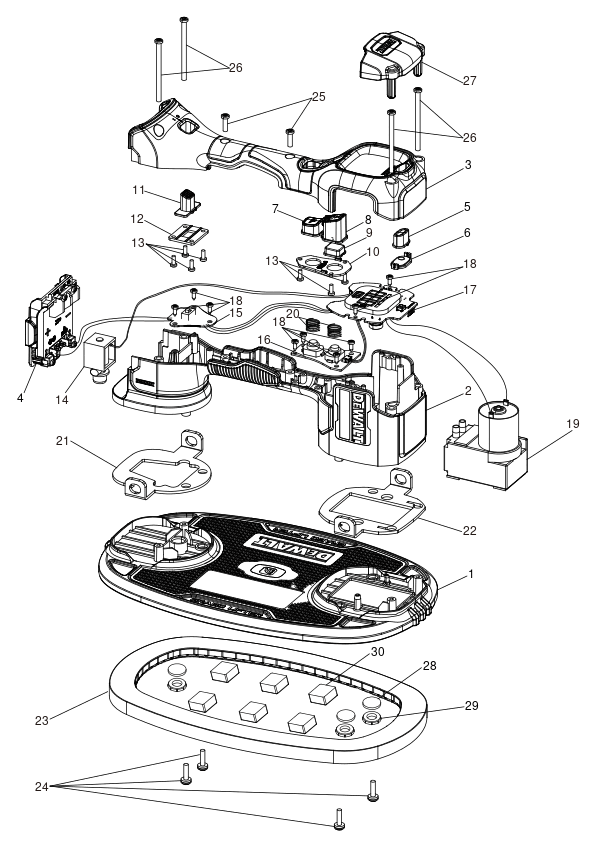

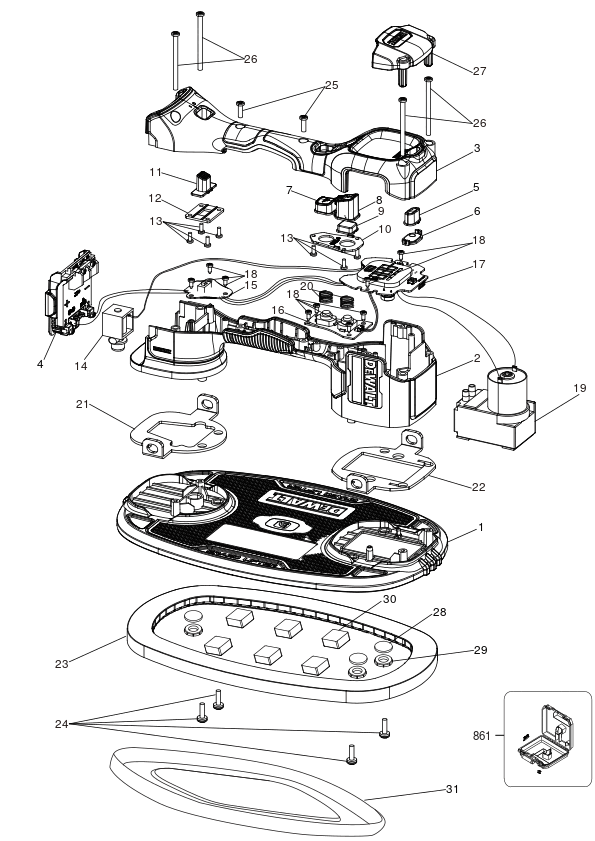

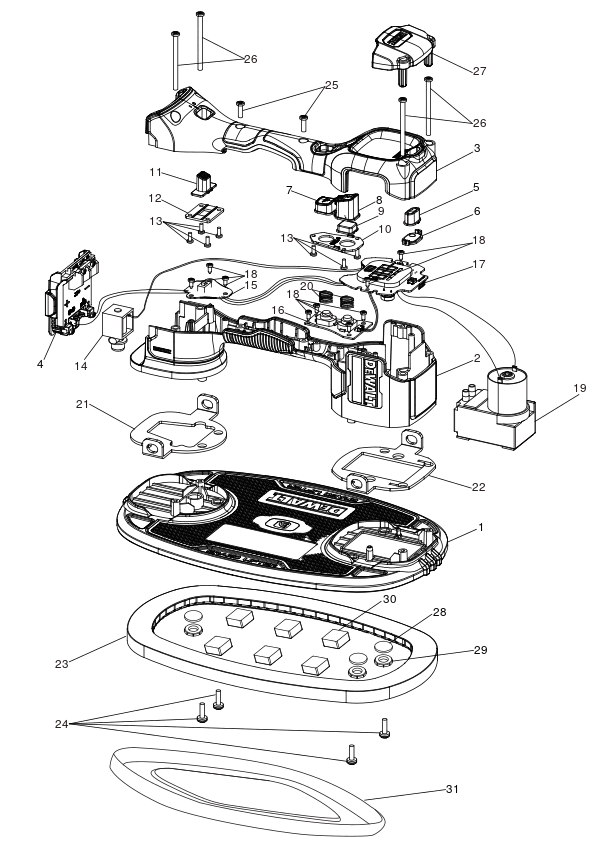

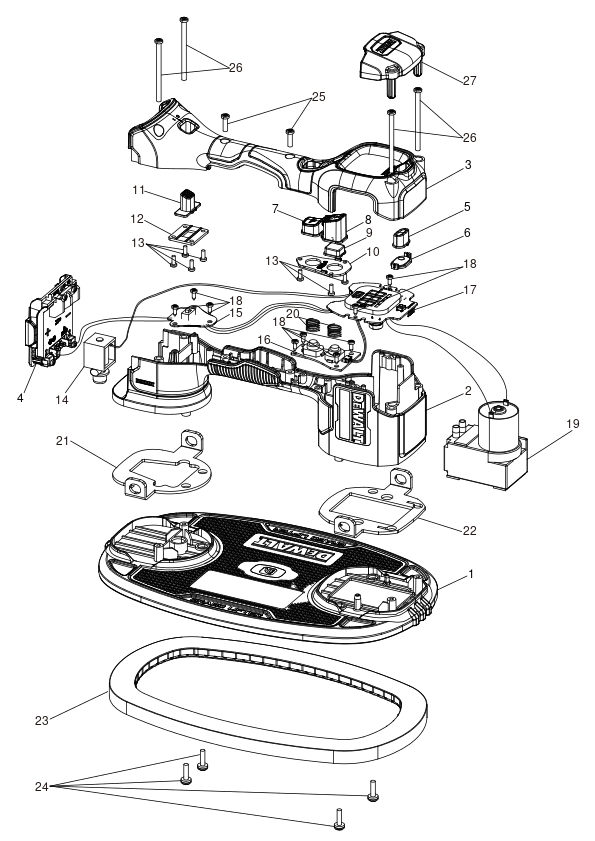

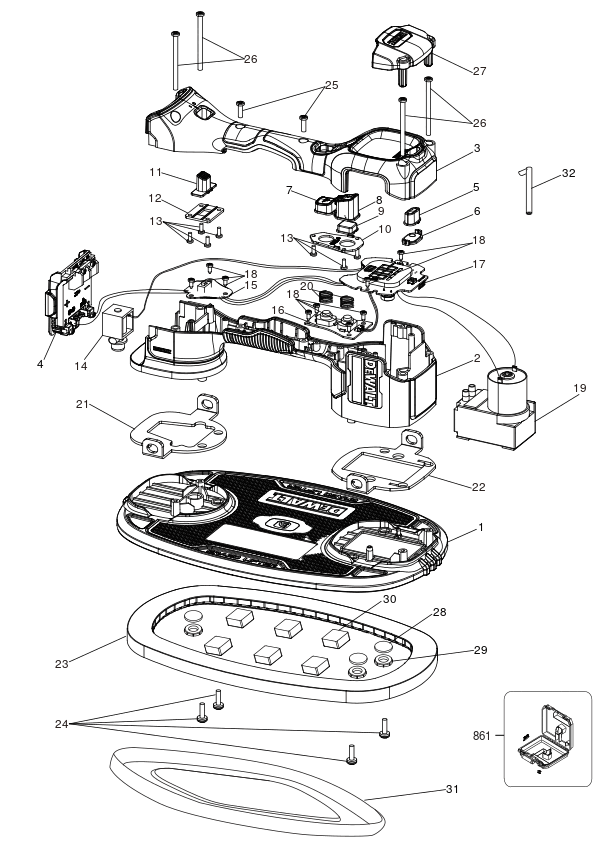

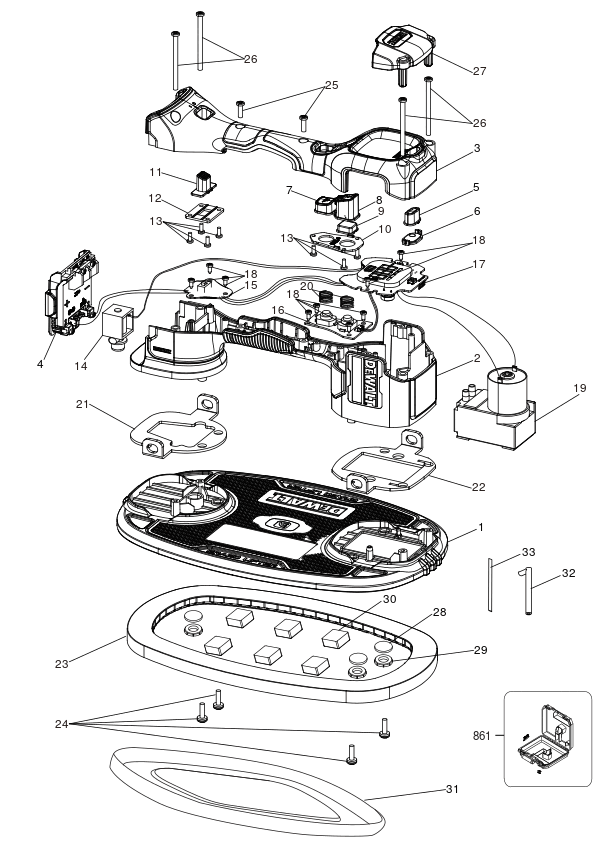

LISTA DE COMPONENTE:

Numar	Versiune	Buc. in schema	Denumire	Pret/buc (Tva inclus)	Cumpara
1	1	1	BASE (NA593296)	604⁵¹ RON
2	1	1	HANDLE (NA593299)	393¹⁸ RON
3	1	1	HANDLE (NA593295)	323²⁷ RON
4	1	1	HOLDER (NA593301)	123⁶¹ RON
5	1	1	BUTTON (NA425337)	6⁶⁸ RON
6	1	1	BLOCK (NA425342)	9⁴⁴ RON
7	1	1	BUTTON (NA425335)	21⁸² RON
8	1	1	BUTTON (NA584822)	27⁹⁶ RON
9	1	1	RELEASE-ACTUATOR (NA425334)	6⁶⁸ RON
10	1	1	COVER (NA425336)	8² RON
11	1	1	BUTTON (NA425338)	8² RON
12	1	1	BLOCK (NA425339)	8² RON
13	1	7	SCREW (NA583743)	6⁶⁸ RON
14	1	1	VALVE (NA636427)	272⁸⁷ RON
15	1	1	PCB (NA425349)	185⁶⁸ RON
16	1	1	PCB (NA425347)	202¹⁶ RON
17	1	1	PCB (NA620769)	1088⁹ RON
18	1	9	SCREW (NA589599)	8² RON
19	1	1	MOTOR (NA589541)	679³² RON
20	1	2	SPRING (NA428061)	5⁸⁸ RON
21	1	1	HOOK RIGHT (NA425341)	154⁶⁹ RON
22	1	1	HOOK LEFT (NA425340)	154⁶⁹ RON
23	1	1	SEAL SA (NA425315)	462⁴⁷ RON
24	1	4	SCREW (NA589550)	39⁵⁴ RON
25	1	2	SCREW (NA425352)	6⁶⁸ RON
26	1	4	SCREW (NA425350)	21⁸² RON
27	1	1	COVER (NA425364)	39⁵⁴ RON
27	1	1	NB357850	-	Indisponibil
28	1	3	AIR FILTER (NA425316)	16³⁰ RON
29	1	3	HOLDER (NA425318)	27⁹⁶ RON
30	1	6	BLOCK (NA425319)	74¹ RON
31	1	1	PROTECTOR (NA486018)	154⁶⁹ RON
32	1	1	NA425323	-	Indisponibil
33	1	1	NA425322	-	Indisponibil
861	1	1	KITBOX (N475700)	185⁶⁸ RON
