POLIZOR UNGHIULAR MIC DEWALT SM125 Type 3
[SM125 Type 3]
POLIZOR UNGHIULAR MIC DEWALT SM125 Type 3
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR MIC DEWALT SM125 Type 3
Click pentru a mari

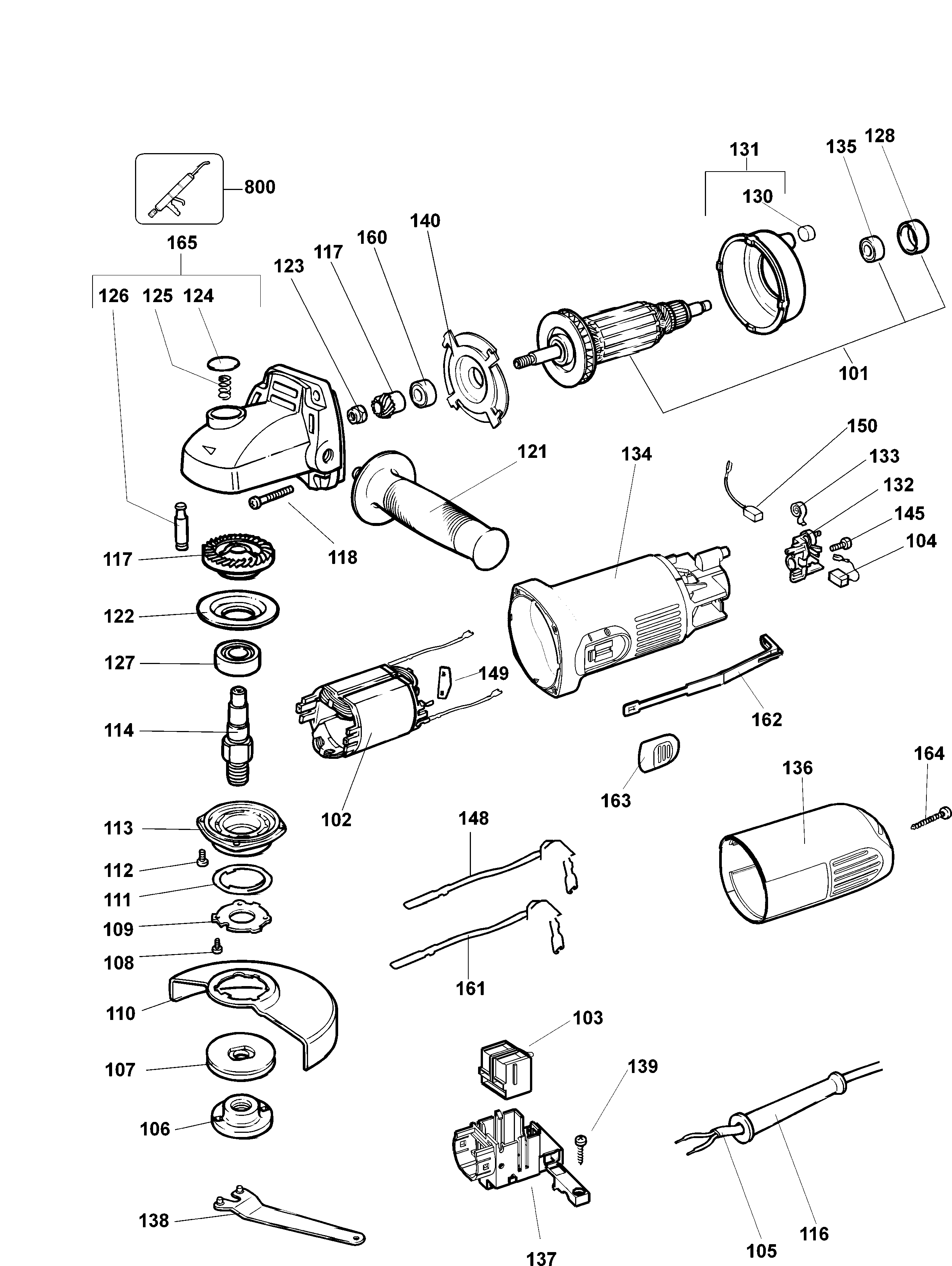

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 ARMATURE SA (393921-09) 23598 RON
102 1 1 FIELD 230V DW818/DW824 (395990-00) 15993 RON
104 1 2 BRUSH 230V CUT OFF (949646-02) 3018 RON
105 1 1 938380-16 - Indisponibil
105 1 1 CABLE (562226-08) 6821 RON
106 1 1 FLANGE M14 (403430-00) 6821 RON
107 1 1 INNER FLANGE (391969-00) 1788 RON
108 1 3 Screw (Wheel Guard) 1x3 (562160-00) 558 RON
109 1 1 Flange For Wheel Guard (944674-00) 781 RON
109 1 1 FLANGE (605415-00) 781 RON
110 1 1 GUARD (944586-00) 2795 RON
111 1 1 Guard Spring (393576-00) 781 RON
112 1 4 Screw For Gear Case Cover (M4 x 10) (562160-01) 558 RON
112 1 4 SCREW (330045-46) 558 RON
113 1 1 GEARCASE COVER (945589-00) 3466 RON
113 1 1 Gear Case Cover DW831 (390521-00) 3018 RON
114 1 1 945297-00 - Indisponibil
116 1 1 CORD PROTECTOR (401088-01) 781 RON
117 1 1 GEAR & PINION (945295-02) 10512 RON
118 1 4 SCREW (562097-01) 558 RON
121 1 1 HANDLE SIDE SA (945597-00) 1452 RON
122 1 1 FLANGE WS45 (403156-00) 781 RON
123 1 1 Nut (Pinion fixing) (945292-00) 558 RON
124 1 1 BUTTON (944574-00) 558 RON
125 1 1 SPRING (562210-00) 558 RON
126 1 1 LOCK PIN (944571-00) 893 RON
127 1 1 BEARING (949625-02) 7940 RON
127 1 1 Bearing DW801 (605040-22) 2347 RON
128 1 1 SLEEVE BEARING (930275-00) 558 RON
131 1 1 SA Baffle (401635-00) 781 RON
132 1 2 BRUSH HOLDER DW818 (395985-01) 1117 RON
133 1 2 TORSION SPRING (562204-00) 558 RON
134 1 1 395243-07 - Indisponibil
135 1 1 BEARING (390821-00) 5591 RON
135 1 1 BEARING (605040-02) 1788 RON
136 1 1 394938-03 - Indisponibil
136 1 1 END CAP (392038-03) 2795 RON
137 1 1 SWITCH SUPPORT (569625-00) 1452 RON
137 1 1 SWITCH SUPPORT (5140000-13) 190 RON
138 1 1 Wrench(Spanner) DW831 (401680-00) 2124 RON
139 1 1 Screw DW201 171 (562097-05) 558 RON
140 1 1 Fan Flange (401622-01) 105 RON
145 1 4 Screw For Brush Holder Assy.(4.2 x 13) (562097-00) 558 RON
149 1 2 PAD (402489-00) 558 RON
160 1 1 390821-01 - Indisponibil
160 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
162 1 1 LINK WS31 (569626-01) 1117 RON
162 1 1 LINK (611737-00) 893 RON
162 1 1 LINK (611737-01) 781 RON
163 1 1 BUTTON (569624-01) 781 RON
164 1 1 SCREW (562097-13) 558 RON
165 1 1 945303-02 - Indisponibil
165 1 1 SERVICE KIT (610704-00) 6821 RON
800 1 1 GREASE (286436-00) 70239 RON
