Top » Piese de schimb » PIESE DEWALT » DWE46106 Type 1

POLIZOR UNGHIULAR MIC DEWALT DWE46106 Type 1
[DWE46106 Type 1]
POLIZOR UNGHIULAR MIC DEWALT DWE46106 Type 1
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR MIC DEWALT DWE46106 Type 1
Click pentru a mari
POLIZOR UNGHIULAR MIC DEWALT DWE46106 Type 1
Click pentru a mari
POLIZOR UNGHIULAR MIC DEWALT DWE46106 Type 1
Click pentru a mari

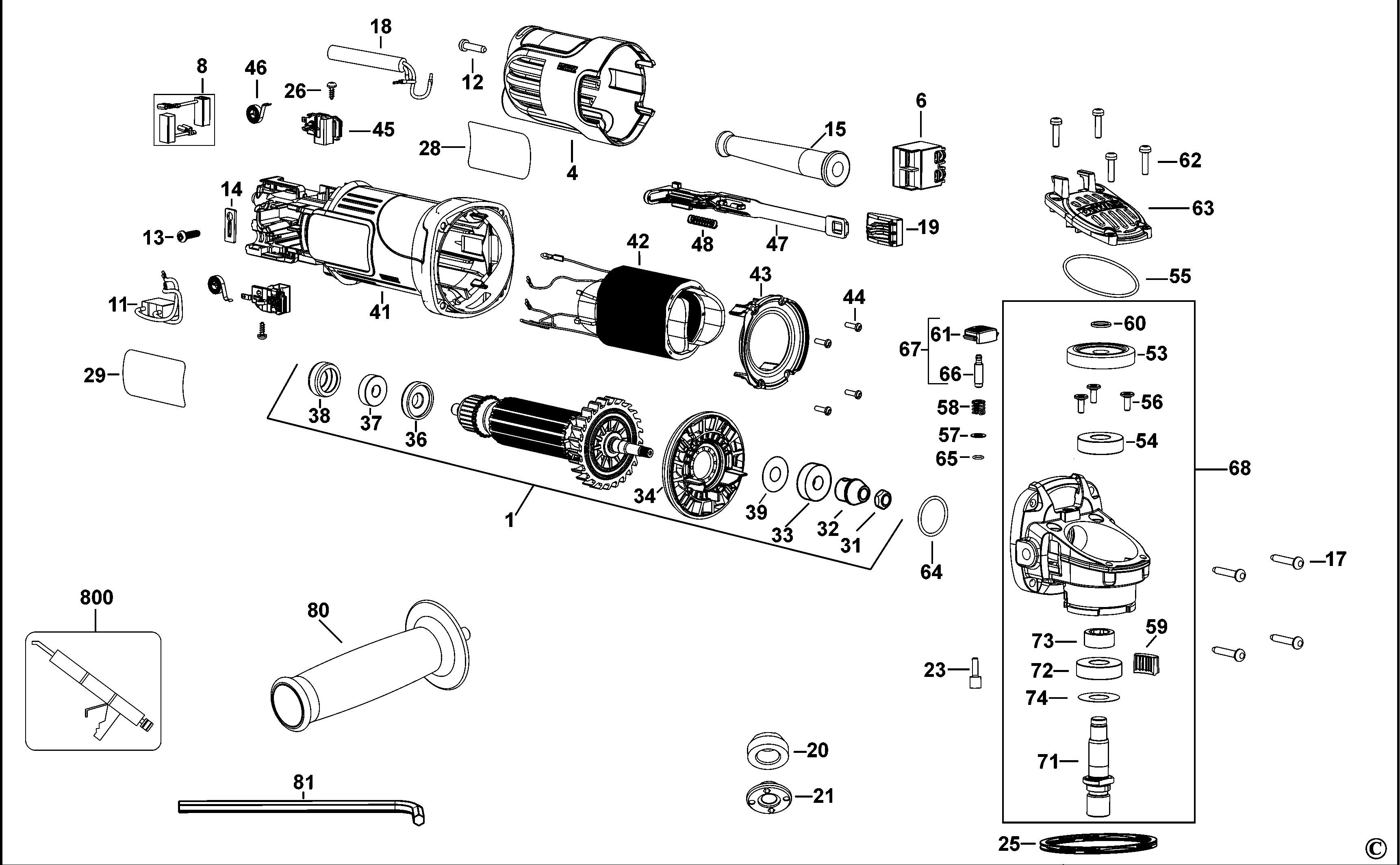

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE 230V (N389433) 23598 RON
1 1 1 ARMATURE SA (NA160492) 42426 RON
4 1 1 HOUSING (N115132) 2347 RON
6 1 1 N442171 - Indisponibil
6 1 1 SWITCH (NA283662) 15469 RON
8 1 1 BRUSH PAIR (N183725) 3466 RON
8 1 1 BRUSH PAIR (NA160502) 5370 RON
11 1 1 CAPACITOR SA (N442344) 2182 RON
12 1 1 SCREW (N017839) 558 RON
13 1 1 Screw For Brush Holder Assy.(4.2 x 13) (562097-00) 558 RON
14 1 1 CORD CLAMP (619328-00) 588 RON
15 1 1 N542553 - Indisponibil
15 1 1 CORD PROTECTOR (N918736) 668 RON
17 1 4 SCREW (330065-31) 558 RON
18 1 1 CORDSET (EURO) (N133090) 4472 RON
19 1 1 BUTTON (N097844) 558 RON
20 1 1 INNER FLANGE (N654478) 3268 RON
21 1 1 OUTER FLANGE (N666474) 3954 RON
23 1 1 SCREW (N130031) 558 RON
25 1 1 WASHER SPRING (N135116) 893 RON
26 1 2 SCREW (593478-00) 558 RON
28 1 1 BRAND LABEL (N149175) 558 RON
29 1 1 RATING PLATE (N819741) 588 RON
31 1 1 NUT (604484-00) 558 RON
32 1 1 PINION (N153125) 2347 RON
33 1 1 BEARING (N175104) 1788 RON
34 1 1 BAFFLE (N132042) 781 RON
36 1 1 WASHER (N101228) 558 RON
37 1 1 BEARING (N130916) 1229 RON
38 1 1 SLEEVE (641823-00) 558 RON
39 1 1 WASHER (N213812) 558 RON
41 1 1 FIELDCASE (N115131) 4472 RON
42 1 1 FIELD 230V (N232482) 15993 RON
42 1 1 FIELD SA (NA160510) 32327 RON
43 1 1 BAFFLE (N132864) 781 RON
44 1 4 SCREW PLSTC THD FORM M3X9 T10 (330065-25) 558 RON
45 1 2 BRUSHBOX (N097702) 105 RON
46 1 2 SPRING (N097703) 558 RON
47 1 1 LINK (N117648) 781 RON
48 1 1 SPRING (N093410) 558 RON
53 1 1 GEAR (N153126) 3466 RON
54 1 1 Bearing Ball CWMFG (605040-24) 190 RON
55 1 1 O RING (N094024) 558 RON
56 1 3 SCREW (N118088) 558 RON
57 1 1 WASHER BEARING BLOCK (N447838) 588 RON
58 1 1 SPRING (N092954) 558 RON
59 1 1 INSERT (N126708) 781 RON
60 1 1 RETAINING RING (444793-00) 558 RON
61 1 1 BUTTON (N126105) 558 RON
62 1 4 SCREW (N122904) 558 RON
63 1 1 GEARCASE COVER (N116180) 781 RON
64 1 1 O RING (N119639) 558 RON
65 1 1 O RING (N094012) 558 RON
66 1 1 SPINDLE LOCK (N114592) 781 RON
67 1 1 SPINDLE LOCK (N181767) 781 RON
68 1 1 GEARCASE SA (N232479) 1891 RON
68 1 1 GEARCASE SA (NA160526) 24962 RON
71 1 1 SPINDLE (N110057) 3466 RON
72 1 1 Bearing Ball CWMFG (605040-24) 190 RON
73 1 1 SLEEVE (N095815) 781 RON
74 1 1 Slinger (638229-00) 558 RON
80 1 1 Handle Side(945597-00) DW803/801 (562211-00) 2347 RON
81 1 1 HEX KEY 6 MM (N107295) 781 RON
101 1 1 DUST PORT (N645894) 3268 RON
102 1 1 COVER (N651615) 1318 RON
103 1 1 CLAMSHELL HALF (N645891) 6688 RON
104 1 1 CLAMSHELL HALF (N645890) 5370 RON
105 1 1 SPRING (N646433) 668 RON
106 1 1 PIN (N645896) 1933 RON
107 1 1 WASHER (N743974) 588 RON
108 1 1 Washer Lock (098197-10) 558 RON
109 1 1 Mach screw (153778-01) 2347 RON
110 1 1 BACKPLATE (N646437) 2556 RON
111 1 1 STRAP (N646443) 4355 RON
112 1 1 SCREW (631609-03) 558 RON
113 1 10 SCREW (90611830) 588 RON
114 1 2 SCREW (N530541) 588 RON
114 1 10 N813648 - Indisponibil
115 1 3 SCREW PLASTIC THREAD FORM M3.5*16 T15 (330019-66) 558 RON
116 1 8 PLASTIC SCREW (N760650) 588 RON
117 1 1 CLAMSHELL HALF (N659081) 3268 RON
118 1 1 CLAMSHELL HALF (N645892) 3954 RON
119 1 2 NUT (N116219) 588 RON
120 1 1 WINDOW (N647700) 944 RON
121 1 2 SCREW (478455-00) 588 RON
122 1 1 SPRING (N646434) 588 RON
123 1 1 LATCH BUTTON (N645899) 668 RON
124 1 1 PIN (N646432) 588 RON
125 1 1 SPRING (N770509) 588 RON
126 1 1 LOCK HOOK (N645897) 4355 RON
127 1 1 STRAP (N646427) 3954 RON
128 1 1 LATCH (N646444) 5370 RON
129 1 1 BRACKET (N646430) 944 RON
130 1 1 KNOB (N646428) 668 RON
131 1 1 SHOE (N645902) 4355 RON
132 1 4 CLIP (386957-00) 558 RON
133 1 4 WHEEL (N703486) 668 RON
134 1 4 WASHER (N774538) 588 RON
135 1 2 AXLE (N703485) 944 RON
136 1 1 INNER FLANGE (N654478) 3268 RON
137 1 1 OUTER FLANGE (N666474) 3954 RON
138 1 1 INNER FLANGE (N665586) 3268 RON
139 1 1 OUTER FLANGE (N665610) 3268 RON
141 1 1 LABEL (N456231) 588 RON
142 1 3 SCREW (388405-00) 558 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
