Top » Piese de schimb » PIESE DEWALT » DWE46105 Type 1

POLIZOR UNGHIULAR MIC DEWALT DWE46105 Type 1
[DWE46105 Type 1]
POLIZOR UNGHIULAR MIC DEWALT DWE46105 Type 1
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR MIC DEWALT DWE46105 Type 1
Click pentru a mari

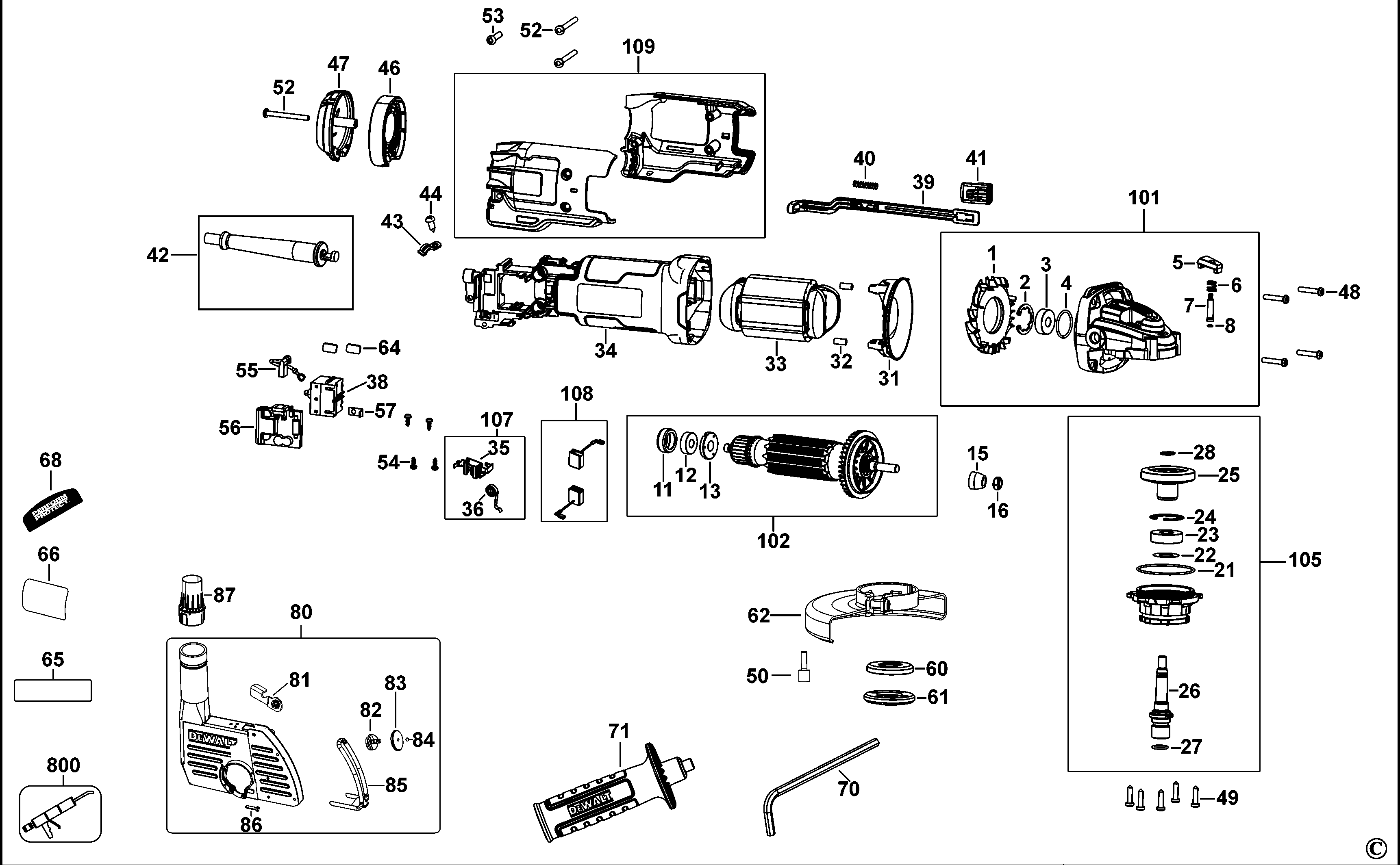

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 DEFLECTOR (N401958) 668 RON
2 1 1 RET RING w FINGERS (N453031) 588 RON
3 1 1 BEARING (N175104) 1788 RON
4 1 1 O RING (N119639) 558 RON
5 1 1 SPINDLE LOCK BUTTON (N278899) 588 RON
6 1 1 THOR SPINDLE LOCK SPRING (N263579) 588 RON
7 1 1 LOCK PIN (N481683) 944 RON
8 1 1 THOR SPINDLE LOCK O-RING (N263699) 588 RON
11 1 1 SLEEVE (641823-00) 558 RON
12 1 1 BEARING (N130916) 1229 RON
13 1 1 SLINGER THOR (N324400) 588 RON
15 1 1 PINION (N445332) 3954 RON
16 1 1 NUT M7 (N372039) 588 RON
21 1 1 O RING (N453817) 588 RON
22 1 1 SLINGER (N400478) 588 RON
23 1 1 Bearing Ball CWMFG (605040-24) 190 RON
24 1 1 RETAINER RING (N481950) 588 RON
25 1 1 N475016 - Indisponibil
25 1 1 Gear (NA036405) 13697 RON
26 1 1 SPINDLE (N163702) 3268 RON
27 1 1 O RING (N420261) 588 RON
28 1 1 RETAINING RING (444793-00) 558 RON
31 1 1 BAFFLE (N399419) 944 RON
32 1 2 SMALL RUBBER (949638-02) 558 RON
33 1 1 N474965 - Indisponibil
33 1 1 FIELD (NA149034) 36994 RON
34 1 1 FIELDCASE (N444134) 4827 RON
35 1 2 SA BRUSH BOX, THOR (N335560) 944 RON
36 1 2 SPRING, THOR BRUSH BOX (N273780) 588 RON
38 1 1 SWITCH (N484918) 2796 RON
39 1 1 LINK (N447003) 588 RON
40 1 1 SPRING (N093410) 558 RON
41 1 1 BUTTON (N097844) 558 RON
42 1 1 CORDSET (EURO) (N448814) 11337 RON
43 1 1 CORD CLAMP (619328-00) 588 RON
44 1 1 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
46 1 1 DUST PORT (N563707) 1318 RON
46 1 1 N401579 - Indisponibil
47 1 1 END CAP (N400902) 114 RON
48 1 4 SCREW, PLSTC THD FORM, M4X22 T20 (N371839) 588 RON
49 1 5 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
50 1 1 SCREW (N130031) 558 RON
52 1 3 SCREW PLSTC THD FORM (N389438) 588 RON
53 1 1 SCREW PLSTC THD FORM M4X25 T20 (330065-09) 558 RON
54 1 4 SCREW (593478-00) 558 RON
55 1 1 LEAD SA (N474450) 944 RON
56 1 1 N301299 - Indisponibil
56 1 1 CONTROL MODULE SA (NA152190) 20216 RON
57 1 1 TERMINAL (634599-00) 781 RON
60 1 1 INNER FLANGE (391969-00) 1788 RON
61 1 1 OUTER FLANGE (N419748) 3268 RON
61 1 1 OUTER FLANGE (N134466) 3018 RON
62 1 1 GUARD SA (N170678) 4472 RON
64 1 2 FOAM (N482414) 588 RON
65 1 1 IDENTITY LABEL (N403730) 588 RON
66 1 1 RATING PLATE (N483017) 588 RON
68 1 1 LABEL PREFORM PROTECT (N196273) 588 RON
70 1 1 HEX KEY 6 MM (N107295) 781 RON
71 1 1 SIDE HANDLE (N382311) 6688 RON
80 1 1 GUARD SA (N496569) 161583 RON
81 1 1 LEVER SA (N179025) 5591 RON
82 1 1 BOLT (N179021) 4137 RON
83 1 1 NUT (N179024) 14315 RON
84 1 1 LOCKING RING (N179030) 1452 RON
85 1 1 GUIDE SA (N179023) 7940 RON
86 1 1 Screw Metal (330045-15) 781 RON
87 1 1 CONNECTOR (N071898) 7940 RON
101 1 1 N474500 - Indisponibil
101 1 1 GEARCASE SA (NA041222) 21676 RON
102 1 1 N474616 - Indisponibil
102 1 1 ARMATURE SA (NA146670) 38463 RON
105 1 1 GEARCASE COVER SA (N475993) 20216 RON
108 1 1 N489059 - Indisponibil
108 1 1 BRUSH PAIR SA (NA143119) 3954 RON
109 1 1 CLAMSHELL SET (N444137) 2796 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
