Top » Piese de schimb » PIESE DEWALT » DWE4377 Type 1

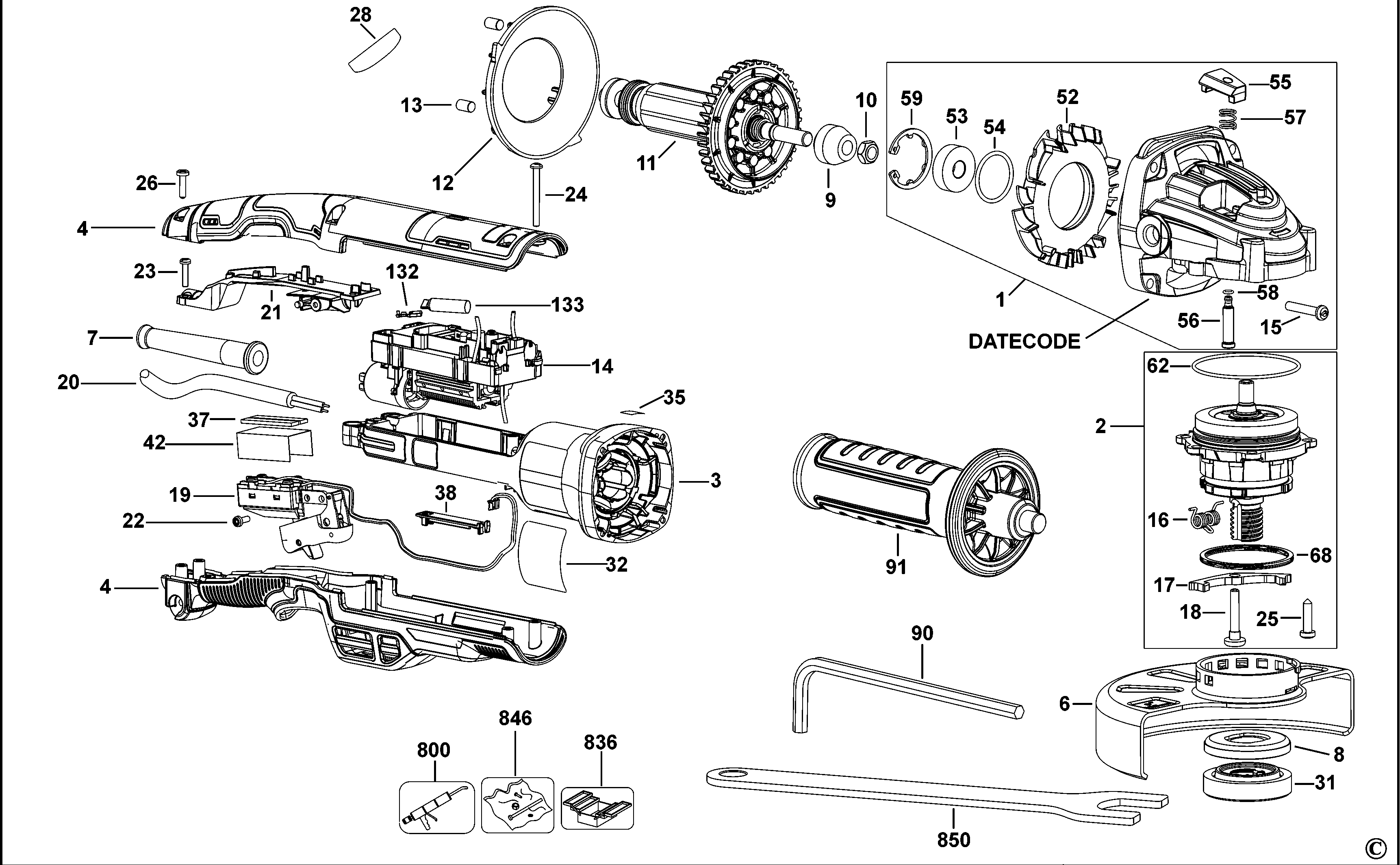

POLIZOR UNGHIULAR MIC DEWALT DWE4377 Type 1
[DWE4377 Type 1]
POLIZOR UNGHIULAR MIC DEWALT DWE4377 Type 1
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR MIC DEWALT DWE4377 Type 1
Click pentru a mari
POLIZOR UNGHIULAR MIC DEWALT DWE4377 Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 GEARCASE SA (N545495) 11337 RON
2 1 1 GEARCASE COVER SA (N545254) 24962 RON
3 1 1 FIELDCASE SA (N545810) 38463 RON
4 1 1 HANDLE SA (N545817) 23244 RON
6 1 1 GUARD (N487790) 3954 RON
6 1 1 N458872 - Indisponibil
7 1 1 PROTECTOR CORD (N473096) 944 RON
8 1 1 INNER FLANGE (391969-00) 1788 RON
9 1 1 PINION (N442349) 3954 RON
10 1 1 NUT M7 (N372039) 588 RON
11 1 1 ROTOR SA (N545497) 38463 RON
11 1 1 ROTOR SA (NA740608) 27287 RON
11 1 1 MOTOR SWITCH SA (NB223816) 67932 RON
12 1 1 BAFFLE FAN (N465425) 668 RON
13 1 3 PLUG (949638-01) 558 RON
14 1 1 CONTROL MODULE SA (N545578) 85494 RON
15 1 4 SCREW, PLSTC THD FORM, M4X22 T20 (N371839) 588 RON
16 1 1 SPRING (N465886) 588 RON
17 1 1 LEVER (N637725) 1772 RON
17 1 1 N572219 - Indisponibil
18 1 1 SCREW SHOULDER M4 (N297219) 588 RON
19 1 1 SWITCH (N563954) 11337 RON
19 1 1 N545836 - Indisponibil
20 1 1 CORDSET (EURO) (N545849) 10241 RON
21 1 1 HOLDER (N484511) 944 RON
22 1 1 Screw M3.5 X9.5 (330019-01) 558 RON
23 1 4 Screw M3.5X16 T15 (330019-03) 558 RON
24 1 4 SCREW PLSTC THD FORM (N389438) 588 RON
25 1 5 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
26 1 2 SCREW (330065-07) 558 RON
28 1 1 LABEL (N501633) 588 RON
31 1 1 OUTER FLANGE (N484250) 741 RON
32 1 1 N497818 - Indisponibil
32 1 1 RATING LABEL (NA132264) 588 RON
35 1 1 LABEL (N456232) 588 RON
37 1 2 ADHESIVE FOAM (N498726) 588 RON
38 1 1 HEATSINK WIRE TRAP (N513183) 588 RON
42 1 1 PAPER (N534049) 588 RON
52 1 1 DEFLECTOR (N401958) 668 RON
53 1 1 BEARING (N175104) 1788 RON
54 1 1 O RING (N119639) 558 RON
55 1 1 SPINDLE LOCK BUTTON (N278899) 588 RON
56 1 1 LOCK PIN (N481683) 944 RON
57 1 1 THOR SPINDLE LOCK SPRING (N263579) 588 RON
58 1 1 THOR SPINDLE LOCK O-RING (N263699) 588 RON
59 1 1 RET RING w FINGERS (N453031) 588 RON
62 1 1 O RING 1.5X40 (N307625) 588 RON
68 1 1 WASHER SPRING (N542715) 82 RON
90 1 1 HEX KEY 6 MM (N107295) 781 RON
91 1 1 SIDE HANDLE (N382311) 6688 RON
132 1 3 TERMINAL 110 IDC (N485055) 588 RON
133 1 3 HEAT SHRINK BOOT (N498727) 588 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
836 1 1 S.T.SUPPORT JIG (N536561) 2030 RON
846 1 1 TUBE SILICONE (N545570) 4827 RON
850 1 1 WRENCH (N541784) 9012 RON
