Top » Piese de schimb » PIESE DEWALT » DWE4247 Type 1

POLIZOR UNGHIULAR MIC DEWALT DWE4247 Type 1
[DWE4247 Type 1]
POLIZOR UNGHIULAR MIC DEWALT DWE4247 Type 1
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR MIC DEWALT DWE4247 Type 1
Click pentru a mari
POLIZOR UNGHIULAR MIC DEWALT DWE4247 Type 1
Click pentru a mari

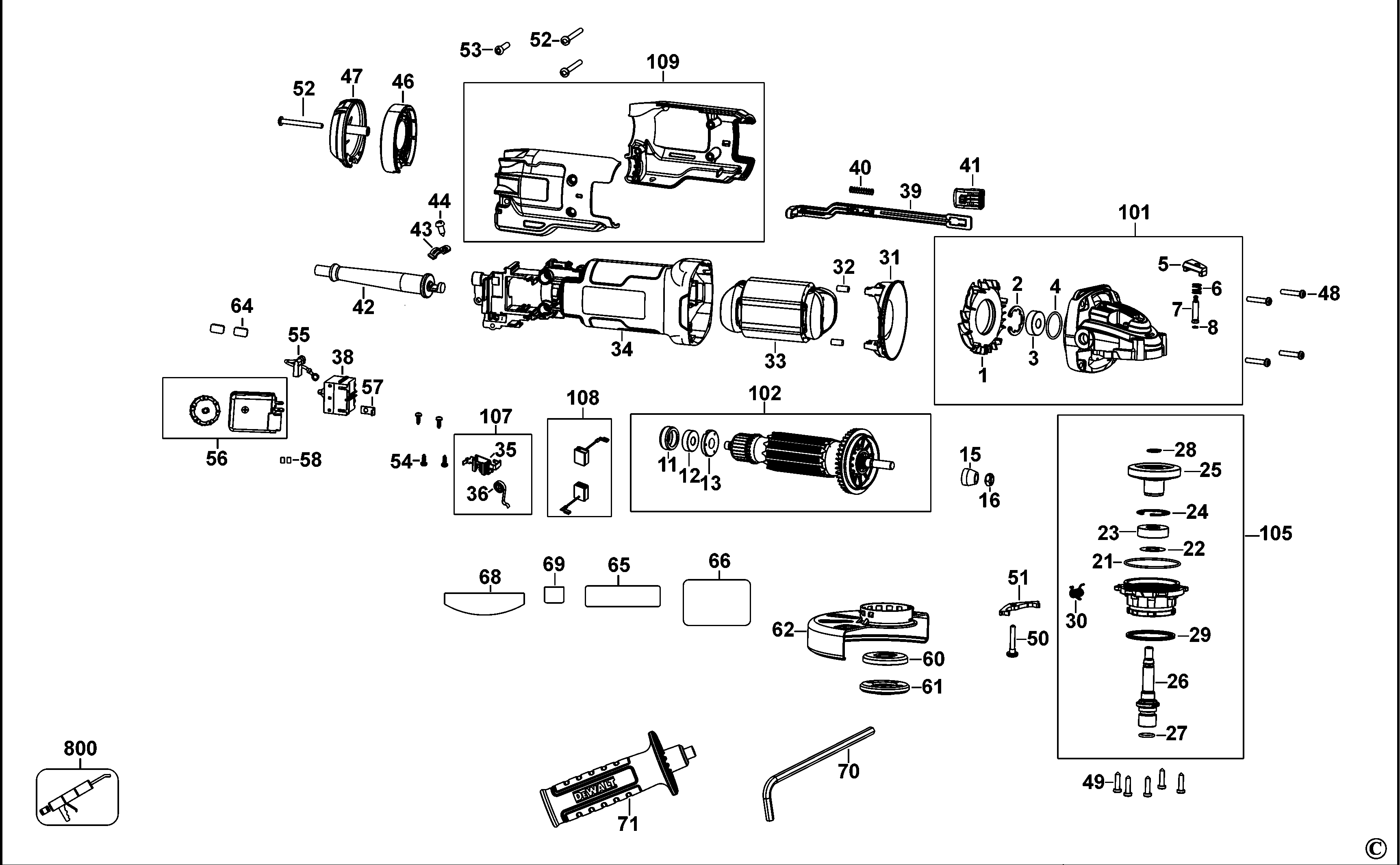

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 DEFLECTOR (N401958) 668 RON
2 1 1 RET RING w FINGERS (N453031) 588 RON
3 1 1 BEARING (N175104) 1788 RON
4 1 1 O RING (N119639) 558 RON
5 1 1 SPINDLE LOCK BUTTON (N278899) 588 RON
6 1 1 THOR SPINDLE LOCK SPRING (N263579) 588 RON
7 1 1 LOCK PIN (N481683) 944 RON
8 1 1 THOR SPINDLE LOCK O-RING (N263699) 588 RON
11 1 1 SLEEVE (641823-00) 558 RON
12 1 1 BEARING (N130916) 1229 RON
13 1 1 MAGNET (N449233) 114 RON
15 1 1 PINION 38T/10T LONG (N423537) 3268 RON
16 1 1 NUT M7 (N372039) 588 RON
21 1 1 O RING 1.5X40 (N307625) 588 RON
22 1 1 SLINGER (N400478) 588 RON
23 1 1 Bearing Ball CWMFG (605040-24) 190 RON
24 1 1 RETAINER RING (N481950) 588 RON
25 1 1 Gear (N409481) 741 RON
25 1 1 Gear (N887607) 10241 RON
27 1 1 O RING (N420261) 588 RON
28 1 1 RETAINING RING (444793-00) 558 RON
29 1 1 WASHER SPRING (N135116) 893 RON
30 1 1 SPRING (N465886) 588 RON
31 1 1 BAFFLE (N399419) 944 RON
32 1 2 SMALL RUBBER (949638-02) 558 RON
34 1 1 FIELDCASE (N444134) 4827 RON
35 1 2 SA BRUSH BOX, THOR (N335560) 944 RON
36 1 2 SPRING, THOR BRUSH BOX (N273780) 588 RON
38 1 1 SWITCH (N484918) 2796 RON
39 1 1 LINK (N447003) 588 RON
40 1 1 SPRING (N093410) 558 RON
41 1 1 BUTTON (N097844) 558 RON
43 1 1 CORD CLAMP (619328-00) 588 RON
44 1 1 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
46 1 1 DUST PORT (N563707) 1318 RON
46 1 1 N401579 - Indisponibil
47 1 1 END CAP (N402946) 114 RON
48 1 4 SCREW, PLSTC THD FORM, M4X22 T20 (N371839) 588 RON
49 1 5 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
50 1 1 SCREW SHOULDER M4 (N297219) 588 RON
51 1 1 LEVER (N637725) 1772 RON
52 1 3 SCREW PLSTC THD FORM (N389438) 588 RON
53 1 1 SCREW PLSTC THD FORM M4X25 T20 (330065-09) 558 RON
54 1 4 SCREW (593478-00) 558 RON
57 1 1 TERMINAL (634599-00) 781 RON
58 1 2 SEAL (633391-00) 558 RON
60 1 1 INNER FLANGE (391969-00) 1788 RON
61 1 1 KEYLESS FLANGE,HEX HOLE,M14 NEW CHAMFER (N457001) 13697 RON
64 1 2 FOAM (N482414) 588 RON
65 1 1 IDENTITY LABEL (N403730) 588 RON
68 1 1 LABEL PREFORM PROTECT (N196273) 588 RON
69 1 1 LABEL (N465404) 588 RON
70 1 1 HEX KEY 6 MM (N107295) 781 RON
71 1 1 SIDE HANDLE (N382311) 6688 RON
101 1 1 N483617 - Indisponibil
101 1 1 GEARCASE SA (NA146577) 12361 RON
107 1 2 BRUSHBOX SA (N413349) 2556 RON
109 1 1 CLAMSHELL SET (N446402) 4827 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
