Top » Piese de schimb » PIESE DEWALT » DWE4205 Type 1

POLIZOR UNGHIULAR MIC DEWALT DWE4205 Type 1
[DWE4205 Type 1]
POLIZOR UNGHIULAR MIC DEWALT DWE4205 Type 1
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR MIC DEWALT DWE4205 Type 1
Click pentru a mari
POLIZOR UNGHIULAR MIC DEWALT DWE4205 Type 1
Click pentru a mari

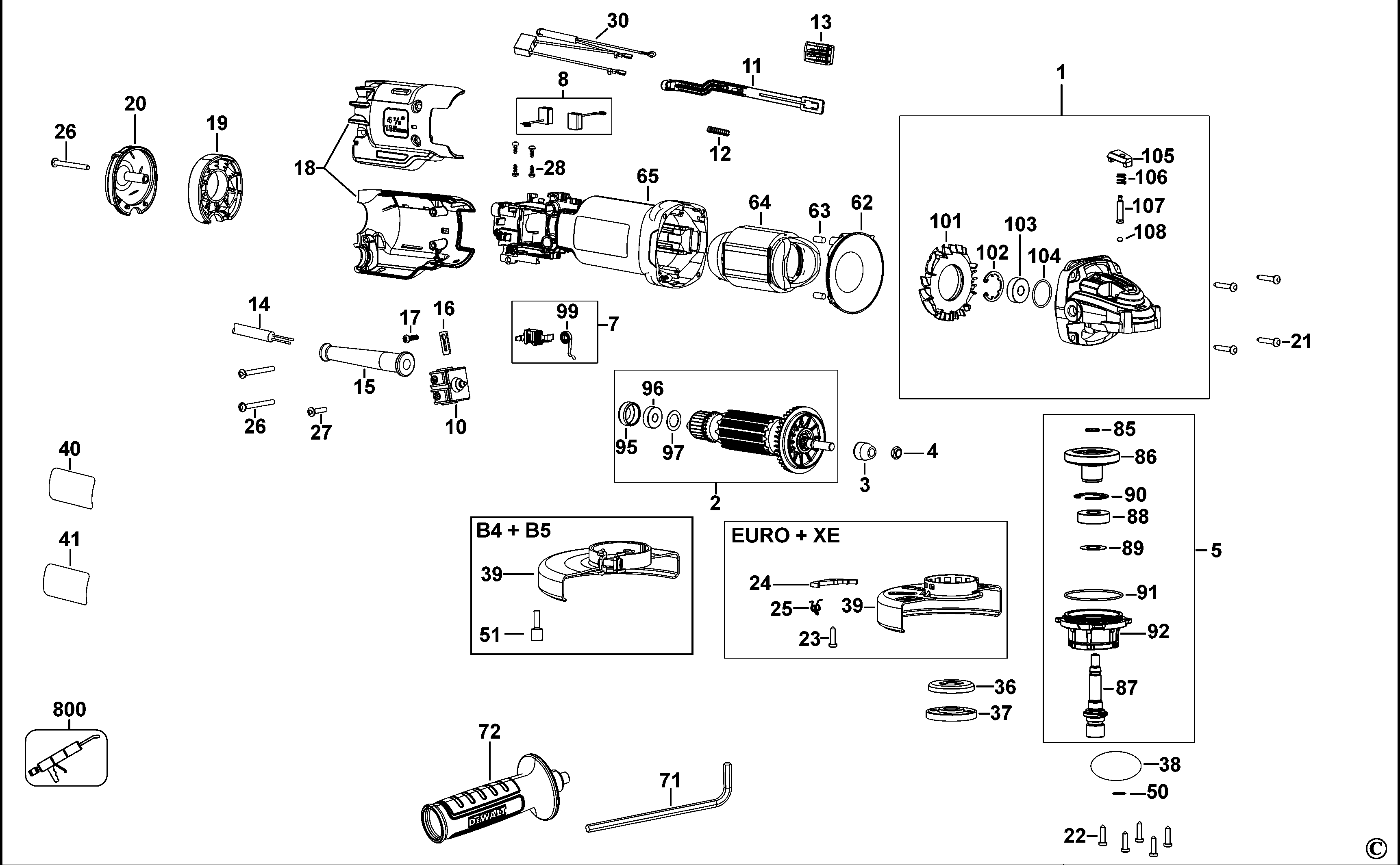

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 N413331 - Indisponibil
2 1 1 N421696 - Indisponibil
2 1 1 ARMATURE (NA121482) 28836 RON
3 1 1 PINION 38T/10T LONG (N423537) 3268 RON
4 1 1 NUT M7 (N372039) 588 RON
5 1 1 N421526 - Indisponibil
7 1 2 BRUSHBOX SA (N413349) 2556 RON
8 1 1 BRUSH PAIR 230V (N421362) 3954 RON
8 1 1 BRUSH PAIR (NA121485) 4827 RON
10 1 1 SWITCH (N396008) 4827 RON
11 1 1 N437742 - Indisponibil
11 1 1 LINKAGE SA (N298583) 588 RON
12 1 1 SPRING (N093410) 558 RON
13 1 1 BUTTON (N097844) 558 RON
14 1 1 CORDSET (EURO) (N387340) 741 RON
15 1 1 N542553 - Indisponibil
15 1 1 PROTECTOR CORD (330005-01) 105 RON
15 1 1 CORD PROTECTOR (N918736) 668 RON
16 1 1 CORD CLAMP (619328-00) 588 RON
17 1 1 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
18 1 1 SA HANDLE, BASIC SLIDER CAD FREE (N391187) 2796 RON
19 1 1 N401671 - Indisponibil
19 1 1 DUST PORT (N601293) 2182 RON
20 1 1 END CAP (N400902) 114 RON
21 1 4 SCREW, PLSTC THD FORM, M4X22 T20 (N371839) 588 RON
22 1 5 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
23 1 1 SCREW SHOULDER M4 (N297219) 588 RON
24 1 1 LEVER (N136731) 105 RON
25 1 1 SPRING (N291619) 588 RON
26 1 3 SCREW PLSTC THD FORM (N389438) 588 RON
27 1 1 SCREW PLSTC THD FORM M4X25 T20 (330065-09) 558 RON
28 1 4 SCREW (593478-00) 558 RON
30 1 1 CAPACITOR SA (N399579) 2796 RON
36 1 1 INNER FLANGE (391969-00) 1788 RON
37 1 1 OUTER FLANGE (N419748) 3268 RON
37 1 1 OUTER FLANGE (N134466) 3018 RON
38 1 1 O RING (N355619) 588 RON
39 1 1 GUARD (N308279) 3954 RON
40 1 1 IDENTITY LABEL (N403730) 588 RON
41 1 1 N393301 - Indisponibil
50 1 1 O RING (N420261) 588 RON
62 1 1 BAFFLE (N399419) 944 RON
63 1 2 SMALL RUBBER (949638-02) 558 RON
64 1 1 N421413 - Indisponibil
64 1 1 FIELD (NA121487) 30769 RON
65 1 1 FIELDCASE COMPACT SLIDER CAD FREE (N390640) 4355 RON
65 1 1 N285242 - Indisponibil
71 1 1 HEX KEY 6 MM (N107295) 781 RON
72 1 1 SIDE HANDLE (N382311) 6688 RON
85 1 1 RETAINING RING (444793-00) 558 RON
86 1 1 Gear (N409481) 741 RON
86 1 1 Gear (N887607) 10241 RON
87 1 1 SPINDLE (N163702) 3268 RON
88 1 1 Bearing Ball CWMFG (605040-24) 190 RON
89 1 1 SLINGER (N400478) 588 RON
90 1 1 N389985 - Indisponibil
91 1 1 O RING 1.5X40 (N307625) 588 RON
92 1 1 GEARCASE COVER (N269901) 3954 RON
95 1 1 SLEEVE (641823-00) 558 RON
96 1 1 BEARING (N130916) 1229 RON
97 1 1 SLINGER THOR (N324400) 588 RON
99 1 2 SPRING, THOR BRUSH BOX (N273780) 588 RON
101 1 1 DEFLECTOR (N401958) 668 RON
102 1 1 CIRCLIP (N398877) 588 RON
103 1 1 BEARING (N175104) 1788 RON
104 1 1 O RING (N119639) 558 RON
105 1 1 SPINDLE LOCK BUTTON (N278899) 588 RON
106 1 1 THOR SPINDLE LOCK SPRING (N263579) 588 RON
107 1 1 N263679 - Indisponibil
107 1 1 LOCK PIN (N481683) 944 RON
108 1 1 THOR SPINDLE LOCK O-RING (N263699) 588 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
