Top » Piese de schimb » PIESE DEWALT » DWE4202 Type 3

POLIZOR UNGHIULAR MIC DEWALT DWE4202 Type 3
[DWE4202 Type 3]
POLIZOR UNGHIULAR MIC DEWALT DWE4202 Type 3
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR MIC DEWALT DWE4202 Type 3
Click pentru a mari
POLIZOR UNGHIULAR MIC DEWALT DWE4202 Type 3
Click pentru a mari

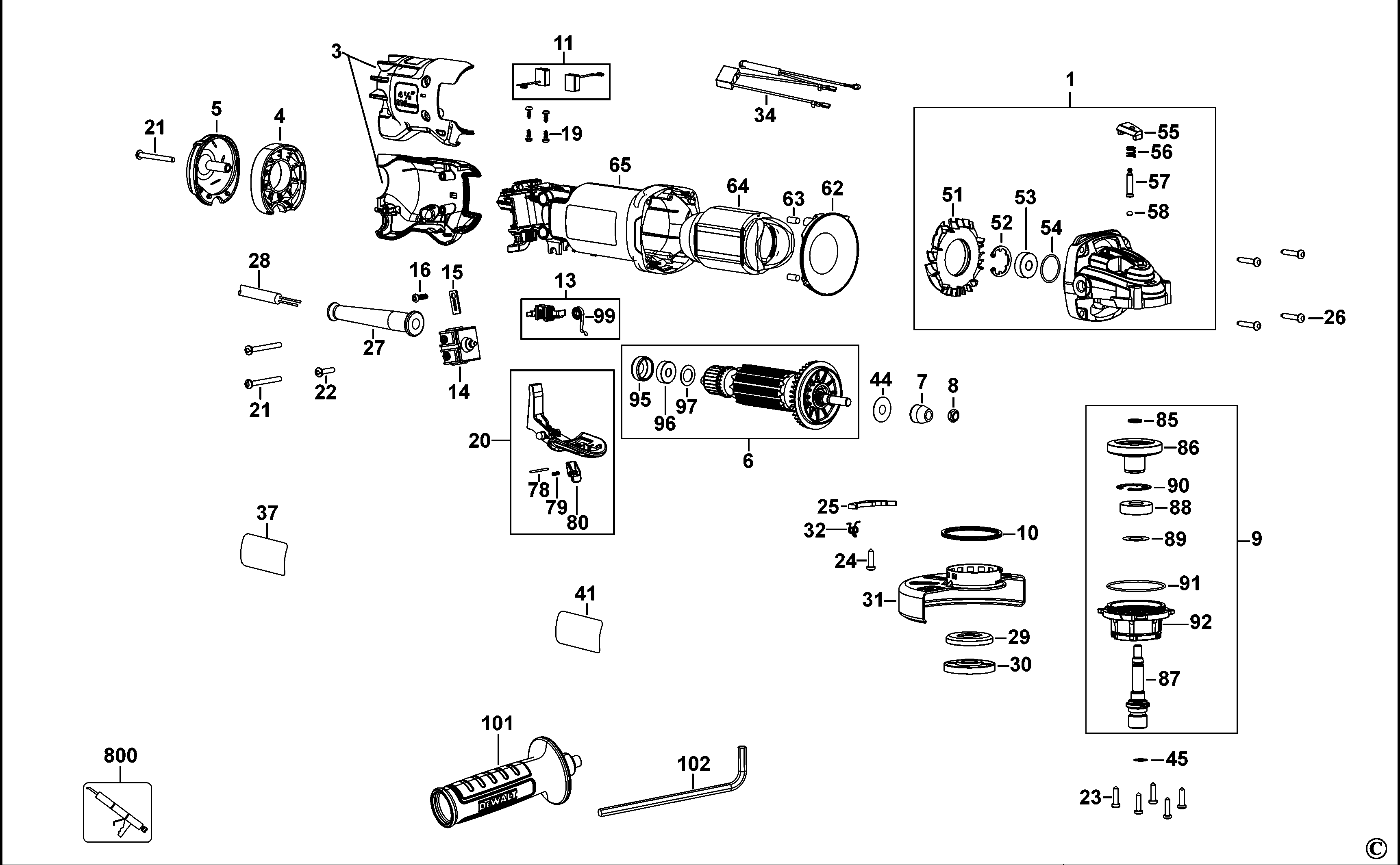

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 N493259 - Indisponibil
1 1 1 N483617 - Indisponibil
1 1 1 GEARCASE SA (NA146577) 12361 RON
3 1 1 HANDLE SA (N393706) 2796 RON
4 1 1 N401671 - Indisponibil
4 1 1 DUST PORT (N601293) 2182 RON
5 1 1 END CAP (N400902) 114 RON
6 1 1 N421696 - Indisponibil
6 1 1 ARMATURE (NA121482) 28836 RON
7 1 1 PINION (N375339) 3268 RON
8 1 1 NUT M7 (N372039) 588 RON
9 1 1 N493265 - Indisponibil
9 1 1 SPINDLE SA (NA148917) 23244 RON
10 1 1 WASHER SPRING (N135116) 893 RON
11 1 1 BRUSH PAIR 230V (N421362) 3954 RON
11 1 1 BRUSH PAIR (NA121485) 4827 RON
13 1 2 BRUSHBOX SA (N413349) 2556 RON
14 1 1 SWITCH (N396008) 4827 RON
15 1 1 CORD CLAMP (619328-00) 588 RON
16 1 1 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
19 1 4 SCREW (593478-00) 558 RON
20 1 1 PADDLE (N413352) 5370 RON
21 1 3 SCREW PLSTC THD FORM (N389438) 588 RON
22 1 1 SCREW (330065-08) 558 RON
23 1 5 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
24 1 1 SCREW SHOULDER M4 (N297219) 588 RON
25 1 1 LEVER (N637725) 1772 RON
25 1 1 N442976 - Indisponibil
25 1 1 N572219 - Indisponibil
26 1 4 SCREW, PLSTC THD FORM, M4X22 T20 (N371839) 588 RON
27 1 1 N542553 - Indisponibil
27 1 1 PROTECTOR CORD (330005-01) 105 RON
27 1 1 CORD PROTECTOR (N918736) 668 RON
28 1 1 CORDSET (EURO) (N353839) 741 RON
29 1 1 INNER FLANGE (391969-00) 1788 RON
30 1 1 OUTER FLANGE (N419748) 3268 RON
30 1 1 OUTER FLANGE (N134466) 3018 RON
31 1 1 N458873 - Indisponibil
31 1 1 GUARD (N487788) 3954 RON
31 1 1 GUARD (NA380423) 3954 RON
32 1 1 SPRING (N465886) 588 RON
34 1 1 CAPACITOR (N349959) 2182 RON
37 1 1 BRAND LABEL (N400392) 588 RON
41 1 1 N464520 - Indisponibil
44 1 1 WASHER (N213812) 558 RON
45 1 1 O RING (N420261) 588 RON
51 1 1 DEFLECTOR (N401958) 668 RON
52 1 1 RET RING w FINGERS (N453031) 588 RON
53 1 1 BEARING (N175104) 1788 RON
54 1 1 O RING (N119639) 558 RON
55 1 1 SPINDLE LOCK BUTTON (N278899) 588 RON
56 1 1 THOR SPINDLE LOCK SPRING (N263579) 588 RON
57 1 1 LOCK PIN (N481683) 944 RON
58 1 1 THOR SPINDLE LOCK O-RING (N263699) 588 RON
62 1 1 BAFFLE (N265479) 944 RON
63 1 2 SMALL RUBBER (949638-02) 558 RON
64 1 1 N421357 - Indisponibil
64 1 1 FIELD (NA121614) 24962 RON
65 1 1 FIELDCASE (N369341) 3954 RON
78 1 1 ROLL PIN (099204-14) 558 RON
79 1 1 SPRING (150264-01) 558 RON
80 1 1 LEVER LOCK-OFF (397657-00) 558 RON
85 1 1 RETAINING RING (444793-00) 558 RON
86 1 1 Gear (N409481) 741 RON
86 1 1 Gear (N887607) 10241 RON
87 1 1 SPINDLE (N163702) 3268 RON
88 1 1 Bearing Ball CWMFG (605040-24) 190 RON
89 1 1 SLINGER (N400478) 588 RON
90 1 1 RETAINER RING (N481950) 588 RON
91 1 1 O RING 1.5X40 (N307625) 588 RON
92 1 1 GCC MACH (N441765) 3954 RON
95 1 1 SLEEVE (641823-00) 558 RON
96 1 1 BEARING (N130916) 1229 RON
97 1 1 SLINGER THOR (N324400) 588 RON
99 1 2 SPRING, THOR BRUSH BOX (N273780) 588 RON
101 1 1 SIDE HANDLE (N382311) 6688 RON
102 1 1 HEX KEY 6 MM (N107295) 781 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
