Top » Piese de schimb » PIESE DEWALT » DWE4113 Type 1

POLIZOR UNGHIULAR MIC DEWALT DWE4113 Type 1
[DWE4113 Type 1]
POLIZOR UNGHIULAR MIC DEWALT DWE4113 Type 1
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR MIC DEWALT DWE4113 Type 1
Click pentru a mari
POLIZOR UNGHIULAR MIC DEWALT DWE4113 Type 1
Click pentru a mari

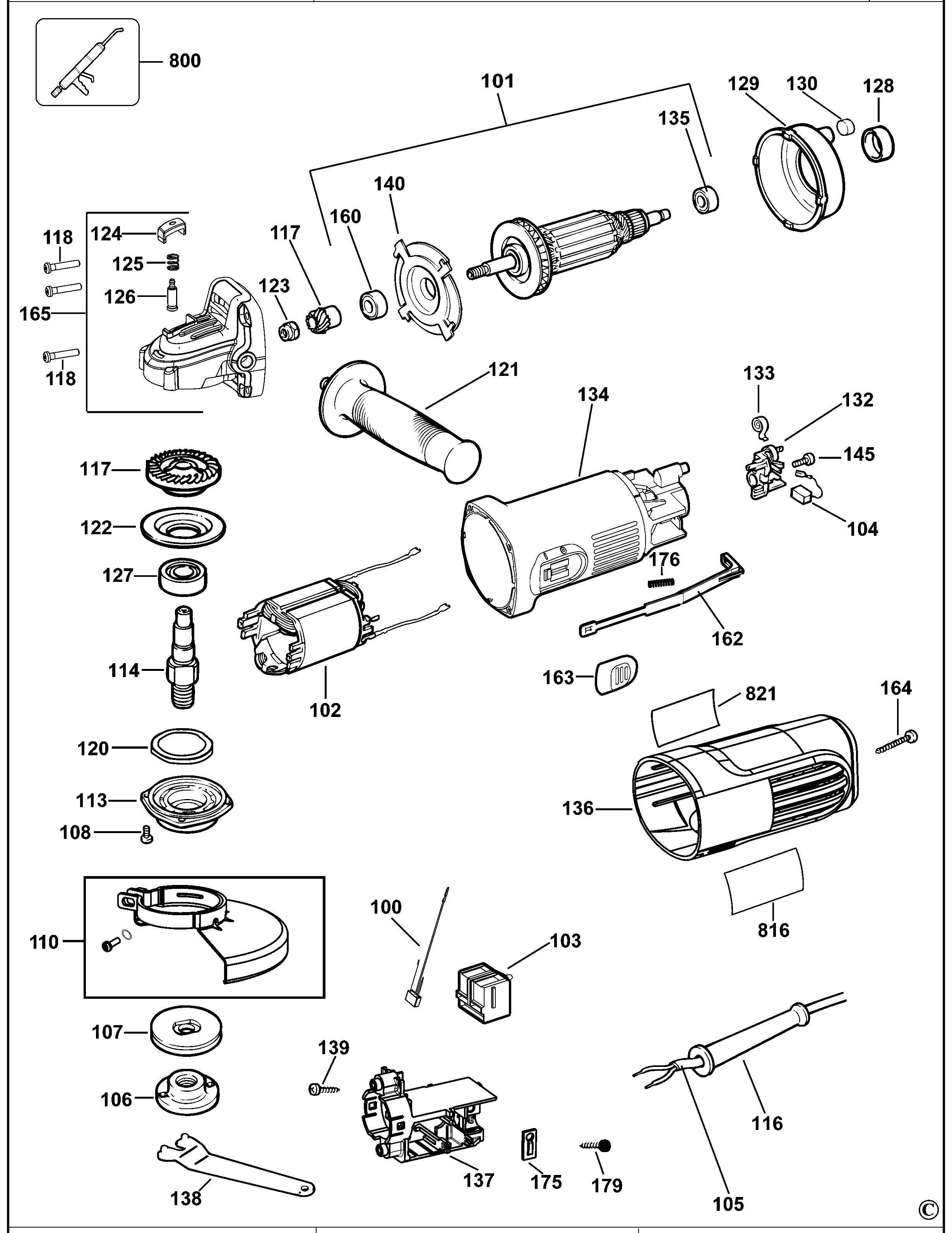

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
106 1 1 WASHER OUTER CLAMP PAINTED (401678-05) 2795 RON
107 1 1 INNER FLANGE (391969-00) 1788 RON
108 1 4 SCREW (330045-46) 558 RON
110 1 1 SA Guard ANDscrew 125mm (N568053) 3268 RON
113 1 1 GEARCASE COVER (N499484) 1933 RON
114 1 1 SPINDLE (N318739) 2796 RON
116 1 1 N480902 - Indisponibil
116 1 1 N542553 - Indisponibil
116 1 1 CORD PROTECTOR (N918736) 668 RON
117 1 1 GEAR & PINION (N490505) 11337 RON
118 1 4 SCREW (562097-03) 558 RON
120 1 1 Seal Felt washer DW801 (641893-00) 558 RON
121 1 1 Handle Side(945597-00) DW803/801 (562211-00) 2347 RON
122 1 1 Gear Flange (945299-00) 781 RON
123 1 1 Nut (Pinion fixing) (945292-00) 558 RON
124 1 1 BUTTON (N499496) 588 RON
125 1 1 SPRING (562210-00) 558 RON
126 1 1 SPINDLE LOCK (N499495) 668 RON
127 1 1 Bearing DW801 (605040-22) 2347 RON
128 1 1 SLEEVE BEARING (930275-00) 558 RON
129 1 1 BAFFLE (401623-00) 781 RON
130 1 1 PLUG (949638-01) 558 RON
132 1 2 BRUSH HOLDER SA (N616539) 944 RON
133 1 2 TORSION SPRING (562204-00) 558 RON
134 1 1 FIELD CASE (N588430) 3268 RON
135 1 1 Ball Bearing. CW DW810 (605040-03) 190 RON
136 1 1 END CAP (N588433) 2556 RON
137 1 1 SWITCH SUPPORT (N513692) 2556 RON
138 1 1 Wrench(Spanner) DW831 (401680-00) 2124 RON
139 1 2 Screw DW201 171 (562097-05) 558 RON
140 1 1 Fan Flange New (N583529) 82 RON
145 1 2 Screw For Brush Holder Assy.(4.2 x 13) (562097-00) 558 RON
160 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
162 1 1 LINK (N510166) 944 RON
163 1 1 BUTTON (N519344) 588 RON
164 1 1 Screw DW201 171 (562097-05) 558 RON
165 1 1 GEARCASE SA (N588618) 6688 RON
175 1 1 CORD CLAMP (N525990) 588 RON
176 1 1 Link spring (N591468) 588 RON
179 1 1 Screw DW201 171 (562097-05) 558 RON
800 1 1 GREASE (286436-00) 70239 RON
816 1 1 LABEL (N527000) 588 RON
