Top » Piese de schimb » PIESE DEWALT » DWE4100 Type 1

POLIZOR UNGHIULAR MIC DEWALT DWE4100 Type 1
[DWE4100 Type 1]
POLIZOR UNGHIULAR MIC DEWALT DWE4100 Type 1
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR MIC DEWALT DWE4100 Type 1
Click pentru a mari
POLIZOR UNGHIULAR MIC DEWALT DWE4100 Type 1
Click pentru a mari

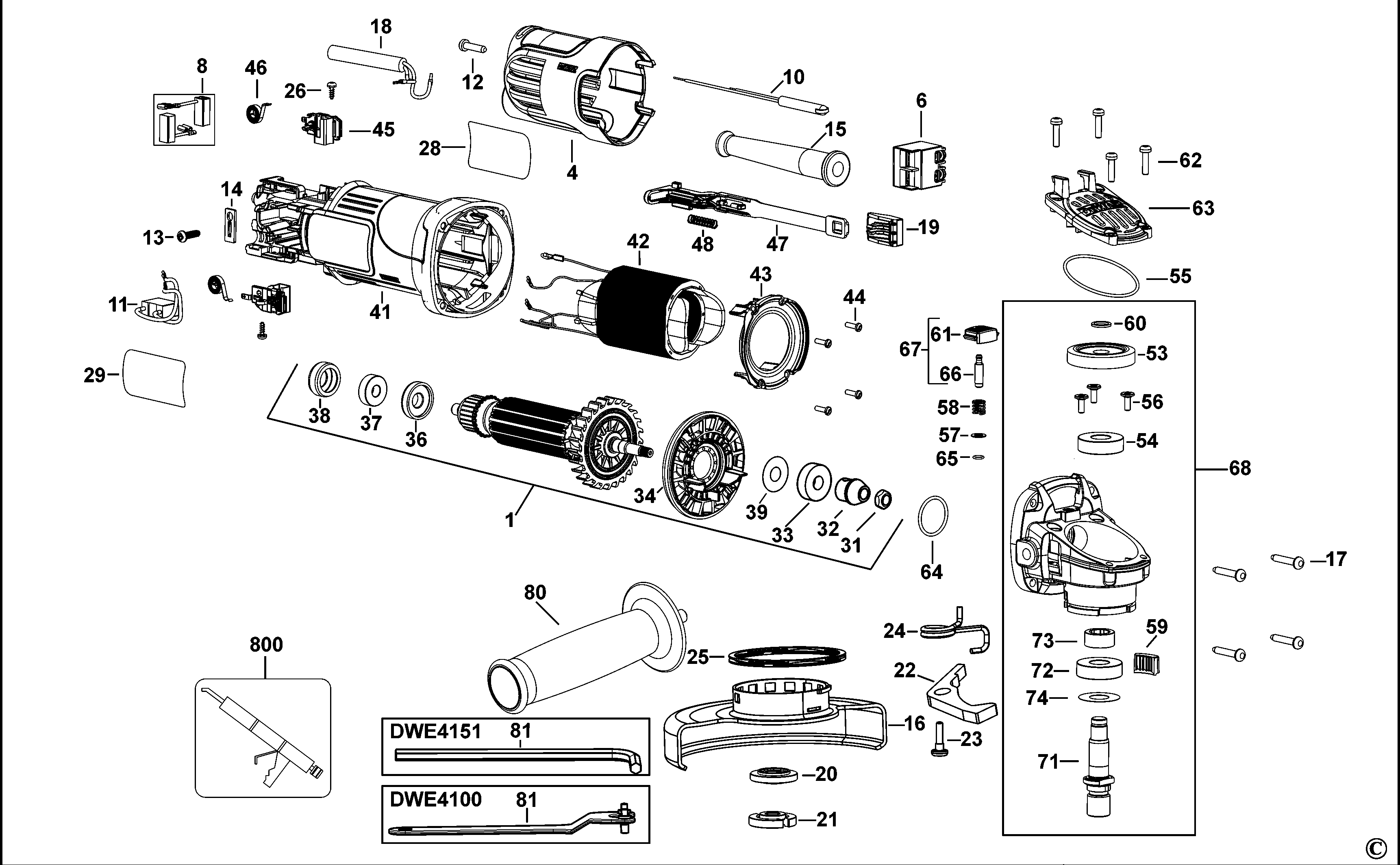

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
6 1 1 SWITCH (N327459) 2556 RON
6 1 1 SWITCH (N167538) 2795 RON
10 1 1 ELECTRONIC (N125668) 1452 RON
12 1 1 SCREW (N017839) 558 RON
13 1 1 Screw For Brush Holder Assy.(4.2 x 13) (562097-00) 558 RON
16 1 1 GUARD (N143896) 3018 RON
17 1 4 SCREW (330065-31) 558 RON
19 1 1 BUTTON (N097844) 558 RON
20 1 1 INNER FLANGE (N039245) 1318 RON
21 1 1 OUTER FLANGE (659109-00) 1933 RON
22 1 1 LEVER (N136731) 105 RON
23 1 1 SCREW (N137733) 558 RON
24 1 1 SPRING (N105579) 558 RON
25 1 1 WASHER SPRING (N135116) 893 RON
26 1 2 SCREW (593478-00) 558 RON
28 1 1 BRAND LABEL (N149175) 558 RON
31 1 1 NUT (604484-00) 558 RON
32 1 1 PINION (N153125) 2347 RON
33 1 1 BEARING (N175104) 1788 RON
34 1 1 BAFFLE (N132042) 781 RON
36 1 1 WASHER (N101228) 558 RON
37 1 1 BEARING (N130916) 1229 RON
38 1 1 SLEEVE (641823-00) 558 RON
39 1 1 WASHER (N213812) 558 RON
43 1 1 BAFFLE (N132864) 781 RON
44 1 4 SCREW PLSTC THD FORM M3X9 T10 (330065-25) 558 RON
45 1 2 BRUSHBOX (N097702) 105 RON
46 1 2 SPRING (N097703) 558 RON
48 1 1 SPRING (N093410) 558 RON
53 1 1 GEAR (N153126) 3466 RON
54 1 1 Bearing Ball CWMFG (605040-24) 190 RON
54 1 1 BEARING (N150961) 190 RON
55 1 1 O RING (N094024) 558 RON
56 1 3 SCREW (N118088) 558 RON
57 1 1 WASHER BEARING BLOCK (N447838) 588 RON
57 1 1 WASHER (N094651) 558 RON
58 1 1 SPRING (N092954) 558 RON
59 1 1 INSERT (N126708) 781 RON
60 1 1 RETAINING RING (444793-00) 558 RON
61 1 1 BUTTON (N126105) 558 RON
62 1 4 SCREW (N122904) 558 RON
63 1 1 GEARCASE COVER (N116180) 781 RON
64 1 1 O RING (N119639) 558 RON
65 1 1 O RING (N094012) 558 RON
66 1 1 SPINDLE LOCK (N114592) 781 RON
67 1 1 SPINDLE LOCK (N181767) 781 RON
72 1 1 Bearing Ball CWMFG (605040-24) 190 RON
72 1 1 BEARING (N150961) 190 RON
73 1 1 SLEEVE (N095815) 781 RON
74 1 1 Slinger (638229-00) 558 RON
80 1 1 SIDE HANDLE (N401305) 2556 RON
80 1 1 SIDE HANDLE (N239381) 2347 RON
80 1 1 SIDE HANDLE (149142-00) 190 RON
81 1 1 WRENCH PIN (401253-00) 1452 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
