Top » Piese de schimb » PIESE DEWALT » DWE4015 Type 1

POLIZOR UNGHIULAR MIC DEWALT DWE4015 Type 1
[DWE4015 Type 1]
POLIZOR UNGHIULAR MIC DEWALT DWE4015 Type 1
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR MIC DEWALT DWE4015 Type 1
Click pentru a mari
POLIZOR UNGHIULAR MIC DEWALT DWE4015 Type 1
Click pentru a mari

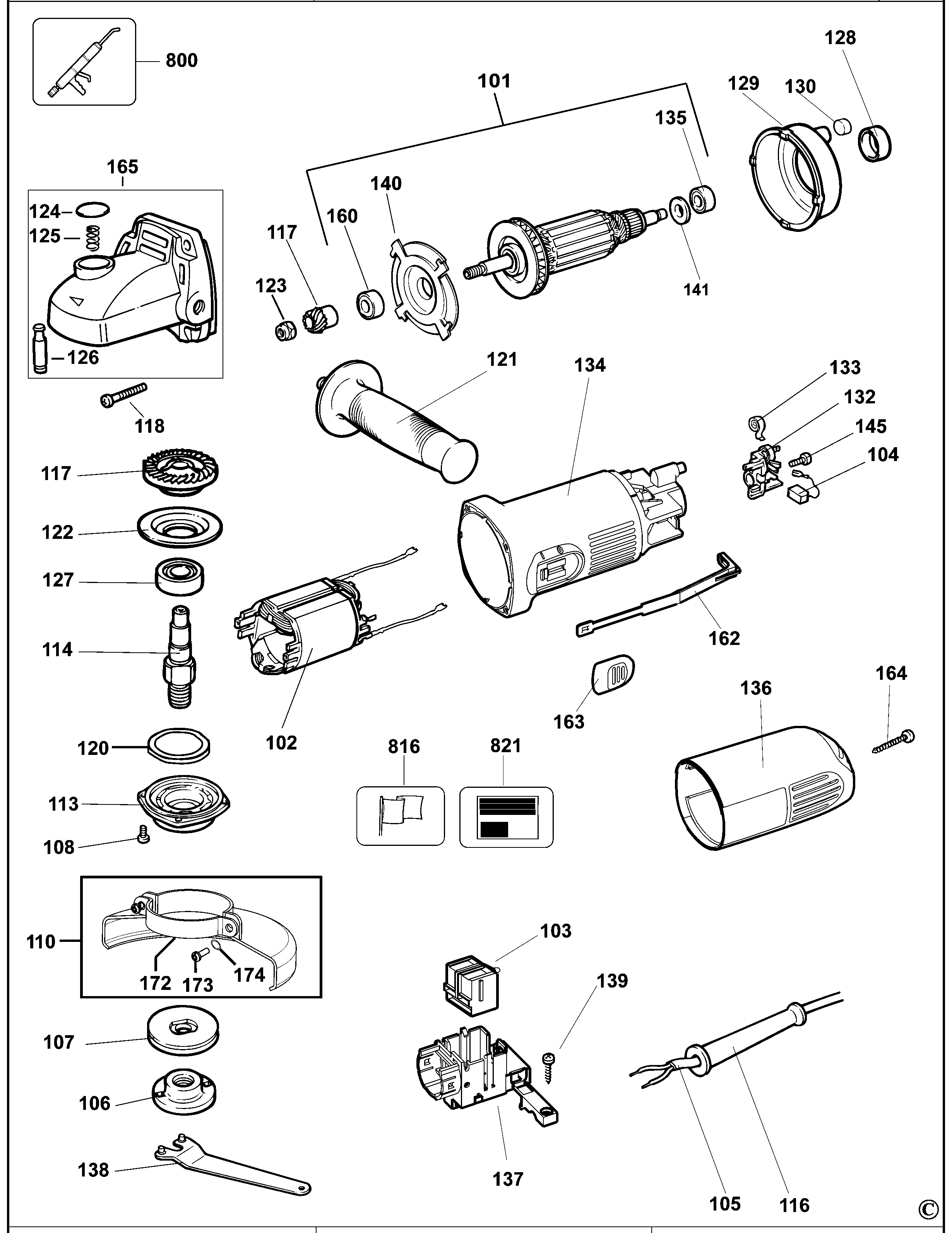

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 ARMATURE SA (N431841) 20216 RON
101 1 1 N358499 - Indisponibil
102 1 1 N336120 - Indisponibil
103 1 1 SWITCH (945614-00) 4137 RON
103 1 1 NA952688 - Indisponibil
104 1 1 BRUSH PAIR 230V CUT OFF (1003859-00) 4472 RON
104 1 1 BRUSH PAIR BK20 (N035676) 2556 RON
105 1 1 N336999 - Indisponibil
106 1 1 WASHER OUTER CLAMP PAINTED (401678-05) 2795 RON
107 1 1 INNER FLANGE (391969-00) 1788 RON
108 1 4 SCREW (330045-46) 558 RON
110 1 1 562197-01 - Indisponibil
113 1 1 GEARCASE COVER (N308541) 2556 RON
114 1 1 SPINDLE (N318739) 2796 RON
116 1 1 N542553 - Indisponibil
116 1 1 PROTECTOR CORD (330005-01) 105 RON
116 1 1 CORD PROTECTOR (N918736) 668 RON
117 1 1 GEAR AND PINION (661244-00) 5370 RON
118 1 4 SCREW (562097-01) 558 RON
120 1 1 Seal Felt washer DW801 (641893-00) 558 RON
121 1 1 Handle Side(945597-00) DW803/801 (562211-00) 2347 RON
122 1 1 Gear Flange (945299-00) 781 RON
123 1 1 Nut (Pinion fixing) (945292-00) 558 RON
124 1 1 LOCK BUTTON (944575-00) 558 RON
125 1 1 SPRING (562210-00) 558 RON
126 1 1 LOCK PIN (944571-00) 893 RON
127 1 1 Bearing DW801 (605040-22) 2347 RON
128 1 1 SLEEVE (641823-00) 558 RON
129 1 1 BAFFLE (401623-00) 781 RON
130 1 2 PLUG (949638-01) 558 RON
132 1 2 BRUSH HOLDER (606574-01) 1788 RON
133 1 2 TORSION SPRING (562204-00) 558 RON
134 1 1 N436642 - Indisponibil
135 1 1 Ball Bearing. CW DW810 (605040-03) 190 RON
136 1 1 END CAP (394938-01) 2795 RON
137 1 1 SWITCH SUPPORT (N312079) 1318 RON
138 1 1 WRENCH PIN (401253-00) 1452 RON
139 1 1 Screw DW201 171 (562097-05) 558 RON
140 1 1 Fan Flange (401622-01) 105 RON
141 1 1 SPACER INSULATING (398906-00) 558 RON
145 1 2 Screw For Brush Holder Assy.(4.2 x 13) (562097-00) 558 RON
160 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
162 1 1 LINK (611737-01) 781 RON
163 1 1 BUTTON (569624-01) 781 RON
164 1 1 SCREW (562097-13) 558 RON
165 1 1 GEARCASE SA (N358559) 741 RON
172 1 1 STRAP (N288581) 588 RON
173 1 2 562160-02 - Indisponibil
174 1 2 WASHER SPRING (569639-00) 588 RON
800 1 1 GREASE (286436-00) 70239 RON
816 1 1 Logo Label DW801 (946194-00) 781 RON
821 1 1 000000-00 - Indisponibil
