Top » Piese de schimb » PIESE DEWALT » DW824 Type 5

POLIZOR UNGHIULAR MIC DEWALT DW824 Type 5
[DW824 Type 5]
POLIZOR UNGHIULAR MIC DEWALT DW824 Type 5
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR MIC DEWALT DW824 Type 5
Click pentru a mari

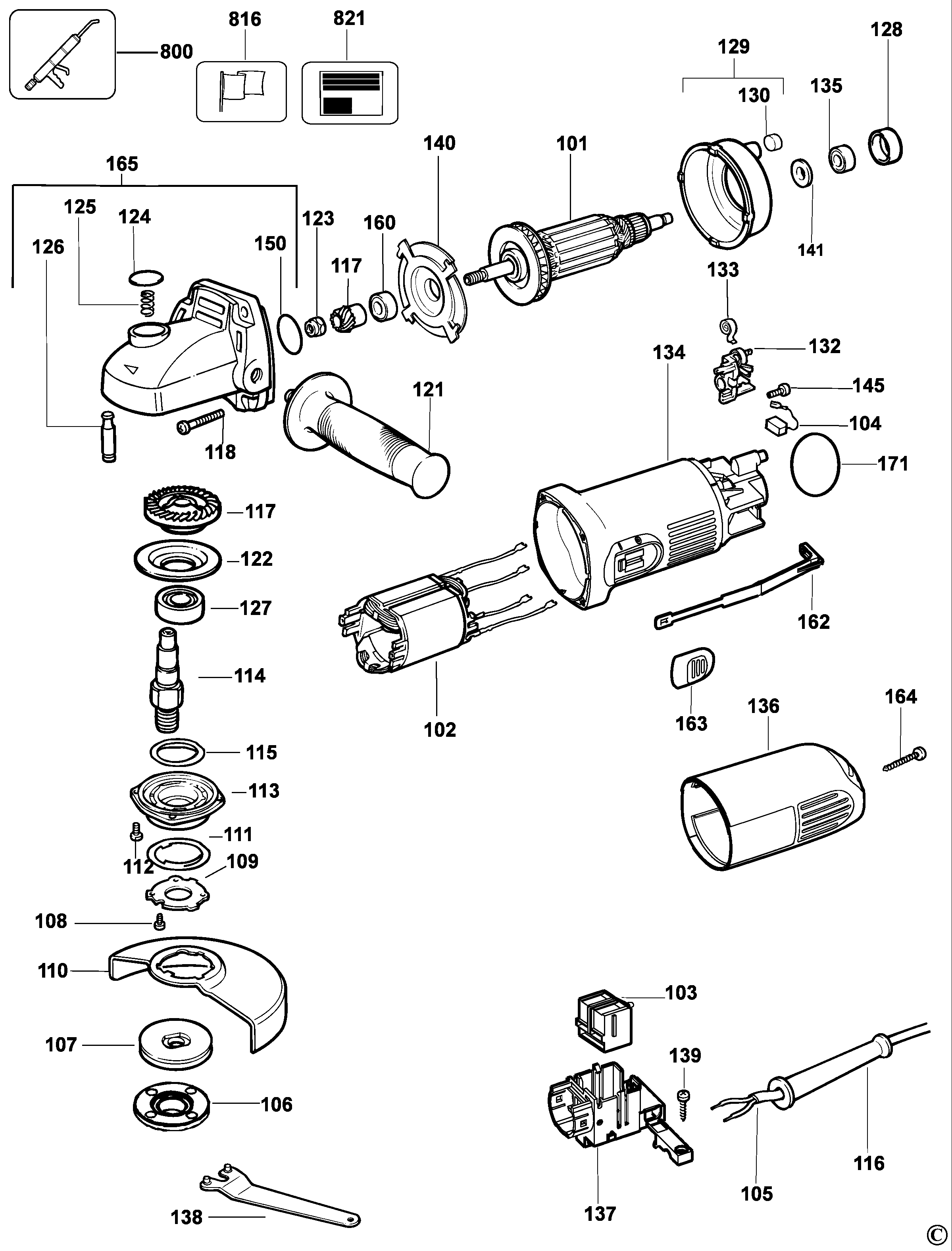

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
102 1 1 FIELD 230V (605527-02) 17335 RON
102 1 1 NB433595 - Indisponibil
106 1 1 WASHER OUTER CLAMP (401678-01) 2795 RON
106 1 1 WASHER OUTER CLAMP (401678-03) 5031 RON
107 1 1 INNER FLANGE (391969-00) 1788 RON
108 1 3 SCREW (562160-06) 558 RON
109 1 1 FLANGE (605415-00) 781 RON
110 1 1 GUARD (944586-00) 2795 RON
111 1 1 Guard Spring (393576-00) 781 RON
112 1 4 SCREW (330045-46) 558 RON
115 1 1 Seal Felt washer DW801 (641893-00) 558 RON
117 1 1 GEAR & PINION (945295-02) 10512 RON
118 1 4 SCREW (562097-01) 558 RON
123 1 1 Nut (Pinion fixing) (945292-00) 558 RON
124 1 1 BUTTON (944574-00) 558 RON
125 1 1 SPRING (562210-00) 558 RON
126 1 1 LOCK PIN (944571-00) 893 RON
128 1 1 Bearing Cover DW831 (608983-00) 781 RON
128 1 1 SLEEVE (641823-00) 558 RON
130 1 2 PLUG (949638-01) 558 RON
132 1 2 BRUSH HOLDER (606574-00) 1229 RON
133 1 2 TORSION SPRING (562204-00) 558 RON
135 1 1 Ball Bearing. CW DW810 (605040-03) 190 RON
137 1 1 SUPPORT (611540-00) 893 RON
138 1 1 Wrench(Spanner) DW831 (401680-00) 2124 RON
139 1 1 Screw DW201 171 (562097-05) 558 RON
140 1 1 Fan Flange (401622-01) 105 RON
141 1 1 SPACER INSULATING (398906-00) 558 RON
145 1 2 Screw For Brush Holder Assy.(4.2 x 13) (562097-00) 558 RON
160 1 1 390821-01 - Indisponibil
160 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
162 1 1 LINK (611737-00) 893 RON
163 1 1 BUTTON (569624-01) 781 RON
164 1 1 SCREW (562097-13) 558 RON
800 1 1 GREASE (286436-00) 70239 RON
