Top » Piese de schimb » PIESE DEWALT » DW818 Type 5

POLIZOR UNGHIULAR MIC DEWALT DW818 Type 5
[DW818 Type 5]
POLIZOR UNGHIULAR MIC DEWALT DW818 Type 5
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR MIC DEWALT DW818 Type 5
Click pentru a mari
POLIZOR UNGHIULAR MIC DEWALT DW818 Type 5
Click pentru a mari

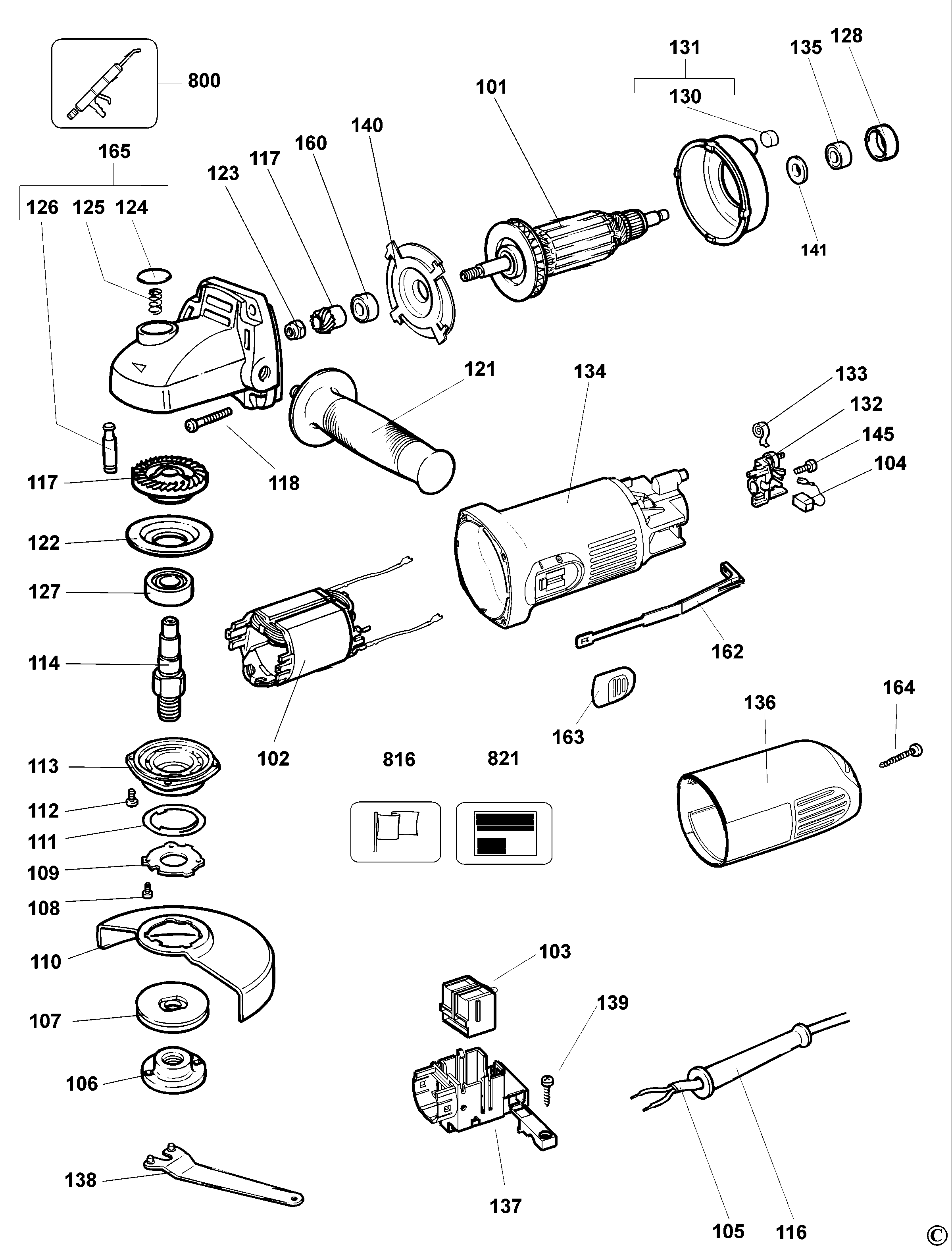

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
102 1 1 FIELD (605527-00) 15993 RON
103 1 1 SWITCH (945614-01) 4472 RON
106 1 1 WASHER OUTER CLAMP (401678-01) 2795 RON
106 1 1 WASHER OUTER CLAMP (401678-03) 5031 RON
107 1 1 INNER FLANGE (391969-00) 1788 RON
108 1 3 SCREW (562160-06) 558 RON
109 1 1 FLANGE (605415-00) 781 RON
110 1 1 GUARD (944685-00) 3466 RON
111 1 1 Guard Spring (393576-00) 781 RON
112 1 4 SCREW (330045-46) 558 RON
116 1 1 N542553 - Indisponibil
116 1 1 PROTECTOR CORD (330005-01) 105 RON
116 1 1 CORD PROTECTOR (N918736) 668 RON
118 1 4 SCREW (562097-01) 558 RON
121 1 1 Handle Side(945597-00) DW803/801 (562211-00) 2347 RON
122 1 1 Gear Flange (945299-00) 781 RON
123 1 1 Nut (Pinion fixing) (945292-00) 558 RON
124 1 1 LOCK BUTTON (944575-00) 558 RON
125 1 1 SPRING (562210-00) 558 RON
126 1 1 LOCK PIN (944571-00) 893 RON
127 1 1 BEARING (949625-02) 7940 RON
127 1 1 Bearing DW801 (605040-22) 2347 RON
130 1 2 PLUG (949638-01) 558 RON
131 1 1 SA Baffle (401635-00) 781 RON
132 1 2 BRUSH HOLDER (606574-01) 1788 RON
133 1 2 TORSION SPRING (562204-00) 558 RON
137 1 1 SUPPORT (611540-00) 893 RON
139 1 1 Screw DW201 171 (562097-05) 558 RON
140 1 1 Fan Flange (401622-01) 105 RON
141 1 1 SPACER INSULATING (398906-00) 558 RON
145 1 2 Screw For Brush Holder Assy.(4.2 x 13) (562097-00) 558 RON
162 1 1 LINK (611737-01) 781 RON
163 1 1 BUTTON (569624-01) 781 RON
164 1 1 SCREW (562097-13) 558 RON
800 1 1 GREASE (286436-00) 70239 RON
816 1 1 Logo Label DW801 (946194-00) 781 RON
