POLIZOR UNGHIULAR MIC DEWALT DW810 Type 4
[DW810 Type 4]
POLIZOR UNGHIULAR MIC DEWALT DW810 Type 4
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR MIC DEWALT DW810 Type 4
Click pentru a mari
POLIZOR UNGHIULAR MIC DEWALT DW810 Type 4
Click pentru a mari

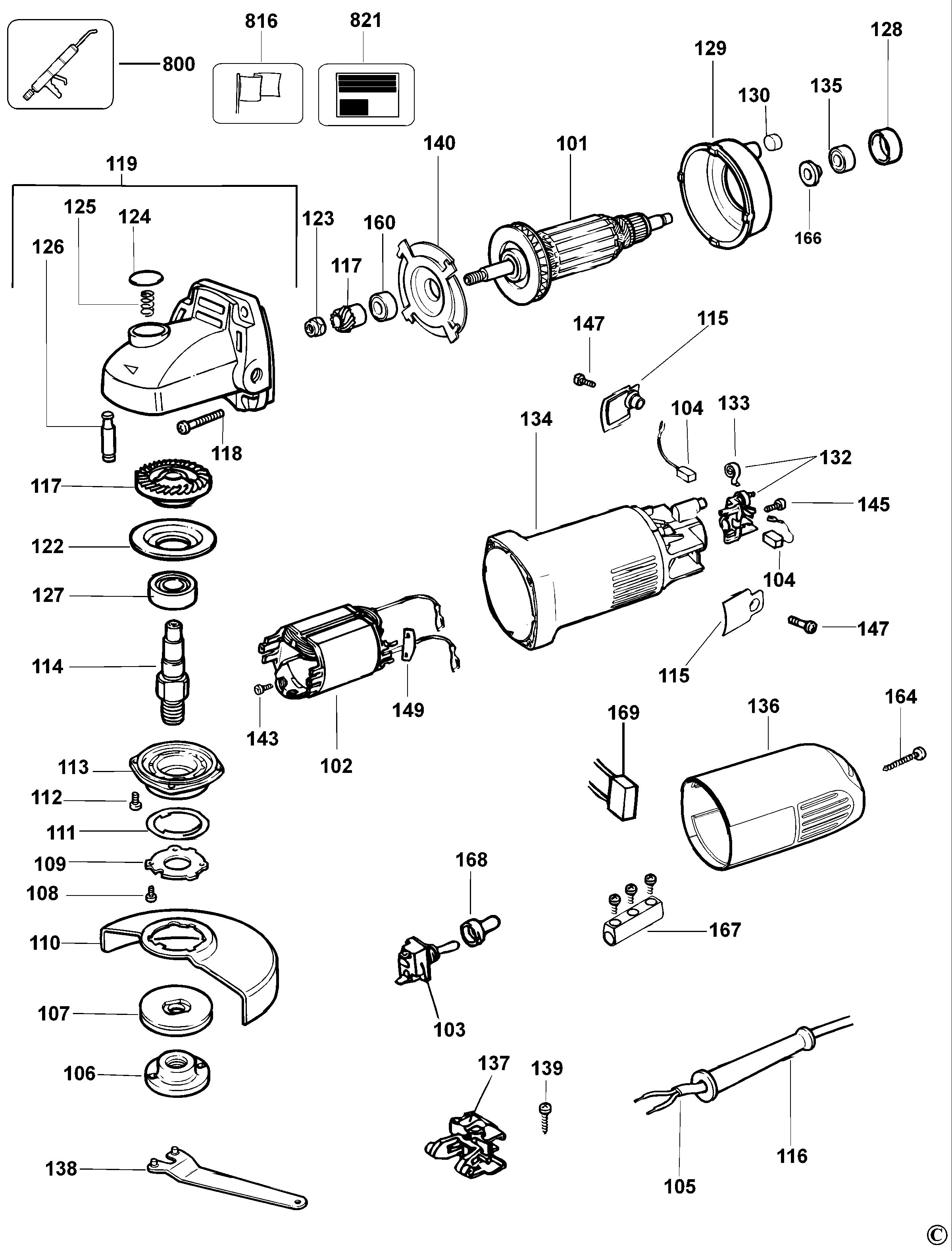

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 SA ARMATURE (401702-08) 17335 RON
102 1 1 641079-00 - Indisponibil
103 1 1 562209-01 - Indisponibil
104 1 2 BRUSH CUT OFF (939539-01) 2124 RON
106 1 1 FLANGE (622208-00) 190 RON
107 1 1 659110-00 - Indisponibil
108 1 3 SCREW (562160-06) 558 RON
109 1 1 FLANGE (605415-00) 781 RON
110 1 1 GUARD (944675-00) 2347 RON
111 1 1 Guard Spring (393576-00) 781 RON
112 1 4 SCREW (562160-07) 558 RON
113 1 1 945298-01 - Indisponibil
114 1 1 641891-00 - Indisponibil
115 1 2 Brush Cover (Black) (945279-01) 558 RON
116 1 1 641081-00 - Indisponibil
117 1 1 000000-00 - Indisponibil
118 1 4 SCREW (562097-01) 558 RON
119 1 1 SA Gear Case (562304-01) 7940 RON
119 1 1 562304-01SV - Indisponibil
122 1 1 Gear Flange (945299-00) 781 RON
123 1 1 Nut (Pinion fixing) (945292-00) 558 RON
124 1 1 LOCK BUTTON (944575-00) 558 RON
125 1 1 SPRING (562210-00) 558 RON
126 1 1 LOCK PIN (944571-00) 893 RON
127 1 1 Bearing DW801 (605040-22) 2347 RON
128 1 1 SLEEVE BEARING (930275-00) 558 RON
129 1 1 BAFFLE (401623-00) 781 RON
130 1 2 PLUG (949638-01) 558 RON
132 1 2 604146-00 - Indisponibil
133 1 2 TORSION SPRING (562204-00) 558 RON
134 1 1 FIELDCASE (396007-00) 3018 RON
134 1 1 396007-04 - Indisponibil
135 1 1 BEARING (390821-00) 5591 RON
135 1 1 BEARING (605040-02) 1788 RON
136 1 1 END CAP (944671-02) 2347 RON
136 1 1 END CAP (944671-04) 2347 RON
137 1 1 SWITCH SUPPORT (397701-00) 105 RON
138 1 1 WRENCH PIN (401253-00) 1452 RON
139 1 1 Screw DW201 171 (562097-05) 558 RON
140 1 1 Fan Flange (401622-01) 105 RON
143 1 2 Screw Self Drive For Handle (4.3 x 37) (562097-02) 558 RON
145 1 2 Screw For Brush Holder Assy.(4.2 x 13) (562097-00) 558 RON
147 1 2 Screw Self Drive For Brush Cover ( (945280-00) 558 RON
149 1 2 PAD (402489-00) 558 RON
160 1 1 390821-01 - Indisponibil
160 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
164 1 2 Screw Self Drive For Handle (4.3 x 37) (562097-02) 558 RON
166 1 1 SPACER INSULATING (398906-00) 558 RON
167 1 1 CONNECTOR (603180-00) 893 RON
168 1 1 SWITCH COVER (943254-00) 558 RON
800 1 1 GREASE (286436-00) 70239 RON
816 1 1 Logo Label DW801 (946194-00) 781 RON
