Top » Piese de schimb » PIESE DEWALT » DW806 Type 2 - Asia

POLIZOR UNGHIULAR MIC DEWALT DW806 Type 2 - Asia
[DW806 Type 2 - Asia]
POLIZOR UNGHIULAR MIC DEWALT DW806 Type 2 - Asia
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR MIC DEWALT DW806 Type 2 - Asia
Click pentru a mari
POLIZOR UNGHIULAR MIC DEWALT DW806 Type 2 - Asia
Click pentru a mari

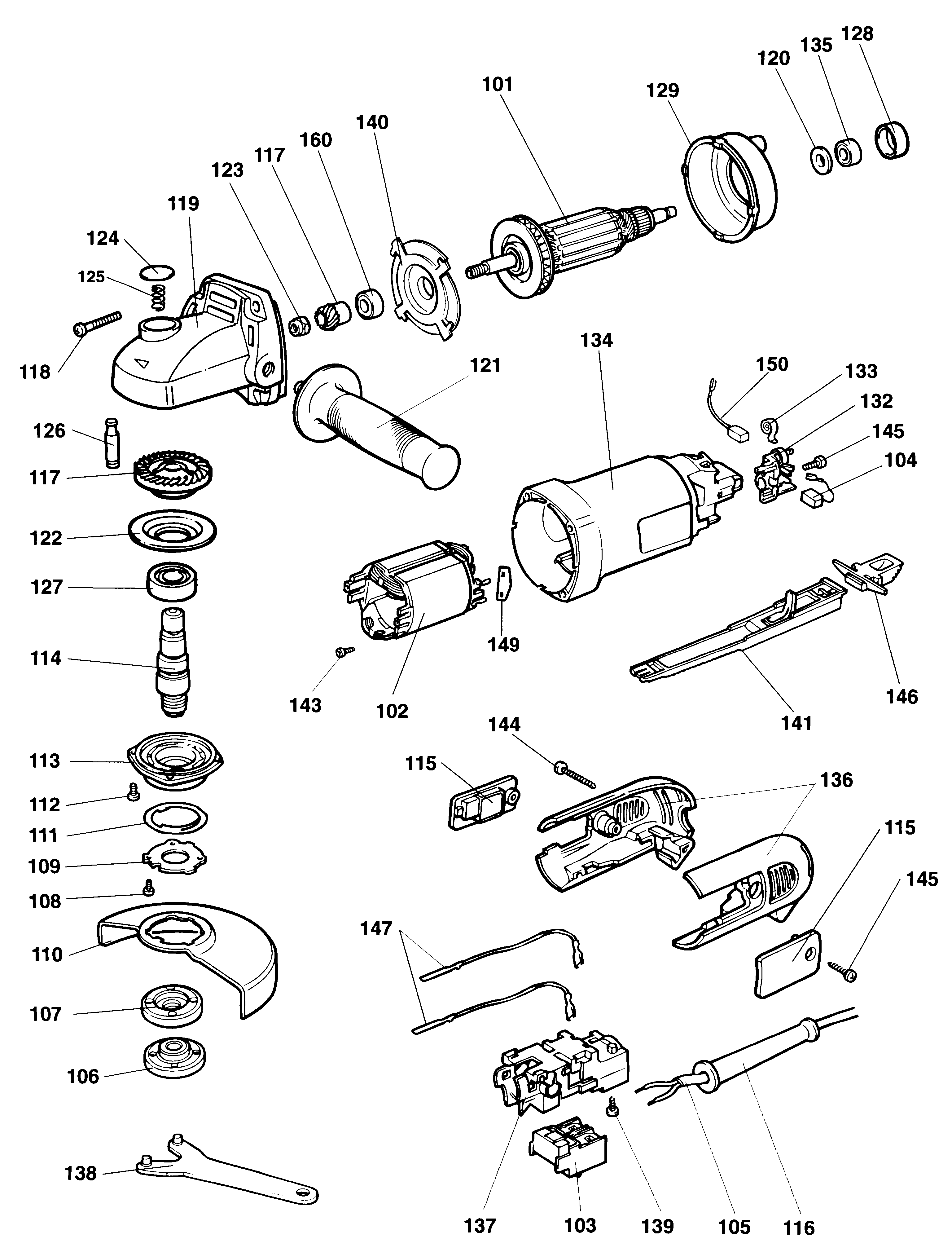

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
103 1 1 SWITCH (945614-00) 4137 RON
103 1 1 NA952688 - Indisponibil
106 1 1 INNER FLANGE (947466-00) 1788 RON
108 1 3 Screw (Wheel Guard) 1x3 (562160-00) 558 RON
109 1 1 FLANGE (605415-00) 781 RON
110 1 1 GUARD (944675-00) 2347 RON
111 1 1 Guard Spring (393576-00) 781 RON
112 1 4 SCREW M4X10 (930224-01) 558 RON
112 1 4 SCREW (562160-07) 558 RON
113 1 1 GEARCASE COVER (945298-00) 2795 RON
114 1 1 SPINDLE (391970-00) 3466 RON
114 1 1 622210-00 - Indisponibil
115 1 2 COVER BRUSH (401963-01) 558 RON
116 1 1 N542553 - Indisponibil
116 1 1 PROTECTOR CORD (330005-01) 105 RON
116 1 1 CORD PROTECTOR (N918736) 668 RON
117 1 1 GEAR & PINION (945295-01) 10512 RON
117 1 1 GEAR & PINION (661243-00) 5591 RON
117 1 1 GEAR & PINION (N490505) 11337 RON
117 1 1 Pinion DW803A2 (562100-01) 6821 RON
118 1 4 SCREW (930079-01) 558 RON
119 1 1 SA Gear Case (562304-01) 7940 RON
119 1 1 562304-01SV - Indisponibil
120 1 1 SPACER (945287-00) 558 RON
121 1 1 SIDE HANDLE (940155) 2795 RON
122 1 1 Gear Flange (945299-00) 781 RON
123 1 1 Nut (Pinion fixing) (945292-00) 558 RON
124 1 1 LOCK BUTTON (944575-00) 558 RON
125 1 1 SPRING (562210-00) 558 RON
126 1 1 LOCK PIN (944571-00) 893 RON
127 1 1 BEARING (949625-02) 7940 RON
127 1 1 Bearing DW801 (605040-22) 2347 RON
128 1 1 SLEEVE BEARING (930275-00) 558 RON
129 1 1 BAFFLE (401623-00) 781 RON
132 1 2 BRUSH HOLDER (944585-00) 1229 RON
132 1 2 BRUSH HOLDER SA (949880-05) 1117 RON
133 1 2 BRUSH SPRING (930090-00) 558 RON
134 1 1 401637-04 - Indisponibil
135 1 1 BEARING (390821-00) 5591 RON
135 1 1 BEARING (605040-02) 1788 RON
136 1 1 401973-00 - Indisponibil
137 1 1 SWITCH SUPPORT (401595-00) 1229 RON
138 1 1 WRENCH PIN (401253-00) 1452 RON
139 1 1 SCREW (562097-04) 558 RON
140 1 1 Fan Flange (401622-01) 105 RON
141 1 1 LEVER SA (947815-01) 3466 RON
143 1 2 SCREW (562097-07) 558 RON
143 1 2 SCREW (390198-00) 558 RON
144 1 2 SCREW (931297-00) 893 RON
144 1 2 SCREW (562097-06) 558 RON
145 1 4 SCREW (931469-02) 558 RON
146 1 1 BUTTON LOCK-ON (401259-01) 781 RON
147 1 1 949801-99 - Indisponibil
148 1 1 949933-16 - Indisponibil
149 1 2 PAD (402489-00) 558 RON
160 1 1 390821-01 - Indisponibil
160 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
168 1 1 561669-00 - Indisponibil
168 1 1 569512-00 - Indisponibil
