Top » Piese de schimb » PIESE DEWALT » DCG407N Type 1

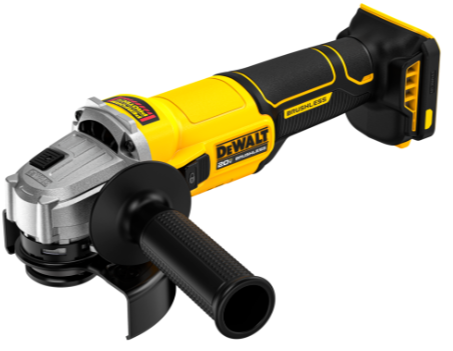

POLIZOR UNGHIULAR MIC DEWALT DCG407N Type 1
[DCG407N Type 1]
POLIZOR UNGHIULAR MIC DEWALT DCG407N Type 1
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR MIC DEWALT DCG407N Type 1
Click pentru a mari
POLIZOR UNGHIULAR MIC DEWALT DCG407N Type 1
Click pentru a mari
POLIZOR UNGHIULAR MIC DEWALT DCG407N Type 1
Click pentru a mari
POLIZOR UNGHIULAR MIC DEWALT DCG407N Type 1
Click pentru a mari
POLIZOR UNGHIULAR MIC DEWALT DCG407N Type 1
Click pentru a mari

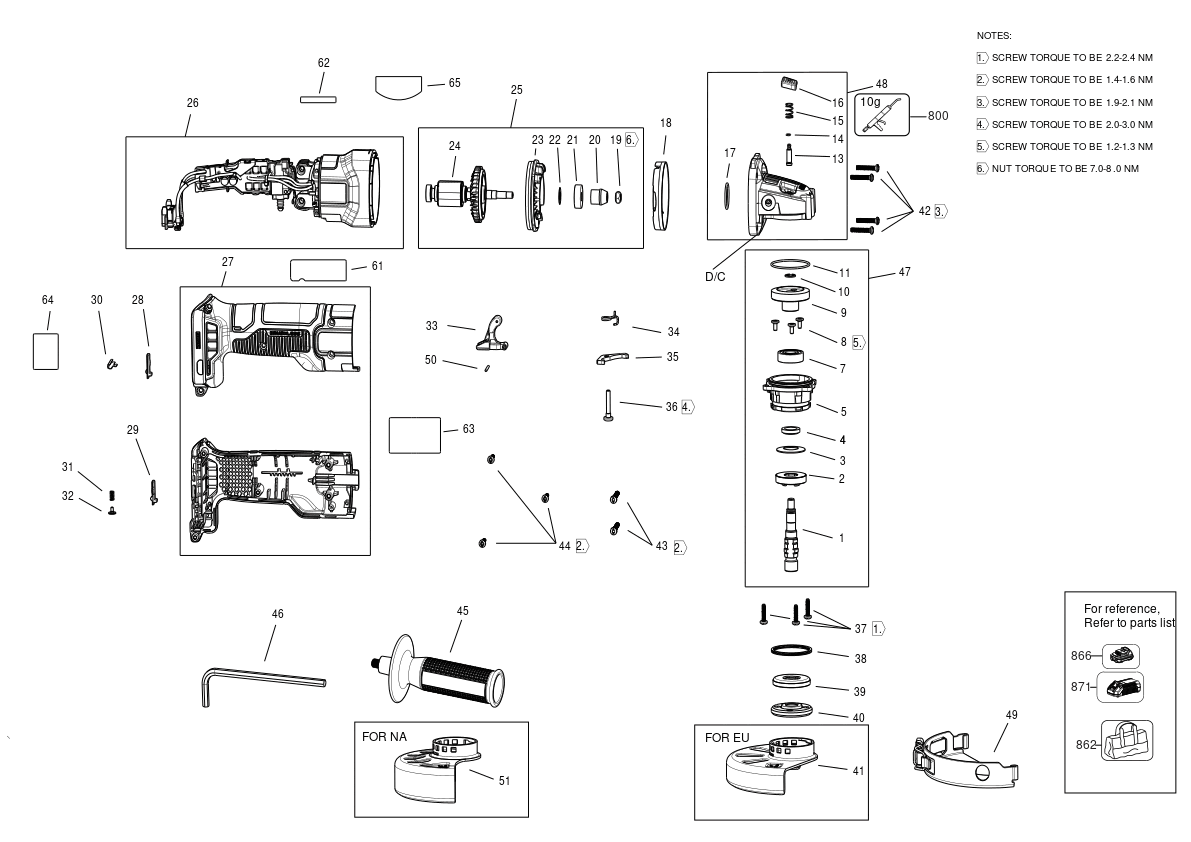

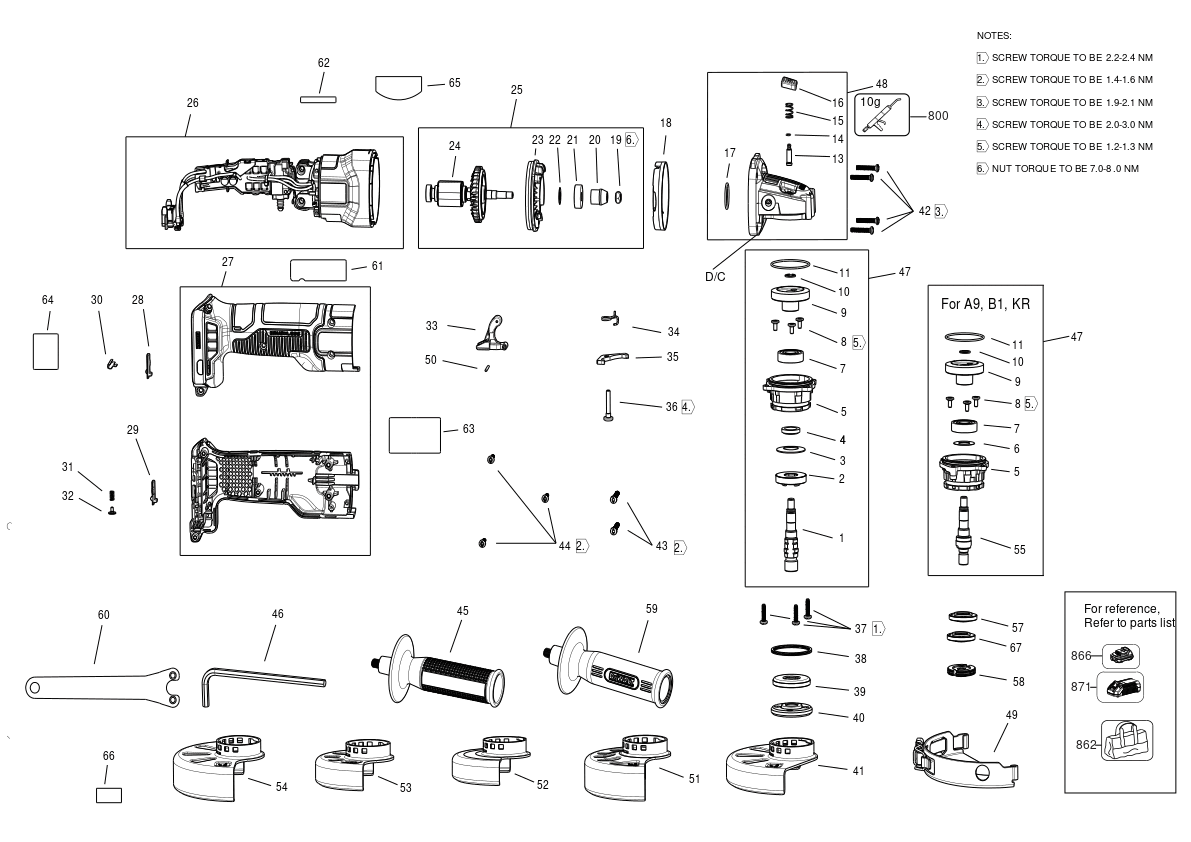

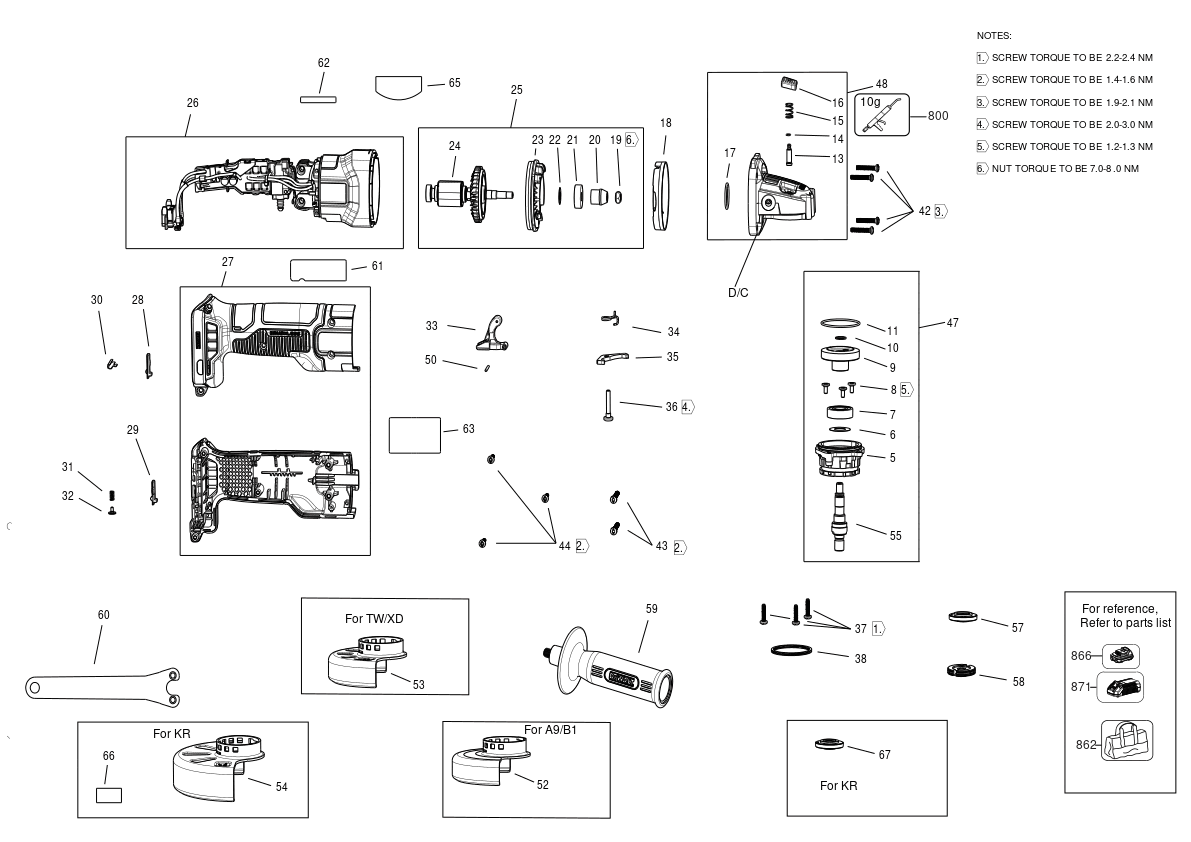

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SPINDLE-M14 (NA425969) 2796 RON
2 1 1 WASHER (N448927) 2182 RON
3 1 1 WASHER SPRING (N451305) 588 RON
4 1 1 SPACER (N390307) 1318 RON
5 1 3 COVER GEARCASE (NA384886) 3954 RON
5 1 3 COVER GEARCASE (NB399044) 3268 RON
7 1 1 BEARING (605040-21) 3268 RON
8 1 1 SCREW (N514767) 588 RON
9 1 1 GEAR-GEAR 29 T STEEL (NA411393) 3954 RON
10 1 1 CIRCLIP (NA411389) 588 RON
11 1 1 O RING 1.5X40 (N307625) 588 RON
13 1 1 LOCK PIN (NA088952) 668 RON
14 1 1 THOR SPINDLE LOCK O-RING (N263699) 588 RON
15 1 1 SPRING (N092954) 558 RON
16 1 1 BUTTON LOCK-ON-BUTTON SPINDLE LOCK (NA407658) 588 RON
17 1 1 O RING (N119639) 558 RON
18 1 1 BAFFLE (NA396900) 588 RON
19 1 1 NUT (604484-00) 558 RON
20 1 1 PINION (NA411392) 2556 RON
21 1 1 BEARING (N214432) 105 RON
22 1 1 WASHER (N213812) 558 RON
23 1 1 FAN (NA419306) 668 RON
24 1 1 ROTOR SA (NA395016) 16689 RON
24 1 1 NB218981 - Indisponibil
25 1 1 ARMATURE SA (NA741113) 23244 RON
25 1 1 NB219033 - Indisponibil
26 1 1 MOTOR & SWITCH SA (NA701831) 57833 RON
27 1 1 HANDLE SA (NA423571) 741 RON
28 1 1 INSERT (N728013) 588 RON
29 1 1 INSERT (N728012) 588 RON
30 1 1 STRIKE PLATE (N467560) 588 RON
31 1 1 TERMINAL BLOCK SPRING (N461735) 588 RON
32 1 1 SPRING GUIDE (N091479) 558 RON
33 1 1 SA SLIDER LEVER (N497112) 1772 RON
34 1 3 SPRING (N105579) 558 RON
35 1 1 LEVER (N637725) 1772 RON
36 1 1 SCREW SHOULDER M4 (N297219) 588 RON
37 1 1 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
38 1 4 WASHER SPRING (N135116) 893 RON
39 1 3 INNER FLANGE (391969-00) 1788 RON
40 1 1 OUTER FLANGE (N134466) 3018 RON
41 1 1 GUARD (NA680155) 3954 RON
42 1 1 SCREW (330065-31) 558 RON
43 1 1 SCREW M4X34 T15 (330065-33) 588 RON
44 1 1 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
45 1 1 SIDE HANDLE (N401305) 2556 RON
46 1 1 HEX KEY 6 MM (N107295) 781 RON
47 1 1 GEARCASE COVER SA (NA708489) 18568 RON
48 1 1 GEARCASE SA (NA741128) 13697 RON
49 1 1 GUARD (NA267971) 10241 RON
50 1 1 ARES SLIDER LEVER PIN (N489903) 588 RON
61 1 1 RATING LABEL (NA505216) 588 RON
62 1 1 IDENTITY LABEL (NA505183) 588 RON
63 1 1 WARNING LABEL (NA505218) 588 RON
64 1 1 LABEL (NA505217) 588 RON
65 1 1 LABEL (N602440) 588 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
