Top » Piese de schimb » PIESE DEWALT » DCG406P2LRT Type 3

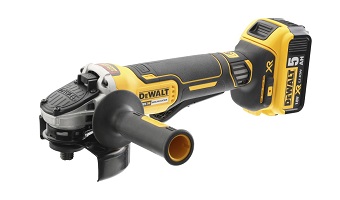

POLIZOR UNGHIULAR MIC DEWALT DCG406P2LRT Type 3
[DCG406P2LRT Type 3]
POLIZOR UNGHIULAR MIC DEWALT DCG406P2LRT Type 3
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR MIC DEWALT DCG406P2LRT Type 3
Click pentru a mari
POLIZOR UNGHIULAR MIC DEWALT DCG406P2LRT Type 3
Click pentru a mari
POLIZOR UNGHIULAR MIC DEWALT DCG406P2LRT Type 3
Click pentru a mari
POLIZOR UNGHIULAR MIC DEWALT DCG406P2LRT Type 3
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SPINDLE SA (NA707366) 18568 RON
9 1 1 BEARING (N150961) 190 RON
10 1 1 GEAR (N153126) 3466 RON
11 1 1 RETAINING RING (444793-00) 558 RON
12 1 3 SCREW (N118088) 558 RON
13 1 1 O RING (N094024) 558 RON
14 1 1 GEARCASE COVER (N116180) 781 RON
15 1 4 SCREW (N122904) 558 RON
16 1 1 PLUG (N489769) 588 RON
17 1 1 O RING (N094012) 558 RON
18 1 1 WASHER BEARING BLOCK (N447838) 588 RON
19 1 1 SPRING (N092954) 558 RON
20 1 1 SPINDLE LOCK (N114592) 781 RON
21 1 1 BUTTON (N126105) 558 RON
22 1 1 SPINDLE LOCK (N181767) 781 RON
23 1 1 GEAR CASE SA (NA765277) 25728 RON
24 1 1 BAFFLE ARES (N478435) 668 RON
25 1 1 NUT (604484-00) 558 RON
26 1 1 PINION (N153125) 2347 RON
27 1 1 BEARING (N214432) 105 RON
28 1 1 Fan, rotor (N478436) 944 RON
29 1 1 WASHER (N213812) 558 RON
30 1 1 ROTOR SA (N769802) 42426 RON
30 1 1 NB327006 - Indisponibil
31 1 1 FIELDCASE SA (N888455) 148269 RON
31 1 1 NB463639 - Indisponibil
32 1 1 LEVER LOCK-OFF (N534716) 4355 RON
33 1 1 N888463 - Indisponibil
34 1 1 STRIKE PLATE (N467560) 588 RON
35 1 3 SCREW (90611830) 588 RON
36 1 1 TERMINAL BLOCK SPRING (N461735) 588 RON
37 1 1 MOUNT TERM BLOCK SPRING (MOULD) (N122099) 558 RON
38 1 2 Screw Taptite (330045-43) 558 RON
39 1 1 SA VENT COVER LEFT (N493573) 1772 RON
40 1 1 SA VENT COVER RIGHT (N493572) 1772 RON
41 1 2 SCREW M4X34 T15 (330065-33) 588 RON
42 1 1 O RING (633044-00) 781 RON
43 1 1 WASHER SPRING (N135116) 893 RON
44 1 1 SCREW (N137733) 558 RON
45 1 1 LEVER (N136731) 105 RON
46 1 1 SPRING (N105579) 558 RON
47 1 1 GUARD (NA161663) 4827 RON
47 1 1 GUARD (NB094680) 11337 RON
48 1 1 INNER FLANGE (391969-00) 1788 RON
49 1 1 OUTER FLANGE (N484250) 741 RON
50 1 4 SCREW (330065-31) 558 RON
51 1 2 SCREW (N831593) 588 RON
52 1 1 BLANK COVER AUDIT CHIP (N787996) 588 RON
53 1 1 SIDE HANDLE (N421925) 5370 RON
54 1 1 HEX KEY 6 MM (N107295) 781 RON
55 1 1 N891679 - Indisponibil
56 1 1 RATING LABEL (NA639574) 588 RON
58 1 1 LABEL (N499037) 588 RON
59 1 1 LABEL (N602440) 588 RON
60 1 1 LABEL (NA239788) 588 RON
61 1 1 LABEL (NA657541) 588 RON
65 1 1 O RING (N119639) 558 RON
66 1 1 GUARD (N311439) 13697 RON
67 1 1 WARNING LABEL (NA185519) 588 RON
67 1 1 NB482136 - Indisponibil

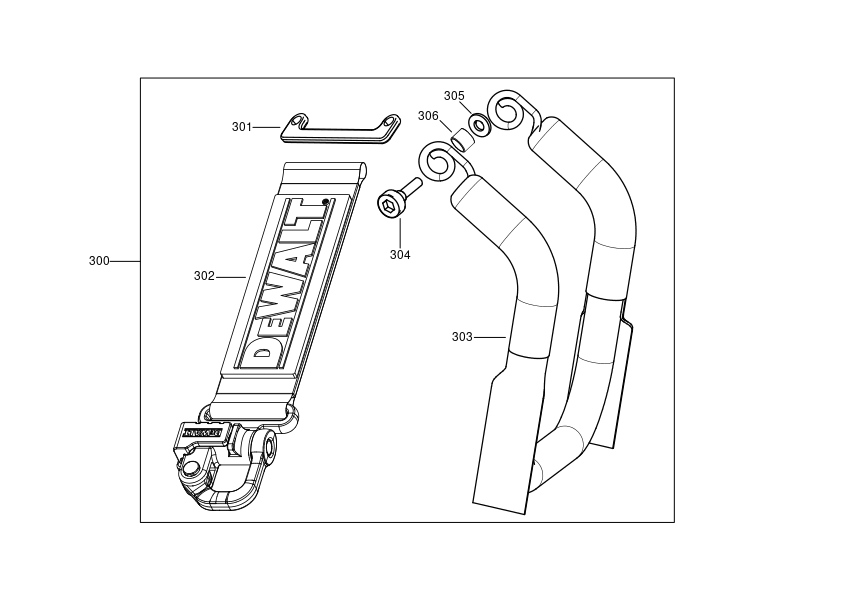

300 1 1 SERVICE KIT (NA325022) 67932 RON
301 1 1 STRAP. HOOKED (N537349) 588 RON
302 1 1 HOOK (NA295704) 20216 RON
303 1 1 CLIP SA (NA295713) 12361 RON
304 1 2 SCREW (NA100552) 82 RON
305 1 2 WASHER (N462739) 588 RON
306 1 2 SLEEVE (NA100605) 588 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
860 1 2 HANDLE (H1400198008) 2347 RON
861 1 1 KITBOX DWST1-17807 (N279261) 30769 RON
862 1 1 LATCH (N409477) 114 RON
863 1 2 LATCH (P910190) 3466 RON
864 1 1 INSERT (N862684) 11337 RON
866 1 2 BATTERY (NA301176) 104961 RON
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
