Top » Piese de schimb » PIESE DEWALT » DCG406NT Type 2

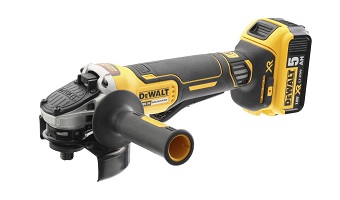

POLIZOR UNGHIULAR MIC DEWALT DCG406NT Type 2
[DCG406NT Type 2]
POLIZOR UNGHIULAR MIC DEWALT DCG406NT Type 2
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR MIC DEWALT DCG406NT Type 2
Click pentru a mari
POLIZOR UNGHIULAR MIC DEWALT DCG406NT Type 2
Click pentru a mari

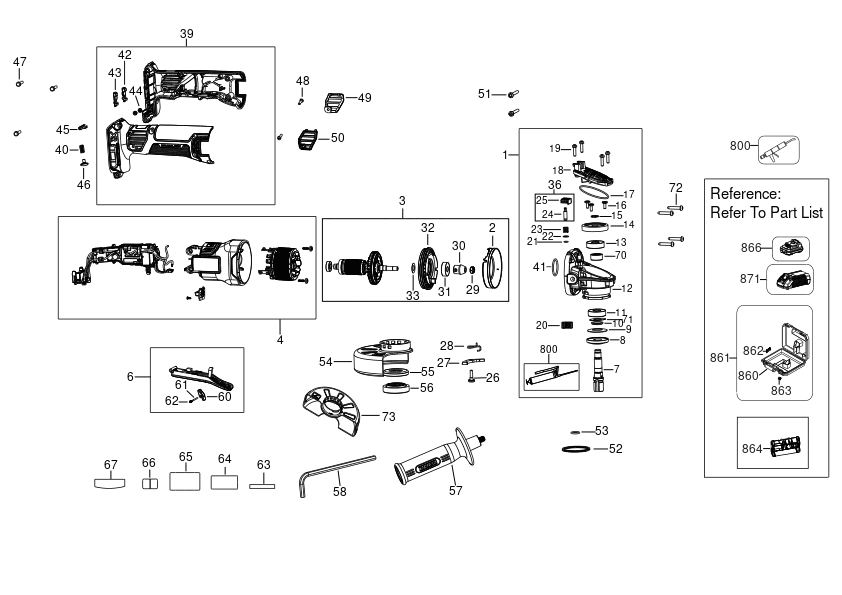

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 GEARCASE SA (N509540) 21676 RON
2 1 1 BAFFLE ARES (N478435) 668 RON
3 1 1 ROTOR SA (N537673) 24962 RON
3 1 1 MOTOR SWITCH SA (NB218899) 91363 RON
4 1 1 MOTOR SWITCH SA (NA574498) 85494 RON
6 1 1 LEVER LOCK-OFF (N534716) 4355 RON
7 1 1 SPINDLE (N487315) 4355 RON
8 1 1 WASHER (N487316) 1933 RON
9 1 1 WASHER SPRING (N451305) 588 RON
10 1 1 SPACER (N474213) 1630 RON
11 1 1 BEARING (N150961) 190 RON
12 1 1 GEARCASE (N134203) 741 RON
13 1 1 BEARING (N150961) 190 RON
14 1 1 GEAR (N097361) 3466 RON
15 1 1 RETAINING RING (444793-00) 558 RON
16 1 1 SCREW (N118088) 558 RON
17 1 1 O RING (N094024) 558 RON
18 1 1 GEARCASE COVER (N116180) 781 RON
19 1 4 SCREW (N122904) 558 RON
21 1 1 O RING (N094012) 558 RON
22 1 1 WASHER BEARING BLOCK (N447838) 588 RON
23 1 1 SPRING (N092954) 558 RON
24 1 1 SPINDLE LOCK (N114592) 781 RON
25 1 1 BUTTON (N126105) 558 RON
26 1 1 SCREW (N137733) 558 RON
27 1 1 LEVER (N136731) 105 RON
28 1 1 SPRING (N105579) 558 RON
29 1 1 NUT (604484-00) 558 RON
30 1 1 PINION (N095840) 2795 RON
31 1 1 BEARING (N214432) 105 RON
32 1 1 SPINDLE LOCK (N181767) 781 RON
33 1 1 WASHER (N213812) 558 RON
36 1 1 SPINDLE LOCK (N181767) 781 RON
39 1 1 CLAMSHELL SET (N534718) 9012 RON
40 1 1 TERMINAL BLOCK SPRING (N461735) 588 RON
41 1 1 O RING (N119639) 558 RON
42 1 1 INSERT (N728013) 588 RON
42 1 1 ANTIVIBE RAIL INSERT ASSEMBLY SIDE (N438439) 588 RON
43 1 1 INSERT (N728012) 588 RON
43 1 1 ANTIVIBE RAIL INSERT COVER SIDE (N438438) 588 RON
44 1 2 NUT STOP ELASTIC M3 X 0.5 (330021-11) 558 RON
45 1 1 STRIKE PLATE (N467560) 588 RON
46 1 1 MOUNT TERM BLOCK SPRING (MOULD) (N122099) 558 RON
47 1 3 SCREW (90611830) 588 RON
48 1 1 BELT HOOK SCREW M3 (N042665) 558 RON
49 1 1 SA VENT COVER LEFT (N493573) 1772 RON
50 1 1 SA VENT COVER RIGHT (N493572) 1772 RON
51 1 2 SCREW M4X34 T15 (330065-33) 588 RON
52 1 1 WASHER SPRING (N135116) 893 RON
53 1 1 O RING (N420261) 588 RON
54 1 1 GUARD (NA161663) 4827 RON
55 1 1 INNER FLANGE (391969-00) 1788 RON
56 1 1 OUTER FLANGE (N484250) 741 RON
57 1 1 SIDE HANDLE (N421925) 5370 RON
58 1 1 HEX KEY 6 MM (N107295) 781 RON
60 1 1 LEVER LOCK-OFF (397657-00) 558 RON
61 1 1 ROLL PIN (099204-14) 558 RON
62 1 1 SPRING (150264-01) 558 RON
63 1 1 BRAND LABEL (N500332) 588 RON
64 1 1 RATING LABEL (NA269383) 588 RON
65 1 1 WARNING LABEL (NA185519) 588 RON
65 1 1 NB482136 - Indisponibil
66 1 1 LABEL (N499037) 588 RON
67 1 1 LABEL (N602440) 588 RON
70 1 1 SLEEVE (N095815) 781 RON
71 1 1 Slinger (638229-00) 558 RON
72 1 4 SCREW (330065-31) 558 RON
73 1 1 GUARD (N311439) 13697 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
860 1 2 HANDLE (H1400198008) 2347 RON
861 1 1 KITBOX DWST1-17807 (N279261) 30769 RON
862 1 1 LATCH (N409477) 114 RON
863 1 2 LATCH (P910190) 3466 RON
864 1 1 INSERT (N505549) 741 RON
