Top » Piese de schimb » PIESE DEWALT » D28141 Type 4

POLIZOR UNGHIULAR MIC DEWALT D28141 Type 4
[D28141 Type 4]
POLIZOR UNGHIULAR MIC DEWALT D28141 Type 4
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR MIC DEWALT D28141 Type 4
Click pentru a mari
POLIZOR UNGHIULAR MIC DEWALT D28141 Type 4
Click pentru a mari

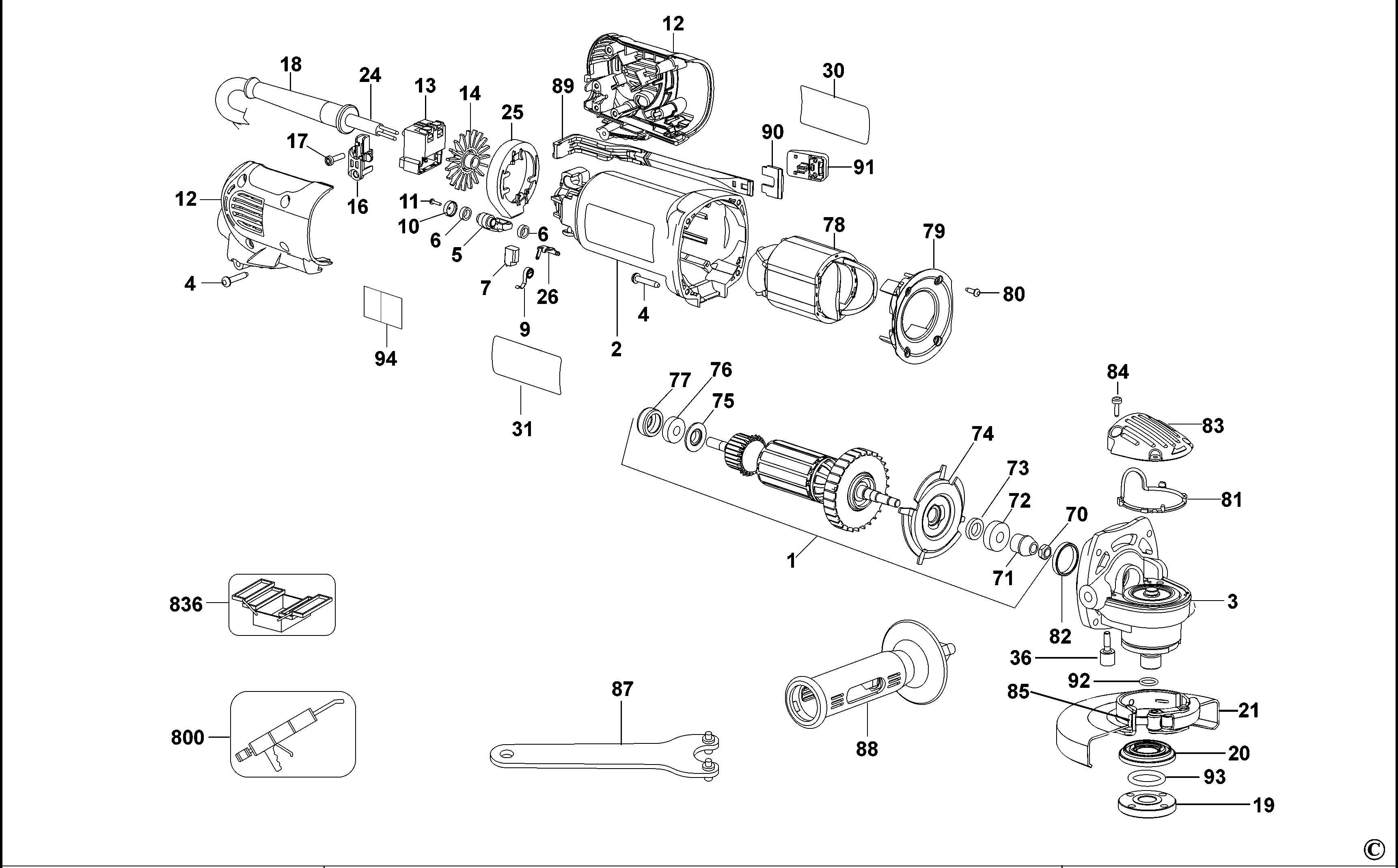

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 N398001 - Indisponibil
1 1 1 ARMATURE 230V (623584-10) 34336 RON
2 1 1 FIELDCASE (626992-02) 4472 RON
3 1 1 GEAR CASE SA (N086309) 23598 RON
4 1 9 SCREW (330065-31) 558 RON
5 1 2 ARM (648743-00) 1229 RON
6 1 4 SEAL (623592-00) 558 RON
7 1 1 N035662 - Indisponibil
7 1 1 BRUSH PAIR 230V CUT OFF (1003857-00) 4827 RON
9 1 2 BRUSH SPRING (636760-00) 781 RON
10 1 2 CAP (623591-00) 558 RON
11 1 2 SCREW (593685-00) 558 RON
12 1 1 HANDLE SA (633013-01) 4137 RON
13 1 1 SWITCH (945614-00) 4137 RON
13 1 1 NA952688 - Indisponibil
14 1 1 SEPARATOR (623581-00) 893 RON
14 1 1 SEPARATOR (N055787) 781 RON
16 1 1 CORD CLAMP (639693-00) 781 RON
17 1 2 Screw M3.5X16 T15 (330019-03) 558 RON
18 1 1 N542553 - Indisponibil
18 1 1 PROTECTOR CORD (330005-01) 105 RON
18 1 1 CORD PROTECTOR (N918736) 668 RON
19 1 1 OUTER FLANGE (622613-02) 2795 RON
20 1 1 INNER FLANGE SA (633257-00) 2795 RON
20 1 1 INNER FLANGE SA (633257-00SV) 2795 RON
21 1 1 GUARD SA (N042109) 5031 RON
24 1 1 CABLE (562226-08) 6821 RON
25 1 1 BAFFLE (627283-00) 781 RON
26 1 2 TERMINAL (623593-00) 781 RON
30 1 1 LABEL (628885-00) 781 RON
31 1 1 RATING PLATE (N035994) 558 RON
36 1 1 SCREW STOP (N033051) 558 RON
70 1 1 NUT (604484-00) 558 RON
71 1 1 PINION (629797-00) 3466 RON
72 1 1 BEARING (605040-67) 1229 RON
73 1 1 FELT SEAL (623617-00) 558 RON
74 1 1 N422242 - Indisponibil
74 1 1 ETAINER (623580-00) 1788 RON
75 1 1 WASHER (623613-00) 558 RON
76 1 1 BEARING (605040-02) 1788 RON
77 1 1 SLEEVE (641823-00) 558 RON
78 1 1 FIELD 230V (627125-04) 14315 RON
79 1 1 BAFFLE FAN (623572-00) 105 RON
80 1 4 SCREW PLSTC THD FORM M3X9 T10 (330065-25) 558 RON
81 1 1 GASKET (632513-00) 105 RON
82 1 1 SLEEVE (611492-00) 558 RON
83 1 1 GEARCASE COVER (627313-00) 2795 RON
84 1 4 SCREW (385676-01) 558 RON
85 1 1 SCREW (631609-00) 558 RON
85 1 1 SCREW (631609-03) 558 RON
87 1 1 WRENCH PIN (401680-01) 2347 RON
87 1 1 WRENCH PIN (N079326) 190 RON
88 1 1 SIDE HANDLE (614796-00) 5591 RON
89 1 1 LINK (627006-00) 2124 RON
90 1 1 BAR LOCKING (644326-00) 781 RON
91 1 1 BUTTON START (623608-00) 781 RON
92 1 1 O RING (633045-00) 781 RON
93 1 1 O RING (633043-00) 781 RON
94 1 1 640416-00 - Indisponibil
800 1 1 GREASE TUBE (583534-00) 29862 RON
800 1 1 GREASE (429954-00) 398067 RON
836 1 1 DRIVER T6 (233804-36) 14315 RON
