POLIZOR UNGHIULAR MIC DEWALT D28000 Type 1
[D28000 Type 1]
POLIZOR UNGHIULAR MIC DEWALT D28000 Type 1
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR MIC DEWALT D28000 Type 1
Click pentru a mari

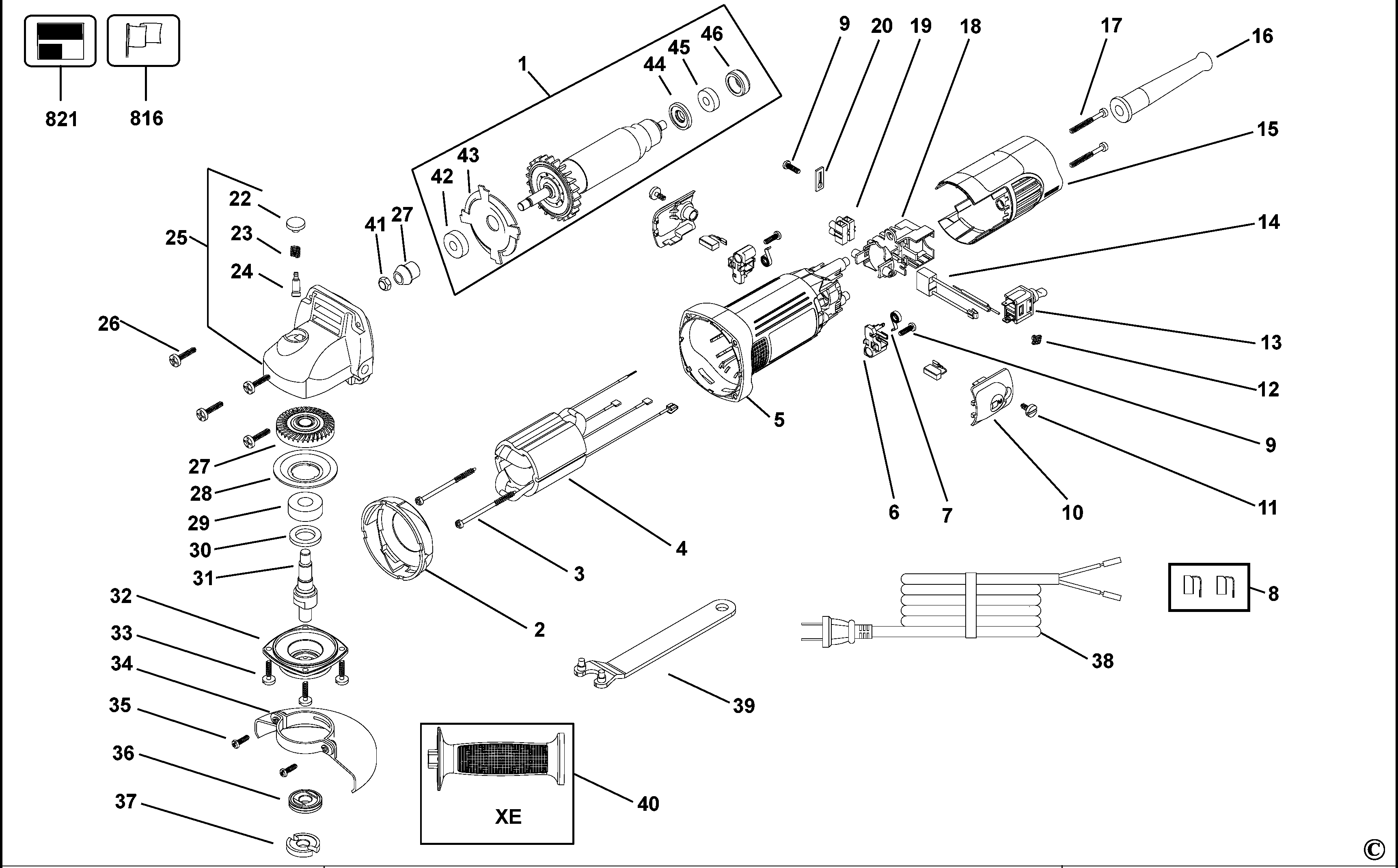

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 1 659289-00 - Indisponibil
3 1 2 SCREW (330065-29) 588 RON
5 1 1 659479-00 - Indisponibil
6 1 2 N022338 - Indisponibil
7 1 2 619985-00 - Indisponibil
8 1 1 N071856 - Indisponibil
9 1 3 Screw For Brush Holder Assy.(4.2 x 13) (562097-00) 558 RON
10 1 2 659924-00 - Indisponibil
11 1 2 N018354 - Indisponibil
12 1 1 627647-00 - Indisponibil
13 1 1 619324-01 - Indisponibil
14 1 1 N029527 - Indisponibil
15 1 1 659925-00 - Indisponibil
16 1 1 N542553 - Indisponibil
16 1 1 PROTECTOR CORD (330005-01) 105 RON
16 1 1 CORD PROTECTOR (N918736) 668 RON
17 1 2 Screw Self Drive For Handle (4.3 x 37) (562097-02) 558 RON
18 1 1 N016262 - Indisponibil
19 1 1 BLOCK TERMINAL (320078-00) 1452 RON
20 1 1 CORD CLAMP (619328-00) 588 RON
22 1 1 LOCK BUTTON (944575-00) 558 RON
23 1 1 SPRING (562210-00) 558 RON
24 1 1 LOCK PIN (944571-00) 893 RON
25 1 1 SA Gear Case (562304-01) 7940 RON
25 1 1 562304-01SV - Indisponibil
26 1 4 SCREW (562097-01) 558 RON
27 1 1 GEAR & PINION (661243-00) 5591 RON
27 1 1 GEAR & PINION (N490505) 11337 RON
28 1 1 N021981 - Indisponibil
29 1 1 Bearing DW801 (605040-22) 2347 RON
30 1 1 Seal Felt washer DW801 (641893-00) 558 RON
31 1 1 641891-00 - Indisponibil
33 1 4 SCREW (562097-01) 558 RON
36 1 1 INNER FLANGE (N039245) 1318 RON
37 1 1 OUTER FLANGE (659109-00) 1933 RON
39 1 1 WRENCH PIN (401253-00) 1452 RON
41 1 1 Nut (Pinion fixing) (945292-00) 558 RON
42 1 1 Ball Bearing. CW DW810 (605040-03) 190 RON
43 1 1 619326-00 - Indisponibil
44 1 1 619327-00 - Indisponibil
45 1 1 Ball Bearing. CW DW810 (605040-07) 1788 RON
45 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
46 1 1 SLEEVE (641823-00) 558 RON
816 1 1 N015350 - Indisponibil
