POLIZOR UNGHIULAR DEWALT DWE496 Type 1
[DWE496 Type 1]
POLIZOR UNGHIULAR DEWALT DWE496 Type 1
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR DEWALT DWE496 Type 1
Click pentru a mari
POLIZOR UNGHIULAR DEWALT DWE496 Type 1
Click pentru a mari

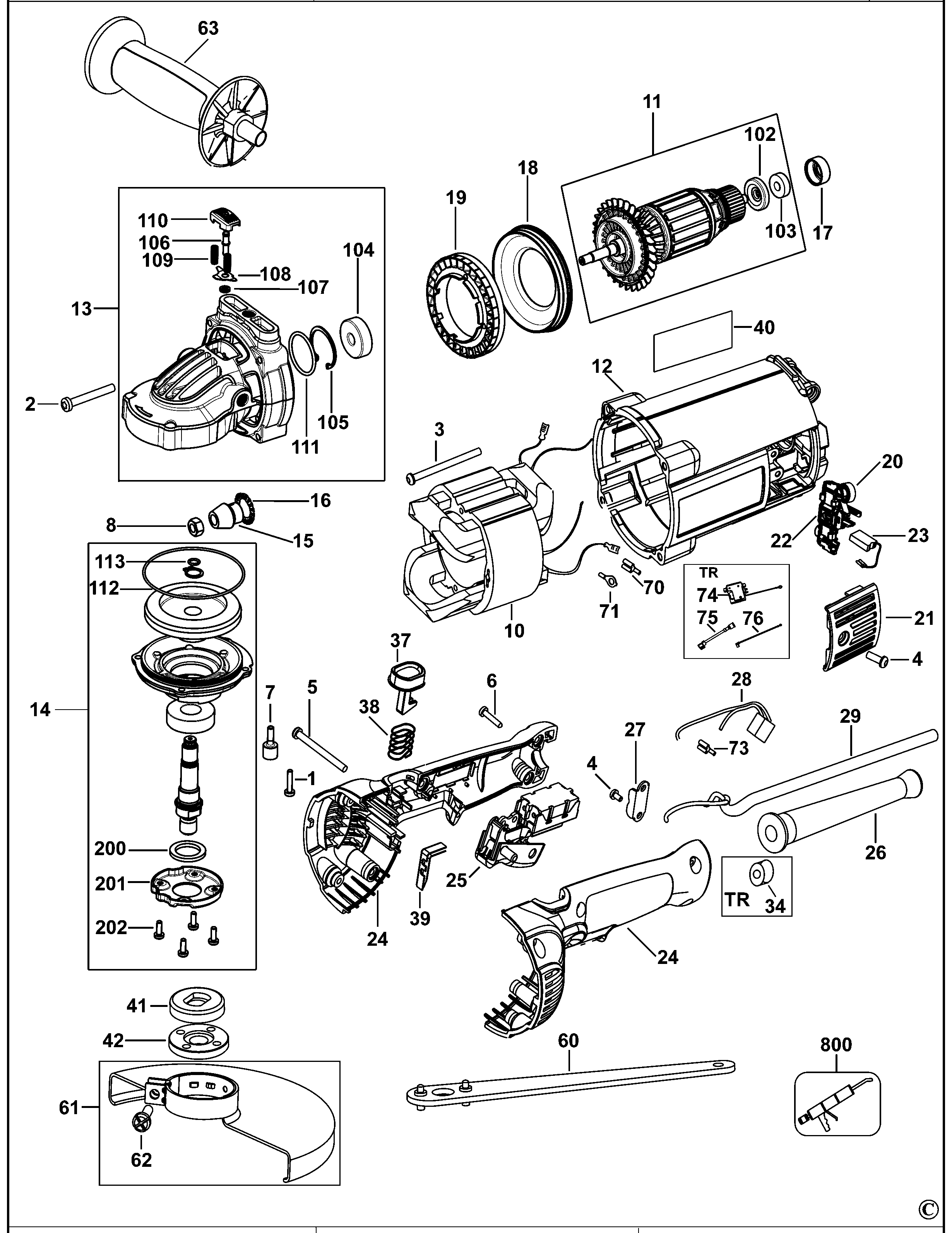

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 SCREW (330045-07) 558 RON
2 1 4 SCREW M5.28 X42 (330019-26) 781 RON
3 1 2 SCREW PLASTITE (330019-19) 781 RON
4 1 4 SCREW PLSTC THD FORM M4.55X13 T20 (330019-11) 558 RON
5 1 3 SCREW PLASTIC THREAD FORM M4 * 50 T20 (330019-50) 558 RON
5 1 3 SCREW PLASTITE (330019-18) 558 RON
6 1 4 SCREW PLASTITE (330019-32) 558 RON
7 1 1 SCREW STOP (N033051) 558 RON
8 1 1 NUT HEX (330015-03) 558 RON
10 1 1 FIELD 230V FOR SERVICE DWE497-TR (N565603) 27287 RON
11 1 1 ARMATURE 230V (N565218) 44688 RON
12 1 1 FIELDCASE (N513668) 10241 RON
13 1 1 GEARCASE SA (N252619) 25164 RON
14 1 1 GEARCASE COVER SA (N203624) 22144 RON
15 1 1 PINION (N099841) 4137 RON
16 1 1 WASHER SPECIAL (N132602) 558 RON
17 1 1 CUP RUBBER (609970-00) 558 RON
18 1 1 BAFFLE FAN (N094853) 1117 RON
19 1 1 FAN (N094854) 893 RON
20 1 2 BRUSH SPRING (645650-00) 781 RON
21 1 2 DOOR BRUSH (394387-01) 1788 RON
22 1 2 BRUSH HLDR.ASSY (N410308) 2182 RON
23 1 2 BRUSH PAIR (N404514) 4827 RON
24 1 1 HANDLE & COVER (636499-00) 10512 RON
24 1 1 HANDLE & COVER (N697595) 6688 RON
25 1 1 SWITCH SA (N015071) 6688 RON
26 1 1 CORD PROTECTOR (N219433) 105 RON
27 1 1 CORD CLAMP (604119-00) 781 RON
28 1 1 SA CAPACITOR (632218-00) 558 RON
29 1 1 CORDSET (EURO) (562226-65) 9282 RON
34 1 1 FERRITE BEAN (N419846) 1772 RON
37 1 1 BUTTON LOCK-OFF (636503-00) 781 RON
38 1 1 SPRING (636502-00) 558 RON
39 1 1 COVER (N391190) 588 RON
40 1 1 RATING PLATE DWE496-QS (N655578) 588 RON
41 1 1 WASHER CLAMP INNER (403150-01) 2347 RON
42 1 1 WASHER OUTER CLAMP PAINTED (401678-05) 2795 RON
60 1 1 WRENCH PIN (635261-00) 2795 RON
61 1 1 GUARD SA (N419366) 741 RON
62 1 1 SCREW (N082712) 588 RON
63 1 1 SA HANDLE SIDE (651858-01) 3466 RON
70 1 1 TERMINAL (612273-00) 558 RON
74 1 1 CONTROL MODULE SA (N422067) 15469 RON
75 1 1 LEAD SA (N442585) 82 RON
76 1 1 LEAD SA (N442586) 944 RON
102 1 1 SHIELD DUST (393238-00) 781 RON
103 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
104 1 1 EARING, BALL, CW MFG (N389509) 2556 RON
105 1 1 RETAINER (N173539) 781 RON
106 1 1 LOCK PIN (N173538) 105 RON
107 1 1 O RING (N173540) 558 RON
108 1 1 PLATE (N108422) 781 RON
109 1 2 SPRING (N110675) 558 RON
110 1 1 BUTTON (N110236) 781 RON
111 1 1 O RING (N226986) 1452 RON
112 1 1 O RING (397031-00) 781 RON
113 1 1 O RING (660143-00) 558 RON
200 1 1 FELT (N103732) 781 RON
201 1 1 CAP (N095989) 190 RON
202 1 4 SCREW (N247325) 558 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
