POLIZOR UNGHIULAR DEWALT DWE492S Type 15
[DWE492S Type 15]
POLIZOR UNGHIULAR DEWALT DWE492S Type 15
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR DEWALT DWE492S Type 15
Click pentru a mari
POLIZOR UNGHIULAR DEWALT DWE492S Type 15
Click pentru a mari
POLIZOR UNGHIULAR DEWALT DWE492S Type 15
Click pentru a mari

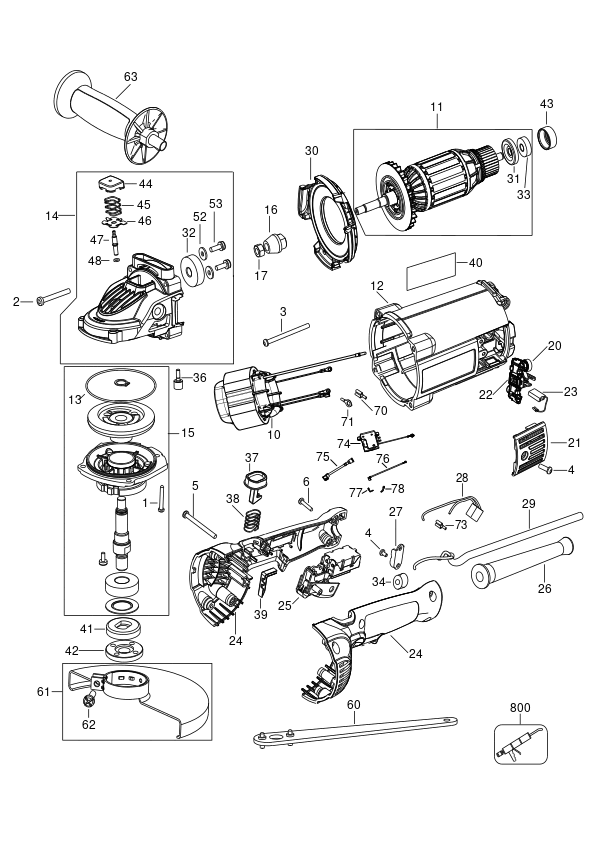

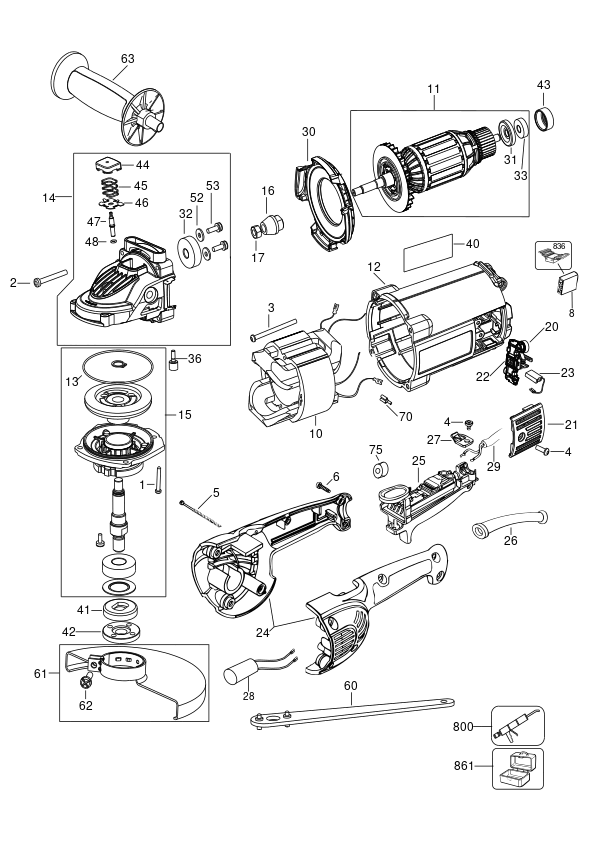

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 SCREW (330045-14) 558 RON
2 1 4 SCREW M5.28 X42 (330019-26) 781 RON
3 1 2 SCREW PLASTITE (330019-19) 781 RON
4 1 2 SCREW PLSTC THD FORM M4.55X13 T20 (330019-11) 558 RON
5 1 3 SCREW PLASTITE (330019-18) 558 RON
6 1 4 SCREW PLASTITE (330019-32) 558 RON
10 1 1 FIELD SA (NA205903) 28836 RON
11 1 1 ARMATURE SA (N473954) 48037 RON
12 1 1 FIELD CASE. 45 STK FIXED (393239-01) 9282 RON
13 1 1 O RING (397031-00) 781 RON
14 1 1 GEARCASE SA (N497002) 25728 RON
15 1 1 GEARCASE COVER SA (N497001) 30769 RON
16 1 1 6K PINION (N407625) 3954 RON
17 1 1 NUT HEX (330015-03) 558 RON
20 1 2 BRUSH SPRING (645650-00) 781 RON
21 1 2 DOOR BRUSH (394387-01) 1788 RON
22 1 1 BRUSH HLDR.ASSY (N410308) 2182 RON
23 1 1 BRUSH PAIR (N404514) 4827 RON
24 1 1 HANDLE & COVER (N697599) 741 RON
25 1 1 SWITCH SA (N035342) 7940 RON
26 1 1 CORD PROTECTOR (N219433) 105 RON
27 1 1 CORD CLAMP (604119-00) 781 RON
28 1 1 SA CAPACITOR (632218-00) 558 RON
29 1 1 CORD POWER SUPPLY (562226-81) 5370 RON
30 1 1 RADIAL FAN BAFFLE (631350-00) 1452 RON
31 1 1 SHIELD DUST (393238-00) 781 RON
32 1 1 EARING, BALL, CW MFG (N389509) 2556 RON
33 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
34 1 1 FERRITE BEAN (N419846) 1772 RON
36 1 1 SCREW STOP (N033051) 558 RON
37 1 1 BUTTON LOCK-OFF (636503-00) 781 RON
38 1 1 SPRING (636502-00) 558 RON
39 1 1 COVER (N391190) 588 RON
40 1 1 RATING LABEL (NA146315) 588 RON
41 1 1 WASHER CLAMP INNER (403150-01) 2347 RON
42 1 1 WASHER OUTER CLAMP PAINTED (401678-05) 2795 RON
43 1 1 CUP RUBBER (609970-00) 558 RON
44 1 1 SPINDLE LOCK BUTTON (630553-00) 781 RON
45 1 1 SPINDLE LOCK SPRING (638328-00) 558 RON
46 1 1 SPINDLE LOCK RETAINING PLATE (635908-00) 558 RON
47 1 1 SPINDLE LOCK PIN (634589-00) 1117 RON
48 1 1 O RING (SPINDLE LOCK) (750831) 558 RON
52 1 2 WASHER PLAIN (640591-00) 558 RON
53 1 2 SCREW (330045-67) 558 RON
60 1 1 WRENCH PIN (635261-00) 2795 RON
61 1 1 GUARD SA (N419366) 741 RON
62 1 1 SCREW (N082712) 588 RON
63 1 1 SA HANDLE SIDE (651858-01) 3466 RON
70 1 2 TERMINAL (612273-00) 558 RON
71 1 2 TERMINAL (610057-00) 558 RON
73 1 1 TERMINAL (053650-00) 558 RON
74 1 1 CONTROL MODULE SA (N422067) 15469 RON
75 1 1 FERRITE BEAN (N419846) 1772 RON
76 1 1 LEAD SA (N442586) 944 RON
77 1 1 TERMINAL (N442587) 588 RON
78 1 1 TERMINAL (N442684) 588 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
