Top » Piese de schimb » PIESE DEWALT » DWE492GK Type 1

POLIZOR UNGHIULAR DEWALT DWE492GK Type 1
[DWE492GK Type 1]
POLIZOR UNGHIULAR DEWALT DWE492GK Type 1
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR DEWALT DWE492GK Type 1
Click pentru a mari
POLIZOR UNGHIULAR DEWALT DWE492GK Type 1
Click pentru a mari
POLIZOR UNGHIULAR DEWALT DWE492GK Type 1
Click pentru a mari

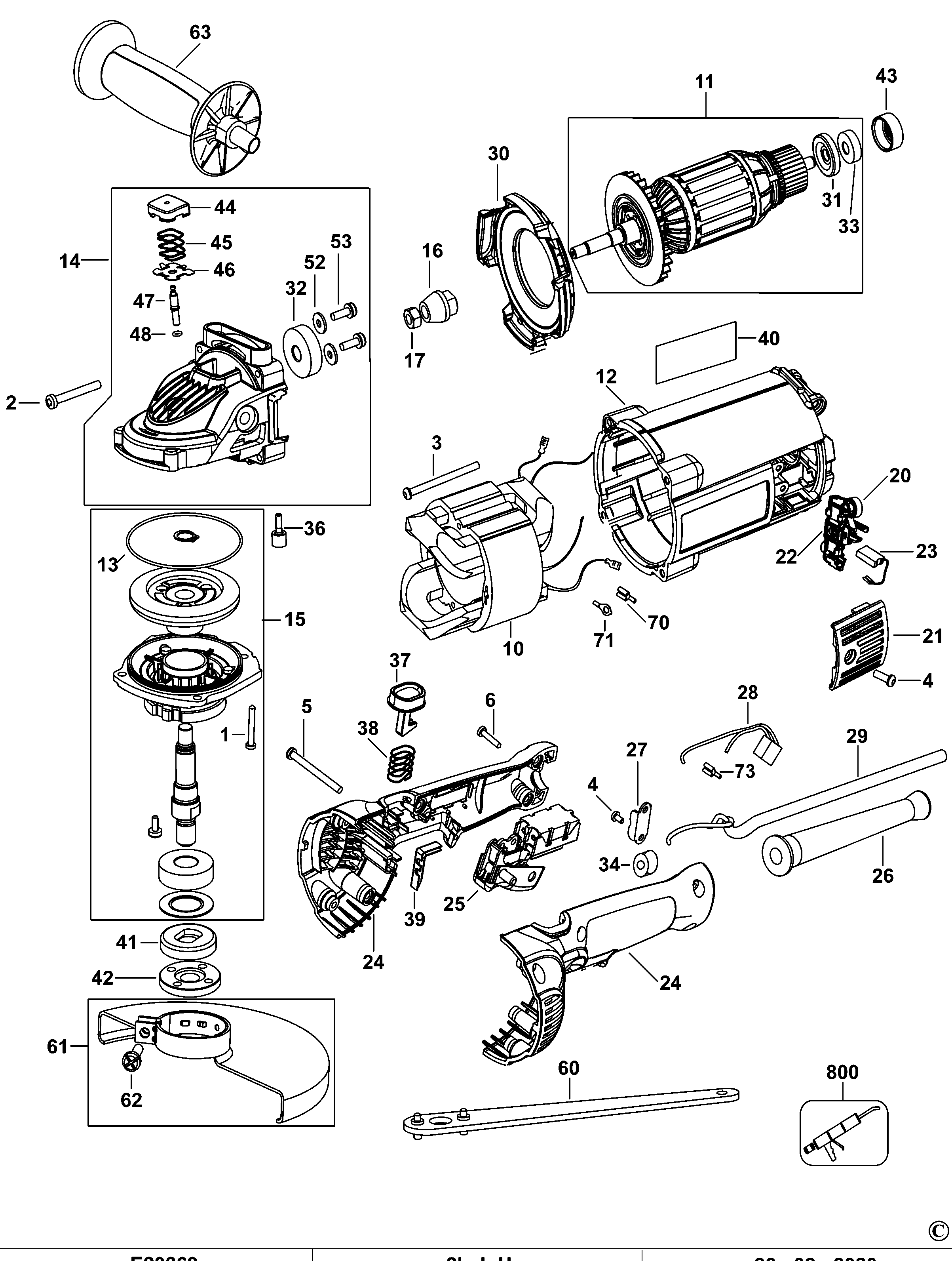

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 SCREW (330045-14) 558 RON
2 1 4 SCREW M5.28 X42 (330019-26) 781 RON
3 1 2 SCREW PLASTITE (330019-19) 781 RON
4 1 2 SCREW PLSTC THD FORM M4.55X13 T20 (330019-11) 558 RON
5 1 3 SCREW PLASTIC THREAD FORM M4 * 50 T20 (330019-50) 558 RON
5 1 3 SCREW PLASTITE (330019-18) 558 RON
6 1 4 SCREW PLASTITE (330019-32) 558 RON
10 1 1 N310019 - Indisponibil
10 1 1 FIELD (N754985) 30769 RON
10 1 1 N866738 - Indisponibil
11 1 1 ARMATURE SA (N473954) 48037 RON
11 1 1 N467980 - Indisponibil
12 1 1 FIELD CASE. 45 STK FIXED (393239-01) 9282 RON
13 1 1 O RING (397031-00) 781 RON
14 1 1 GEARCASE SA (N497002) 25728 RON
14 1 1 N442319 - Indisponibil
15 1 1 GEARCASE COVER SA (N497001) 30769 RON
15 1 1 N442320 - Indisponibil
16 1 1 6K PINION (N407625) 3954 RON
17 1 1 NUT HEX (330015-03) 558 RON
20 1 2 BRUSH SPRING (645650-00) 781 RON
21 1 2 DOOR BRUSH (394387-01) 1788 RON
22 1 1 BRUSH HLDR.ASSY (N410308) 2182 RON
23 1 1 BRUSH PAIR (N404514) 4827 RON
24 1 1 HANDLE & COVER (636499-01) 7940 RON
24 1 1 HANDLE & COVER (N697599) 741 RON
25 1 1 SWITCH SA (N035342) 7940 RON
26 1 1 CORD PROTECTOR (N219433) 105 RON
27 1 1 CORD CLAMP (604119-00) 781 RON
28 1 1 SA CAPACITOR (632218-00) 558 RON
29 1 1 CORD POWER SUPPLY (562226-81) 5370 RON
30 1 1 RADIAL FAN BAFFLE (631350-00) 1452 RON
31 1 1 SHIELD DUST (393238-00) 781 RON
32 1 1 EARING, BALL, CW MFG (N389509) 2556 RON
33 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
34 1 1 SUPPRESSOR (N423473) 2182 RON
36 1 1 SCREW STOP (N033051) 558 RON
37 1 1 BUTTON LOCK-OFF (636503-00) 781 RON
38 1 1 SPRING (636502-00) 558 RON
39 1 1 COVER (N391190) 588 RON
40 1 1 RATING PLATE (N427115) 588 RON
40 1 1 RATING PLATE (NA146166) 588 RON
41 1 1 WASHER CLAMP INNER (403150-01) 2347 RON
42 1 1 WASHER OUTER CLAMP PAINTED (401678-05) 2795 RON
43 1 1 CUP RUBBER (609970-00) 558 RON
44 1 1 SPINDLE LOCK BUTTON (630553-00) 781 RON
45 1 1 SPINDLE LOCK SPRING (638328-00) 558 RON
46 1 1 SPINDLE LOCK RETAINING PLATE (635908-00) 558 RON
47 1 1 SPINDLE LOCK PIN (634589-00) 1117 RON
48 1 1 O RING (SPINDLE LOCK) (750831) 558 RON
52 1 2 WASHER PLAIN (640591-00) 558 RON
53 1 2 SCREW (330045-67) 558 RON
60 1 1 WRENCH PIN (635261-00) 2795 RON
61 1 1 GUARD SA (N419366) 741 RON
62 1 1 SCREW (N082712) 588 RON
63 1 1 SA HANDLE SIDE (651858-01) 3466 RON
70 1 2 TERMINAL (612273-00) 558 RON
71 1 2 TERMINAL (610057-00) 558 RON
73 1 1 TERMINAL (053650-00) 558 RON
101 1 1 DUST PORT (N645894) 3268 RON
102 1 1 COVER (N657928) 1772 RON
103 1 1 CLAMSHELL HALF (N657926) 12361 RON
104 1 1 CLAMSHELL HALF (N657927) 10241 RON
105 1 1 SPRING (N662825) 944 RON
106 1 1 PIN (N661802) 1933 RON
107 1 1 WASHER (N743974) 588 RON
108 1 1 Washer Lock (098197-10) 558 RON
109 1 1 Mach screw (153778-01) 2347 RON
110 1 1 BACKPLATE (N657950) 2796 RON
111 1 1 CLAMPING INSERT (N657991) 741 RON
112 1 10 SCREW (330065-08) 558 RON
113 1 5 SCREW (N530541) 588 RON
114 1 8 PLASTIC SCREW (N760652) 588 RON
115 1 2 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
116 1 3 SCREW PLASTIC THREAD FORM M3.5*16 T15 (330019-66) 558 RON
117 1 1 GUARD LOWER (N661758) 5370 RON
118 1 1 GUARD LOWER (N657930) 741 RON
119 1 1 WINDOW (N657935) 1772 RON
120 1 2 NUT (N116219) 588 RON
121 1 2 SCREW (478455-00) 588 RON
122 1 1 PIN (N646432) 588 RON
123 1 1 SPRING (N770509) 588 RON
124 1 1 LOCK HOOK (N645897) 4355 RON
125 1 1 SPRING (N646434) 588 RON
126 1 1 BUTTON (N657920) 668 RON
127 1 1 STRAP (N657945) 4355 RON
128 1 1 SLIDER SA (N661738) 6688 RON
129 1 1 BRACKET (N657932) 114 RON
130 1 1 KNOB (N646428) 668 RON
131 1 1 SHOE (N657943) 6688 RON
132 1 4 CLIP (386957-00) 558 RON
133 1 4 WHEEL (N703830) 668 RON
134 1 4 WASHER (N774538) 588 RON
135 1 2 AXLE (N703811) 944 RON
136 1 1 OUTER FLANGE (N670342) 3268 RON
137 1 1 INNER FLANGE (N670340) 3954 RON
138 1 1 N716882 - Indisponibil
138 1 1 RATING LABEL (NA050140) 944 RON
138 1 1 RATING LABEL (NA218867) 588 RON
139 1 1 LABEL (N776045) 588 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
