POLIZOR UNGHIULAR DEWALT DWE46107 Type 1
[DWE46107 Type 1]
POLIZOR UNGHIULAR DEWALT DWE46107 Type 1
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR DEWALT DWE46107 Type 1
Click pentru a mari
POLIZOR UNGHIULAR DEWALT DWE46107 Type 1
Click pentru a mari
POLIZOR UNGHIULAR DEWALT DWE46107 Type 1
Click pentru a mari

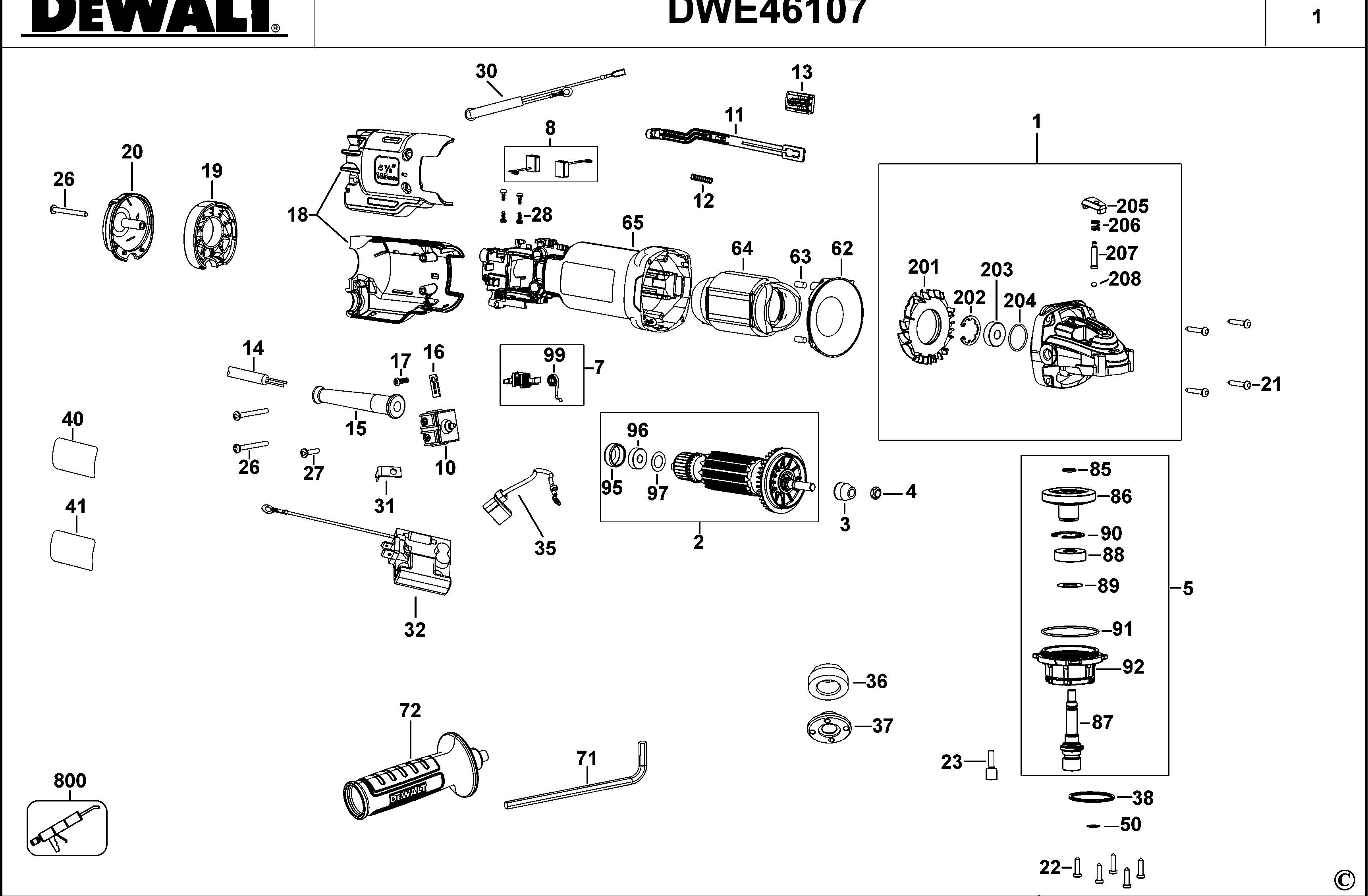

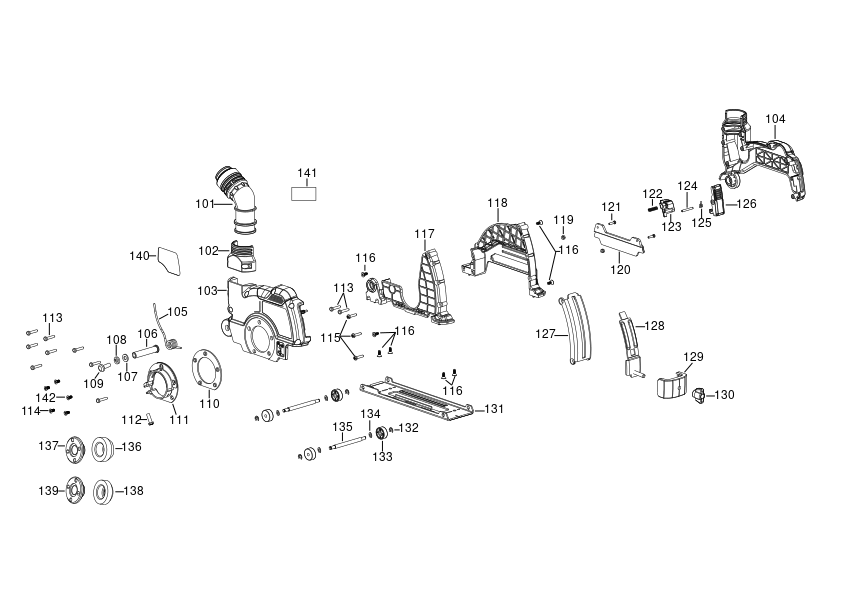

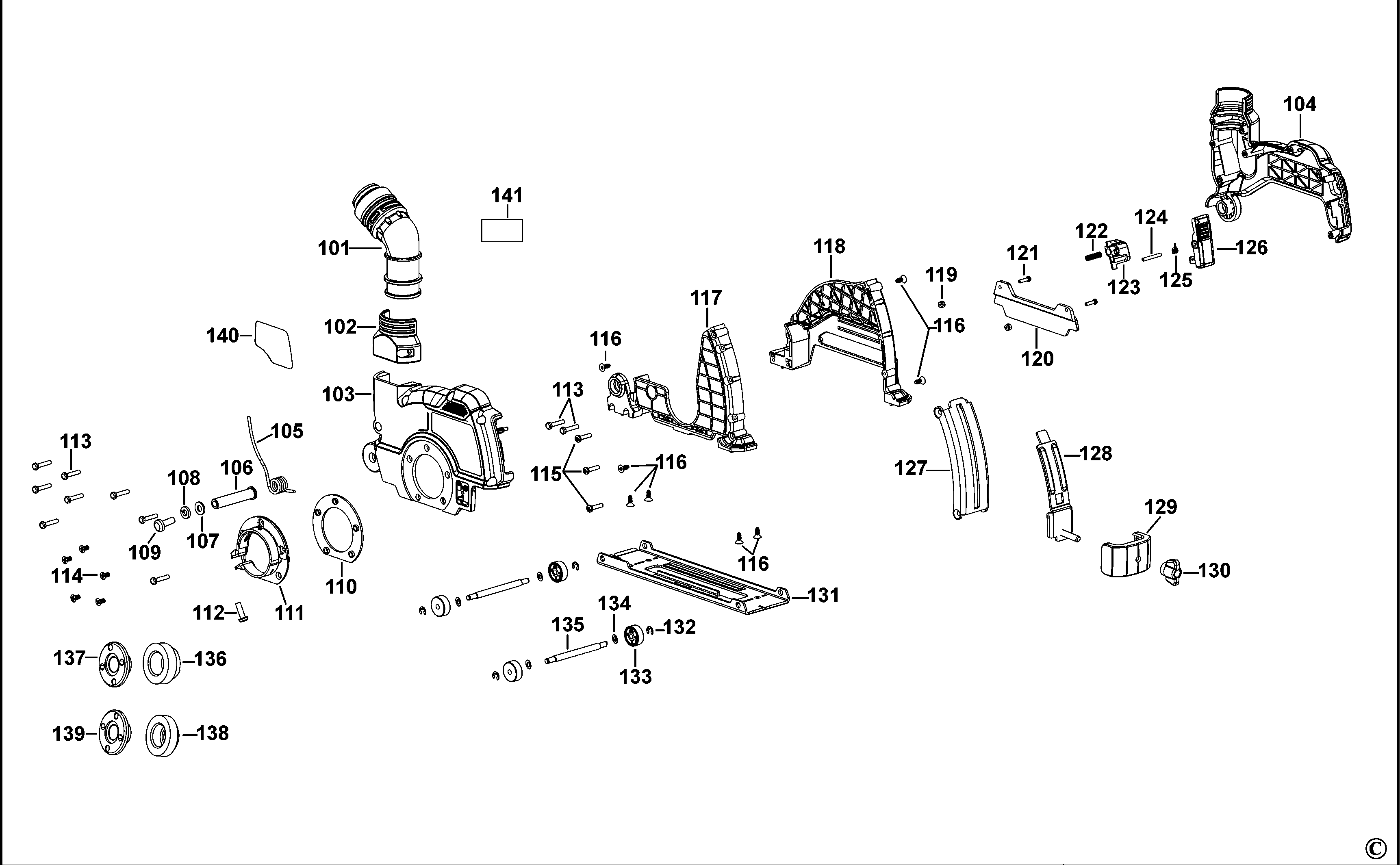

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 N493259 - Indisponibil
1 1 1 N483617 - Indisponibil
1 1 1 GEARCASE SA (NA146577) 12361 RON
2 1 1 N442428 - Indisponibil
2 1 1 ARMATURE SA (NA146600) 46247 RON
3 1 1 PINION 38T/10T LONG (N423537) 3268 RON
4 1 1 NUT M7 (N372039) 588 RON
5 1 1 N493265 - Indisponibil
5 1 1 SPINDLE SA (NA148917) 23244 RON
7 1 2 BRUSHBOX SA (N413349) 2556 RON
8 1 1 N442427 - Indisponibil
8 1 1 BRUSH PAIR (NA121924) 4827 RON
10 1 1 SWITCH (N484918) 2796 RON
11 1 1 N437742 - Indisponibil
11 1 1 LINKAGE SA (N298583) 588 RON
12 1 1 SPRING (N093410) 558 RON
13 1 1 BUTTON (N097844) 558 RON
14 1 1 CORDSET (EURO) (N387328) 10241 RON
15 1 1 N542553 - Indisponibil
15 1 1 CORD PROTECTOR (N918736) 668 RON
16 1 1 CORD CLAMP (619328-00) 588 RON
17 1 1 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
18 1 1 HOUSING SA (N419604) 2796 RON
19 1 1 DUST PORT (N563707) 1318 RON
19 1 1 N401579 - Indisponibil
20 1 1 END CAP (N400902) 114 RON
21 1 4 SCREW, PLSTC THD FORM, M4X22 T20 (N371839) 588 RON
22 1 5 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
23 1 1 SCREW (N130031) 558 RON
26 1 3 SCREW PLSTC THD FORM (N389438) 588 RON
27 1 1 SCREW PLSTC THD FORM M4X25 T20 (330065-09) 558 RON
28 1 4 SCREW (593478-00) 558 RON
30 1 1 SA RC, NV SAG (N408538) 2182 RON
31 1 1 TERMINAL (634599-00) 781 RON
32 1 1 N301299 - Indisponibil
32 1 1 CONTROL MODULE SA (NA152190) 20216 RON
35 1 1 LEAD SA D28136 (631028-00) 893 RON
36 1 1 INNER FLANGE (N654478) 3268 RON
37 1 1 OUTER FLANGE (N666474) 3954 RON
38 1 1 WASHER SPRING (N135116) 893 RON
38 1 1 WASHER SPRING (N542715) 82 RON
40 1 1 IDENTITY LABEL (N403730) 588 RON
41 1 1 RATING PLATE (N819745) 588 RON
41 1 1 RATING PLATE (NA102835) 588 RON
50 1 1 O RING (N420261) 588 RON
62 1 1 BAFFLE (N399419) 944 RON
63 1 2 SMALL RUBBER (949638-02) 558 RON
64 1 1 N421413 - Indisponibil
64 1 1 FIELD (NA121487) 30769 RON
65 1 1 FIELDCASE COMPACT SLIDER CAD FREE (N390640) 4355 RON
71 1 1 HEX KEY 6 MM (N107295) 781 RON
72 1 1 SIDE HANDLE (N382311) 6688 RON
85 1 1 RETAINING RING (444793-00) 558 RON
86 1 1 Gear (N409481) 741 RON
86 1 1 Gear (N887607) 10241 RON
87 1 1 SPINDLE (N163702) 3268 RON
88 1 1 Bearing Ball CWMFG (605040-24) 190 RON
89 1 1 SLINGER (N400478) 588 RON
90 1 1 RETAINER RING (N481950) 588 RON
91 1 1 O RING 1.5X40 (N307625) 588 RON
92 1 1 GCC MACH (N441765) 3954 RON
95 1 1 SLEEVE (641823-00) 558 RON
96 1 1 BEARING (N130916) 1229 RON
97 1 1 SLINGER THOR (N324400) 588 RON
99 1 2 SPRING, THOR BRUSH BOX (N273780) 588 RON
101 1 1 DUST PORT (N645894) 3268 RON
102 1 1 COVER (N651615) 1318 RON
103 1 1 CLAMSHELL HALF (N645891) 6688 RON
104 1 1 CLAMSHELL HALF (N645890) 5370 RON
105 1 1 SPRING (N646433) 668 RON
106 1 1 PIN (N645896) 1933 RON
107 1 1 WASHER (N743974) 588 RON
108 1 1 Washer Lock (098197-10) 558 RON
109 1 1 Mach screw (153778-01) 2347 RON
110 1 1 BACKPLATE (N646437) 2556 RON
111 1 1 STRAP (N646443) 4355 RON
112 1 1 SCREW (631609-03) 558 RON
113 1 10 SCREW (90611830) 588 RON
114 1 2 SCREW (N530541) 588 RON
114 1 10 N813648 - Indisponibil
115 1 3 SCREW PLASTIC THREAD FORM M3.5*16 T15 (330019-66) 558 RON
116 1 8 PLASTIC SCREW (N760650) 588 RON
117 1 1 CLAMSHELL HALF (N659081) 3268 RON
118 1 1 CLAMSHELL HALF (N645892) 3954 RON
119 1 2 NUT (N116219) 588 RON
120 1 1 WINDOW (N647700) 944 RON
121 1 2 SCREW (478455-00) 588 RON
122 1 1 SPRING (N646434) 588 RON
123 1 1 LATCH BUTTON (N645899) 668 RON
124 1 1 PIN (N646432) 588 RON
125 1 1 SPRING (N770509) 588 RON
126 1 1 LOCK HOOK (N645897) 4355 RON
127 1 1 STRAP (N646427) 3954 RON
128 1 1 LATCH (N646444) 5370 RON
129 1 1 BRACKET (N646430) 944 RON
130 1 1 KNOB (N646428) 668 RON
131 1 1 SHOE (N645902) 4355 RON
132 1 4 CLIP (386957-00) 558 RON
133 1 4 WHEEL (N703486) 668 RON
134 1 4 WASHER (N774538) 588 RON
135 1 2 AXLE (N703485) 944 RON
136 1 1 INNER FLANGE (N654478) 3268 RON
137 1 1 OUTER FLANGE (N666474) 3954 RON
138 1 1 INNER FLANGE (N665586) 3268 RON
139 1 1 OUTER FLANGE (N665610) 3268 RON
140 1 1 RATING LABEL (NA102864) 668 RON
141 1 1 LABEL (N456231) 588 RON
142 1 3 SCREW (388405-00) 558 RON
201 1 1 DEFLECTOR (N401958) 668 RON
202 1 1 RET RING w FINGERS (N453031) 588 RON
203 1 1 BEARING (N175104) 1788 RON
204 1 1 O RING (N119639) 558 RON
205 1 1 SPINDLE LOCK BUTTON (N278899) 588 RON
206 1 1 THOR SPINDLE LOCK SPRING (N263579) 588 RON
207 1 1 LOCK PIN (N481683) 944 RON
208 1 1 THOR SPINDLE LOCK O-RING (N263699) 588 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
