Top » Piese de schimb » PIESE DEWALT » DWE4277 Type 5

POLIZOR UNGHIULAR DEWALT DWE4277 Type 5
[DWE4277 Type 5]
POLIZOR UNGHIULAR DEWALT DWE4277 Type 5
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR DEWALT DWE4277 Type 5
Click pentru a mari
POLIZOR UNGHIULAR DEWALT DWE4277 Type 5
Click pentru a mari

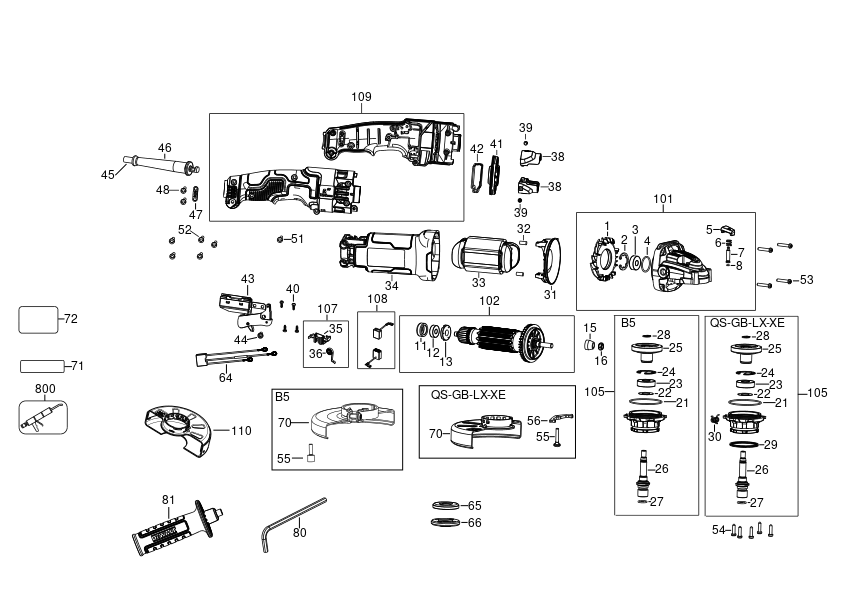

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 DEFLECTOR (N401958) 668 RON
2 1 1 RET RING w FINGERS (N453031) 588 RON
3 1 1 BEARING (N175104) 1788 RON
4 1 1 O RING (N119639) 558 RON
5 1 1 SPINDLE LOCK BUTTON (N278899) 588 RON
6 1 1 THOR SPINDLE LOCK SPRING (N263579) 588 RON
7 1 1 LOCK PIN (N481683) 944 RON
8 1 1 THOR SPINDLE LOCK O-RING (N263699) 588 RON
11 1 1 SLEEVE (641823-00) 558 RON
12 1 1 BEARING (N130916) 1229 RON
13 1 1 SLINGER THOR (N324400) 588 RON
15 1 1 PINION (N450872) 3954 RON
16 1 1 NUT M7 (N372039) 588 RON
21 1 1 O RING 1.5X40 (N307625) 588 RON
22 1 1 SLINGER (N400478) 588 RON
23 1 1 Bearing Ball CWMFG (605040-24) 190 RON
24 1 1 RETAINER RING (N481950) 588 RON
25 1 1 Gear (NA036398) 9012 RON
26 1 1 SPINDLE (N163702) 3268 RON
27 1 1 O RING (N420261) 588 RON
28 1 1 RETAINING RING (444793-00) 558 RON
29 1 1 WASHER SPRING (N542715) 82 RON
30 1 1 SPRING (N465886) 588 RON
31 1 1 BAFFLE (N399419) 944 RON
32 1 2 SMALL RUBBER (949638-02) 558 RON
33 1 1 FIELD SA (NA146668) 35435 RON
34 1 1 FIELDCASE (N457469) 3268 RON
35 1 2 SA BRUSH BOX, THOR (N335560) 944 RON
36 1 2 SPRING, THOR BRUSH BOX (N273780) 588 RON
38 1 2 BRUSH CAP (N452111) 82 RON
39 1 2 SCREW (648777-00) 558 RON
40 1 4 SCREW (593478-00) 558 RON
41 1 1 DUST PORT (N458066) 1933 RON
42 1 1 INSERT (N451017) 588 RON
43 1 1 SWITCH (N451610) 9012 RON
44 1 1 SCREW (330065-07) 558 RON
45 1 1 CORDSET (EURO) (562226-84) 11519 RON
46 1 1 CORD PROTECTOR (N918736) 668 RON
47 1 1 CORD CLAMP (N174601) 588 RON
48 1 2 Screw M3.5X16 T15 (330019-03) 558 RON
51 1 2 SCREW PLSTC THD FORM (N389438) 588 RON
52 1 5 SCREW (330065-08) 558 RON
53 1 4 SCREW, PLSTC THD FORM, M4X22 T20 (N371839) 588 RON
54 1 5 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
55 1 1 SCREW SHOULDER M4 (N297219) 588 RON
56 1 1 LEVER (N637725) 1772 RON
64 1 1 CAPACITOR (N482574) 2796 RON
65 1 1 INNER FLANGE (391969-00) 1788 RON
66 1 1 OUTER FLANGE (N134466) 3018 RON
70 1 1 GUARD-HP THOR 5" TYPE 27 EU GUARD (NA327263) 4827 RON
71 1 1 BRAND LABEL (N400392) 588 RON
72 1 1 RATING LABEL (NA350889) 588 RON
80 1 1 HEX KEY 6 MM (N107295) 781 RON
81 1 1 SIDE HANDLE (N382311) 6688 RON
101 1 1 GEARCASE SA (NA146577) 12361 RON
102 1 1 ARMATURE SA (NA146670) 38463 RON
105 1 1 GEARCASE COVER SA (NA281805) 18568 RON
107 1 2 BRUSHBOX SA (N413349) 2556 RON
108 1 1 BRUSH PAIR SA (NA143119) 3954 RON
109 1 1 CLAMSHELL SET (N470890) 741 RON
110 1 1 GUARD (N311439) 13697 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
