Top » Piese de schimb » PIESE DEWALT » DWE4263 Type 1

POLIZOR UNGHIULAR DEWALT DWE4263 Type 1
[DWE4263 Type 1]
POLIZOR UNGHIULAR DEWALT DWE4263 Type 1
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR DEWALT DWE4263 Type 1
Click pentru a mari
POLIZOR UNGHIULAR DEWALT DWE4263 Type 1
Click pentru a mari

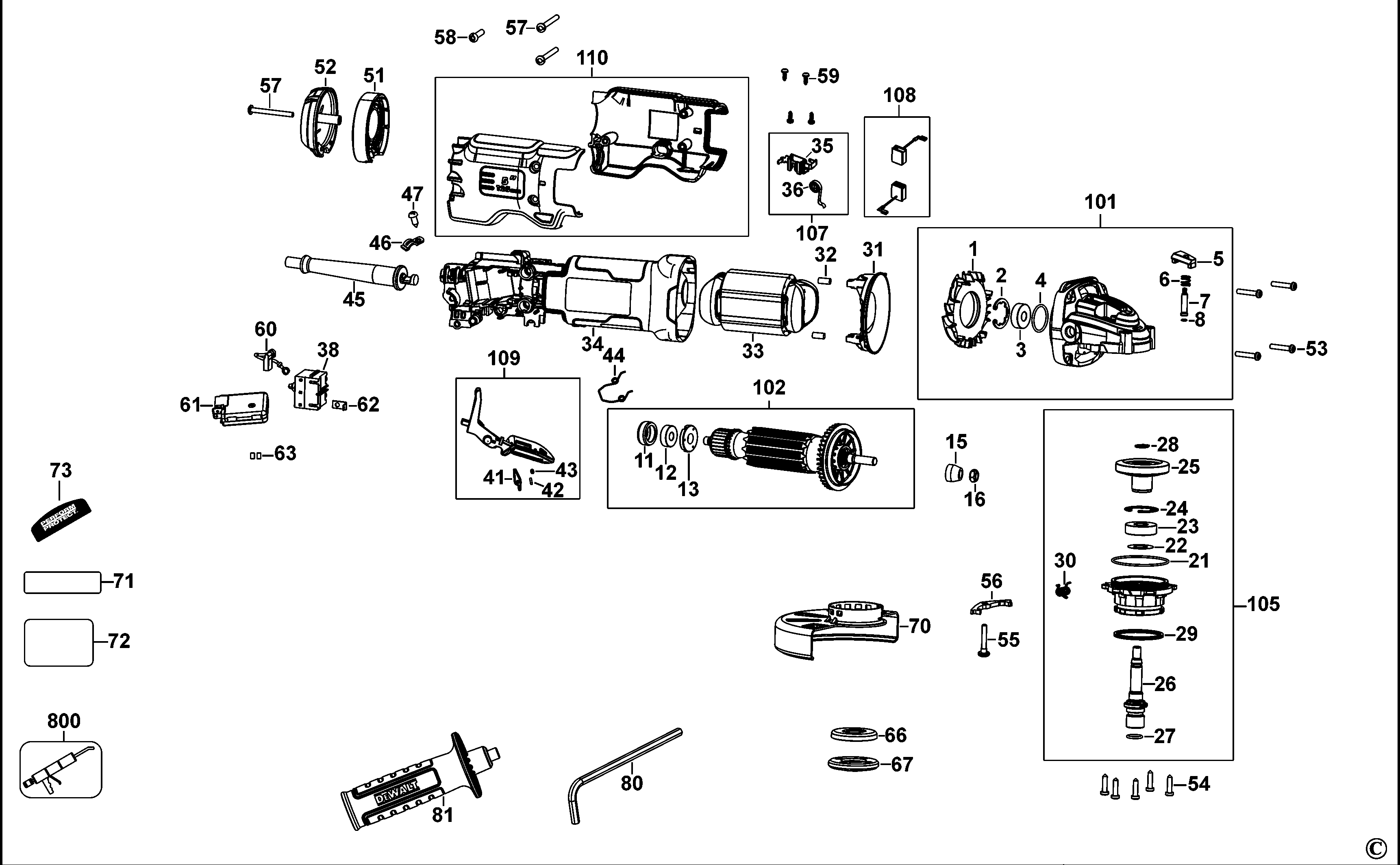

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 DEFLECTOR (N401958) 668 RON
2 1 1 RET RING w FINGERS (N453031) 588 RON
3 1 1 BEARING (N175104) 1788 RON
4 1 1 O RING (N119639) 558 RON
5 1 1 SPINDLE LOCK BUTTON (N278899) 588 RON
6 1 1 THOR SPINDLE LOCK SPRING (N263579) 588 RON
7 1 1 LOCK PIN (N481683) 944 RON
8 1 1 THOR SPINDLE LOCK O-RING (N263699) 588 RON
11 1 1 SLEEVE (641823-00) 558 RON
12 1 1 BEARING (N130916) 1229 RON
13 1 1 MAGNET (N449233) 114 RON
15 1 1 PINION 38T/10T LONG (N423537) 3268 RON
16 1 1 NUT M7 (N372039) 588 RON
21 1 1 O RING 1.5X40 (N307625) 588 RON
22 1 1 SLINGER (N400478) 588 RON
23 1 1 Bearing Ball CWMFG (605040-24) 190 RON
24 1 1 RETAINER RING (N481950) 588 RON
25 1 1 Gear (N409481) 741 RON
25 1 1 Gear (N887607) 10241 RON
26 1 1 SPINDLE (N163702) 3268 RON
27 1 1 O RING (N420261) 588 RON
28 1 1 RETAINING RING (444793-00) 558 RON
29 1 1 WASHER SPRING (N135116) 893 RON
30 1 1 SPRING (N465886) 588 RON
31 1 1 BAFFLE (N399419) 944 RON
32 1 2 SMALL RUBBER (949638-02) 558 RON
34 1 1 FIELDCASE (N445564) 6688 RON
35 1 2 SA BRUSH BOX, THOR (N335560) 944 RON
36 1 2 SPRING, THOR BRUSH BOX (N273780) 588 RON
38 1 1 N404377 - Indisponibil
38 1 1 SWITCH (N396008) 4827 RON
41 1 1 LEVER LOCK-OFF (397657-00) 558 RON
42 1 1 ROLL PIN (099204-14) 558 RON
43 1 1 SPRING (150264-01) 558 RON
44 1 1 SPRING (N442909) 588 RON
46 1 1 CORD CLAMP (619328-00) 588 RON
47 1 1 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
52 1 1 END CAP (N402946) 114 RON
53 1 4 SCREW, PLSTC THD FORM, M4X22 T20 (N371839) 588 RON
54 1 5 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
55 1 1 SCREW SHOULDER M4 (N297219) 588 RON
56 1 1 LEVER (N637725) 1772 RON
56 1 1 N442976 - Indisponibil
56 1 1 N572219 - Indisponibil
57 1 3 SCREW PLSTC THD FORM (N389438) 588 RON
58 1 1 SCREW PLSTC THD FORM M4X25 T20 (330065-09) 558 RON
59 1 4 SCREW (593478-00) 558 RON
60 1 1 LEAD SA D28136 (631028-00) 893 RON
62 1 1 TERMINAL (634599-00) 781 RON
63 1 2 SEAL (633391-00) 558 RON
66 1 1 INNER FLANGE (391969-00) 1788 RON
67 1 1 OUTER FLANGE (N419748) 3268 RON
67 1 1 OUTER FLANGE (N134466) 3018 RON
71 1 1 BRAND LABEL (N400392) 588 RON
73 1 1 LABEL PREFORM PROTECT (N196273) 588 RON
80 1 1 HEX KEY 6 MM (N107295) 781 RON
81 1 1 SIDE HANDLE (N382311) 6688 RON
101 1 1 N483617 - Indisponibil
101 1 1 GEARCASE SA (NA146577) 12361 RON
105 1 1 N475992 - Indisponibil
105 1 1 GEARCASE COVER SA (NA352969) 21676 RON
107 1 2 BRUSHBOX SA (N413349) 2556 RON
109 1 1 PADDLE (N413352) 5370 RON
110 1 1 CLAMSHELL SET (N453509) 4827 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
