Top » Piese de schimb » PIESE DEWALT » DWE4157F Type 1

POLIZOR UNGHIULAR DEWALT DWE4157F Type 1
[DWE4157F Type 1]
POLIZOR UNGHIULAR DEWALT DWE4157F Type 1
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR DEWALT DWE4157F Type 1
Click pentru a mari
POLIZOR UNGHIULAR DEWALT DWE4157F Type 1
Click pentru a mari

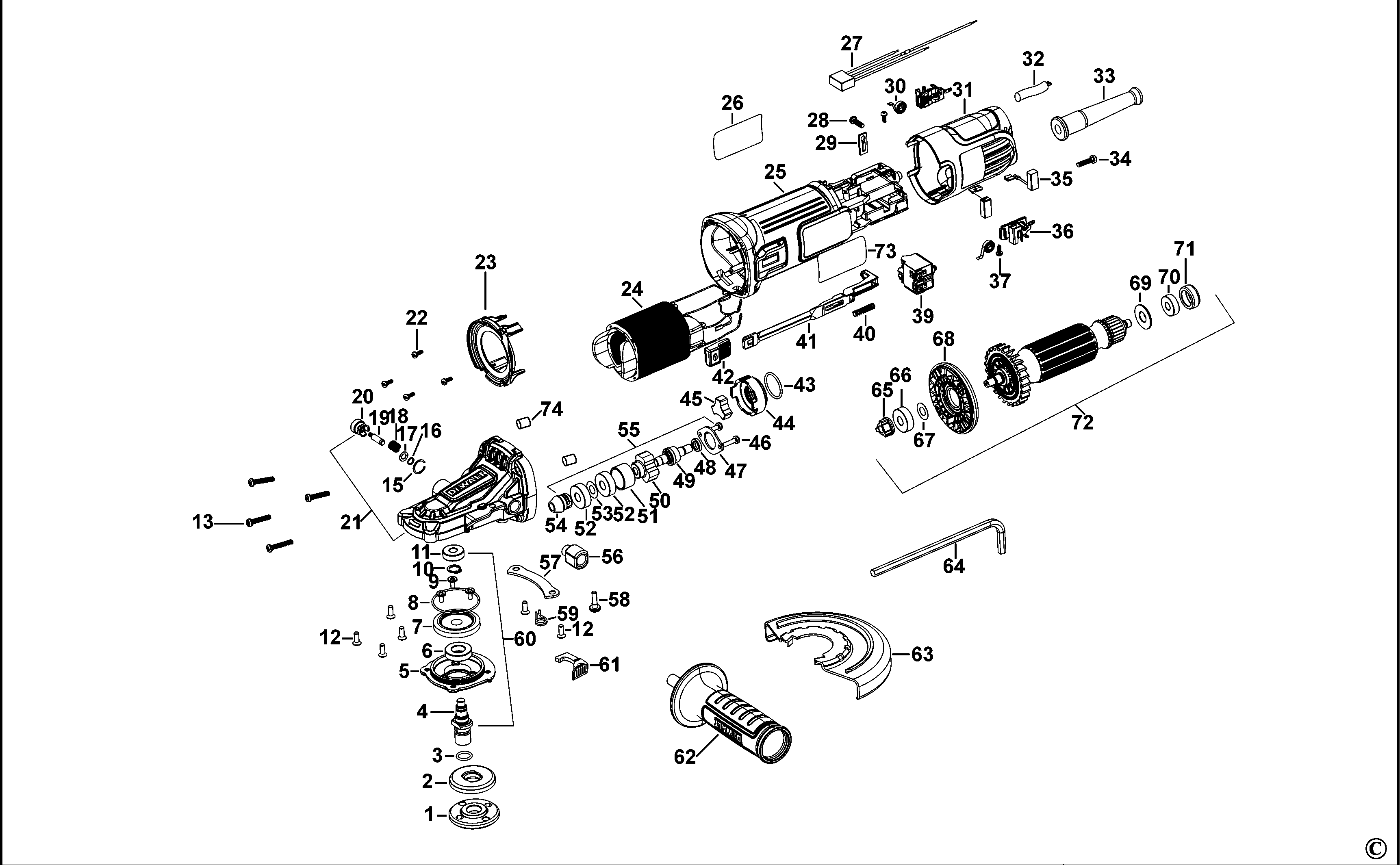

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 OUTER FLANGE (N134466) 3018 RON
2 1 1 INNER FLANGE (391969-00) 1788 RON
3 1 1 O RING (633044-00) 781 RON
4 1 1 SPINDLE (N517686) 3268 RON
5 1 1 GEARCASE COVER (N494588) 3954 RON
6 1 1 BEARING (605040-72) 2347 RON
7 1 1 Gear (N604798) 4827 RON
8 1 1 O RING 1.5X40 (N307625) 588 RON
9 1 3 SCREW (N514767) 588 RON
10 1 1 RETAINING RING (444793-00) 558 RON
11 1 1 Ball Bearing. CW DW810 (605040-03) 190 RON
12 1 6 SCREW (N503419) 588 RON
13 1 4 SCREW, PLSTC THD FORM, M4X22 T20 (N371839) 588 RON
15 1 1 CIRCLIP (N503684) 588 RON
16 1 1 O RING (N094012) 558 RON
17 1 1 WASHER BEARING BLOCK (N447838) 588 RON
18 1 1 SPRING (N092954) 558 RON
19 1 1 SPINDLE LOCK (N114592) 781 RON
20 1 1 SPINDLE LOCK (N497322) 588 RON
21 1 1 N688847 - Indisponibil
21 1 1 GEARCASE SA (NA142327) 28836 RON
22 1 4 SCREW PLSTC THD FORM M3X9 T10 (330065-25) 558 RON
23 1 1 BAFFLE (N132864) 781 RON
24 1 1 FIELD 230V (N232482) 15993 RON
24 1 1 FIELD SA (NA160510) 32327 RON
25 1 1 FIELDCASE (N115131) 4472 RON
26 1 1 RATING PLATE (N656212) 588 RON
26 1 1 RATING PLATE (NA095893) 668 RON
27 1 1 CAPACITOR SA (N442344) 2182 RON
28 1 1 Screw For Brush Holder Assy.(4.2 x 13) (562097-00) 558 RON
29 1 1 CORD CLAMP (619328-00) 588 RON
30 1 1 SPRING (N097703) 558 RON
31 1 1 HOUSING (N115132) 2347 RON
32 1 1 CORDSET (EURO) (N133090) 4472 RON
33 1 1 CORD PROTECTOR (N447519) 944 RON
34 1 1 SCREW (N017839) 558 RON
35 1 1 BRUSH PAIR 230V (N257700) 3018 RON
35 1 1 BRUSH PAIR (NA160502) 5370 RON
36 1 2 BRUSHBOX (N097702) 105 RON
37 1 2 SCREW (593478-00) 558 RON
39 1 1 N442171 - Indisponibil
39 1 1 SWITCH (NA283662) 15469 RON
40 1 1 SPRING (N093410) 558 RON
41 1 1 LINK (N117648) 781 RON
42 1 1 BUTTON (N097844) 558 RON
43 1 1 O RING (N119639) 558 RON
44 1 1 BUSHING (N684358) 3268 RON
45 1 1 COUPLING (N618406) 588 RON
46 1 2 SCREW TAPTITE M4x12 SLT/T20 (330045-45) 558 RON
47 1 1 N494178 - Indisponibil
47 1 1 BEARING PLATE (N683083) 668 RON
48 1 1 N517656 - Indisponibil
48 1 1 O RING (N702423) 82 RON
49 1 1 SHAFT (N491511) 2796 RON
50 1 1 COUPLING (N618689) 2796 RON
51 1 1 SLEEVE (N491509) 1630 RON
52 1 2 BEARING BALL (330003-60) 190 RON
52 1 2 BEARING (N175104) 1788 RON
53 1 1 WASHER (N213812) 558 RON
54 1 1 PINION (N604853) 3268 RON
55 1 1 N661153 - Indisponibil
55 1 1 SHAFT SA (NA144260) 24962 RON
56 1 1 ADAPTOR (N496832) 2796 RON
57 1 1 PLATE (N498478) 944 RON
58 1 1 SCREW (N137733) 558 RON
59 1 1 SPRING (N105579) 558 RON
60 1 1 N661162 - Indisponibil
60 1 1 GEARCASE COVER SA (NA185843) 25728 RON
61 1 1 LEVER LOCK (N501337) 1933 RON
62 1 1 HANDLE SIDE SA (N383283) 3268 RON
63 1 1 N505139 - Indisponibil
63 1 1 GUARD (NA355694) 12361 RON
64 1 1 HEX KEY 6 MM (N107295) 781 RON
65 1 1 COUPLING (N617852) 114 RON
66 1 1 BEARING (N175104) 1788 RON
67 1 1 WASHER (N213812) 558 RON
68 1 1 FAN (N575453) 944 RON
69 1 1 WASHER (N101228) 558 RON
70 1 1 BEARING (N130916) 1229 RON
71 1 1 SLEEVE (641823-00) 558 RON
72 1 1 N661165 - Indisponibil
72 1 1 ARMATURE SAz (NA185832) 42426 RON
73 1 1 BRAND LABEL (N149175) 558 RON
74 1 2 RUBBER PAD (N476768) 588 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
