POLIZOR UNGHIULAR DEWALT DW852 Type 3
[DW852 Type 3]

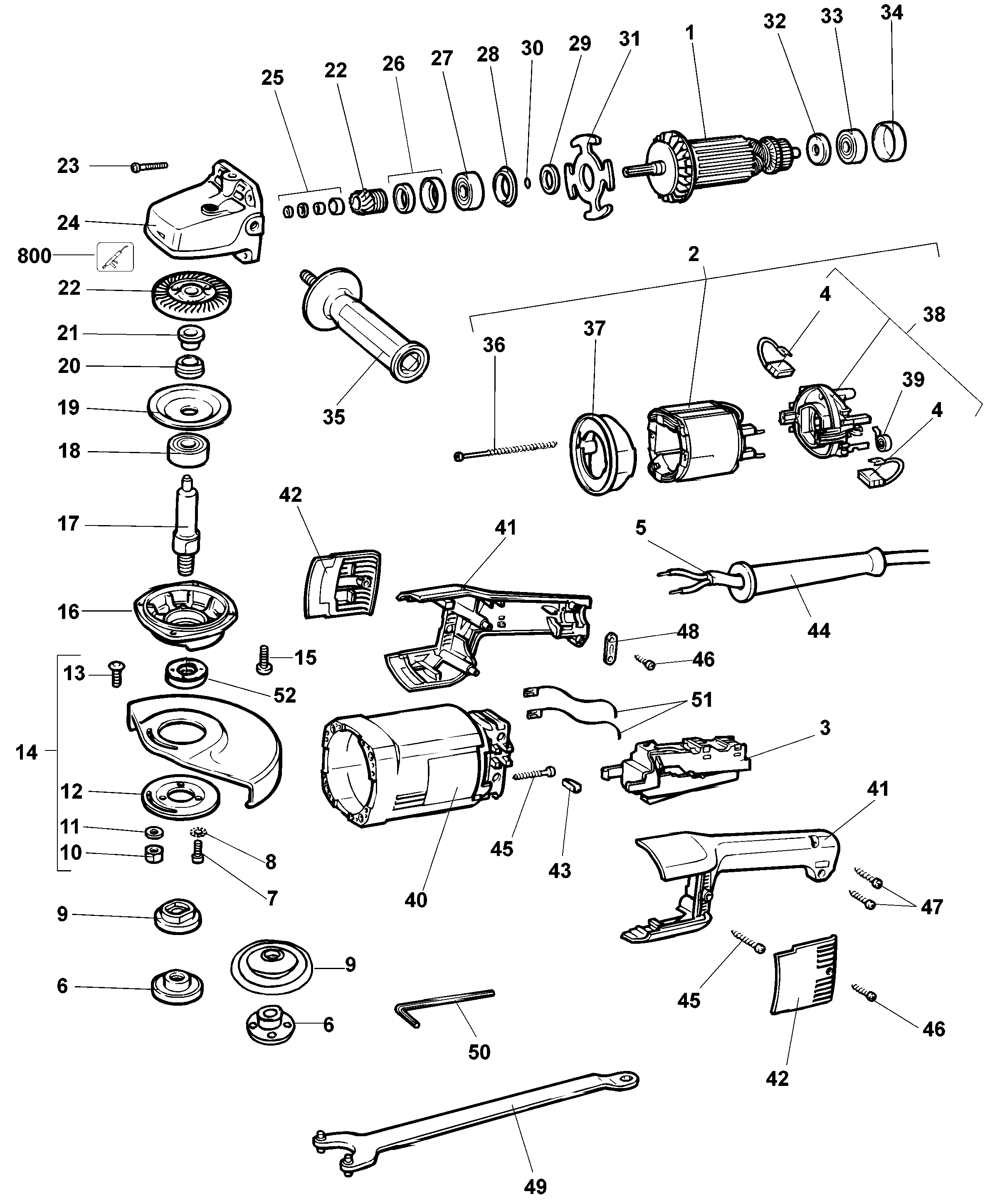

POLIZOR UNGHIULAR DEWALT DW852 Type 3
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR DEWALT DW852 Type 3
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA ARMATURE ( SERVICE ) (574370-08) 70239 RON
2 1 1 SA FIELD & BRUSHBOX 230V L/S ( SERVICE ) (949406-07) 59725 RON
4 1 2 BRUSH 230V CUT OFF SA (403485-03) 4137 RON
5 1 1 CORD POWER SUPPLY (330080-52) 7940 RON
6 1 1 931771-00 - Indisponibil
7 1 3 SCREW (933058-00) 558 RON
8 1 3 932369-00 - Indisponibil
9 1 1 FLANGE INNER (930927) 3018 RON
9 1 1 930927-00 - Indisponibil
10 1 1 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
11 1 1 930925-00 - Indisponibil
12 1 1 930929-00 - Indisponibil
13 1 1 SCREW (949892-07) 781 RON
14 1 1 "SA WHEEL GUARD 9""" (931942-02) 9282 RON
15 1 4 SCREW M6 (949887-01) 558 RON
15 1 4 330024-14 - Indisponibil
16 1 1 COVER GEARCASE M/C (947962-00) 3466 RON
17 1 1 SPINDLE OUTPUT (930920-00) 9282 RON
17 1 1 SPINDLE M14 PACKED (578243-00) 10512 RON
18 1 1 BEARING (574853-11) 3466 RON
19 1 1 930924-00 - Indisponibil
20 1 1 930923-00 - Indisponibil
21 1 1 930922-00 - Indisponibil
22 1 1 932522-00 - Indisponibil
23 1 4 930930-00 - Indisponibil
24 1 1 SA GEARCASE (401048-01) 23598 RON
25 1 1 MOUNT ASSEMBLY ( SERVICE ) (937098-49) 1229 RON
25 1 1 937098-00 - Indisponibil
26 1 1 930909-00 - Indisponibil
27 1 1 BEARING (330003-14) 3466 RON
27 1 1 BEARING (574853-09) 3018 RON
28 1 1 SEAL SA (931067-00) 190 RON
29 1 1 SPACER (931062-00) 1117 RON
29 1 1 931062 - Indisponibil
30 1 1 O-RING (930028-00) 558 RON
31 1 1 FLANGE (931066-00) 2795 RON
32 1 1 SPACER (A3EG6) (N174055) 558 RON
32 1 1 SPACER (938331-00) 558 RON
33 1 1 BEARING BALL cod vechi: 330003-36 BEARING 6000 T1XDDW (577745-00) 3018 RON
33 1 1 330003-36 - Indisponibil
34 1 1 SLEEVE (938332-00) 558 RON
35 1 1 933499-00 - Indisponibil
36 1 2 931072-00 - Indisponibil
37 1 1 FAN BAFFLE (402808-00) 105 RON
38 1 1 SA BRUSHBOX (949405-03) 11519 RON
39 1 2 SPRING (931076-00) 558 RON
40 1 1 SA FIELDCASE LONG STACK DEWALT (576184-02) 10512 RON
41 1 1 SA HANDLE DW882 (MOULD) (N073028) 5031 RON
41 1 1 SA HANDLE YELLOW (401057-14) 5031 RON
41 1 1 SA HANDLE AND COVER (SERVICE) (N097875) 5591 RON
42 1 2 COVER BRUSH (933364-02) 893 RON
43 1 4 SHOCK ABSORBER (930934-00) 558 RON
44 1 1 "PROTECTOR CORD 11 6""" (947964-01) 190 RON
45 1 4 SCREW (931297-00) 893 RON
46 1 4 SCREW (931469-02) 558 RON
47 1 2 SCREW (930284-01) 558 RON
48 1 1 CORD CLAMP (931477-00) 781 RON
49 1 1 SA LAG WRENCH (938733) 2347 RON
49 1 1 938733-00 - Indisponibil
50 1 1 807043-00 - Indisponibil
51 1 2 SA LEAD (403462-00) 781 RON
52 1 1 000000-00 - Indisponibil
800 1 1 GREASE MOLYCOTE G68 100 GRAM TUBE (808386-00) 46863 RON
800 1 1 GREASE 100 GM TUBE (575762-02) 5031 RON
800 1 1 GREASE (NA360289) 10241 RON
