Top » Piese de schimb » PIESE DEWALT » DW831 Type 2

POLIZOR UNGHIULAR DEWALT DW831 Type 2
[DW831 Type 2]
POLIZOR UNGHIULAR DEWALT DW831 Type 2
Click pentru a mari
Imagini suplimentare

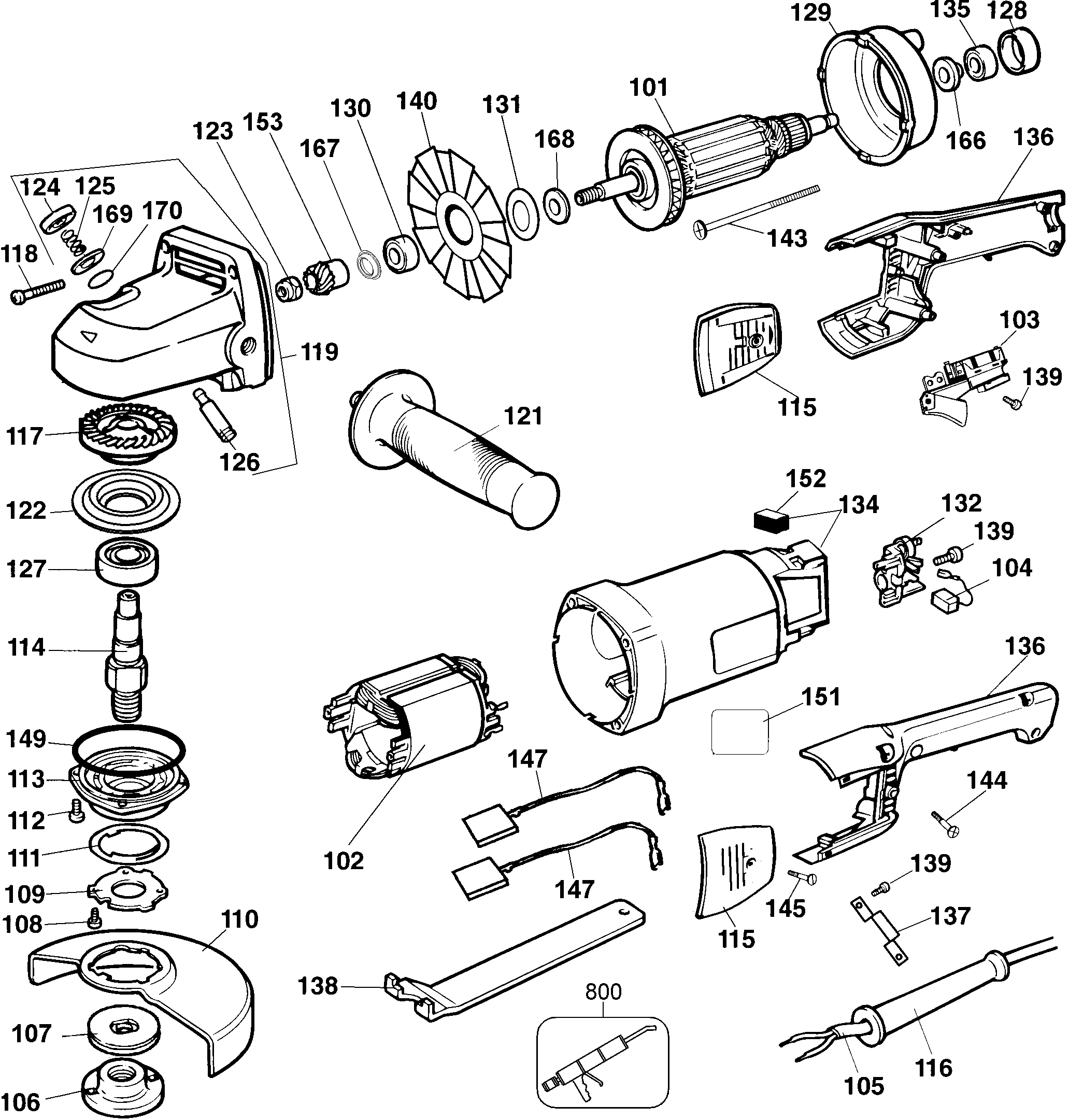

POLIZOR UNGHIULAR DEWALT DW831 Type 2
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 SA ARMATURE (402875-08) 17335 RON
101 1 1 ARMATURE KIT 220 (397337-02) 22144 RON
102 1 1 569588-00 - Indisponibil
103 1 1 SWITCH DW830 (402868-03) 14315 RON
104 1 2 BRUSH 230V CUT OFF SA (402874-01) 4137 RON
105 1 1 330080-35 - Indisponibil
106 1 1 WASHER OUTER CLAMP (401678-01) 2795 RON
106 1 1 WASHER OUTER CLAMP PAINTED (401678-05) 2795 RON
107 1 1 INNER FLANGE (391969-00) 1788 RON
108 1 3 SCREW (562160-06) 558 RON
109 1 1 FLANGE (605415-00) 781 RON
110 1 1 GUARD (944586-00) 2795 RON
111 1 1 Guard Spring (393576-00) 781 RON
112 1 4 SCREW (562160-05) 558 RON
113 1 1 Gear Case Cover DW831 (390521-00) 3018 RON
114 1 1 SPINDLE (391972-00) 5591 RON
115 1 2 Brush Shield(Brush Cover) DW831 (402849-00) 893 RON
116 1 1 N542553 - Indisponibil
116 1 1 PROTECTOR CORD (330005-01) 105 RON
116 1 1 CORD PROTECTOR (N918736) 668 RON
117 1 1 GEAR (390522-00) 7940 RON
118 1 4 SCREW (562097-10) 558 RON
119 1 1 569905-02 - Indisponibil
121 1 1 Handle Side(945597-00) DW803/801 (562211-00) 2347 RON
121 1 1 SIDE HANDLE (573115-00) 1452 RON
122 1 1 Flange Brg.DW831 (398976-00) 893 RON
123 1 1 Nut DW831 (393568-00) 558 RON
124 1 1 Lock Button DW831 (390705-00) 558 RON
125 1 1 SPRING (562210-00) 558 RON
126 1 1 Pin Lock DW831 (390704-00) 781 RON
127 1 1 BEARING (949625-02) 7940 RON
127 1 1 Bearing DW801 (605040-22) 2347 RON
128 1 1 SLEEVE BEARING (930275-00) 558 RON
129 1 1 402856-00 - Indisponibil
130 1 1 bearing dw830 (390821-02) 7940 RON
130 1 1 Ball Bearing. CW DW831 (605040-60) 2347 RON
131 1 1 Washer DW831 (930753-00) 558 RON
132 1 2 BRUSH & HOLDER SA (402869-01) 6821 RON
134 1 1 402871-08 - Indisponibil
134 1 1 402871-08S - Indisponibil
135 1 1 BEARING (390821-00) 5591 RON
135 1 1 BEARING (605040-02) 1788 RON
136 1 1 HANDLE SA (402844-06) 5591 RON
136 1 1 Handle DW831 (402844-11) 3466 RON
136 1 1 402844-10 - Indisponibil
137 1 1 CORD CLAMP (930103-00) 190 RON
138 1 1 Wrench(Spanner) DW831 (401680-00) 2124 RON
139 1 5 Screw For Brush Holder Assy.(4.2 x 13) (562097-00) 558 RON
140 1 1 399032-00 - Indisponibil
143 1 2 Screw DW831 (562097-11) 558 RON
144 1 4 SCREW (562097-03) 558 RON
145 1 2 Screw Self Drive For Brush Cover ( (945280-00) 558 RON
147 1 2 LEAD WS47 (402878-00) 781 RON
149 1 1 Seal Ring DW831 (403123-00) 558 RON
151 1 1 IDENTITY LABEL (398941-00) 781 RON
152 1 4 Damper DW831 (402847-00) 558 RON
153 1 1 398963-00 - Indisponibil
153 1 1 PINION (402863-00) 10512 RON
166 1 1 Slinger DW831 (398985-00) 781 RON
167 1 1 Retainer DW831 (398909-00) 1788 RON
167 1 1 398909-00SV - Indisponibil
168 1 1 Washer (White) DW831 (399052-00) 558 RON
169 1 1 Washer DW831 (403148-00) 558 RON
170 1 1 RING (050050-00) 558 RON
170 1 1 50050-00 - Indisponibil
800 1 1 GREASE (286436-00) 70239 RON
