POLIZOR UNGHIULAR DEWALT DW830 Type 4
[DW830 Type 4]
POLIZOR UNGHIULAR DEWALT DW830 Type 4
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR DEWALT DW830 Type 4
Click pentru a mari

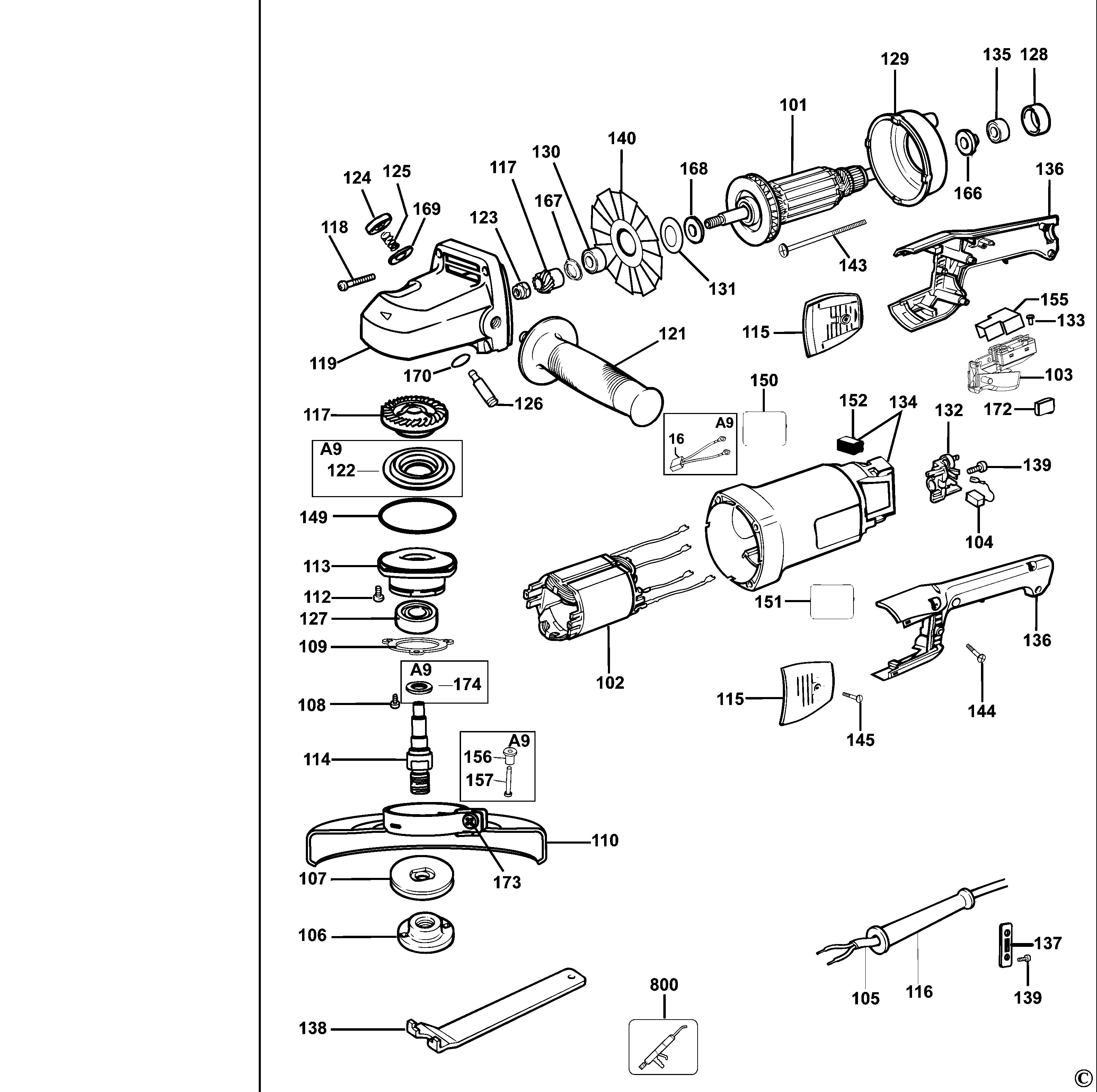

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 N865279 - Indisponibil
101 1 1 SA ARMATURE (402875-08) 17335 RON
101 1 1 ARMATURE KIT 220 (397337-02) 22144 RON
107 1 1 INNER FLANGE (391969-00) 1788 RON
112 1 4 SCREW (330045-46) 558 RON
118 1 4 SCREW (562097-10) 558 RON
119 1 1 SA Gear Case DW831 (569905-04) 7940 RON
121 1 1 Handle Side(945597-00) DW803/801 (562211-00) 2347 RON
123 1 1 Nut DW831 (393568-00) 558 RON
124 1 1 Lock Button DW831 (390705-00) 558 RON
125 1 1 SPRING (562210-00) 558 RON
126 1 1 Pin Lock DW831 (390704-00) 781 RON
128 1 1 SLEEVE (641823-00) 558 RON
130 1 1 Ball Bearing. CW DW831 (605040-60) 2347 RON
131 1 1 Washer DW831 (930753-00) 558 RON
133 1 4 Switch Screw (387746-00) 558 RON
135 1 1 Ball Bearing. CW DW810 (605040-03) 190 RON
137 1 1 CORD CLAMP (930103-00) 190 RON
139 1 5 Screw For Brush Holder Assy.(4.2 x 13) (562097-00) 558 RON
140 1 1 Flange Brg.DW831 (399032-01) 105 RON
143 1 2 Screw DW831 (562097-11) 558 RON
144 1 4 SCREW (562097-03) 558 RON
145 1 2 Screw Self Drive For Brush Cover ( (945280-00) 558 RON
149 1 1 Seal Ring DW831 (403123-00) 558 RON
151 1 1 IDENTITY LABEL (398941-00) 781 RON
152 1 4 Damper DW831 (402847-00) 558 RON
155 1 1 INSULATOR (650937-00) 558 RON
166 1 1 Slinger DW831 (398985-00) 781 RON
167 1 1 Retainer DW831 (398909-00) 1788 RON
168 1 1 Washer (White) DW831 (399052-00) 558 RON
169 1 1 Washer DW831 (403148-00) 558 RON
170 1 1 RING (050050-00) 558 RON
172 1 2 Pad DW831 (620051-00) 558 RON
173 1 1 SCREW (631609-00) 558 RON
173 1 1 SCREW (631609-02) 558 RON
800 1 1 GREASE (286436-00) 70239 RON
