Top » Piese de schimb » PIESE DEWALT » DW823 Type 1

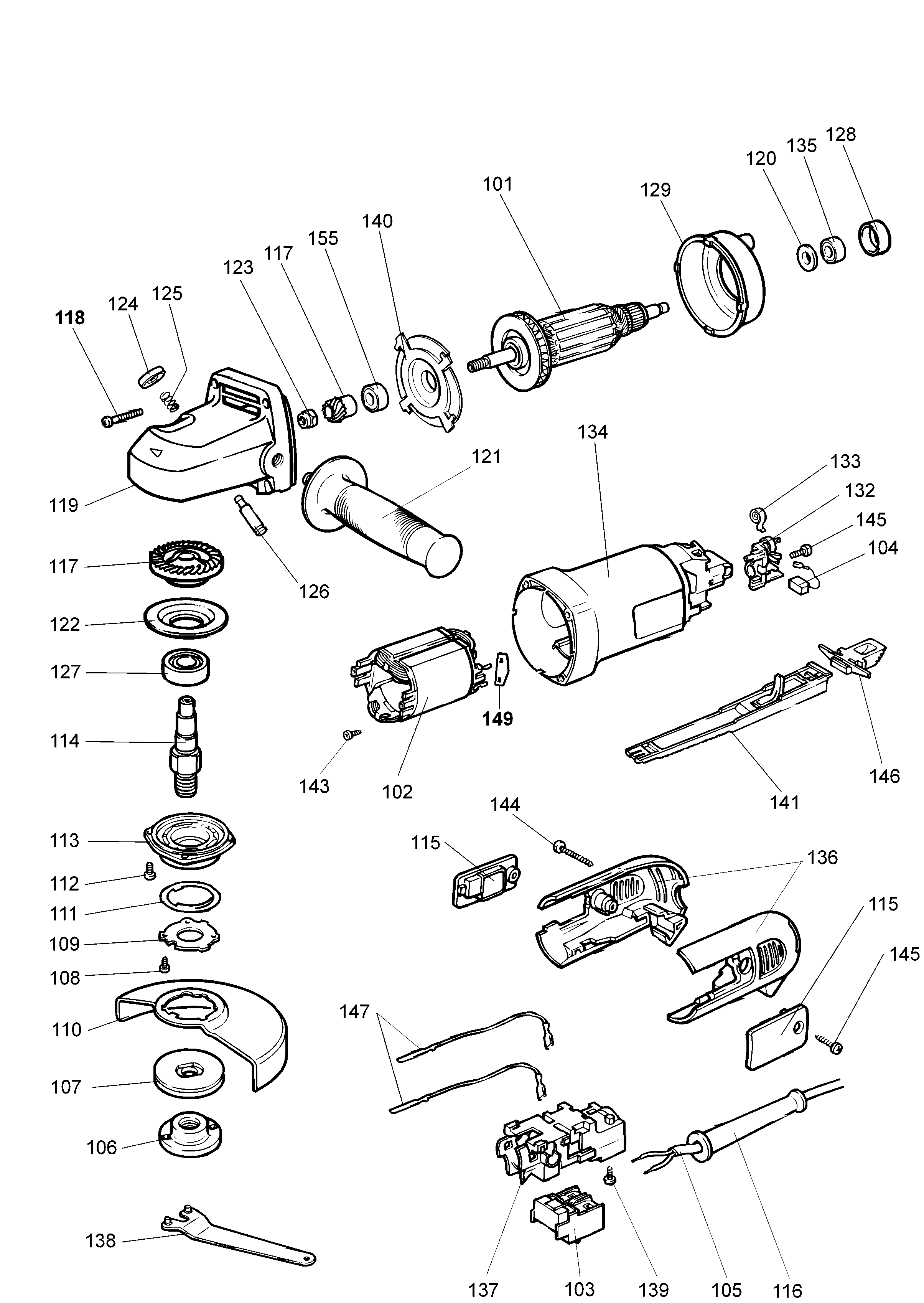

POLIZOR UNGHIULAR DEWALT DW823 Type 1
[DW823 Type 1]
POLIZOR UNGHIULAR DEWALT DW823 Type 1
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR DEWALT DW823 Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 ARMATURE FOR DW824 (393921-07) 23598 RON
101 1 1 ARMATURE (949631-02) 20467 RON
101 1 1 ARMATURE SA (NA784939) 25728 RON
102 1 1 000000-00 - Indisponibil
103 1 1 SWITCH (945614-00) 4137 RON
103 1 1 NA952688 - Indisponibil
104 1 2 BRUSH 230V CUT OFF (949646-02) 3018 RON
105 1 1 949738-27 - Indisponibil
106 1 1 FLANGE M14 (403430-00) 6821 RON
107 1 1 INNER FLANGE (930771) 190 RON
107 1 1 930771-00 - Indisponibil
108 1 3 SCREW (949870-05) 558 RON
108 1 3 Screw (Wheel Guard) 1x3 (562160-00) 558 RON
109 1 1 Flange For Wheel Guard (944674-00) 781 RON
109 1 1 FLANGE (605415-00) 781 RON
110 1 1 GUARD (944586-00) 2795 RON
111 1 1 Guard Spring (393576-00) 781 RON
112 1 4 SCREW M4X10 (930224-01) 558 RON
113 1 1 GEARCASE COVER (945589-00) 3466 RON
113 1 1 Gear Case Cover DW831 (390521-00) 3018 RON
114 1 1 945297-00 - Indisponibil
115 1 2 COVER BRUSH (401963-01) 558 RON
116 1 1 CORD PROTECTOR (401088-01) 781 RON
117 1 1 GEAR & PINION (945295-02) 10512 RON
118 1 4 "SCREW 4 2X25""" (930079-00) 558 RON
118 1 4 SCREW (930079-01) 558 RON
119 1 1 945303-02 - Indisponibil
119 1 1 SERVICE KIT (610704-00) 6821 RON
120 1 1 SPACER (945287-00) 558 RON
121 1 1 Handle Side(945597-00) DW803/801 (562211-00) 2347 RON
121 1 1 SIDE HANDLE (573115-00) 1452 RON
122 1 1 945590-00 - Indisponibil
123 1 1 Nut (Pinion fixing) (945292-00) 558 RON
124 1 1 BUTTON (944574-00) 558 RON
125 1 1 SPRING (562210-00) 558 RON
126 1 1 LOCK PIN (944571-00) 893 RON
127 1 1 BEARING (949625-02) 7940 RON
127 1 1 Bearing DW801 (605040-22) 2347 RON
128 1 1 SLEEVE (949721-02) 558 RON
129 1 1 BAFFLE (401623-00) 781 RON
132 1 1 401252-00 - Indisponibil
133 1 2 BRUSH SPRING (930090-00) 558 RON
134 1 1 945595-02 - Indisponibil
135 1 1 949625-01 - Indisponibil
135 1 1 390821-01 - Indisponibil
136 1 1 401973-00 - Indisponibil
137 1 1 SWITCH SUPPORT (401595-00) 1229 RON
138 1 1 WRENCH PIN (401253-00) 1452 RON
139 1 1 930276 - Indisponibil
139 1 1 SCREW (930284-01) 558 RON
140 1 1 Fan Flange (401622-01) 105 RON
141 1 1 LEVER SA (947815-01) 3466 RON
143 1 2 SCREW (949650-01) 558 RON
143 1 2 SCREW (390198-00) 558 RON
144 1 2 SCREW (931297-00) 893 RON
145 1 4 SCREW (931469-02) 558 RON
146 1 1 BUTTON LOCK-ON (401259-01) 781 RON
147 1 2 949801-99 - Indisponibil
149 1 2 PAD (402489-00) 558 RON
155 1 1 BEARING (N110358) 2347 RON
155 1 1 BEARING (330003-05) 3466 RON
