POLIZOR UNGHIULAR DEWALT DW821 Type 5
[DW821 Type 5]
POLIZOR UNGHIULAR DEWALT DW821 Type 5
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR DEWALT DW821 Type 5
Click pentru a mari

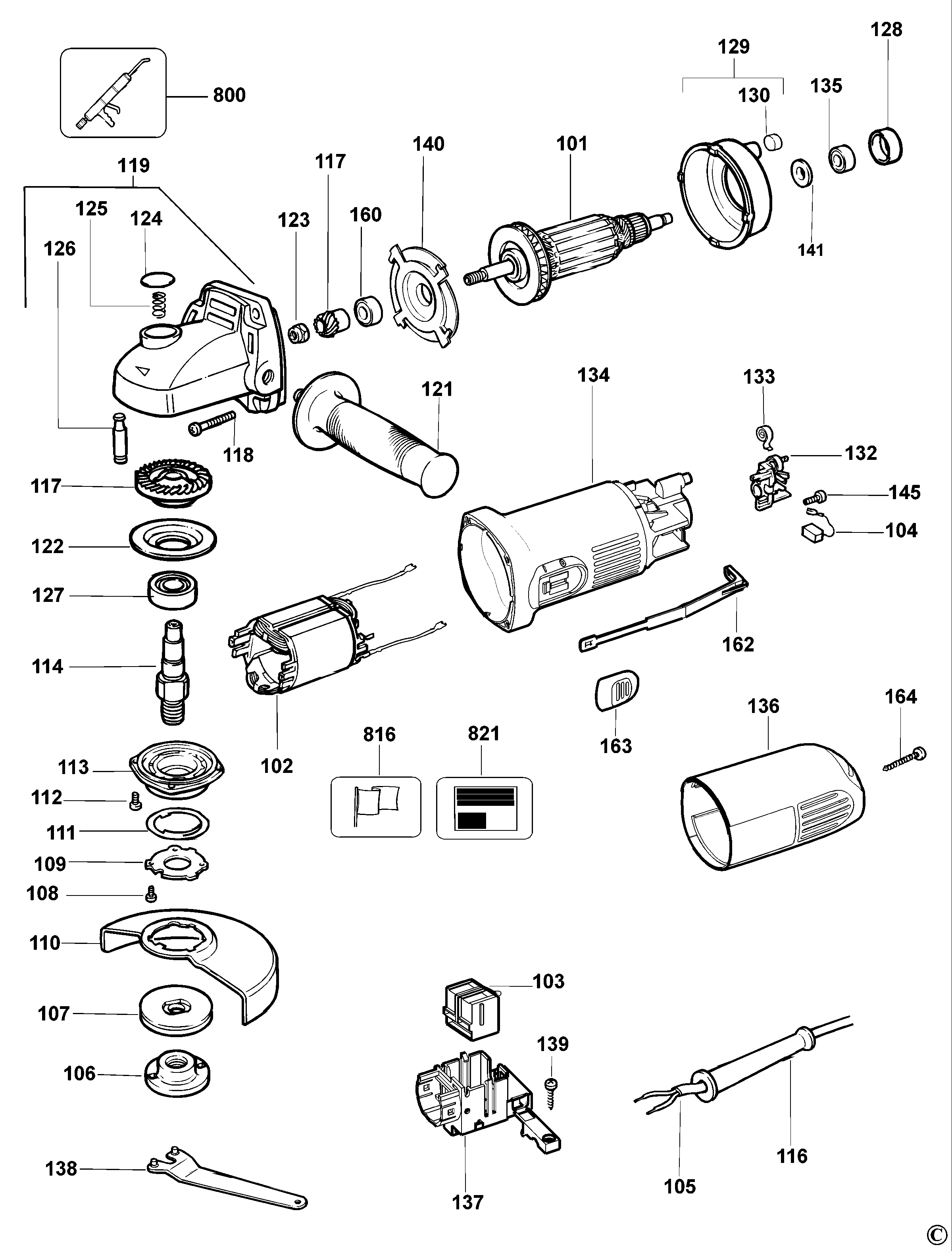

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
103 1 1 SWITCH (945614-00) 4137 RON
103 1 1 NA952688 - Indisponibil
106 1 1 FLANGE M14 (403430-00) 6821 RON
107 1 1 INNER FLANGE (391969-00) 1788 RON
108 1 3 Screw (Wheel Guard) 1x3 (562160-00) 558 RON
109 1 1 FLANGE (605415-00) 781 RON
110 1 1 GUARD (944586-00) 2795 RON
111 1 1 Guard Spring (393576-00) 781 RON
112 1 4 Screw For Gear Case Cover (M4 x 10) (562160-01) 558 RON
113 1 1 GEARCASE COVER (945298-00) 2795 RON
114 1 1 AXLE FOR DW818 (391971-00) 5031 RON
117 1 1 GEAR & PINION (945295-01) 10512 RON
117 1 1 GEAR & PINION (661243-00) 5591 RON
117 1 1 GEAR & PINION (N490505) 11337 RON
118 1 4 SCREW (562097-01) 558 RON
119 1 1 GEARCASE SA (562304-02) 6821 RON
121 1 1 SIDE HANDLE (573115-00) 1452 RON
122 1 1 Gear Flange (945299-00) 781 RON
123 1 1 Nut (Pinion fixing) (945292-00) 558 RON
124 1 1 BUTTON (944574-00) 558 RON
125 1 1 SPRING (562210-00) 558 RON
126 1 1 LOCK PIN (944571-00) 893 RON
127 1 1 BEARING (949625-02) 7940 RON
127 1 1 Bearing DW801 (605040-22) 2347 RON
128 1 1 Bearing Cover DW831 (608983-00) 781 RON
128 1 1 SLEEVE (641823-00) 558 RON
129 1 1 SA Baffle (401635-00) 781 RON
130 1 2 PLUG (949638-01) 558 RON
132 1 2 BRUSH HOLDER (606574-01) 1788 RON
133 1 2 TORSION SPRING (562204-00) 558 RON
134 1 1 395243-19 - Indisponibil
135 1 1 BEARING (390821-00) 5591 RON
135 1 1 BEARING (605040-02) 1788 RON
136 1 1 END CAP (394938-01) 2795 RON
137 1 1 SUPPORT (611540-00) 893 RON
138 1 1 WRENCH PIN (401253-00) 1452 RON
139 1 1 Screw DW201 171 (562097-05) 558 RON
140 1 1 Fan Flange (401622-01) 105 RON
141 1 1 SPACER INSULATING (398906-00) 558 RON
145 1 2 Screw For Brush Holder Assy.(4.2 x 13) (562097-00) 558 RON
160 1 1 390821-01 - Indisponibil
160 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
162 1 1 LINK (611737-01) 781 RON
163 1 1 BUTTON (569624-01) 781 RON
164 1 1 SCREW (562097-13) 558 RON
800 1 1 GREASE (286436-00) 70239 RON
816 1 1 RATING PLATE DeWALT BLANK (569037-00) 105 RON
821 1 1 Logo Label DW801 (946194-00) 781 RON
