Top » Piese de schimb » PIESE DEWALT » DW819 Type 1

POLIZOR UNGHIULAR DEWALT DW819 Type 1
[DW819 Type 1]
POLIZOR UNGHIULAR DEWALT DW819 Type 1
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR DEWALT DW819 Type 1
Click pentru a mari

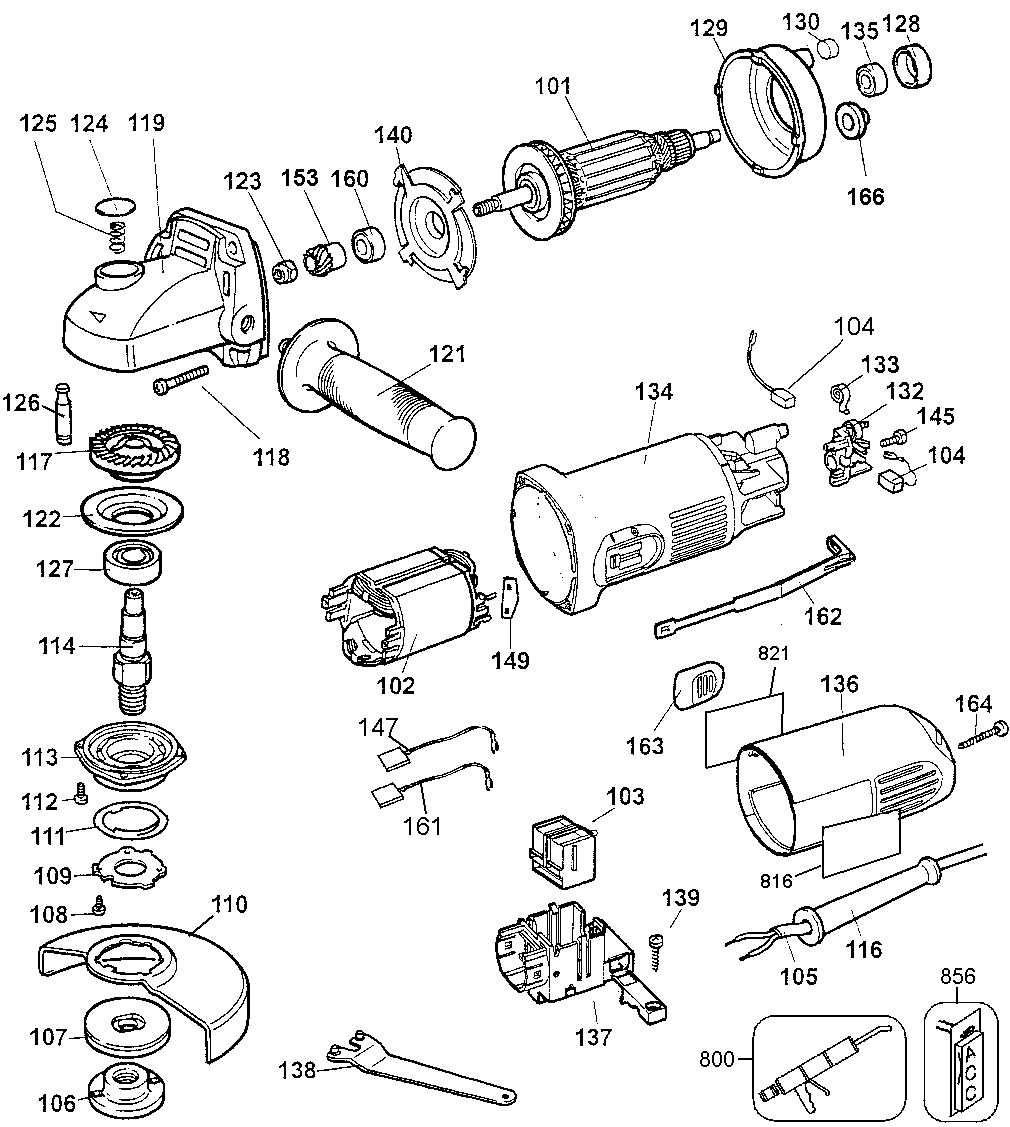

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
11 1 1 HANDLE SA (392038-01) 2795 RON
32 1 1 SWITCH SUPPORT (569625-00) 1452 RON
33 1 1 LINK (569626-00) 1117 RON
40 1 1 Spring Guard(Ring) (944577-00) 781 RON
41 1 1 Flange For Wheel Guard (944674-00) 781 RON
101 1 1 ARMATURE 230V (401702-10) 1891 RON
102 1 1 FIELD (569577-10) 11519 RON
102 1 1 FIELD SA (395991-00) 15993 RON
103 1 1 SWITCH (945614-00) 4137 RON
103 1 1 NA952688 - Indisponibil
104 1 2 BRUSH CUT OFF (939539-01) 2124 RON
105 1 1 CABLE SA (562226-43) 5591 RON
106 1 1 WASHER OUTER CLAMP (401678-01) 2795 RON
106 1 1 WASHER OUTER CLAMP PAINTED (401678-05) 2795 RON
107 1 1 INNER FLANGE (391969-00) 1788 RON
108 1 3 Screw (Wheel Guard) 1x3 (562160-00) 558 RON
109 1 1 FLANGE (605415-00) 781 RON
110 1 1 GUARD (944685-00) 3466 RON
111 1 1 Guard Spring (393576-00) 781 RON
112 1 4 Screw For Gear Case Cover (M4 x 10) (562160-01) 558 RON
113 1 1 GEARCASE COVER (945298-00) 2795 RON
114 1 1 AXLE FOR DW818 (391971-00) 5031 RON
116 1 1 N542553 - Indisponibil
116 1 1 PROTECTOR CORD (330005-01) 105 RON
116 1 1 CORD PROTECTOR (N918736) 668 RON
117 1 1 390701-00 - Indisponibil
118 1 4 SCREW (562097-01) 558 RON
119 1 1 GEARCASE (569599-00) 10512 RON
119 1 1 569599-07 - Indisponibil
121 1 1 Handle Side(945597-00) DW803/801 (562211-00) 2347 RON
121 1 1 SIDE HANDLE (573115-00) 1452 RON
122 1 1 Gear Flange (945299-00) 781 RON
123 1 1 Nut (Pinion fixing) (945292-00) 558 RON
124 1 1 LOCK BUTTON (944575-00) 558 RON
125 1 1 SPRING (562210-00) 558 RON
126 1 1 LOCK PIN (944571-00) 893 RON
127 1 1 BEARING (949625-02) 7940 RON
127 1 1 Bearing DW801 (605040-22) 2347 RON
128 1 1 SLEEVE BEARING (930275-00) 558 RON
129 1 1 BAFFLE (401623-00) 781 RON
130 1 2 PLUG (949638-01) 558 RON
132 1 2 SA BRUSH HOLDER (569666-00) 105 RON
133 1 2 TORSION SPRING (562204-00) 558 RON
134 1 1 FIELD CASE KIT (609938-01) 4472 RON
134 1 1 392037-01 - Indisponibil
135 1 1 BEARING (390821-00) 5591 RON
135 1 1 BEARING (605040-02) 1788 RON
136 1 1 END CAP (394938-01) 2795 RON
137 1 1 SWITCH SUPPORT (5140000-13) 190 RON
138 1 1 Wrench(Spanner) DW831 (401680-00) 2124 RON
139 1 1 Screw DW201 171 (562097-05) 558 RON
140 1 1 Fan Flange (401622-01) 105 RON
145 1 2 Screw For Brush Holder Assy.(4.2 x 13) (562097-00) 558 RON
147 1 1 329021-01 - Indisponibil
149 1 2 PAD (402489-00) 558 RON
153 1 1 Pinion DW803A2 (562100-01) 6821 RON
160 1 1 390821-01 - Indisponibil
160 1 1 BEARING BALL (330003-60) 190 RON
160 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
161 1 1 329021-00 - Indisponibil
162 1 1 LINK (611737-01) 781 RON
163 1 1 BUTTON (569624-01) 781 RON
164 1 1 SCREW (562097-13) 558 RON
166 1 1 SPACER INSULATING (398906-00) 558 RON
800 1 1 GREASE (286436-00) 70239 RON
816 1 1 Logo Label DW801 (946194-00) 781 RON
821 1 1 569781-57 - Indisponibil
