POLIZOR UNGHIULAR DEWALT DW808 Type 5
[DW808 Type 5]
POLIZOR UNGHIULAR DEWALT DW808 Type 5
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR DEWALT DW808 Type 5
Click pentru a mari

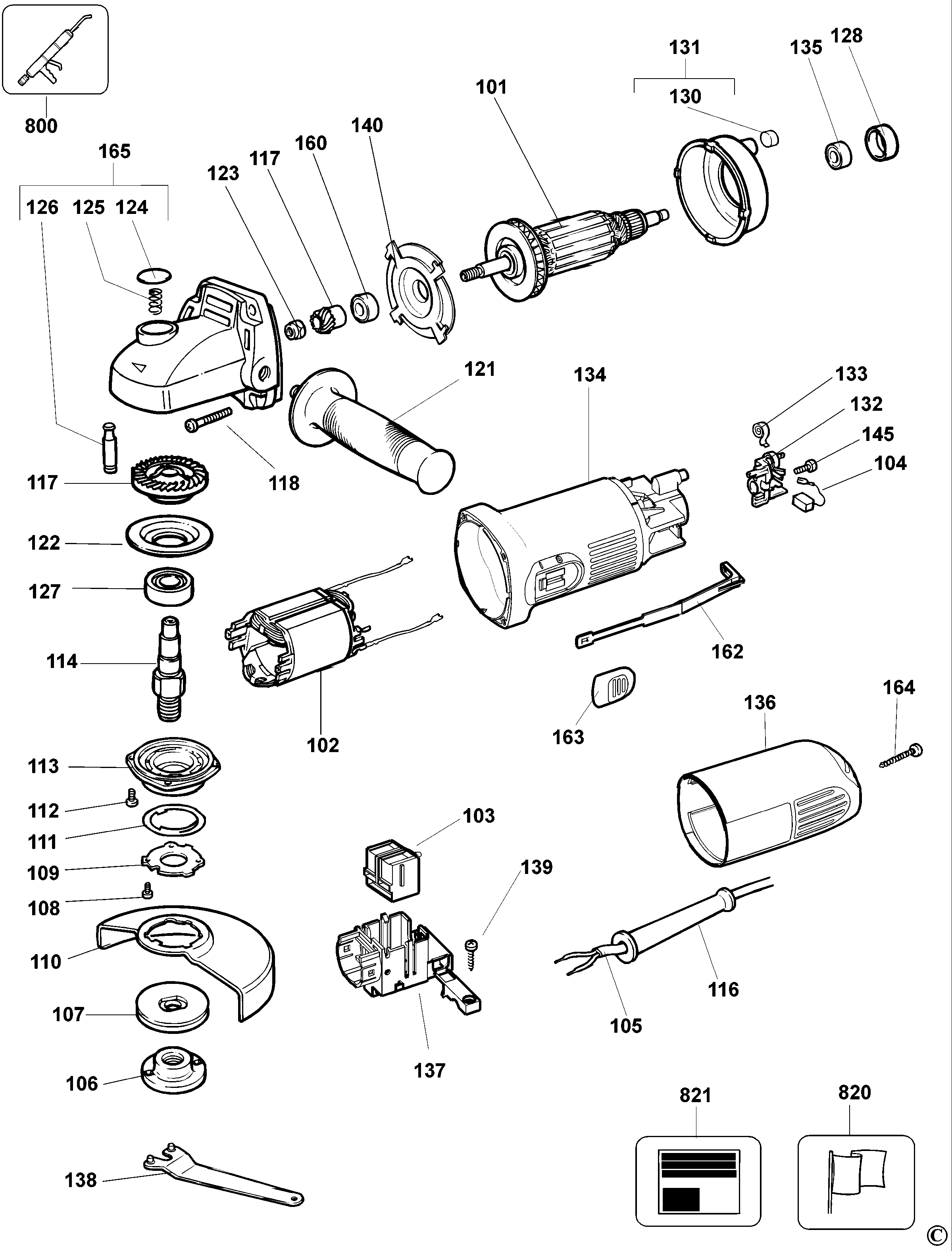

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
103 1 1 SWITCH (945614-00) 4137 RON
103 1 1 NA952688 - Indisponibil
104 1 2 BRUSH (930151) 2124 RON
104 1 2 BRUSH 230V SA (930151-00) 2124 RON
106 1 1 WASHER OUTER CLAMP (401678-01) 2795 RON
106 1 1 WASHER OUTER CLAMP (401678-03) 5031 RON
106 1 1 NUT (622613-01) 3018 RON
108 1 3 SCREW (562160-06) 558 RON
109 1 1 FLANGE (605415-00) 781 RON
110 1 1 GUARD (944675-00) 2347 RON
111 1 1 Guard Spring (393576-00) 781 RON
112 1 4 SCREW (330045-46) 558 RON
113 1 1 GEARCASE COVER (945298-00) 2795 RON
114 1 1 SPINDLE (391970-00) 3466 RON
114 1 1 622210-00 - Indisponibil
116 1 1 N542553 - Indisponibil
116 1 1 PROTECTOR CORD (330005-01) 105 RON
116 1 1 CORD PROTECTOR (N918736) 668 RON
117 1 1 GEAR & PINION (945295-01) 10512 RON
117 1 1 GEAR & PINION (661243-00) 5591 RON
117 1 1 GEAR & PINION (N490505) 11337 RON
118 1 4 SCREW (562097-01) 558 RON
121 1 1 Handle Side(945597-00) DW803/801 (562211-00) 2347 RON
121 1 1 SIDE HANDLE (573115-00) 1452 RON
122 1 1 Gear Flange (945299-00) 781 RON
123 1 1 Nut (Pinion fixing) (945292-00) 558 RON
124 1 1 BUTTON (944574-00) 558 RON
125 1 1 SPRING (562210-00) 558 RON
126 1 1 LOCK PIN (944571-00) 893 RON
127 1 1 BEARING (949625-02) 7940 RON
127 1 1 Bearing DW801 (605040-22) 2347 RON
128 1 1 Bearing Cover DW831 (608983-00) 781 RON
128 1 1 SLEEVE (641823-00) 558 RON
130 1 2 PLUG (949638-01) 558 RON
131 1 1 SA Baffle (401635-00) 781 RON
132 1 2 BRUSH HOLDER (606574-01) 1788 RON
133 1 2 TORSION SPRING (562204-00) 558 RON
134 1 1 395243-19 - Indisponibil
135 1 1 BEARING (390821-00) 5591 RON
135 1 1 BEARING (605040-02) 1788 RON
136 1 1 END CAP (394938-01) 2795 RON
137 1 1 SUPPORT (611540-00) 893 RON
138 1 1 Wrench(Spanner) DW831 (401680-00) 2124 RON
139 1 3 Screw DW201 171 (562097-05) 558 RON
140 1 1 Fan Flange (401622-01) 105 RON
145 1 2 Screw For Brush Holder Assy.(4.2 x 13) (562097-00) 558 RON
160 1 1 390821-01 - Indisponibil
160 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
162 1 1 LINK (611737-01) 781 RON
163 1 1 BUTTON (569624-01) 781 RON
164 1 1 SCREW (562097-13) 558 RON
165 1 1 610704-01 - Indisponibil
165 1 1 GEARCASE SA (945303-01) 5591 RON
165 1 1 LINK (569626-00) 1117 RON
165 1 1 LINK (611737-01) 781 RON
800 1 1 GREASE (286436-00) 70239 RON
820 1 1 Logo Label DW801 (946194-00) 781 RON
821 1 1 RATING PLATE DeWALT BLANK (569037-00) 105 RON
