Top » Piese de schimb » PIESE DEWALT » DW432K Type 2

POLIZOR UNGHIULAR DEWALT DW432K Type 2
[DW432K Type 2]
POLIZOR UNGHIULAR DEWALT DW432K Type 2
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR DEWALT DW432K Type 2
Click pentru a mari
POLIZOR UNGHIULAR DEWALT DW432K Type 2
Click pentru a mari

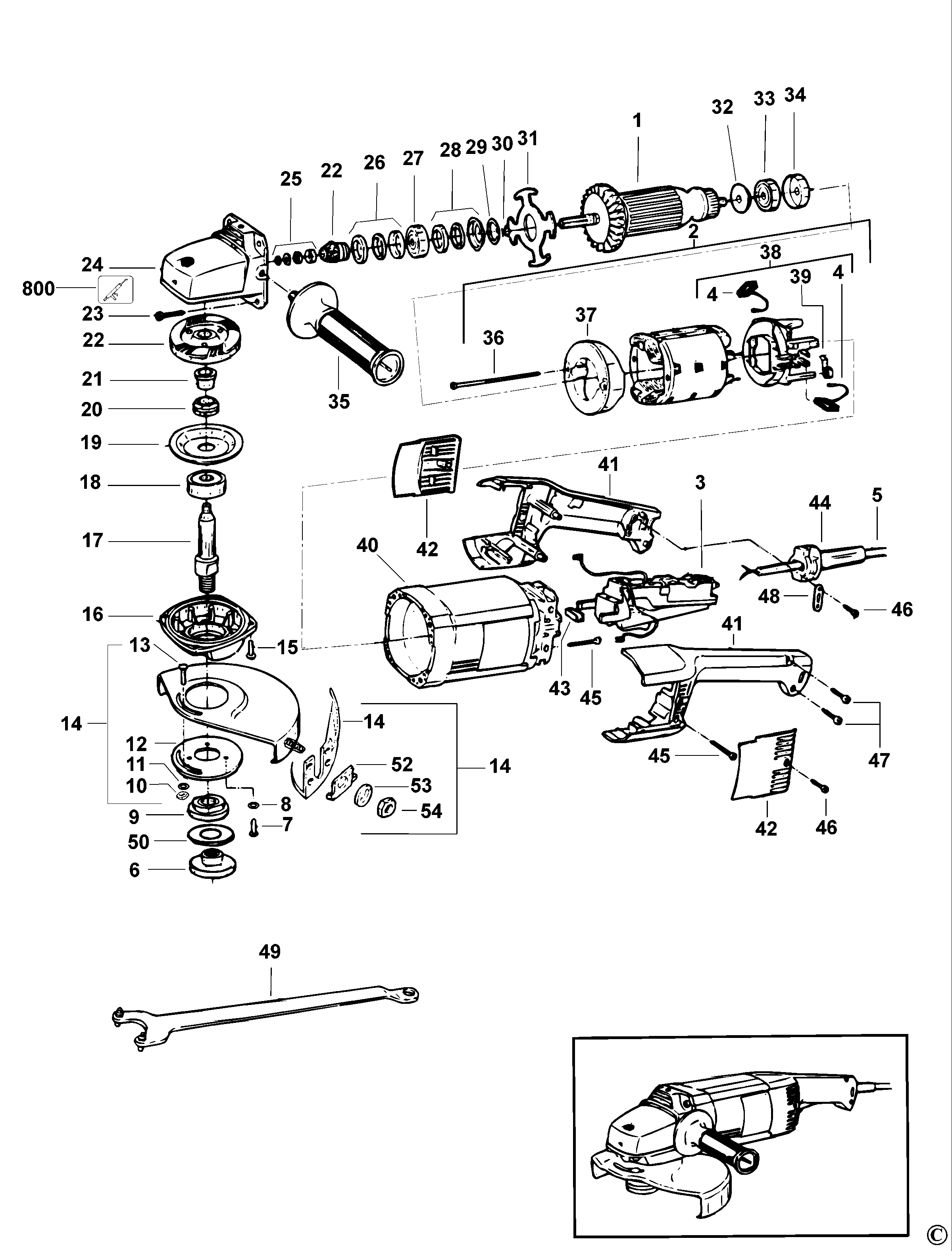

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA ARMATURE ( SERVICE ) (574370-08) 70239 RON
2 1 1 SA FIELD & BRUSHBOX 230V L/S ( SERVICE ) (949406-07) 59725 RON
3 1 1 SA SWITCH (949823-32) 3592 RON
4 1 2 BRUSH 230V CUT OFF SA (403485-03) 4137 RON
6 1 2 COLLAR SA FLANGE (931771) Indisponibil Indisponibil
7 1 3 SCREW (933058) 558 RON
7 1 3 SCREW (933058-00) 558 RON
8 1 3 WASHER SPRING (932369) 558 RON
9 1 1 967912-00 - Indisponibil
10 1 1 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
11 1 1 WASHER (930925) 781 RON
12 1 1 FLANGE (930929) 1452 RON
13 1 1 SCREW (949892-07) 781 RON
14 1 1 937677 - Indisponibil
15 1 4 SCREW M6 (949887-01) 558 RON
16 1 1 COVER GEARCASE M/C (947962-00) 3466 RON
17 1 1 SPINDLE OUTPUT (930920-00) 9282 RON
17 1 1 SPINDLE M14 PACKED (578243-00) 10512 RON
18 1 1 BEARING (930566) 3466 RON
18 1 1 930566-00 - Indisponibil
19 1 1 FLANGE (930924) 1229 RON
20 1 1 RING RETAINING (930923) 893 RON
21 1 1 SPACER (930922) 105 RON
22 1 1 SA GEAR & PINION ( SERVICE ) (932522) 32770 RON
23 1 4 SCREW SELF DRIVE (930930) 558 RON
24 1 1 SA GEARCASE (940624-01) 23598 RON
24 1 1 933474 - Indisponibil
24 1 1 SA GEARCASE (401048-00) 22144 RON
25 1 1 MOUNT ASSEMBLY ( SERVICE ) (937098-49) 1229 RON
25 1 1 MOUNT ASSEMBLY (937098) 3018 RON
26 1 1 SA RETAINER (930909) 3018 RON
27 1 1 BEARING (330003-14) 3466 RON
28 1 1 SEAL SA (931067-00) 190 RON
29 1 1 SPACER (931062-00) 1117 RON
29 1 1 931062 - Indisponibil
30 1 1 O-RING (930028-00) 558 RON
31 1 1 FLANGE (931066-00) 2795 RON
32 1 1 SPACER (A3EG6) (N174055) 558 RON
32 1 1 SPACER (938331-00) 558 RON
33 1 1 BEARING BALL cod vechi: 330003-36 BEARING 6000 T1XDDW (577745-00) 3018 RON
33 1 1 330003-36 - Indisponibil
34 1 1 SLEEVE (938332-00) 558 RON
35 1 1 SA SIDE HANDLE (933499) 3018 RON
36 1 2 SCREW SELF DRIVE (931072) 781 RON
37 1 1 FAN BAFFLE (402808-00) 105 RON
38 1 1 SA BRUSHBOX (949405-03) 11519 RON
39 1 2 SPRING (402816-00) 558 RON
40 1 1 FIELD CASE ( YELLOW ) (402810-13) 7940 RON
40 1 1 478890-00 - Indisponibil
40 1 1 SA FIELDCASE LONG STACK DEWALT (576184-02) 10512 RON
41 1 1 SA HANDLE DW882 (MOULD) (N073028) 5031 RON
41 1 1 SA HANDLE YELLOW (401057-14) 5031 RON
41 1 1 SA HANDLE AND COVER (SERVICE) (N097875) 5591 RON
42 1 2 COVER BRUSH (933364-02) 893 RON
43 1 4 SHOCK ABSORBER (930934-00) 558 RON
44 1 1 "PROTECTOR CORD 11 6""" (947964-01) 190 RON
44 1 1 CORD PROTECTOR (947964-02) 1452 RON
45 1 4 SCREW (931297-00) 893 RON
46 1 4 SCREW (931469-02) 558 RON
47 1 2 SCREW (930284-01) 558 RON
48 1 1 CORD CLAMP (931477-00) 781 RON
49 1 1 SA LAG WRENCH (938733) 2347 RON
50 1 1 OUTER FLANGE (967913-00) 14315 RON
52 1 1 934653 - Indisponibil
53 1 1 930245 - Indisponibil
54 1 1 SWITCH (1P SCREW TYPE) W/LOCK (930244) Indisponibil Indisponibil
54 1 1 NUT (930244-00) 558 RON
800 1 1 GREASE MOLYCOTE G68 100 GRAM TUBE (808386-00) 46863 RON
800 1 1 GREASE 100 GM TUBE (575762-02) 5031 RON
800 1 1 GREASE (286436-00) 70239 RON
