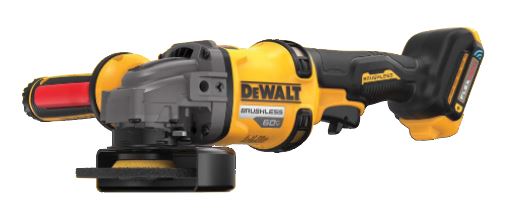

POLIZOR UNGHIULAR DEWALT DCG418SHDX2 Type 1
[DCG418SHDX2 Type 1]
POLIZOR UNGHIULAR DEWALT DCG418SHDX2 Type 1
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR DEWALT DCG418SHDX2 Type 1
Click pentru a mari
POLIZOR UNGHIULAR DEWALT DCG418SHDX2 Type 1
Click pentru a mari

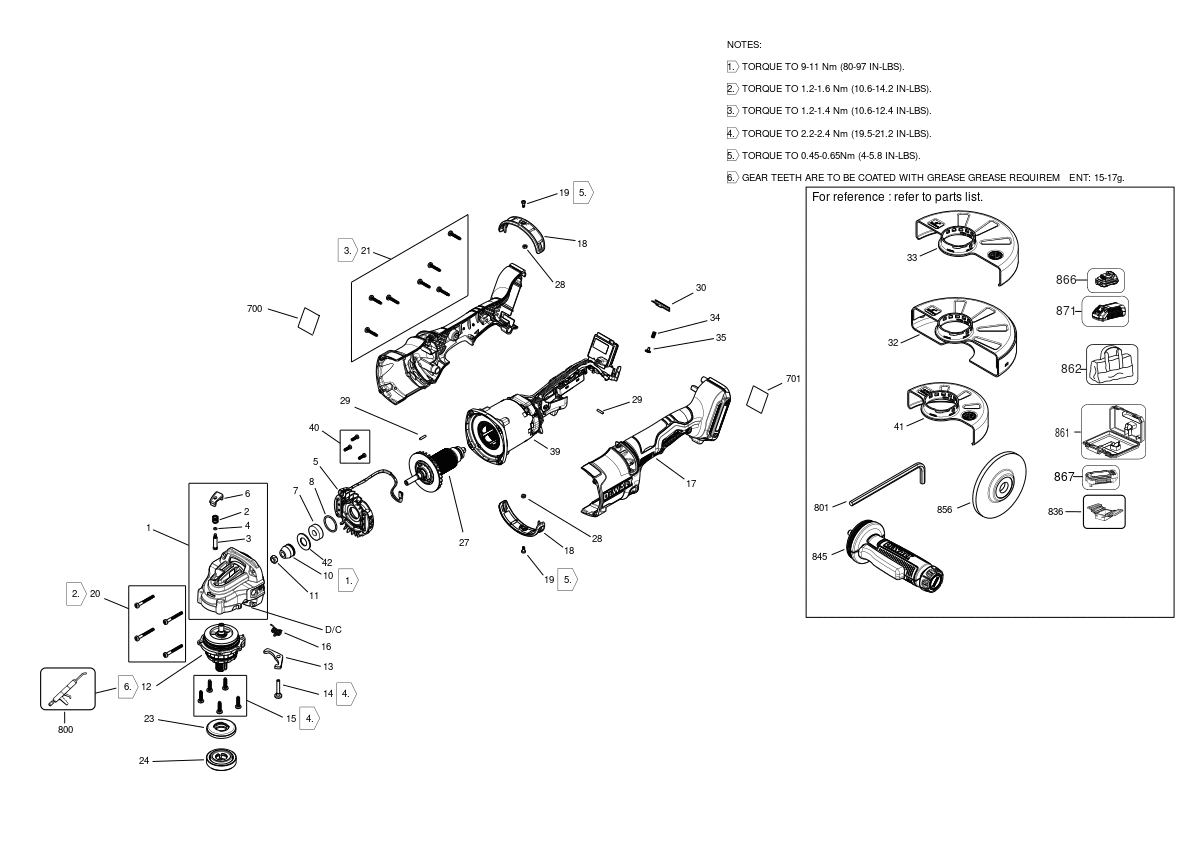

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 GEARCASE SA (NA533117) 20216 RON
2 1 1 THOR SPINDLE LOCK SPRING (N263579) 588 RON
3 1 1 LOCK PIN (N481683) 944 RON
4 1 1 THOR SPINDLE LOCK O-RING (N263699) 588 RON
5 1 1 SWITCH SA (NA533122) 15469 RON
6 1 1 SPINDLE LOCK BUTTON (N278899) 588 RON
7 1 1 BEARING (N175104) 1788 RON
8 1 1 O RING (N119639) 558 RON
10 1 1 PINION (N461411) 3268 RON
11 1 1 NUT M7 (N372039) 588 RON
12 1 1 GEARCASE COVER SA (N508009) 20216 RON
13 1 1 LEVER (N637725) 1772 RON
14 1 1 SCREW SHOULDER M4 (N297219) 588 RON
15 1 5 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
16 1 1 SPRING (N465886) 588 RON
17 1 1 HOUSING SA (NA074009) 9012 RON
18 1 2 VENT (N436965) 2182 RON
19 1 2 SCREW (N575500) 588 RON
20 1 4 SCREW (N412210) 588 RON
21 1 7 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
23 1 1 INNER FLANGE (391969-00) 1788 RON
24 1 1 OUTER FLANGE (N484250) 741 RON
27 1 1 ARMATURE SA (NA533140) 25728 RON
28 1 2 NUT (330015-00) 588 RON
29 1 2 ROLL PIN 2.5 X 10.9 (N071836) 558 RON
30 1 1 STRIKE PLATE (N467560) 588 RON
32 1 1 GUARD (N311439) 13697 RON
33 1 1 GUARD-HP THOR 5" TYPE 27 EU GUARD (NA327263) 4827 RON
34 1 1 TERMINAL BLOCK SPRING (N461735) 588 RON
35 1 1 SPRING GUIDE (N091479) 558 RON
39 1 1 MOTOR SWITCH SA (NA702755) 176482 RON
40 1 3 SCREW (330045-01) 558 RON
42 1 1 WASHER (NA066293) 588 RON
700 1 1 RATING LABEL (NA354241) 588 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
801 1 1 HEX KEY 6 MM (N107295) 781 RON
836 1 1 SERVICE TOOL (5140229-19) 36994 RON
845 1 1 SIDE HANDLE (NA688521) 21676 RON
861 1 1 KITBOX DWST1-17807 (N279261) 30769 RON
866 1 2 XR FLEXVOLT 9.0Ah Battery (N491552) 176482 RON
871 1 1 CHARGER QW (N473860) 73079 RON
