Top » Piese de schimb » PIESE DEWALT » DCG418N Type 2

POLIZOR UNGHIULAR DEWALT DCG418N Type 2
[DCG418N Type 2]
POLIZOR UNGHIULAR DEWALT DCG418N Type 2
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR DEWALT DCG418N Type 2
Click pentru a mari
POLIZOR UNGHIULAR DEWALT DCG418N Type 2
Click pentru a mari

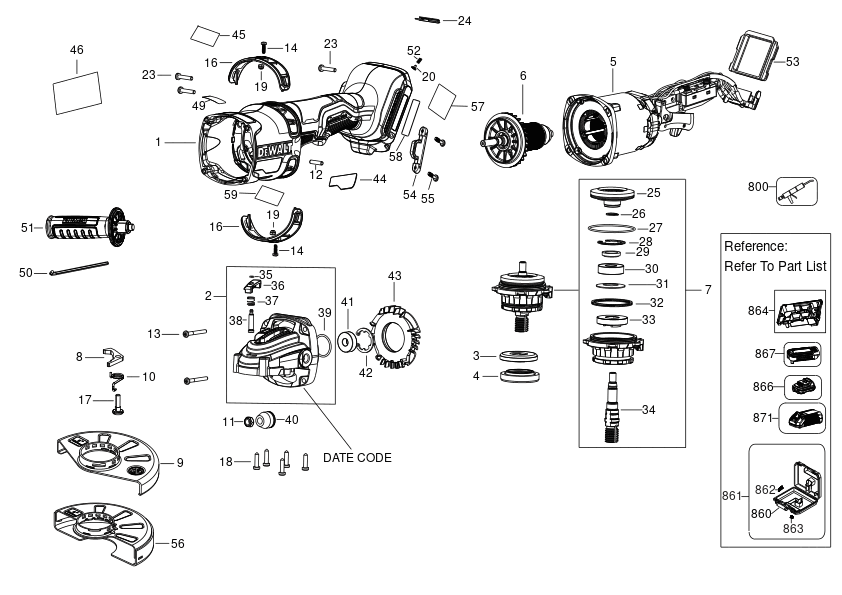

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL SET (N921148) 11337 RON
2 1 1 GEARCASE SA (N508013) 11337 RON
3 1 1 INNER FLANGE (391969-00) 1788 RON
4 1 1 OUTER FLANGE (N484250) 741 RON
5 1 1 MOTOR & SWITCH SA (N825069) 104961 RON
6 1 1 ARMATURE (N825073) 28836 RON
6 1 1 NB219057 - Indisponibil
7 1 1 GEARCASE COVER SA (N508009) 20216 RON
8 1 1 LEVER (N637725) 1772 RON
9 1 1 GUARD-HP THOR 5" TYPE 27 EU GUARD (NA327263) 4827 RON
10 1 1 SPRING (N465886) 588 RON
11 1 1 NUT M7 (N372039) 588 RON
12 1 1 ROLL PIN 2.5 X 10.9 (N071836) 558 RON
13 1 4 SCREW (N412210) 588 RON
14 1 1 SCREW (N575500) 588 RON
16 1 2 VENT (N436965) 2182 RON
17 1 1 SCREW SHOULDER M4 (N297219) 588 RON
18 1 5 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
19 1 2 NUT (330015-00) 588 RON
20 1 1 MOUNT TERM BLOCK SPRING (MOULD) (N122099) 558 RON
23 1 7 SCREW (90611830) 588 RON
24 1 1 STRIKE PLATE (N467560) 588 RON
25 1 1 Gear (N449470) 16689 RON
26 1 1 RETAINING RING (444793-00) 558 RON
27 1 1 O RING 1.5X40 (N307625) 588 RON
28 1 1 RETAINER RING (N481950) 588 RON
29 1 1 SPACER (N390307) 1318 RON
30 1 1 Bearing Ball CWMFG (605040-24) 190 RON
31 1 1 WASHER SPRING (N390308) 82 RON
32 1 1 WASHER SPRING (N542715) 82 RON
33 1 1 WASHER (N448927) 2182 RON
34 1 1 SPINDLE (N449565) 4355 RON
35 1 1 THOR SPINDLE LOCK O-RING (N263699) 588 RON
36 1 1 SPINDLE LOCK BUTTON (N278899) 588 RON
37 1 1 THOR SPINDLE LOCK SPRING (N263579) 588 RON
38 1 1 LOCK PIN (N481683) 944 RON
39 1 1 O RING (N119639) 558 RON
40 1 1 PINION (N461411) 3268 RON
41 1 1 BEARING (N175104) 1788 RON
42 1 1 RET RING w FINGERS (N453031) 588 RON
43 1 1 DEFLECTOR (N401958) 668 RON
44 1 1 LABEL (N870782) 588 RON
45 1 1 LABEL (N456232) 588 RON
46 1 1 RATING LABEL (NA268676) 588 RON
49 1 1 LABEL (N456231) 588 RON
50 1 1 HEX KEY 6 MM (N107295) 781 RON
51 1 1 SIDE HANDLE (N382311) 6688 RON
52 1 1 TERMINAL BLOCK SPRING (N461735) 588 RON
53 1 1 POTTING BOX, AK61 (N532926) 668 RON
54 1 1 BLANK COVER AUDIT CHIP (N787996) 588 RON
55 1 2 SCREW (N831593) 588 RON
56 1 1 GUARD (N311439) 13697 RON
57 1 1 LABEL (NA291083) 588 RON
58 1 1 LABEL (N862626) 588 RON
59 1 1 N862624 - Indisponibil
59 1 1 LABEL (NA751664) 588 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
