POLIZOR UNGHIULAR DEWALT DCG409VSNT Type 1
[DCG409VSNT Type 1]
POLIZOR UNGHIULAR DEWALT DCG409VSNT Type 1
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR DEWALT DCG409VSNT Type 1
Click pentru a mari
POLIZOR UNGHIULAR DEWALT DCG409VSNT Type 1
Click pentru a mari
POLIZOR UNGHIULAR DEWALT DCG409VSNT Type 1
Click pentru a mari
POLIZOR UNGHIULAR DEWALT DCG409VSNT Type 1
Click pentru a mari

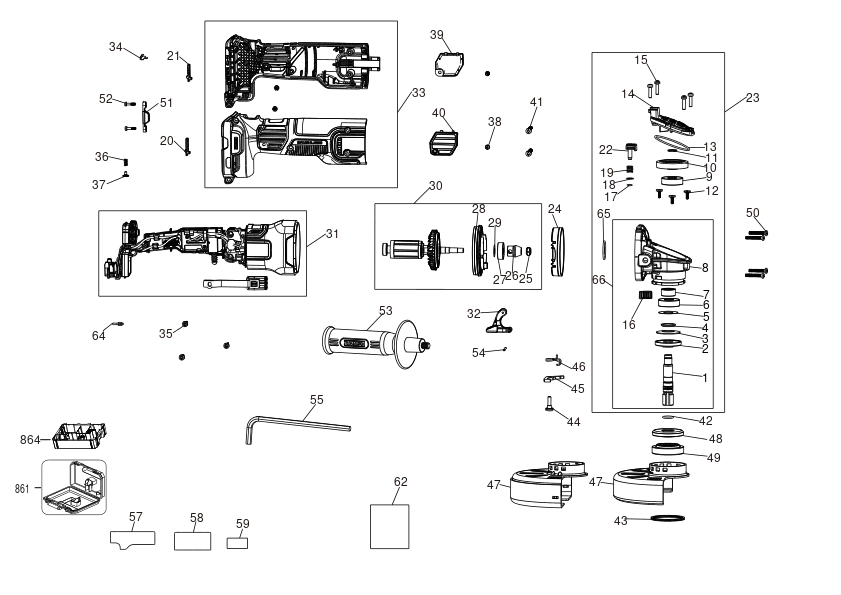

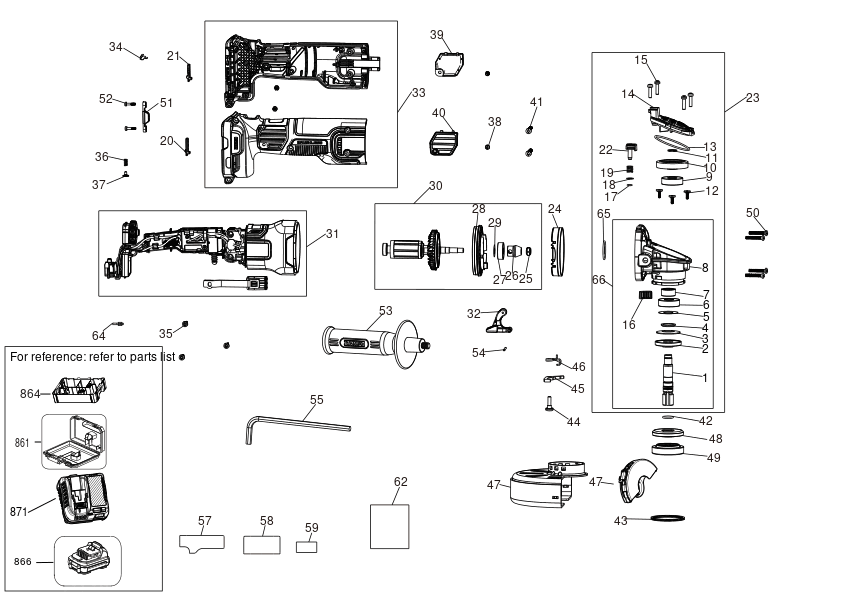

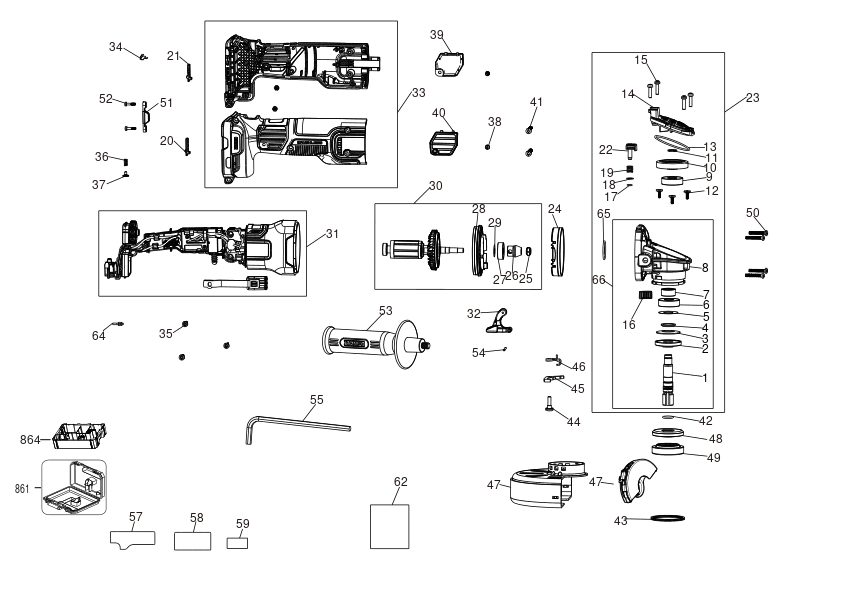

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SPINDLE (N487315) 4355 RON
2 1 1 WASHER (N487316) 1933 RON
3 1 1 WASHER SPRING (N451305) 588 RON
4 1 1 SPACER (N474213) 1630 RON
5 1 1 Slinger (638229-00) 558 RON
6 1 1 BEARING (N150961) 190 RON
7 1 1 SLEEVE (N095815) 781 RON
8 1 1 GEARCASE (NA098576) 12361 RON
9 1 1 BEARING (N150961) 190 RON
10 1 1 GEAR (N153126) 3466 RON
11 1 1 RETAINING RING (444793-00) 558 RON
12 1 3 SCREW (N118088) 558 RON
13 1 1 O RING (N094024) 558 RON
14 1 1 GEARCASE COVER (N851776) 114 RON
15 1 4 SCREW (N122904) 558 RON
16 1 1 PLUG (N489769) 588 RON
17 1 1 O RING (N094012) 558 RON
18 1 1 WASHER BEARING BLOCK (N447838) 588 RON
19 1 1 SPRING (N092954) 558 RON
20 1 1 INSERT (N728012) 588 RON
21 1 1 INSERT (N728013) 588 RON
22 1 1 SPINDLE LOCK (N181767) 781 RON
22 1 1 N123911 - Indisponibil
23 1 1 GEARCASE SA (NA202209) 38463 RON
24 1 1 BAFFLE ARES (N478435) 668 RON
25 1 1 NUT (604484-00) 558 RON
26 1 1 PINION (N153125) 2347 RON
27 1 1 BEARING (N214432) 105 RON
28 1 1 Fan, rotor (N478436) 944 RON
29 1 1 WASHER (N213812) 558 RON
30 1 1 ROTOR SA (N769802) 42426 RON
30 1 1 NB218875 - Indisponibil
31 1 1 MOTOR SWITCH SA (NA202953) 176482 RON
32 1 1 SA SLIDER LEVER (N497112) 1772 RON
33 1 1 HANDLE SA (NA045312) 741 RON
34 1 1 STRIKE PLATE (N467560) 588 RON
35 1 3 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
36 1 1 TERMINAL BLOCK SPRING (N461735) 588 RON
37 1 1 SPRING GUIDE (N091479) 558 RON
38 1 2 Screw Taptite (330045-43) 558 RON
39 1 1 VENT (NA026865) 1772 RON
40 1 1 VENT (NA026864) 1772 RON
41 1 2 SCREW M4X34 T15 (330065-33) 588 RON
42 1 1 O RING (N420261) 588 RON
43 1 1 WASHER SPRING (N135116) 893 RON
44 1 1 SCREW (N137733) 558 RON
45 1 1 LEVER (N136731) 105 RON
46 1 1 SPRING (N105579) 558 RON
47 1 1 GUARD (N311439) 13697 RON
47 1 1 GUARD (NA161663) 4827 RON
47 1 1 GUARD (NB094680) 11337 RON
48 1 1 INNER FLANGE (391969-00) 1788 RON
49 1 1 N457994 - Indisponibil
49 1 1 OUTER FLANGE (N484250) 741 RON
50 1 4 SCREW (330065-31) 558 RON
51 1 1 BLANK COVER AUDIT CHIP (N787996) 588 RON
52 1 2 SCREW (N831593) 588 RON
53 1 1 SIDE HANDLE (N421925) 5370 RON
54 1 1 ARES SLIDER LEVER PIN (N489903) 588 RON
55 1 1 HEX KEY 6 MM (N107295) 781 RON
57 1 1 RATING LABEL (NA081251) 588 RON
58 1 1 WARNING LABEL (NA185519) 588 RON
58 1 1 NB482136 - Indisponibil
59 1 1 LABEL (NA081228) 588 RON
62 1 1 LABEL (NA081563) 588 RON
64 1 1 TIE (071025-04) 588 RON
65 1 1 O RING (N119639) 558 RON
66 1 1 GEARCASE SA (NA202165) 30769 RON
861 1 1 KITBOX DWST1-17807 (N279261) 30769 RON
864 1 1 TRAY (NA109241) 15469 RON
