Top » Piese de schimb » PIESE DEWALT » DCG404S2T Type 1

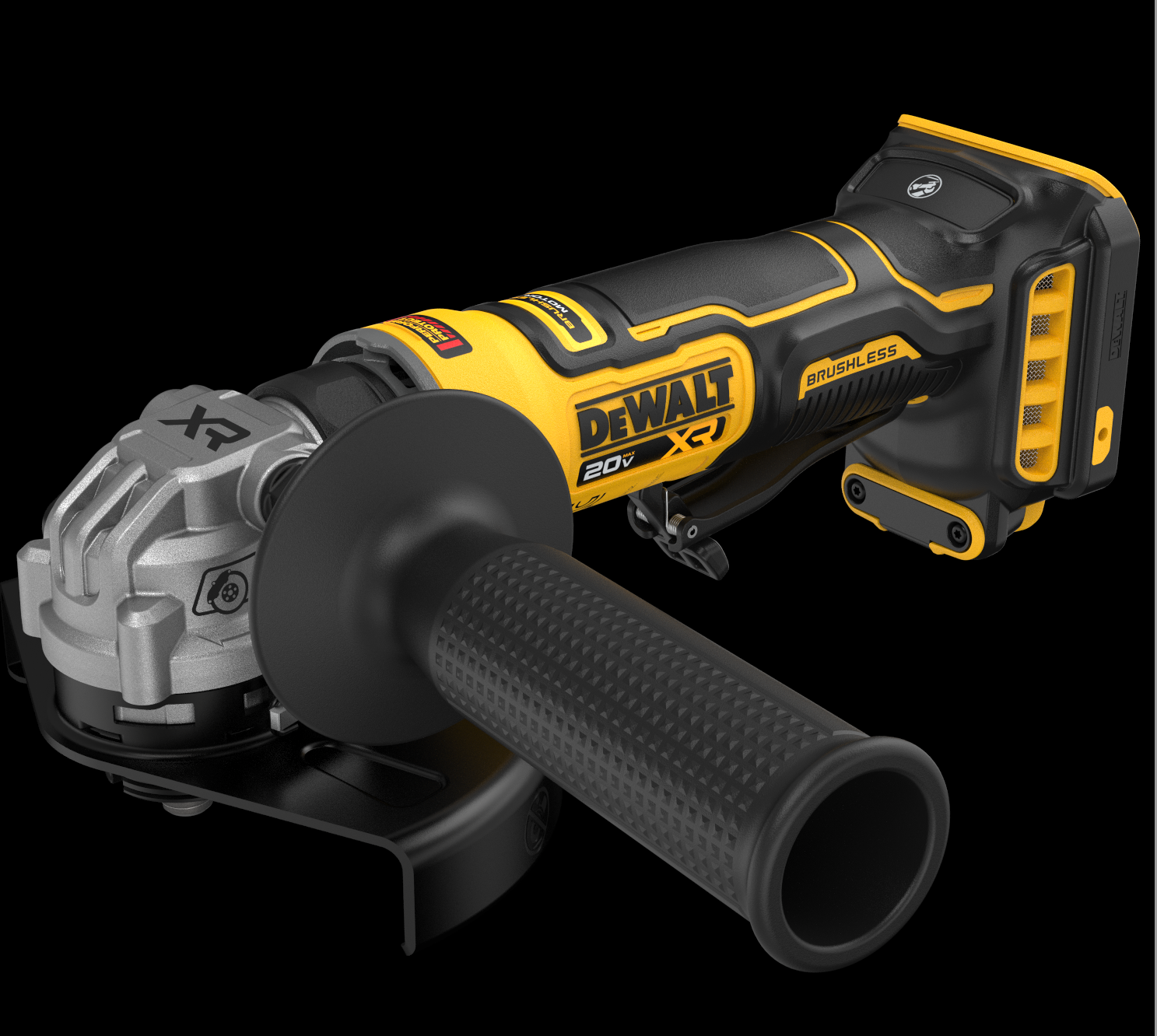

POLIZOR UNGHIULAR DEWALT DCG404S2T Type 1
[DCG404S2T Type 1]
POLIZOR UNGHIULAR DEWALT DCG404S2T Type 1
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR DEWALT DCG404S2T Type 1
Click pentru a mari
POLIZOR UNGHIULAR DEWALT DCG404S2T Type 1
Click pentru a mari
POLIZOR UNGHIULAR DEWALT DCG404S2T Type 1
Click pentru a mari

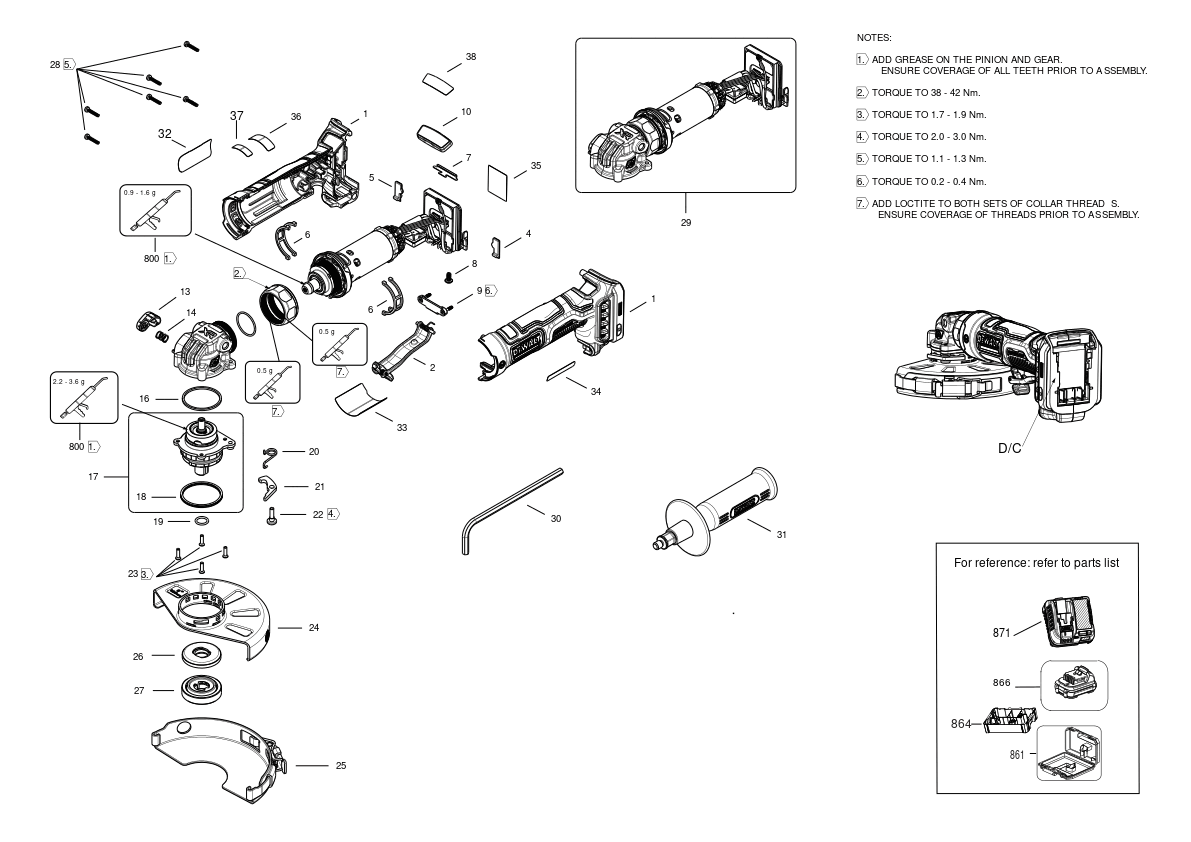

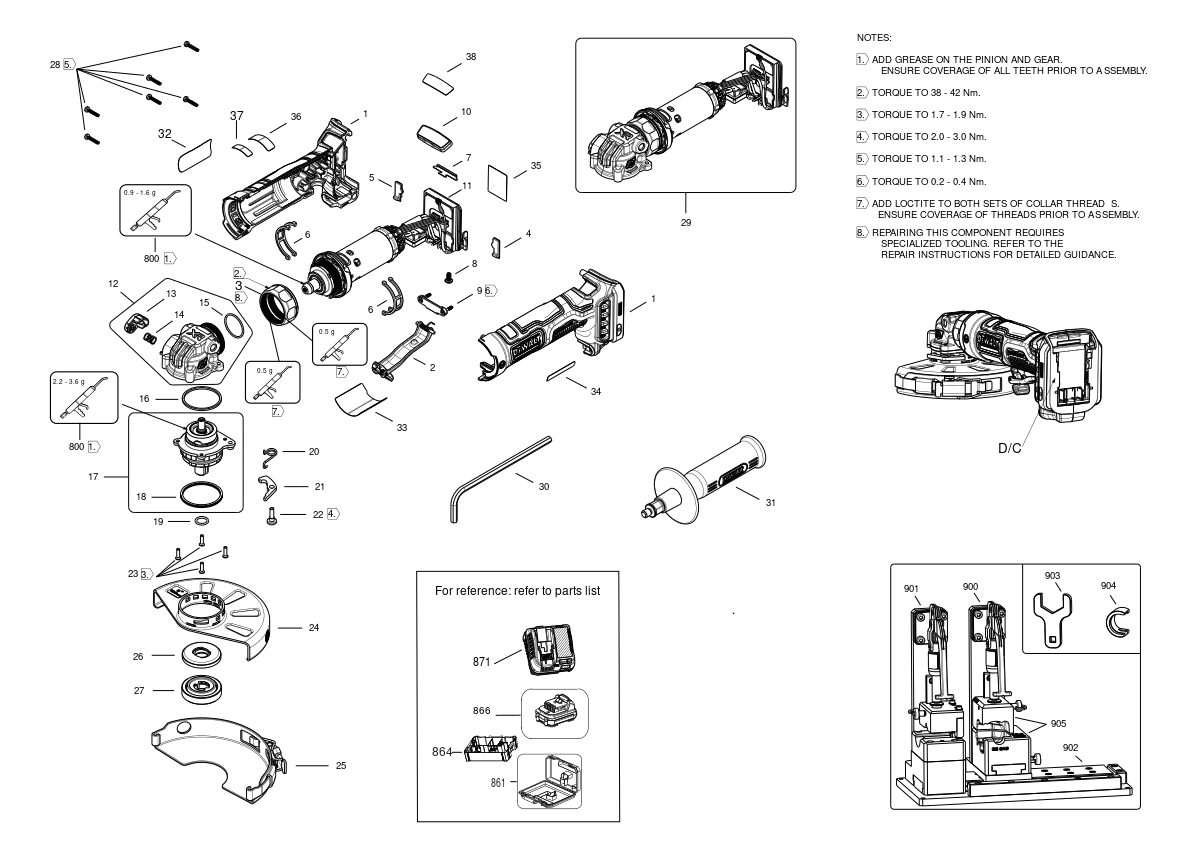

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HANDLE SA (NA602585) 5370 RON
2 1 1 PADDLE (NB145290) 6688 RON
3 1 1 CLAMP NUT (NA407522) 3268 RON
4 1 1 INSERT (N728013) 588 RON
5 1 1 INSERT (N728012) 588 RON
6 1 2 SEAL-SEAL MOTOR CAN (NA590653) 588 RON
7 1 1 STRIKE PLATE (N467560) 588 RON
8 1 1 TERMINAL BLOCK (NA105798) 1933 RON
9 1 1 COVER (N791558) 588 RON
10 1 1 INSERT-INSERT AUX LABEL (NA505446) 588 RON
11 1 1 NB428801 - Indisponibil
12 1 1 NB445935 - Indisponibil
13 1 1 BUTTON (NA427629) 588 RON
14 1 1 SPRING (NB054708) 588 RON
15 1 1 O RING (NA497886) 588 RON
16 1 1 O RING (NA427574) 588 RON
17 1 1 GEARCASE SA (NB145545) 20216 RON
18 1 1 WASHER SPRING (N135116) 893 RON
18 1 1 WASHER SPRING (N542715) 82 RON
19 1 1 O RING (N420261) 588 RON
20 1 1 SPRING (N105579) 558 RON
21 1 1 LEVER (NA540830) 1772 RON
22 1 1 SCREW (N137733) 558 RON
23 1 4 SCREW-SCREW M3 X 12 FLAT HEAD T10 (NA276489) 588 RON
24 1 1 GUARD (NA680155) 3954 RON
25 1 1 GUARD (NA267971) 10241 RON
26 1 1 INNER FLANGE (391969-00) 1788 RON
27 1 1 OUTER FLANGE (N484250) 741 RON
28 1 6 SCREW PLASTIC THD FORM (330019-00) 558 RON
29 1 1 MOTOR SWITCH SA (NB148541) 161583 RON
30 1 1 HEX KEY 6 MM (N107295) 781 RON
31 1 1 HANDLE SIDE SA (NB219177) 9012 RON
32 1 1 RATING LABEL (NA619319) 588 RON
33 1 1 WARNING LABEL (NA619320) 588 RON
34 1 1 LABEL (NA669213) 588 RON
35 1 1 LABEL-FOOT LABEL (NA694742) 588 RON
36 1 1 LABEL-LABEL BRUSHLESS (NA678173) 588 RON
37 1 1 LABEL (NA678176) 588 RON
38 1 1 LABEL-LABEL TWO HANDS AUX BLANK (NA678178) 588 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
861 1 1 KITBOX DWST1-17807 (N279261) 30769 RON
864 1 1 TRAY (NA655997) 11337 RON
866 1 2 BATTERY (NA662281) 161583 RON
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
900 1 1 CLAMP SA-TOOLING (NB186333) 65612 RON
901 1 1 MOUNT SA-TOOLING (NB186345) 953727 RON
902 1 1 BASE SA-TOOLING (NB186339) 716010 RON
903 1 1 WRENCH-TOOLING (NA382867) 425786 RON
904 1 1 COLLAR-TOOLING (NA917348) 425786 RON
905 1 1 S.T.INSERTION TOOL (NB414850) 402943 RON
