Top » Piese de schimb » PIESE DEWALT » DCG200T2 Type 2

POLIZOR UNGHIULAR DEWALT DCG200T2 Type 2
[DCG200T2 Type 2]
POLIZOR UNGHIULAR DEWALT DCG200T2 Type 2
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR DEWALT DCG200T2 Type 2
Click pentru a mari
POLIZOR UNGHIULAR DEWALT DCG200T2 Type 2
Click pentru a mari
POLIZOR UNGHIULAR DEWALT DCG200T2 Type 2
Click pentru a mari

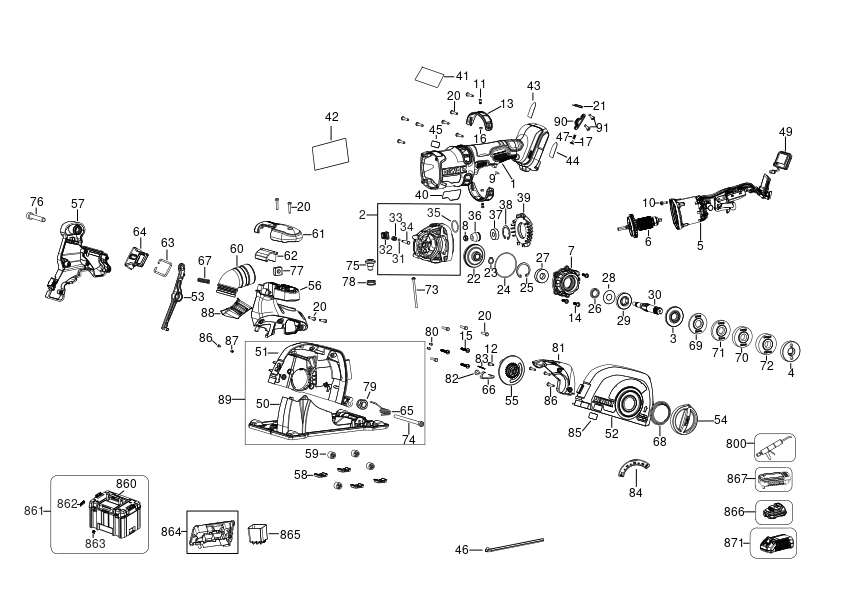

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 N645520 - Indisponibil
1 1 1 CLAMSHELL SET (N921148) 11337 RON
2 1 1 GEARCASE SA (N508013) 11337 RON
3 1 1 INNER FLANGE (391969-00) 1788 RON
4 1 1 OUTER FLANGE (N484250) 741 RON
5 1 1 MOTOR & SWITCH SA (N661081) 139195 RON
6 1 1 ARMATURE (N455880) 28836 RON
6 1 1 NB219059 - Indisponibil
7 1 1 GEARCASE COVER SA (N503373) 4355 RON
8 1 1 NUT M7 (N372039) 588 RON
9 1 1 ROLL PIN 2.5 X 10.9 (N071836) 558 RON
10 1 4 SCREW (N412210) 588 RON
11 1 2 SCREW (N575500) 588 RON
13 1 2 VENT (N436965) 2182 RON
14 1 3 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
15 1 3 SCREW METAL THD FRM M4X25 T20 (330045-08) 558 RON
16 1 2 NUT (330015-00) 588 RON
17 1 1 MOUNT TERM BLOCK SPRING (MOULD) (N122099) 558 RON
20 1 16 SCREW (90611830) 588 RON
21 1 1 STRIKE PLATE (N467560) 588 RON
22 1 1 Gear (N449470) 16689 RON
23 1 1 RETAINING RING (444793-00) 558 RON
24 1 1 O RING 1.5X40 (N307625) 588 RON
25 1 1 RETAINER RING (N481950) 588 RON
26 1 1 N662667 - Indisponibil
26 1 1 SPACER (N390307) 1318 RON
27 1 1 Bearing Ball CWMFG (605040-24) 190 RON
28 1 1 WASHER SPRING (N390308) 82 RON
29 1 1 WASHER (N448927) 2182 RON
30 1 1 SPINDLE (N566404) 6688 RON
31 1 1 THOR SPINDLE LOCK O-RING (N263699) 588 RON
32 1 1 SPINDLE LOCK BUTTON (N278899) 588 RON
33 1 1 THOR SPINDLE LOCK SPRING (N263579) 588 RON
34 1 1 LOCK PIN (N481683) 944 RON
35 1 1 O RING (N119639) 558 RON
36 1 1 PINION (N461411) 3268 RON
37 1 1 BEARING (N175104) 1788 RON
38 1 1 RET RING w FINGERS (N453031) 588 RON
39 1 1 DEFLECTOR (N401958) 668 RON
40 1 1 BRAND LABEL (N456830) 588 RON
41 1 1 LABEL (N456232) 588 RON
42 1 1 NA074184 - Indisponibil
42 1 1 RATING LABEL (NA292319) 588 RON
43 1 1 BRAND LABEL (N456831) 588 RON
44 1 1 BRAND LABEL (N456832) 588 RON
45 1 1 LABEL (N456231) 588 RON
46 1 1 HEX KEY 6 MM (N107295) 781 RON
47 1 1 TERMINAL BLOCK SPRING (N461735) 588 RON
49 1 1 MODULE (N655436) 15469 RON
50 1 1 BASE PLATE (N594092) 18568 RON
51 1 1 HOUSING (N594068) 13697 RON
52 1 1 COVER HOUSING (N594075) 12361 RON
53 1 1 LEVER RELEASE (N704921) 4355 RON
54 1 1 KNOB (N567567) 1318 RON
55 1 1 ADJUSTER DEPTH (N567569) 114 RON
56 1 1 HOUSING HANDLE (N568321) 3268 RON
57 1 1 HOUSING HANDLE (N568427) 3954 RON
58 1 4 CLIP (N626842) 588 RON
59 1 4 WHEEL (N579929) 588 RON
60 1 1 DUST PORT (N714394) 2182 RON
60 1 1 N612334 - Indisponibil
61 1 1 HANDLE COVER (N573502) 3268 RON
62 1 1 BUTTON RELEASE (N645872) 82 RON
63 1 1 LATCH (N652848) 588 RON
64 1 1 LATCH (N625384) 2796 RON
65 1 1 SPRING (N566405) 82 RON
66 1 1 SPRING (N571261) 588 RON
67 1 1 SPRING (N612591) 588 RON
68 1 1 SPRING (N589180) 588 RON
69 1 1 3MM SPACER (N566406) 3954 RON
70 1 1 6MM SPACER (N566636) 4827 RON
71 1 1 9MM SPACER (N566637) 4355 RON
72 1 1 12 mm SPACER (N570527) 741 RON
73 1 1 SCREW (N593727) 588 RON
74 1 1 SCREW (N596355) 944 RON
75 1 1 SCREW (N606388) 944 RON
76 1 1 SCREW (607395-00) 781 RON
77 1 1 NUT (N620974) 944 RON
78 1 2 O RING (N629987) 588 RON
79 1 1 NUT HEX M6 LH (N467767) 588 RON
80 1 2 RUBBER (N687277) 588 RON
81 1 1 COVER (N697836) 1772 RON
82 1 1 SCREW (N684843) 588 RON
83 1 1 BAR (N570093) 9012 RON
84 1 1 LABEL (N644184) 668 RON
85 1 1 LABEL (N644187) 588 RON
86 1 4 SCREW (330045-69) 781 RON
87 1 1 INSERT (N641115) 1630 RON
88 1 1 INSERT (N696816) 114 RON
89 1 1 SHOE SA (N772393) 48037 RON
90 1 1 BLANK COVER AUDIT CHIP (N787996) 588 RON
91 1 2 SCREW (N831593) 588 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
860 1 1 HANDLE (H1400198008) 2347 RON
860 1 1 H1400196008 - Indisponibil
861 1 1 KITBOX (N445186) 39318 RON
862 1 1 LATCH (N409477) 114 RON
863 1 2 LATCH (P910190) 3466 RON
864 1 1 INSERT (N644738) 741 RON
865 1 1 INSERT (N666467) 1933 RON
866 1 1 BATTERY 3 X18V-6.0AH-108WH (N473851) 148269 RON
867 1 1 SAFETY CAP (N462141) 5370 RON
871 1 1 CHARGER QW (N473860) 73079 RON
