Top » Piese de schimb » PIESE DEWALT » DCG420N Type 1

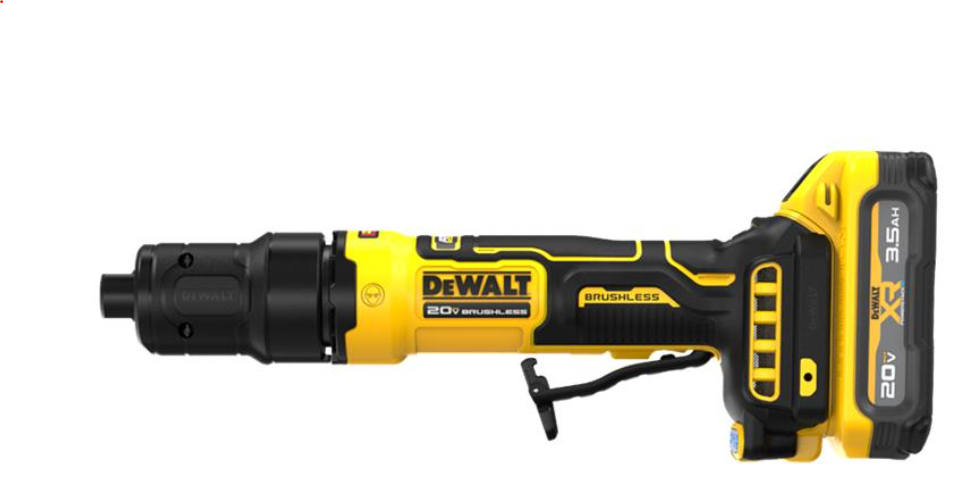

POLIZOR DREPT DEWALT DCG420N Type 1
[DCG420N Type 1]
POLIZOR DREPT DEWALT DCG420N Type 1
Click pentru a mari
Imagini suplimentare
POLIZOR DREPT DEWALT DCG420N Type 1
Click pentru a mari
POLIZOR DREPT DEWALT DCG420N Type 1
Click pentru a mari
POLIZOR DREPT DEWALT DCG420N Type 1
Click pentru a mari

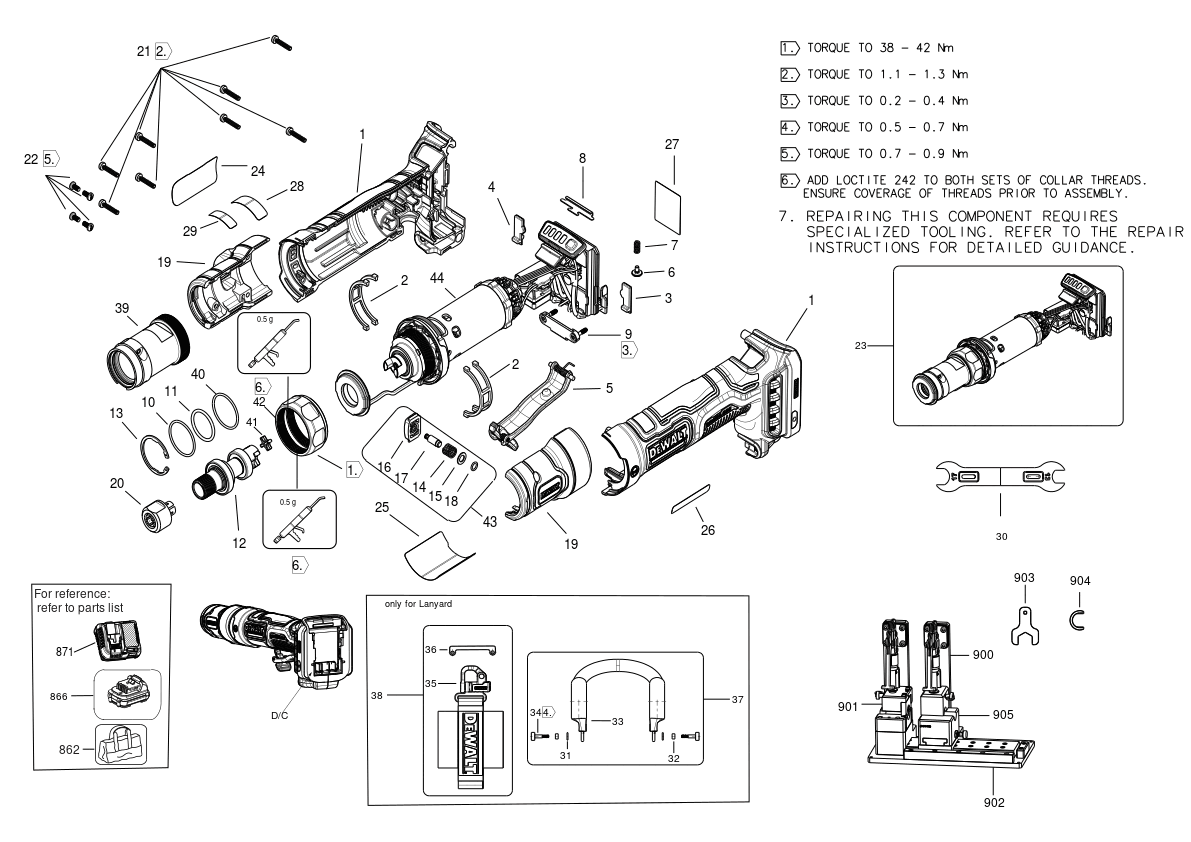

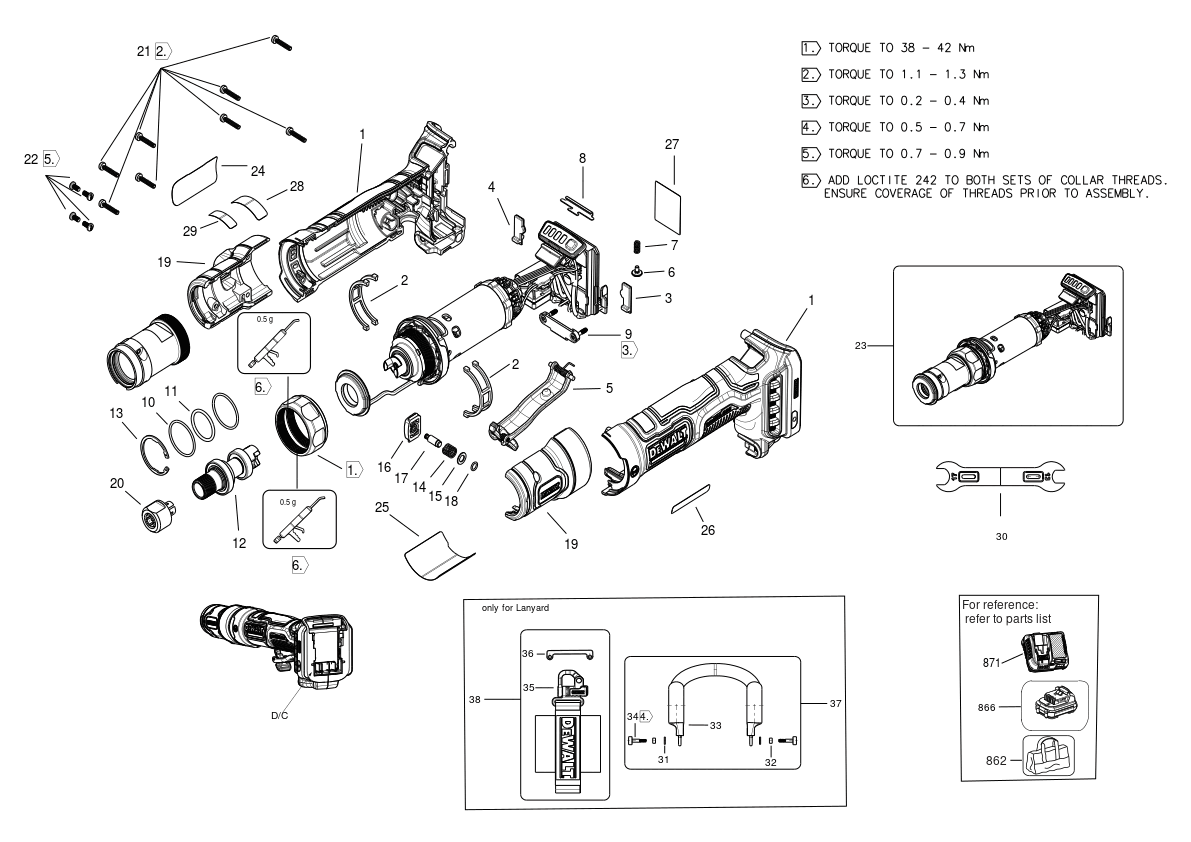

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HANDLE SA (NA602585) 5370 RON
2 1 2 SEAL-SEAL MOTOR CAN (NA590653) 588 RON
3 1 1 INSERT (N728013) 588 RON
4 1 1 INSERT (N728012) 588 RON
5 1 1 PADDLE (NB145290) 6688 RON
6 1 1 SPRING GUIDE (N091479) 558 RON
7 1 1 TERMINAL BLOCK SPRING (N461735) 588 RON
8 1 1 STRIKE PLATE (N467560) 588 RON
9 1 1 COVER (N791558) 588 RON
10 1 1 O RING (NA758252) 588 RON
11 1 1 RING-RING, RUBBER (NA643551) 588 RON
12 1 1 SPINDLE SA (NB076223) 11337 RON
13 1 1 CIRCLIP (NA606361) 588 RON
14 1 1 SPRING (N092954) 558 RON
15 1 1 WASHER (N094651) 558 RON
16 1 1 BUTTON (NA568934) 588 RON
17 1 1 LOCK PIN (NA571795) 668 RON
18 1 1 O RING (N094012) 558 RON
19 1 1 SHROUD SA (NA565045) 2182 RON
20 1 1 COLLET ASSEMBLY (N785197) 12361 RON
21 1 8 SCREW PLASTIC THD FORM (330019-00) 558 RON
22 1 4 SCREW (330045-00) 558 RON
22 1 4 Screw Taptite (330045-43) 558 RON
23 1 1 MOTOR & SWITCH SA (NB156789) 176482 RON
24 1 1 RATING LABEL (NA620628) 588 RON
25 1 1 WARNING LABEL (NB037723) 588 RON
26 1 1 LABEL (NA669213) 588 RON
27 1 1 LABEL (NA694749) 588 RON
28 1 1 LABEL-LABEL BRUSHLESS (NA678173) 588 RON
29 1 1 LABEL (NA678176) 588 RON
30 1 1 SPANNER (N332459) 2182 RON
39 1 1 NOSE SA (NA565026) 15469 RON
40 1 1 O RING (NA497886) 588 RON
41 1 1 DRIVER (NA531013) 588 RON
42 1 1 CLAMP NUT (NA407522) 3268 RON
43 1 1 SPINDLE LOCK (NB429095) 4827 RON
44 1 1 NB444456 - Indisponibil
900 1 1 CLAMP SA-TOOLING (NB186333) 65612 RON
901 1 1 MOUNT SA-TOOLING (NB186345) 953727 RON
902 1 1 BASE SA-TOOLING (NB186339) 716010 RON
903 1 1 WRENCH-TOOLING (NA382867) 425786 RON
904 1 1 COLLAR-TOOLING (NA917348) 425786 RON
905 1 1 S.T.INSERTION TOOL-TOOLING (NB414553) 554044 RON
