Top » Piese de schimb » PIESE DEWALT » DCG405FN Type 2

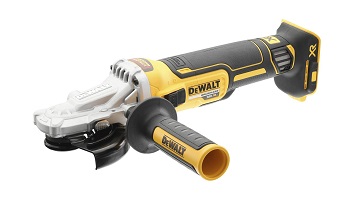

POLIZOR DEWALT DCG405FN Type 2
[DCG405FN Type 2]
POLIZOR DEWALT DCG405FN Type 2
Click pentru a mari
Imagini suplimentare
POLIZOR DEWALT DCG405FN Type 2
Click pentru a mari
POLIZOR DEWALT DCG405FN Type 2
Click pentru a mari
POLIZOR DEWALT DCG405FN Type 2
Click pentru a mari

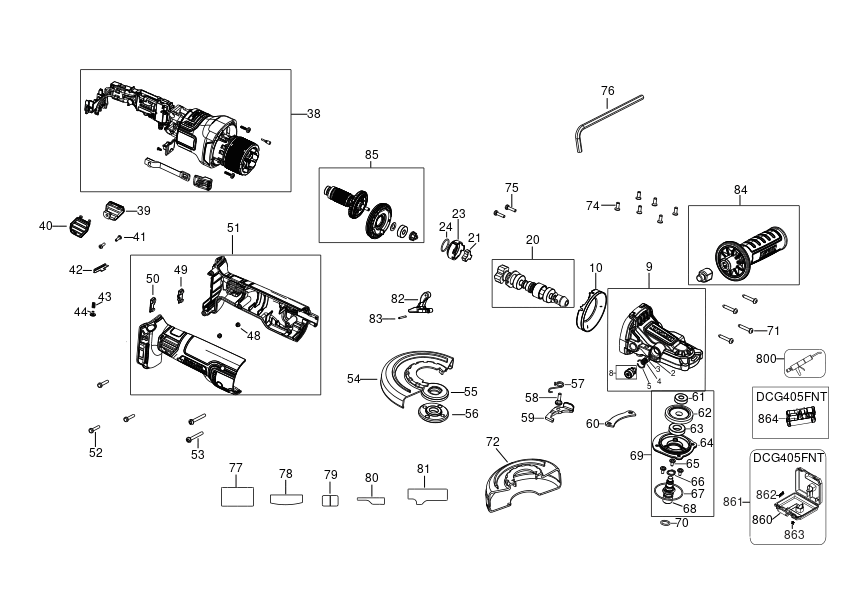

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 1 O RING (N094012) 558 RON
3 1 1 WASHER BEARING BLOCK (N447838) 588 RON
4 1 1 SPRING (N092954) 558 RON
5 1 1 CIRCLIP (N503684) 588 RON
8 1 1 SPINDLE LOCK (N497322) 588 RON
9 1 1 GEARCASE SA (N534332) 15469 RON
10 1 1 BAFFLE ARES (N478435) 668 RON
20 1 1 PINION SA (N534333) 12361 RON
21 1 1 COUPLING (N521879) 588 RON
23 1 1 BUSHING (N684358) 3268 RON
24 1 1 O RING (N119639) 558 RON
27 1 1 SPINDLE LOCK (N114592) 781 RON
38 1 1 MOTOR SWITCH SA (NA649786) 85494 RON
39 1 1 SA VENT COVER LEFT (N493573) 1772 RON
40 1 1 SA VENT COVER RIGHT (N493572) 1772 RON
41 1 2 Screw Taptite (330045-43) 558 RON
42 1 1 STRIKE PLATE (N467560) 588 RON
43 1 1 TERMINAL BLOCK SPRING (N461735) 588 RON
44 1 1 MOUNT TERM BLOCK SPRING (MOULD) (N122099) 558 RON
48 1 2 NUT STOP ELASTIC M3 X 0.5 (330021-11) 558 RON
49 1 1 INSERT (N728013) 588 RON
49 1 1 ANTIVIBE RAIL INSERT ASSEMBLY SIDE (N438439) 588 RON
50 1 1 INSERT (N728012) 588 RON
50 1 1 ANTIVIBE RAIL INSERT COVER SIDE (N438438) 588 RON
51 1 1 CLAMSHELL SET (N534719) 741 RON
52 1 3 SCREW (90611830) 588 RON
53 1 2 Screw Taptite (330045-43) 558 RON
54 1 1 GUARD (NA355694) 12361 RON
55 1 1 INNER FLANGE (391969-00) 1788 RON
56 1 1 OUTER FLANGE (N134466) 3018 RON
57 1 1 SPRING (N105579) 558 RON
58 1 1 SCREW (N137733) 558 RON
59 1 1 LEVER LOCK (N501337) 1933 RON
60 1 1 PLATE (N498478) 944 RON
61 1 1 Ball Bearing. CW DW810 (605040-03) 190 RON
62 1 1 Gear (N516681) 4355 RON
63 1 1 BEARING (605040-72) 2347 RON
64 1 1 GEARCASE COVER (N494588) 3954 RON
65 1 3 SCREW (N514767) 588 RON
65 1 3 SCREW (NA724044) 588 RON
66 1 1 RETAINING RING (444793-00) 558 RON
67 1 1 O RING 1.5X40 (N307625) 588 RON
68 1 1 SPINDLE (N517686) 3268 RON
69 1 1 GEARCASE COVER SA (N534339) 15469 RON
70 1 1 O RING (N420261) 588 RON
71 1 4 SCREW, PLSTC THD FORM, M4X22 T20 (N371839) 588 RON
72 1 1 GUARD (N524578) 20216 RON
74 1 6 SCREW (N503419) 588 RON
75 1 2 SCREW M4X34 T15 (330065-33) 588 RON
76 1 1 HEX KEY 6 MM (N107295) 781 RON
77 1 1 WARNING LABEL (NA185519) 588 RON
77 1 1 NB482136 - Indisponibil
78 1 1 LABEL (N602440) 588 RON
79 1 1 BRAND LABEL (N529192) 588 RON
80 1 1 LABEL (N499164) 588 RON
81 1 1 RATING LABEL (NA293458) 588 RON
82 1 1 SA SLIDER LEVER (N497112) 1772 RON
83 1 1 ARES SLIDER LEVER PIN (N489903) 588 RON
84 1 1 SIDE HANDLE (N534336) 9012 RON
85 1 1 ROTOR SA (N509543) 23244 RON
85 1 1 NB218903 - Indisponibil
800 1 1 GREASE TUBE (583534-00) 29862 RON
