PLUNGE BASE COMPACT ROUTE DEWALT D26203 Type 2
[D26203 Type 2]
PLUNGE BASE COMPACT ROUTE DEWALT D26203 Type 2
Click pentru a mari
Imagini suplimentare
PLUNGE BASE COMPACT ROUTE DEWALT D26203 Type 2
Click pentru a mari
PLUNGE BASE COMPACT ROUTE DEWALT D26203 Type 2
Click pentru a mari
PLUNGE BASE COMPACT ROUTE DEWALT D26203 Type 2
Click pentru a mari

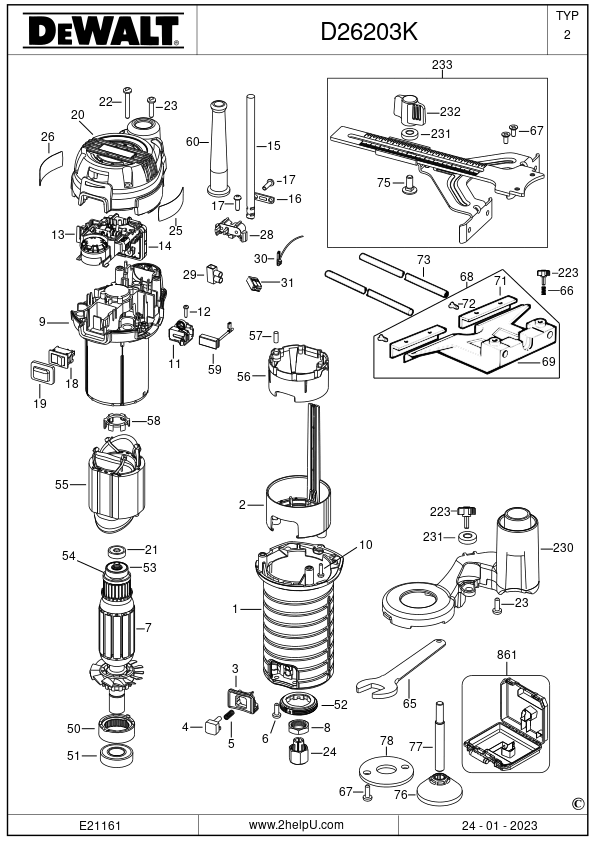

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 MOTOR HOUSING SA (A26126SV) 46863 RON
2 1 1 LED LIGHT (N074107) 1891 RON
3 1 1 INSERT (A26131) 781 RON
4 1 1 LOCK BUTTON (N038183) 781 RON
5 1 1 SPRING (A23489) 558 RON
6 1 2 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
7 1 1 ARMATURE SA (NA271484) 60451 RON
8 1 1 NUT (A25248) 190 RON
9 1 1 FIELDCASE SA (NA369225) 25728 RON
10 1 1 SCREW (330065-07) 558 RON
11 1 2 BRUSH HOLDER SA (A28458) 4137 RON
12 1 2 Screw M3.5 X9.5 (330019-01) 558 RON
13 1 1 MODULE (NA168268) 30769 RON
14 1 1 CONTROL MODULE SA (NA140781) 32327 RON
15 1 1 CORDSET (NA162335) 18568 RON
16 1 1 CLAMP CORD CORNER (329301-00) 558 RON
17 1 3 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
18 1 1 LOCK LEVER (OLD 886329) SWITCH (887453) Indisponibil Indisponibil
19 1 1 SWITCH COVER (A29360) 893 RON
20 1 1 NA234181 - Indisponibil
20 1 1 END CAP (NA387936) 21676 RON
21 1 1 MAGNET (A27330) 2347 RON
22 1 2 SCREW METAL THREAD FORM M4 * 30 T20 (330045-09) 558 RON
23 1 3 SCREW (330065-08) 558 RON
24 1 1 Collet & Nut SA (326286-00) 15993 RON
24 1 1 COLLET ASSEMBLY (N693118) 21676 RON
25 1 1 RATING PLATE (NA168660) 1630 RON
26 1 1 WARNING LABEL (NA131132) 668 RON
28 1 1 MOUNT (A28476) 781 RON
29 1 1 TERMINAL BLOCK (398100-00) 893 RON
30 1 1 LEAD SA (NA149636) 1933 RON
31 1 1 CONNECTOR (N590957) 1318 RON
50 1 1 INSERT (A26125) 1117 RON
51 1 1 BEARING (A27537) 2347 RON
52 1 1 NUT LH (A25250) 893 RON
53 1 1 BEARING BALL (330003-60) 190 RON
54 1 1 INSULATOR (A25585) 781 RON
55 1 1 FIELD 230V (N278879) 28296 RON
56 1 1 BAFFLE (A23504) 190 RON
57 1 2 SMALL RUBBER (949638-02) 558 RON
58 1 1 WASHER (A27937) 558 RON
59 1 2 BRUSH (A28459) 3466 RON
60 1 1 CORD PROTECTOR (N918736) 668 RON
65 1 1 WRENCH SPECIAL (A27895) 2795 RON
66 1 5 SPRING (609118-00) 558 RON
67 1 2 SCREW 4 * 10 (945121-00) 558 RON
68 1 1 GUIDE DW615 (948651-00) 25164 RON
69 1 1 GUIDE DW615 (948651-00) 25164 RON
71 1 2 STOP GUIDE CHEER (249090-00) 1452 RON
72 1 4 SCREW M4X8 UNI8113 (860205-04) 558 RON
72 1 4 NA618000 - Indisponibil
73 1 2 GUIDE (868080-00) 190 RON
75 1 1 SCREW (931405-00) 558 RON
76 1 1 CONE (A27315) 781 RON
77 1 1 PIN (A27316) 190 RON
78 1 1 BUSHING GUIDE 17X (249014-01) 5031 RON
104 1 1 PIN (A24452) 781 RON
105 1 1 ADJUSTER (A24764) 2347 RON
106 1 1 SCREW (330022-18) 668 RON
107 1 1 PAD (A24767) 1229 RON
108 1 1 CLAMPING BAR (A24771) 2347 RON
109 1 1 PIN (A24770) 781 RON
110 1 1 SPRING (A27362) 190 RON
112 1 4 SCREW (N029178) 558 RON
113 1 1 RETAINER (N028373) 558 RON
200 1 1 BASE SA (N095607) 14315 RON
202 1 1 CARRIER SA (N095608) 17335 RON
203 1 2 PIN (N042079) 558 RON
204 1 1 SNAP RING (684179) 558 RON
205 1 1 SPRING (N037001) 893 RON
206 1 1 GUIDE (N034346) 781 RON
207 1 1 SPRING (A29112) 781 RON
208 1 1 GUIDE (A29651) 558 RON
210 1 1 PLATE (N027873) 781 RON
211 1 1 COVER (N029880) 2124 RON
212 1 5 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
213 1 1 BOLT (N029497) 2347 RON
214 1 1 SPRING (N029508) 781 RON
215 1 1 LEVER (N027646) 893 RON
216 1 1 WASHER SPECIAL (608298-00) 558 RON
217 1 1 "SCREW PAN HEAD M4 * 10""" (324007-10) 558 RON
218 1 1 SCALE (N032095) 558 RON
219 1 1 ROD (A28031) 1452 RON
220 1 1 ADJUSTER (N031168) 558 RON
221 1 1 O RING (N027984) 558 RON
222 1 1 ADJUSTER (N027987) 190 RON
223 1 6 SCREW (608930-00) 781 RON
225 1 2 KNOB (397560-00) 190 RON
226 1 2 SCREW (607395-00) 781 RON
227 1 2 Washer Lock (098197-09) 558 RON
228 1 1 BASEPLATE (N029742) 3466 RON
230 1 1 ADAPTOR (A29660) 4137 RON
231 1 1 WASHER (N028927) 558 RON
232 1 1 KNOB (147107-00) 105 RON
233 1 1 GUIDE SA (N026733) 6821 RON
240 1 1 BALL (652836-00) 558 RON
241 1 1 TURRET (326976-01) 2347 RON
242 1 1 SCREW (608928-00) 558 RON
243 1 1 NUT (330015-04) 558 RON
244 1 1 SPACER (652835-00) 558 RON
245 1 1 SPRING (652834-00) 558 RON
246 1 1 WASHER (653599-00) 558 RON
247 1 1 SCREW (330045-07) 558 RON
260 1 1 BRAND LABEL (N029502) 105 RON
261 1 1 NAMEPLATE (N029503) 2347 RON
861 1 1 KITBOX (A28470) 28296 RON
