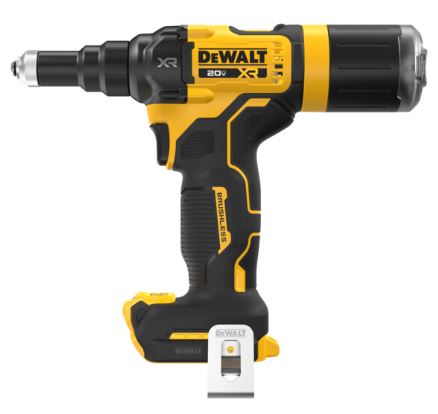

PISTOL DE TRAS NITURI DEWALT DCF403D2GT Type 1
[DCF403D2GT Type 1]
PISTOL DE TRAS NITURI DEWALT DCF403D2GT Type 1
Click pentru a mari
Imagini suplimentare
PISTOL DE TRAS NITURI DEWALT DCF403D2GT Type 1
Click pentru a mari
PISTOL DE TRAS NITURI DEWALT DCF403D2GT Type 1
Click pentru a mari
PISTOL DE TRAS NITURI DEWALT DCF403D2GT Type 1
Click pentru a mari
PISTOL DE TRAS NITURI DEWALT DCF403D2GT Type 1
Click pentru a mari

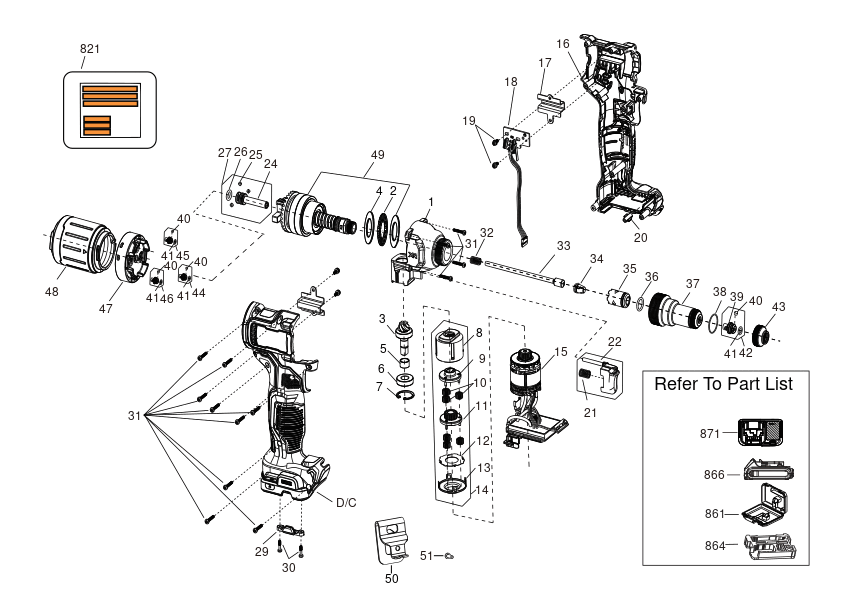

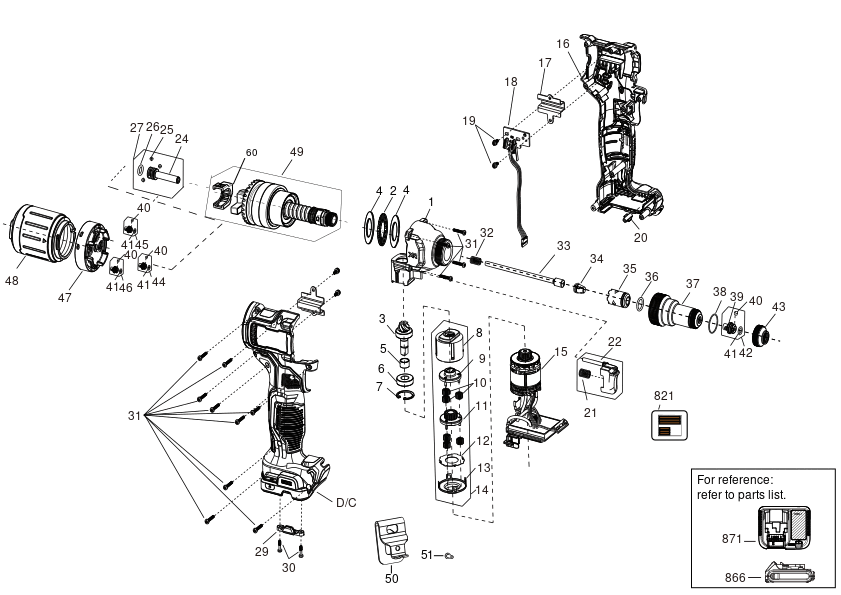

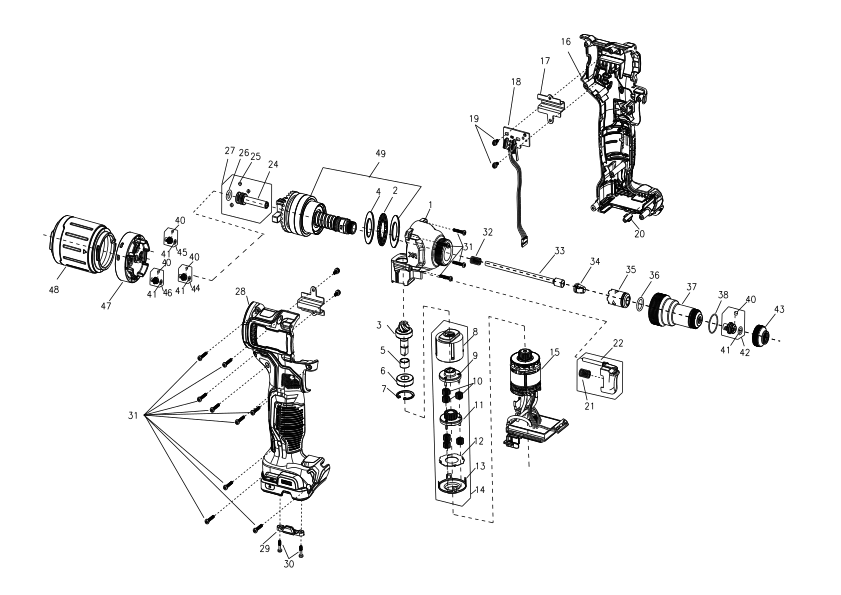

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 GEARBOX (NA085148) 16689 RON
2 1 1 BEARING NEEDLE (NA028113) 3268 RON
3 1 1 PINION SA (NA364474) 12361 RON
4 1 2 BEARING AXIAL (NA181704) 114 RON
5 1 1 SPACER (NA040424) 82 RON
6 1 1 BEARING BALL (N461671) 2182 RON
7 1 1 CIRCLIP (N627210) 588 RON
8 1 1 Gear (NA049579) 6688 RON
9 1 1 CARRIER (NA064173) 1318 RON
10 1 6 3RD REDUCTION PLANET (N031083) 558 RON
11 1 1 CARRIER (NA049584) 1772 RON
12 1 1 WASHER (NA064223) 668 RON
13 1 1 BACKPLATE (NA064225) 1318 RON
14 1 1 GEAR SA (NA364483) 15469 RON
15 1 1 MOTOR SA (NA364487) 78485 RON
16 1 1 HOUSING SA (NA040438) 9012 RON
17 1 2 PLATE (N927441) 114 RON
18 1 1 PCB SA (NA086036) 18568 RON
19 1 4 SCREW (NA226780) 588 RON
20 1 1 LENS (N394333) 588 RON
21 1 1 SPRING (NA116068) 588 RON
22 1 1 TRIGGER (NA075484) 2182 RON
24 1 1 NA152776 - Indisponibil
24 1 1 PIN (NA414853) 5370 RON
25 1 3 STEEL BALL (604107-00) 558 RON
26 1 1 O RING (N515556) 944 RON
27 1 1 BRAKE SA (NA364489) 9012 RON
29 1 1 BLANK COVER AUDIT CHIP (N787996) 588 RON
30 1 2 SCREW (N831593) 588 RON
31 1 13 SCREW PLASTITE (682211-00) 781 RON
32 1 1 SPRING (NA039409) 588 RON
33 1 1 PUSHER (NA033851) 4827 RON
34 1 1 CLAMP KIT SA (NA365501) 741 RON
35 1 1 TUBE (NA045454) 13697 RON
36 1 1 O RING (NA136104) 588 RON
37 1 1 TUBE (NA111296) 15469 RON
38 1 1 O RING (NA191322) 588 RON
39 1 1 NOSE (NA216996) 3954 RON
40 1 1 BARREL (NA030902) 82 RON
41 1 1 O RING (NA192214) 588 RON
42 1 1 NOSE SA 3/16 (NA364503) 6688 RON
43 1 1 CAP (NA111297) 3954 RON
44 1 1 NOSE SA 1/8 (NA364505) 741 RON
45 1 1 NOSE SA 5/32 (NA364504) 741 RON
46 1 1 NOSE SA 3/32 (NA364509) 741 RON
47 1 1 COLLECTOR (NA115417) 1933 RON
48 1 1 NA274436 - Indisponibil
48 1 1 COVER (NA418441) 6688 RON
49 1 1 GEAR SA (NA373989) 228616 RON
49 1 1 NB357643 - Indisponibil
50 1 1 BELT HOOK (N086039) 1788 RON
51 1 1 BELT HOOK SCREW M3 (N042665) 558 RON
60 1 1 HOLDER (NB336990) 1318 RON
821 1 1 RATING LABEL (NA208915) 588 RON
861 1 1 KITBOX DWST1-17807 (N279261) 30769 RON
864 1 1 INSERT (NA159740) 16689 RON
866 1 2 BATTERY 18V - 2.0AH - 36WH (NA143004) 51127 RON
871 1 1 CHARGER (NA373501) 38463 RON
