Top » Piese de schimb » PIESE DEWALT » DCE400NT Type 2

PISTOL DE EVAZAT PEX DEWALT DCE400NT Type 2
[DCE400NT Type 2]
PISTOL DE EVAZAT PEX DEWALT DCE400NT Type 2
Click pentru a mari
Imagini suplimentare
PISTOL DE EVAZAT PEX DEWALT DCE400NT Type 2
Click pentru a mari
PISTOL DE EVAZAT PEX DEWALT DCE400NT Type 2
Click pentru a mari

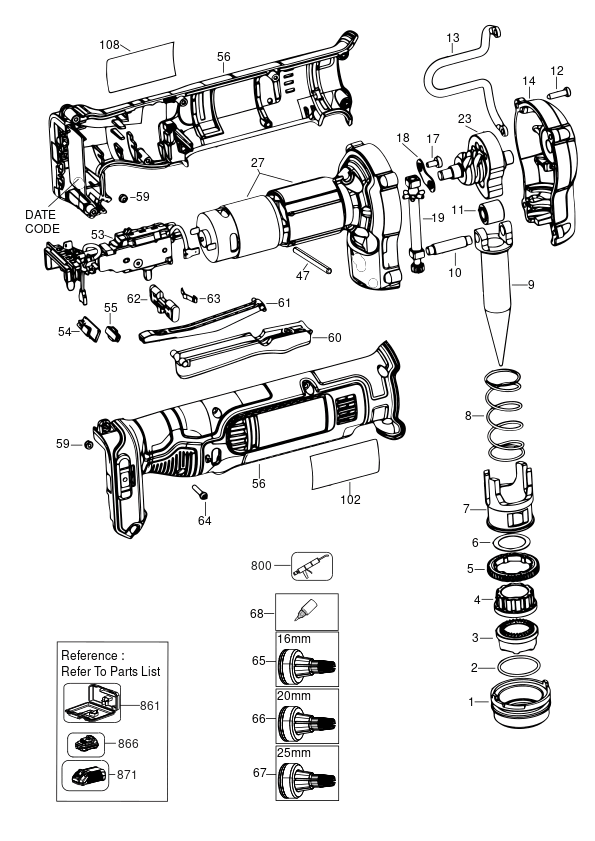

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 COLLER THREAD (N462117) 16689 RON
2 1 1 O RING-28.2x1.8MM (N508447) 114 RON
3 1 1 COLLAR-ROTATING (N462118) 2796 RON
4 1 1 Gear (N462119) 3954 RON
5 1 1 Gear (N462120) 944 RON
6 1 1 WASHER (N462124) 588 RON
7 1 1 SLEEVE-PISTON (N462125) 16689 RON
8 1 1 SPRING PISTON (N440687) 668 RON
9 1 1 SPINDLE CONE (N462121) 18568 RON
10 1 1 PIN-ROLLER (N462123) 2182 RON
11 1 1 ROLLER (N462122) 2556 RON
12 1 4 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
13 1 1 HOOK (N474323) 2182 RON
14 1 1 GEARCASE COVER SA-PKGD N462549 (N660115) 20216 RON
17 1 2 SCREW METAL THD FORM M4X8 T20 (330045-44) 558 RON
18 1 1 COVER (N462217) 588 RON
19 1 1 SHAFT SA-PKGD N462742 (N660116) 24962 RON
23 1 1 GEAR & CAM SA-PKG'D N462126 (N660114) 15469 RON
27 1 1 MOTOR AND GEARCASE (N770086) 85494 RON
47 1 2 PIN-3 x 40MM (N462236) 944 RON
53 1 1 SWITCH SA (N770096) 28836 RON
54 1 1 LED LIGHT (N231799) 2347 RON
55 1 1 LENS (N394333) 588 RON
56 1 1 CLAMSHELL SET (N695771) 741 RON
59 1 2 NUT STOP ELASTIC M3 X 0.5 (330021-11) 558 RON
60 1 1 TRIGGER (N462211) 1772 RON
61 1 1 LINK-TRIGGER (N462212) 944 RON
62 1 1 ACTUATOR-LOCK-OFF (N462213) 114 RON
63 1 1 DETENT SPRING (N392855) 588 RON
64 1 7 SCREW PLASTITE (682211-00) 781 RON
65 1 1 HEAD SA (N715857) 48037 RON
66 1 1 HEAD SA (N715889) 48037 RON
67 1 1 HEAD SA (N715849) 48037 RON
68 1 1 GREASE (1004773-23) 23244 RON
102 1 1 BRAND LABEL (N767369) 1630 RON
108 1 1 RATING LABEL (NA691889) 588 RON
800 1 1 GREASE (N017298) 4825 RON
861 1 1 KITBOX DWST1-17807 (N279261) 30769 RON
