Top » Piese de schimb » PIESE DEWALT » DPN64C-1 Type 1

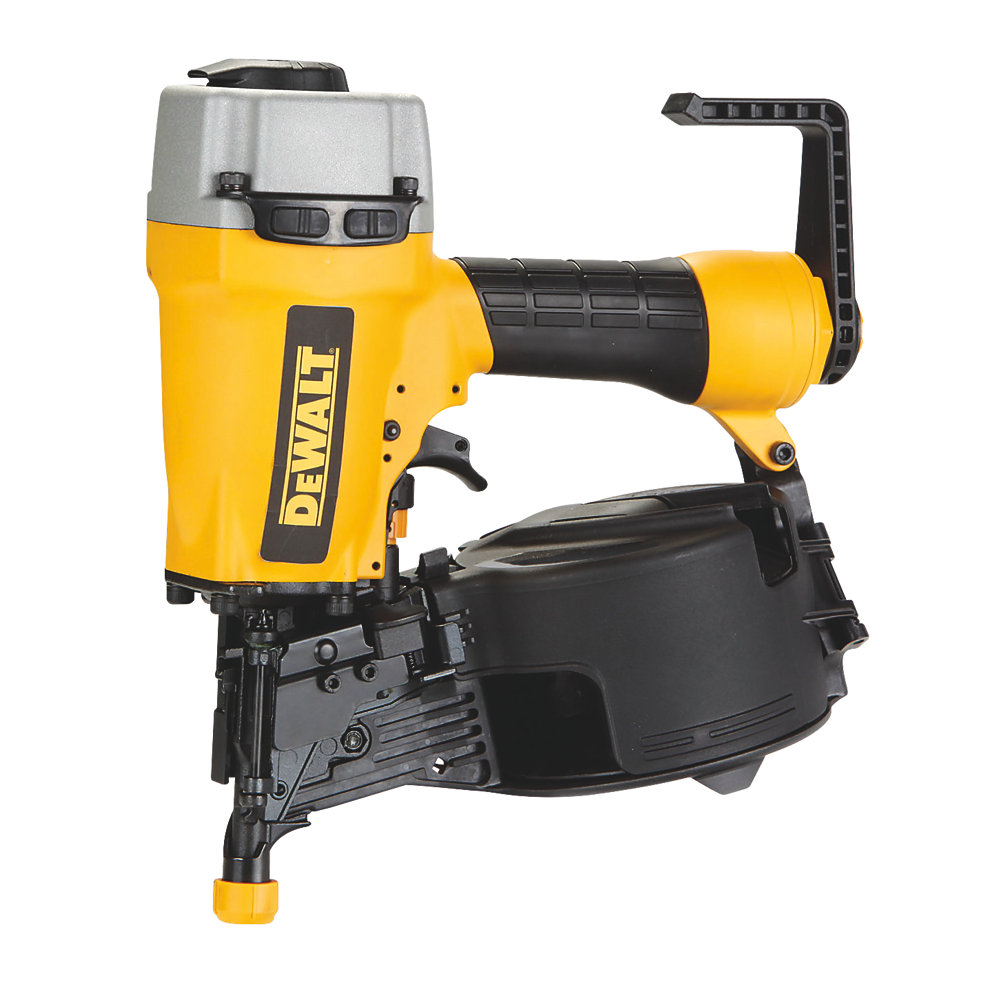

PISTOL D EBATUTR CUIE (BOBINA) DEWALT DPN64C-1 Type 1
[DPN64C-1 Type 1]
PISTOL D EBATUTR CUIE (BOBINA) DEWALT DPN64C-1 Type 1
Click pentru a mari
Imagini suplimentare
PISTOL D EBATUTR CUIE (BOBINA) DEWALT DPN64C-1 Type 1
Click pentru a mari
PISTOL D EBATUTR CUIE (BOBINA) DEWALT DPN64C-1 Type 1
Click pentru a mari

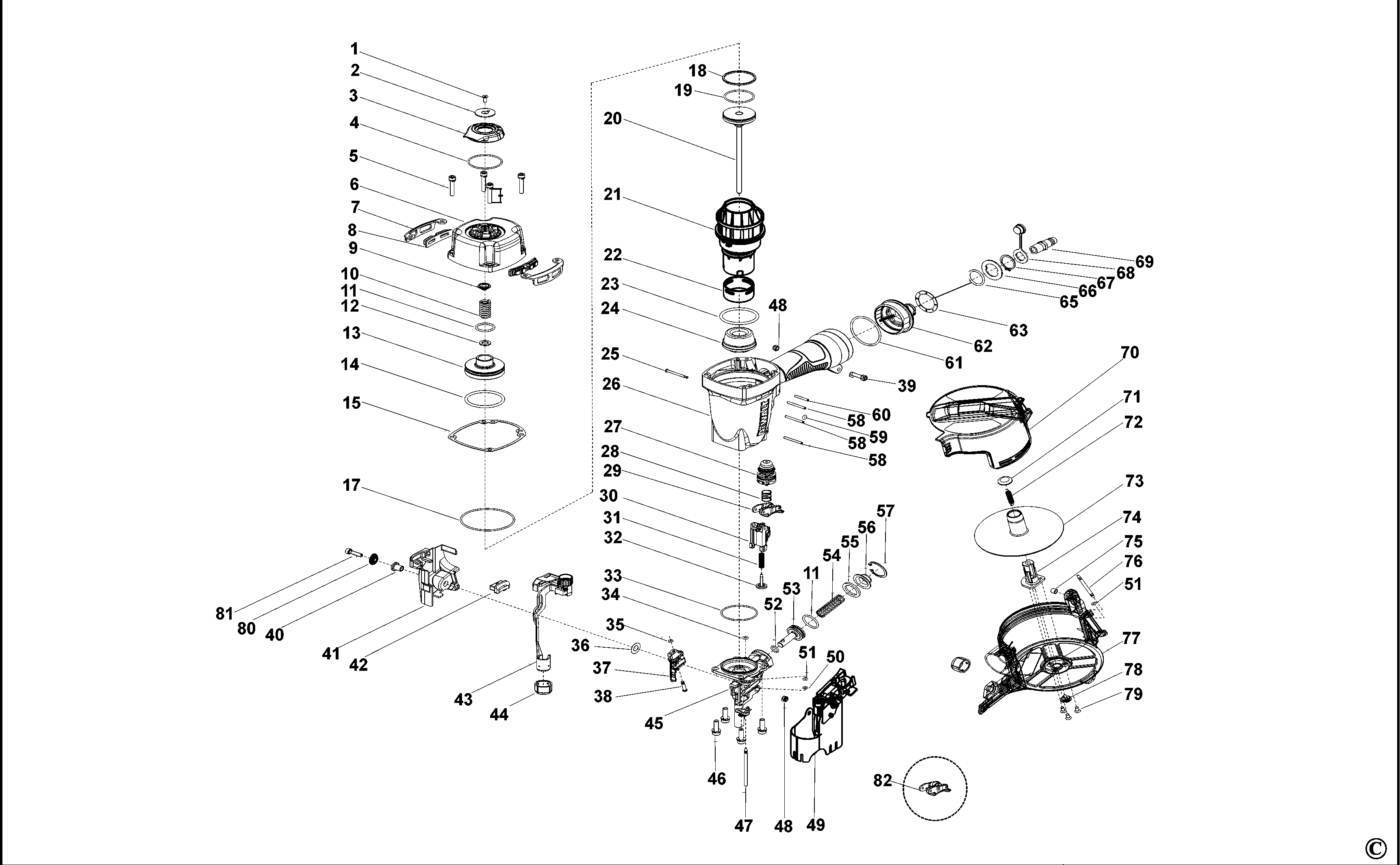

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SCREW,SFHCS,M40X0.7X10 CF15 (174041) 588 RON
2 1 1 SPACER,EXHAUST COVER (174042) 668 RON
3 1 1 COVER,EXHAUST (174043) 944 RON
4 1 1 O RING (174044) 82 RON
5 1 1 SCREW, SHCD, M5X0.80X3 (175554) 588 RON
6 1 1 CAP (9R207485) 15469 RON
7 1 1 BRACKET, RUBBER PAD (174046) 82 RON
8 1 1 PAD, RUBBER (174045) 82 RON
9 1 1 SEAL, DEFLECTOR (174049) 82 RON
10 1 1 SPRING, COMPRESSION (174051) 82 RON
11 1 1 O-RING, 20.8MMX2.4MM (174053) 82 RON
12 1 1 WASHER, SPECIAL (174052) 82 RON
13 1 1 PISTON, HEAD VALVE (174054) 1772 RON
14 1 1 O-RING, 44.7MMX3.5MM (174055) 82 RON
15 1 1 PACKING (174050) 4355 RON
17 1 1 O RING (9R217757) 82 RON
18 1 1 SEAL RING (P2320006600) 82 RON
19 1 1 O-RING (S06S003600) 82 RON
20 1 1 DRIVER UNIT N66C (G0209200) 57833 RON
21 1 1 COLLAR (9R213301) 4355 RON
22 1 1 RING (9R217824) 2796 RON
23 1 1 O-RING,1.859X.139 (86460) 2556 RON
24 1 1 BUMPER, PISTON STOP (174075) 6688 RON
25 1 1 STEPPED PIN (174062) 82 RON
26 1 1 FRAME (9R207421) 35435 RON
27 1 1 TRIGGER (102039) 741 RON
28 1 1 SPRING COMPRESSION (100387) 558 RON
29 1 1 ASSEMBLY,S.T.TRIGGER (107582) 82 RON
30 1 1 GUIDE (9R199740) 893 RON
31 1 1 SPRING (9R199741) 558 RON
32 1 1 SPRING HOLDER (P2845203062) 1630 RON
33 1 1 O-RING,1.739X.070 (851483-S) 82 RON
34 1 1 9R202235 - Indisponibil
34 1 1 O-RING (S06P000400) 82 RON
35 1 1 O-RING (S06A000500) 82 RON
36 1 1 WASHER (P3490000200) 781 RON
37 1 1 ASSEMBLY, FEED JAW/CONNECTOR (G7600200) 16689 RON
38 1 1 SPRING PIN (P2325207562) 82 RON
39 1 1 SCREW SOC HD. CAP M5 X 20 (MSC5080-20) 558 RON
40 1 1 MAGAZINE SPACER (P2325205662) 82 RON
41 1 1 GUARD (P2320005500) 944 RON
42 1 1 RUBBER PAD (P2320005400) 82 RON
43 1 1 CONTACT (9R207475) 12361 RON
43 1 1 9R209546 - Indisponibil
44 1 1 FOOT (9R213318) 668 RON
45 1 1 NOSE (P2840001065) 91363 RON
46 1 1 SCREW (9R195545) 558 RON
47 1 1 DOOR PIVOT PIN (P2325203662) 82 RON
48 1 1 NUT (9R202137) 588 RON
49 1 1 DOOR (9R217661) 21676 RON
50 1 1 O RING (184434) 588 RON
51 1 1 O-RING (S06P000300) 82 RON
52 1 1 9R195331 - Indisponibil
52 1 1 O-RING,.346X.075 (MRG008819) 82 RON
53 1 1 FEED PISTON (P2325504962) 2556 RON
54 1 1 SPRING (P2325205062) 82 RON
55 1 1 FEED PISTON BUMPER (P2322005100) 82 RON
56 1 1 FEED PISTON COVER (P2325205262) 82 RON
57 1 1 C-RING (S15202800) 82 RON
58 1 1 SPIROL PIN (9R203788) 588 RON
59 1 1 O RING (174073) 82 RON
60 1 1 PIN (174070) 82 RON
61 1 1 O-RING,45.7MMX2.62MM N66C (174067) 588 RON
62 1 1 END CAP (9R209578) 4355 RON
63 1 1 SEAT PLATE, HOOK (175582) 82 RON
65 1 1 O-RING (175557) 82 RON
66 1 1 CAP, HOOK (175585) 82 RON
67 1 1 RING, RETAINING (175586) 82 RON
68 1 1 COVER (9R195380) 588 RON
69 1 1 ADAPTOR (159977) 1229 RON
70 1 1 MAGAZINE COVER (P2840002566) 3268 RON
71 1 1 CAP (P1960004866) 82 RON
71 1 1 195018 - Indisponibil
72 1 1 SPRING (191794) 588 RON
73 1 1 NAIL HOLDER (P2840002366) 1318 RON
74 1 1 ADJUSTING POST (P2840002466) 82 RON
75 1 1 BUSHING (P2842003400) 82 RON
76 1 1 PIN (P2845202662) 82 RON
77 1 1 MAGAZINE (P2840002266) 9012 RON
77 1 1 MAGAZINE (G4700300) 24962 RON
78 1 1 CAP (195013) 588 RON
79 1 1 SELF TAPPING SCREW (S1410408400) 82 RON
79 1 1 SCREW (184455) 558 RON
80 1 1 COLLAR (9R217712) 1318 RON
81 1 1 SCREW (MSC5080-25) 82 RON
82 1 1 107581 - Indisponibil
82 1 1 ASSEMBLY,S.T.TRIGGER (107582) 82 RON
82 1 1 TRIGGER (N500093) 1933 RON
