PISTOL D EBATUTR CUIE (BOBINA) DEWALT DCN45RN Type 1
[DCN45RN Type 1]
PISTOL D EBATUTR CUIE (BOBINA) DEWALT DCN45RN Type 1
Click pentru a mari
Imagini suplimentare
PISTOL D EBATUTR CUIE (BOBINA) DEWALT DCN45RN Type 1
Click pentru a mari
PISTOL D EBATUTR CUIE (BOBINA) DEWALT DCN45RN Type 1
Click pentru a mari
PISTOL D EBATUTR CUIE (BOBINA) DEWALT DCN45RN Type 1
Click pentru a mari
PISTOL D EBATUTR CUIE (BOBINA) DEWALT DCN45RN Type 1
Click pentru a mari

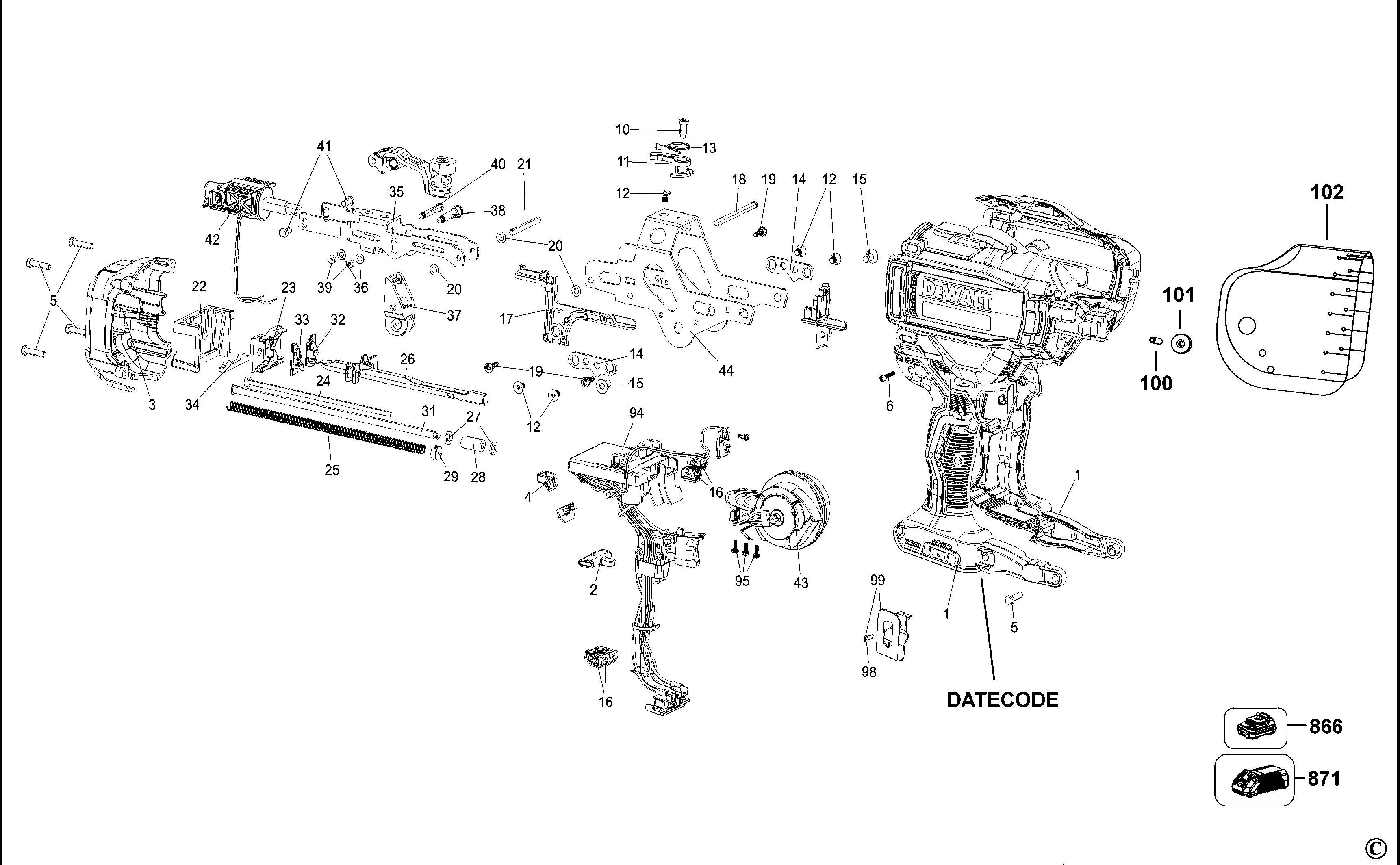

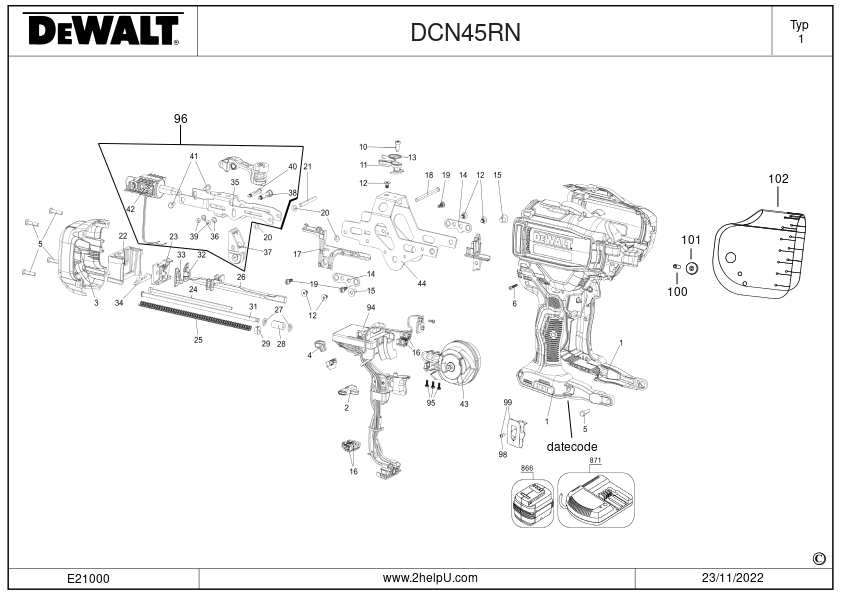

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL SET (N859048) 15469 RON
2 1 1 Trigger Lock Off Cordless Roofer (N606768) 1318 RON
3 1 1 END CAP (N859236) 13697 RON
4 1 1 CRN Led Lens (N607664) 82 RON
5 1 5 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
6 1 8 SCREW PLSTC THD FORM M3*19 T10 (330019-24) 558 RON
10 1 1 SCREW STALL RELEASE (N113536) 781 RON
11 1 1 LEVER, STALL RELEASE (N465817) 82 RON
12 1 5 SCREW (N666247) 668 RON
13 1 1 SPRING (N772267) 944 RON
14 1 2 MOTOR LOCATOR (N562653) 944 RON
15 1 2 SCREW, FLAT HEAD M6X1 (N477247) 588 RON
16 1 4 CONNECTOR (650974-00) 668 RON
17 1 1 Wire Trap Roofing Nailer (N594120) 1772 RON
18 1 1 Roofer Return Cross Pin (N719223) 1318 RON
19 1 3 SCREW PLSTC THD FORM M4.55X13 T20 (330019-11) 558 RON
20 1 3 O-RING ID 4MM (N468984) 588 RON
21 1 1 DOWEL PIN PTO (N389357) 944 RON
22 1 1 Upper Bumper Retainer Holder (N552965) 11337 RON
23 1 1 Upper Bumper Retainer (N554489) 1933 RON
24 1 1 ROOFER BUMPER RAIL(subc) (N555289) 6688 RON
25 1 1 SA PACKED RETURN SPRING (SERVICE) (N233943) 22144 RON
25 1 1 SPRING (N275023) 9012 RON
26 1 1 N565763 - Indisponibil
26 1 1 PROFILE (N863374) 67932 RON
27 1 2 WASHER HARDENED (N088833) 558 RON
28 1 1 SPRING BUMPER (N088831) 1788 RON
29 1 1 SPRING RAIL CLIP (N192671) 558 RON
30 1 1 Screw M3.5X0.6X6 Torx Pan Head (N734819) 588 RON
31 1 1 RAIL (N549961) 2796 RON
32 1 1 UPPER LEFT BUMPER (N717849) 668 RON
33 1 1 UPPER RIGHT BUMPER (N717850) 668 RON
34 1 1 LIFTER (N624713) 114 RON
35 1 1 CARRIAGE (N582925) 15469 RON
36 1 2 Washer Flat Plain Coined (N760345) 588 RON
37 1 1 N554740 - Indisponibil
37 1 1 CARRIER SA (NA004184) 15469 RON
38 1 1 Carrier Pin Springless Lockout (N748090) 1772 RON
39 1 2 WASHER (854004) 781 RON
40 1 1 SOLENOID PIN (N748088) 1630 RON
41 1 2 SCREW (330019-10) 558 RON
42 1 1 SOLENOID ASSEMBLY (N657871) 16689 RON
43 1 1 MOTOR SA (N858334) 91363 RON
44 1 1 FRAME (N552518) 12361 RON
45 1 1 NOSE MACHINED (N596751) 85494 RON
46 1 1 Solenoid Feed (N552958) 15469 RON
47 1 1 Solenoid Clamp (N553678) 3954 RON
48 1 2 Guard Canister (N854218) 114 RON
49 1 1 N596222 - Indisponibil
49 1 1 CANISTER (NA691866) 13697 RON
50 1 1 CANISTER COVER (N596224) 4827 RON
51 1 1 Pin Roll M5X30 (N649096) 588 RON
52 1 1 CRN Magazine Tray (N629458) 2796 RON
53 1 1 Pin Roll M5X50 (N649097) 588 RON
54 1 1 Lifter Magnet Holder (N551196) 668 RON
55 1 1 MAGNET (N659195) 1772 RON
56 1 1 LOWER CONTACT TRIP (N556497) 9012 RON
57 1 1 Upper Contact Trip CRN (N719021) 1933 RON
58 1 1 am Depth Adjust (N614516) 944 RON
59 1 1 KNOB DEPTH ADJUST (N614530) 944 RON
60 1 1 Washer Depth Adjust (N614526) 668 RON
61 1 1 N614533 - Indisponibil
61 1 1 PIN (NA283172) 1772 RON
62 1 1 Contact Trip Switch Actuator (N585739) 1318 RON
63 1 1 SPRING DRY FIRE LOCK OUT (N392036) 588 RON
64 1 1 FILLISTER HEAD SCREW (949894-06) 558 RON
65 1 1 Roofer Door (N612701) 23244 RON
66 1 2 ROLL PIN (N638486) 588 RON
67 1 1 Check Pawl Axle (N618840) 82 RON
68 1 1 CHECK PAWL (N618755) 944 RON
69 1 1 CANISTER LATCH (N612412) 3268 RON
70 1 1 SPRING (N564896) 668 RON
71 1 1 SPRING (N638458) 588 RON
72 1 1 PIN (N625012) 114 RON
73 1 1 SCREW (608177-00) 558 RON
74 1 2 ROLL PIN (N638486) 588 RON
75 1 1 N660409 - Indisponibil
75 1 1 SPRING (N826643) 668 RON
76 1 1 Spring Contact Trip (N564889) 668 RON
77 1 1 BUMPER (N717126) 3954 RON
78 1 1 Mono Bumper Damper (N551500) 2182 RON
79 1 1 Roofer Lower Bumper Retainer (N556774) 1318 RON
80 1 2 SCREW (N605427) 588 RON
81 1 1 FEED PAWL (N611860) 10241 RON
82 1 1 Feed Pawl Spring (N638808) 588 RON
83 1 1 Plunger Feed (N552959) 5370 RON
84 1 1 Spring Feed (N558974) 668 RON
85 1 1 CRN Lifter (N586178) 3954 RON
86 1 1 AXLE (N589968) 944 RON
87 1 1 LIFTER (N594212) 944 RON
88 1 1 BRUSH (N638168) 1772 RON
89 1 1 MAGNET (N511697) 588 RON
90 1 1 STOP (N575468) 114 RON
91 1 1 WIRE COVER (N596223) 1772 RON
92 1 1 Feed Solenoid Gap Pad (N657541) 3954 RON
94 1 1 SWITCH SA (N859234) 96047 RON
95 1 1 SCREW (N403241) 588 RON
96 1 1 CARRIAGE SA (NA261268) 85494 RON
98 1 1 BELT HOOK SCREW M3 (N042665) 558 RON
99 1 1 HOOK SA (N268241) 1772 RON
100 1 1 ROLL PIN (330036-19) 558 RON
101 1 1 COLLAR (N704856) 944 RON
102 1 1 SHIELD (N606477) 2182 RON
700 1 1 RATING PLATE (N885472) 668 RON
706 1 1 LABEL (N828722) 588 RON
707 1 1 LABEL (N760642) 588 RON
707 1 1 NB158199 - Indisponibil
708 1 1 WARNING LABEL (N760643) 1630 RON
711 1 1 LABEL SET (N863372) 2182 RON
