Top » Piese de schimb » PIESE DEWALT » DCN650 Type 1

PISTOL DE CUIE IN UNGHI DEWALT DCN650 Type 1
[DCN650 Type 1]
PISTOL DE CUIE IN UNGHI DEWALT DCN650 Type 1
Click pentru a mari
Imagini suplimentare
PISTOL DE CUIE IN UNGHI DEWALT DCN650 Type 1
Click pentru a mari

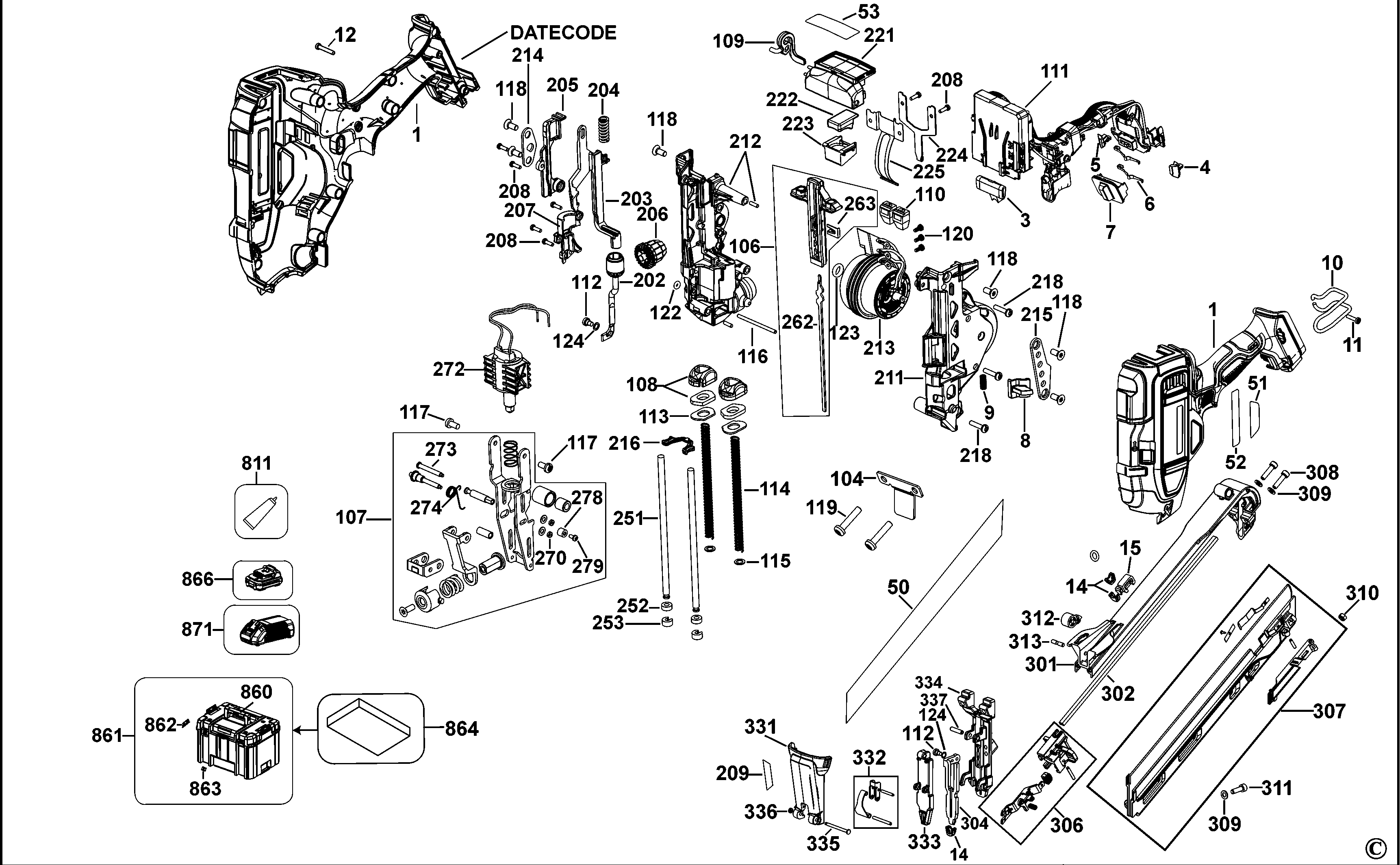

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL SET (N534480) 32327 RON
3 1 1 SA TRIGGER LOCK OFF BAR BULK (SERVICE) (N505451) 4827 RON
4 1 1 LENS (N488751) 944 RON
5 1 1 LENS (N488782) 944 RON
6 1 1 DETENT SPRING (N388602) 82 RON
7 1 1 SA MODE SELECT SWITCH BULK (SERVICE) (N505458) 4355 RON
8 1 1 SA STALL RELEASE BUTTON BULK (SERVICE) (N505465) 4827 RON
8 1 1 BUTTON RELEASE (NA166130) 4355 RON
9 1 1 SPRING (N411486) 588 RON
10 1 1 HOOK (N410943) 2182 RON
11 1 1 SCREW PLSTC THD FORM M3.5X19 T15 (330019-52) 558 RON
12 1 12 SCREW PLSTC THD FORM M3*19 T10 (330019-24) 558 RON
14 1 3 NO MAR TIP (N490008) 944 RON
15 1 1 ADAPTOR (N496662) 944 RON
50 1 1 N512101 - Indisponibil
50 1 1 RATING PLATE (N614263) 3268 RON
51 1 1 LABEL (N512102) 588 RON
52 1 1 LABEL ID (N502011) 588 RON
53 1 1 LABEL (N515516) 588 RON
104 1 1 GUIDE (N477029) 944 RON
106 1 1 DRIVER SA (N532145) 23244 RON
107 1 1 N531783 - Indisponibil
107 1 1 CARRIAGE SA (N568372) 39318 RON
108 1 2 SA PACKED BUMPER PARTS DCN66# (SERVICE) (N446577) 6688 RON
109 1 1 ACTUATOR (N532613) 1318 RON
110 1 2 CONNECTOR (650974-00) 668 RON
111 1 1 CONTROL MODULE SA (N532140) 96047 RON
112 1 1 SCREW (N499064) 588 RON
113 1 2 BUMPER PLATE (N376891) 588 RON
114 1 1 SA PACKED SPRINGS FOR DCN66# (SERVICE) (N446578) 12361 RON
115 1 2 RETURN RAIL WASHER (N383361) 588 RON
116 1 1 DOWELL PIN 3MM (N410969) 588 RON
117 1 2 SCREW (N491757) 588 RON
118 1 10 SCREW, FLAT HEAD, MAGFORM (N386788) 588 RON
119 1 2 SCREW, MAGFORM (N383360) 588 RON
120 1 3 SCREW (N403241) 588 RON
122 1 1 O-RING ID 2.0MM (N439188) 588 RON
123 1 1 O-RING (N407991) 588 RON
124 1 1 WASHER (N527579) 588 RON
202 1 1 TRIP SA (N703753) 13697 RON
202 1 1 N478921 - Indisponibil
203 1 1 N374940 - Indisponibil
203 1 1 REAR CONTACT TRIP 16GA (MOULD) (N587377) 1772 RON
204 1 1 COMPRESSION SPRING (N378115) 588 RON
205 1 1 SA REAR CONTACT TRIP COVER (MOULD) (N378116) 1630 RON
206 1 1 SA DEPTH ADJUST KNOB (MOULD) (N367663) 2556 RON
207 1 1 SA DEPTH ADJUST COVER (MOULD) (N367666) 2182 RON
208 1 7 SCREW M3 MAGFORM (N379045) 588 RON
209 1 1 LABEL (N512103) 588 RON
211 1 1 LEFT FRAME PACKED (N377231) 23244 RON
212 1 1 SA RIGHT FRAME AND PINS (SERVICE) (N496177) 30769 RON
213 1 1 SA PACKED MOTOR FOR DCN66# (SERVICE) (N446570) 48037 RON
214 1 1 MOTOR LOCATOR RIGHT FRAME (N378063) 668 RON
215 1 1 MOTOR LOCATOR LEFT FRAME (N377923) 114 RON
216 1 1 N376266 - Indisponibil
216 1 1 RETAINER (NA181312) 944 RON
218 1 3 SCREW (613619-00) 781 RON
221 1 1 BACK BUMPER SUPPORT (N378032) 13697 RON
222 1 1 BUMPER (N528907) 3954 RON
223 1 1 RETAINER (N528908) 114 RON
224 1 1 SKID PAD (N367683) 82 RON
225 1 1 PROFILE LIFTER SPRING (N455371) 4355 RON
251 1 2 16GA RETURN RAIL (N439725) 2556 RON
252 1 2 SPRING BUMPER (N378014) 588 RON
253 1 2 SA SPRING RAIL CLIP (N402150) 588 RON
262 1 1 DRIVER (N476474) 12361 RON
263 1 1 CLIP (392206-00) 781 RON
270 1 2 GROMMET (391814-00) 781 RON
272 1 1 SA PACKED SOLENOID DCN66# (SERVICE) (N446579) 11337 RON
273 1 1 PIN (633207-00) 781 RON
274 1 1 16GA PTO TORSION SPRING (N377077) 668 RON
278 1 1 RETAINING SLEEVE (N377076) 944 RON
278 1 1 N930029 - Indisponibil
279 1 1 N491759 - Indisponibil
279 1 1 SCREW (N915746) 588 RON
301 1 1 MAGAZINE (N474073) 11337 RON
302 1 1 LINER(APS ONLY) (9R192015) 4355 RON
304 1 1 CONTACT (N474075) 741 RON
304 1 1 N560619 - Indisponibil
306 1 1 PUSHER (9R203871) 5370 RON
307 1 1 MAGAZINE SA (9R203861) 12361 RON
308 1 2 SCREW SOC HD. CAP M5 X 20 (MSC5080-20) 558 RON
309 1 3 WASHER (180569) 82 RON
310 1 1 LOCK-NUT (MHE5080-100) 82 RON
311 1 1 SCREW (9R217764) 588 RON
312 1 1 HUB (N496042) 4355 RON
313 1 1 PIN (N496020) 82 RON
331 1 1 LATCH (N480358) 2796 RON
332 1 1 SA LATCH SPRING (PHANT) (N406158) 2796 RON
333 1 1 DOOR (N480915) 15469 RON
334 1 1 NOSE (N480650) 48037 RON
334 1 1 N562693 - Indisponibil
335 1 1 PIN (N391844) 588 RON
336 1 1 GROMMET (391814-00) 781 RON
337 1 1 ROLLPIN (N494988) 588 RON
811 1 1 LOCTITE 271 (851325) 16689 RON
860 1 1 HANDLE (H1400198008) 2347 RON
860 1 1 H1400196008 - Indisponibil
861 1 1 KITBOX (N445186) 39318 RON
862 1 1 LATCH (N409477) 114 RON
862 1 2 LATCH (H1500082520) 1117 RON
863 1 2 LATCH (P910190) 3466 RON
864 1 1 FOAM (P910738) 20216 RON
866 1 1 BATTERY 18V -5.0AH -90WH (N394624) 104961 RON
871 1 1 N450536 - Indisponibil
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
871 1 1 CHARGER 10.8V - 18V (NA010209) 51127 RON
999 1 1 O-RING (N407991) 588 RON
