Top » Piese de schimb » PIESE DEWALT » DCN680 Type 1

PISTOL DE CUIE CALIBRU 18 DEWALT DCN680 Type 1
[DCN680 Type 1]
PISTOL DE CUIE CALIBRU 18 DEWALT DCN680 Type 1
Click pentru a mari
Imagini suplimentare
PISTOL DE CUIE CALIBRU 18 DEWALT DCN680 Type 1
Click pentru a mari
PISTOL DE CUIE CALIBRU 18 DEWALT DCN680 Type 1
Click pentru a mari

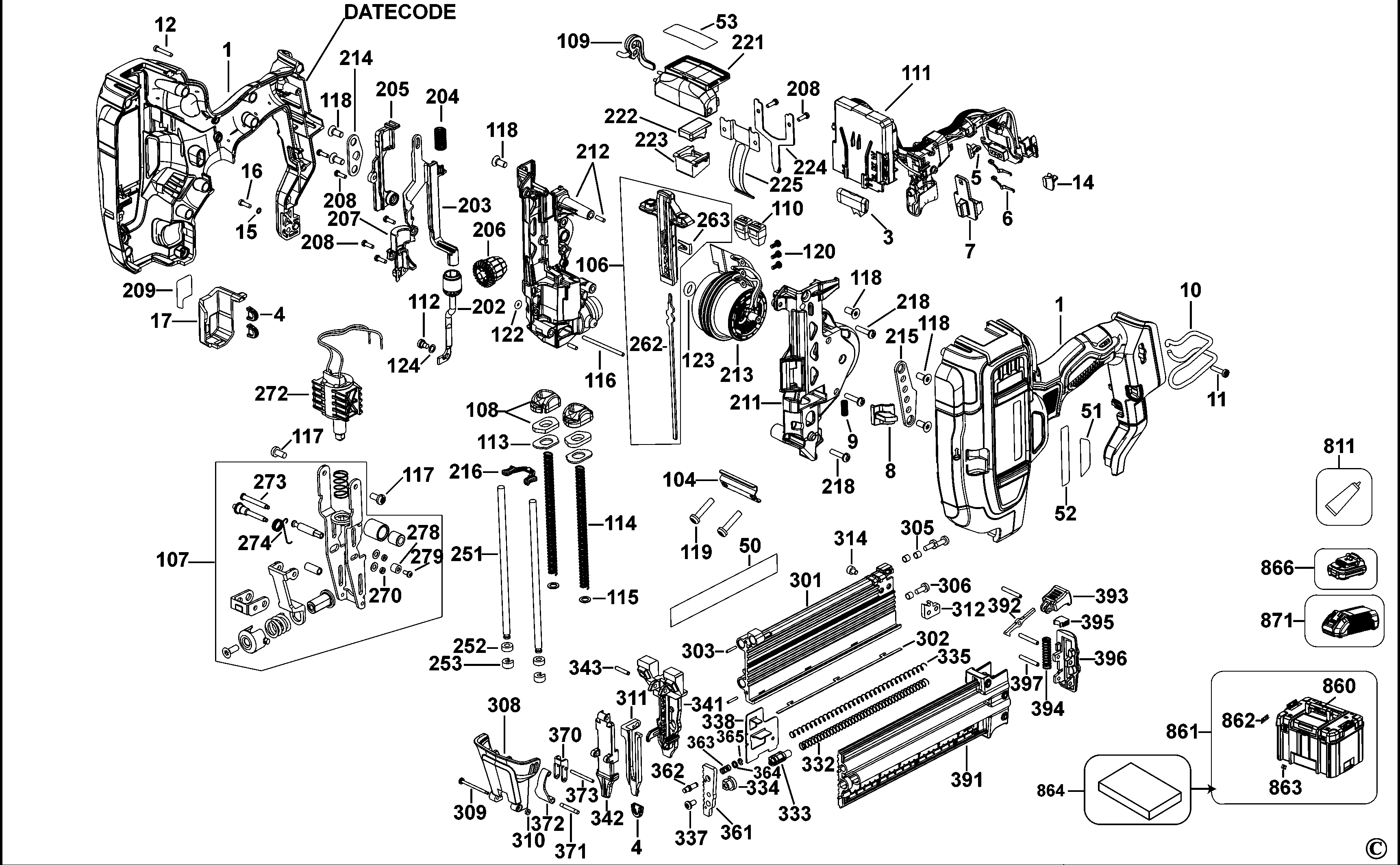

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL SET (N530570) 20216 RON
3 1 1 BUTTON LOCK-OFF (N468738) 944 RON
4 1 3 N489383 - Indisponibil
4 1 3 N558471 - Indisponibil
4 1 3 N660460 - Indisponibil
4 1 3 NO MAR TIP (N569446) 944 RON
5 1 1 LIGHT LENS RIGHT (N471571) 1630 RON
6 1 2 DETENT SPRING (N388602) 82 RON
7 1 1 SELECTOR (N466948) 1933 RON
8 1 1 SA STALL RELEASE BUTTON BULK (SERVICE) (N505465) 4827 RON
8 1 1 BUTTON RELEASE (NA166130) 4355 RON
9 1 1 SPRING (N411486) 588 RON
10 1 1 HOOK (N410943) 2182 RON
11 1 1 SCREW PLSTC THD FORM M3.5X19 T15 (330019-52) 558 RON
12 1 12 SCREW PLSTC THD FORM M3*19 T10 (330019-24) 558 RON
14 1 1 LIGHT LENS LEFT (N468840) 1630 RON
15 1 1 180504 - Indisponibil
15 1 1 WASHER-FLAT, ID 4.30 x OD 8.0 x T 1.0 (N905878) 588 RON
16 1 1 SCREW SHCS M4X0.7X10 (174069) 558 RON
17 1 1 SHROUD (N468112) 2182 RON
50 1 1 RATING PLATE (N498327) 944 RON
51 1 1 LABEL 18GA FLYWHEEL DCN680 (N496807) 82 RON
52 1 1 LABEL ID (N502011) 588 RON
53 1 1 LABEL BACK DCN680 EURO (N515515) 944 RON
104 1 1 PLATE (N465881) 588 RON
106 1 1 DRIVER SA (N531786) 27287 RON
107 1 1 N531783 - Indisponibil
107 1 1 CARRIAGE SA (N568371) 39318 RON
108 1 2 SA PACKED BUMPER PARTS DCN66# (SERVICE) (N446577) 6688 RON
109 1 1 ACTUATOR (N532613) 1318 RON
110 1 2 CONNECTOR (650974-00) 668 RON
111 1 1 ELECTRONIC AND SWITCH (N531784) 73079 RON
112 1 1 SCREW (N499064) 588 RON
113 1 2 BUMPER PLATE (N376891) 588 RON
114 1 1 SA PACKED SPRINGS FOR DCN66# (SERVICE) (N446578) 12361 RON
115 1 2 RETURN RAIL WASHER (N383361) 588 RON
116 1 1 DOWELL PIN 3MM (N410969) 588 RON
117 1 2 SCREW (N491757) 588 RON
118 1 10 SCREW, FLAT HEAD, MAGFORM (N386788) 588 RON
119 1 2 SCREW, MAGFORM (N383360) 588 RON
120 1 3 SCREW (N403241) 588 RON
122 1 1 O-RING ID 2.0MM (N439188) 588 RON
123 1 1 O-RING (N407991) 588 RON
124 1 1 WASHER (N527579) 588 RON
202 1 1 N455526 - Indisponibil
202 1 1 TRIP SA (N561939) 13697 RON
203 1 1 N374940 - Indisponibil
203 1 1 REAR CONTACT TRIP 16GA (MOULD) (N587377) 1772 RON
204 1 1 COMPRESSION SPRING (N378115) 588 RON
205 1 1 SA REAR CONTACT TRIP COVER (MOULD) (N378116) 1630 RON
206 1 1 SA DEPTH ADJUST KNOB (MOULD) (N367663) 2556 RON
207 1 1 SA DEPTH ADJUST COVER (MOULD) (N367666) 2182 RON
208 1 7 SCREW M3 MAGFORM (N379045) 588 RON
209 1 1 LABEL DEPTH ADJUST DCN680 (N496809) 944 RON
211 1 1 LEFT FRAME PACKED (N377231) 23244 RON
212 1 1 SA RIGHT FRAME AND PINS (SERVICE) (N496177) 30769 RON
213 1 1 SA PACKED MOTOR FOR DCN66# (SERVICE) (N446570) 48037 RON
213 1 1 MOTOR SA (N590301) 51127 RON
214 1 1 MOTOR LOCATOR RIGHT FRAME (N378063) 668 RON
215 1 1 MOTOR LOCATOR LEFT FRAME (N377923) 114 RON
216 1 1 N376266 - Indisponibil
216 1 1 RETAINER (NA181312) 944 RON
218 1 3 SCREW (613619-00) 781 RON
221 1 1 BACK BUMPER SUPPORT (N378032) 13697 RON
222 1 1 BUMPER (N515311) 3954 RON
223 1 1 RETAINER (N515810) 944 RON
224 1 1 SKID PAD (N367683) 82 RON
225 1 1 PROFILE LIFTER SPRING (N455371) 4355 RON
251 1 2 16GA RETURN RAIL (N439725) 2556 RON
252 1 2 SPRING BUMPER (N378014) 588 RON
253 1 2 SA SPRING RAIL CLIP (N402150) 588 RON
262 1 1 DRIVER (N455722) 12361 RON
263 1 1 CLIP (392206-00) 781 RON
270 1 2 GROMMET (391814-00) 781 RON
272 1 1 SA PACKED SOLENOID DCN66# (SERVICE) (N446579) 11337 RON
273 1 1 PIN (633207-00) 781 RON
274 1 1 16GA PTO TORSION SPRING (N377077) 668 RON
278 1 1 RETAINING SLEEVE (N377076) 944 RON
278 1 1 N930029 - Indisponibil
279 1 1 N491759 - Indisponibil
279 1 1 SCREW (N915746) 588 RON
301 1 1 MAGAZINE (N465442) 741 RON
302 1 1 LINER (N468132) 82 RON
303 1 4 PIN (180490) 82 RON
305 1 3 BUSHING (395505-00) 781 RON
306 1 3 SCREW (330045-69) 781 RON
308 1 1 COVER (N469100) 2556 RON
309 1 1 PIN (N469099) 668 RON
310 1 1 GROMMET (N469155) 668 RON
311 1 1 CONTACT (N465274) 4827 RON
312 1 1 REAR PLATE (180500) 893 RON
314 1 1 SCREW (N476406) 588 RON
332 1 1 PUSHER SPRING A (180495) 558 RON
333 1 1 PUSHER (9R208925) 588 RON
334 1 1 NUT (180238) 82 RON
335 1 1 PUSHER SPRING B (180496) 781 RON
337 1 1 SCREW (9R196691) 588 RON
338 1 1 PUSHER (N467369) 1318 RON
341 1 1 NOSE (N465938) 18568 RON
342 1 1 DOOR (N464378) 741 RON
343 1 1 PIN (181920) 588 RON
361 1 1 PLATE (175662) 1318 RON
362 1 1 PIN (N466494) 588 RON
363 1 1 SPRING (180492) 82 RON
364 1 1 SPACER (180493) 82 RON
365 1 1 CIRCLIP (180494) 82 RON
370 1 1 BRACKET (180553) 82 RON
371 1 1 PIN (9R205606) 1318 RON
372 1 1 SPRING (9R196740) 1772 RON
373 1 1 SPIROL PIN (195327) 588 RON
391 1 1 MAGAZINE SLIDING (181915) 6821 RON
391 1 1 MAGAZINE (180221) 741 RON
392 1 1 LATCH (180501) 82 RON
393 1 1 COVER (9R208926) 668 RON
394 1 1 SPRING (180502) 82 RON
395 1 1 SUPPORT (180319) 82 RON
396 1 1 END CAP (175665) 82 RON
397 1 3 PIN (180503) 82 RON
811 1 1 LOCTITE 271 (851325) 16689 RON
860 1 1 HANDLE (H1400198008) 2347 RON
860 1 1 H1400196008 - Indisponibil
861 1 1 KITBOX (N445186) 39318 RON
862 1 1 LATCH (N409477) 114 RON
862 1 2 LATCH (H1500082520) 1117 RON
863 1 2 LATCH (P910190) 3466 RON
864 1 1 PAD FOAM DCN660NT (N433995) 9012 RON
866 1 1 SA DCB183-XJ SERVICE EURO (SERVICE) (N314783) 80865 RON
871 1 1 N450536 - Indisponibil
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
871 1 1 CHARGER 10.8V - 18V (NA010209) 51127 RON
